Aluminum Profile - Horizontal Connector
Print Profile(4)
Description
Boost Me (for free)
✨ Every click on "Support" is a gentle boost to my creations! If you encounter printing issues or have great modeling/printing suggestions, feel free to leave a comment in the discussion section. If you like it, don’t forget to give it a like, save it, and show your support with a "Support" click!
🔗 Aluminum Profile - Horizontal Connector (Compatible with 20×20 / 30×30 / 40×40)
—— Precise Fit · Stable Load-bearing · Modular Expansion
Designed for 3D printing enthusiasts and makers, this European standard aluminum profile horizontal connector component is perfectly compatible with mainstream 20×20, 30×30, and 40×40 millimeter standard profiles, enabling seamless joining and horizontal reinforcement of multiple profile sections to easily build complex structures such as stable frames, racks, and display stands!
✅ Adjustable Length｜✅ No Screws Needed｜✅ Quick Installation｜✅ Reliable Strength｜✅ Open Ecosystem
🧩 Core Functionality: Horizontal Connection + Structural Reinforcement
This connector is specifically designed to solve the pain point of "horizontal connection between profiles":

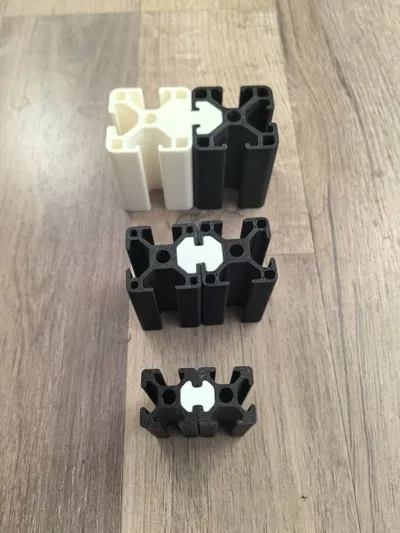

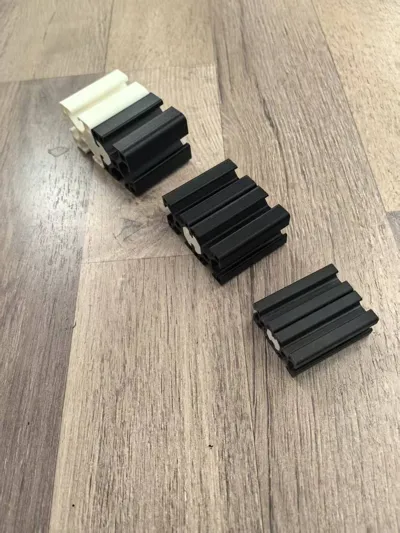

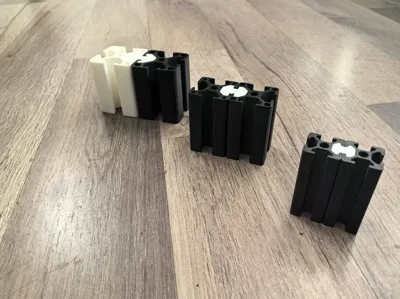

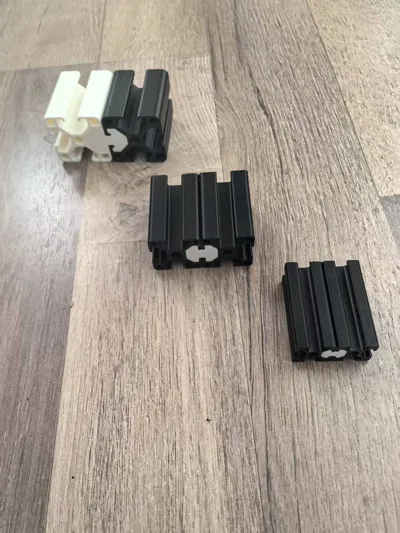

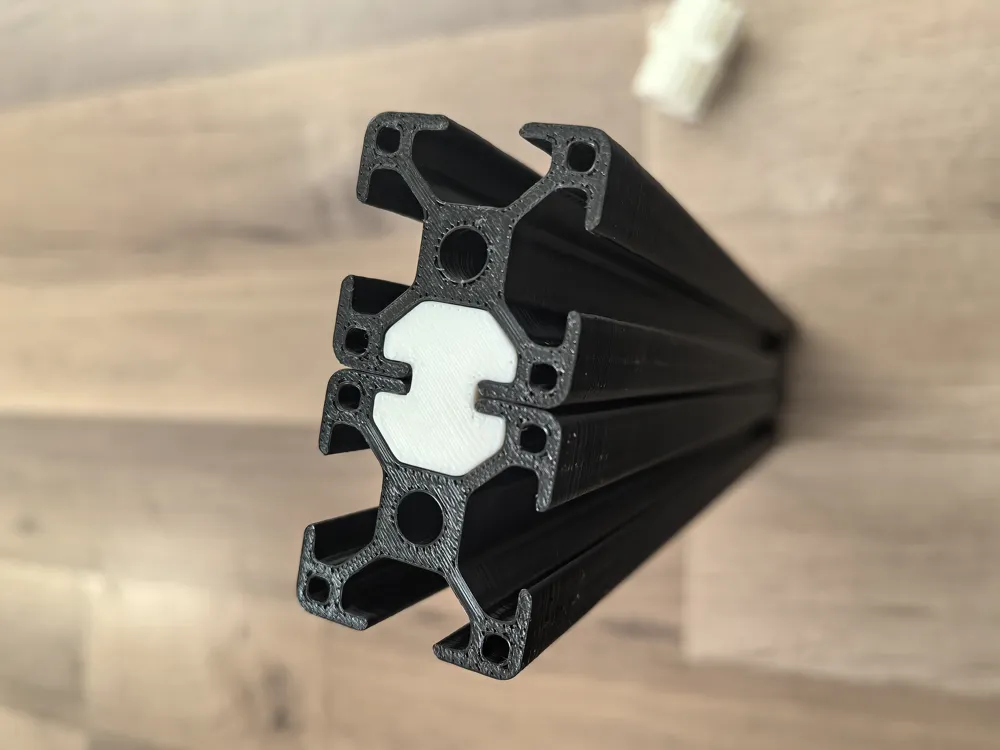

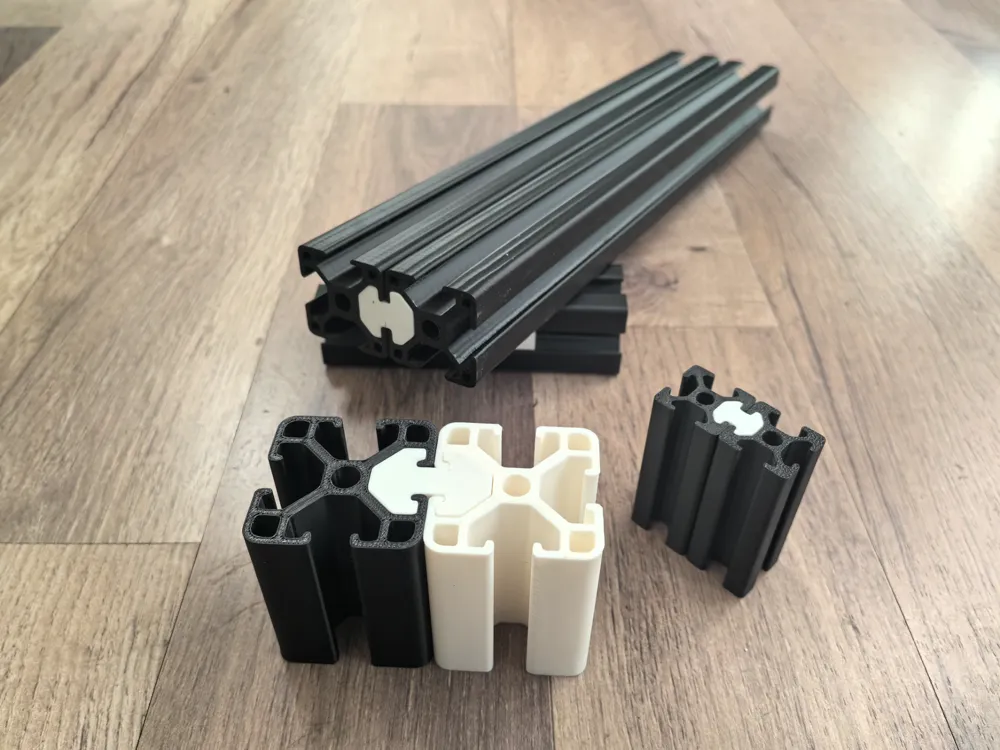

- Achieve flush splicing of multiple profile sections: tightly joining two or more profiles of the same specification in the horizontal direction
- Enhance overall rigidity: effectively preventing lateral displacement and twisting through a snap-in embedded design
- Support free extension: the length of the connector can be adjusted arbitrarily to adapt to different span requirements
- No additional fasteners required: adopts a self-locking snap-fit structure, fixed upon insertion, convenient for assembly and disassembly
💡 Particularly suitable for scenarios requiring high stability but also wanting to reduce the number of screws, such as robot chassis, workbench beams, and shelf supports.
🔧 Specifications & Compatibility
Table
| Model | Compatible Profile Size | Connection Method | Default Length | Recommended Material |
|---|---|---|---|---|
| 20×20 mm | 20×20 | Snap-in embedding | 50 mm | PETG / ABS |
| 30×30 mm | 30×30 | Snap-in embedding | 50 mm | PETG / ABS |
| 40×40 mm | 40×40 | Snap-in embedding | 50 mm | PETG / ABS |
🛠️ Freely Adjust Length —— One Model, Multiple Uses!

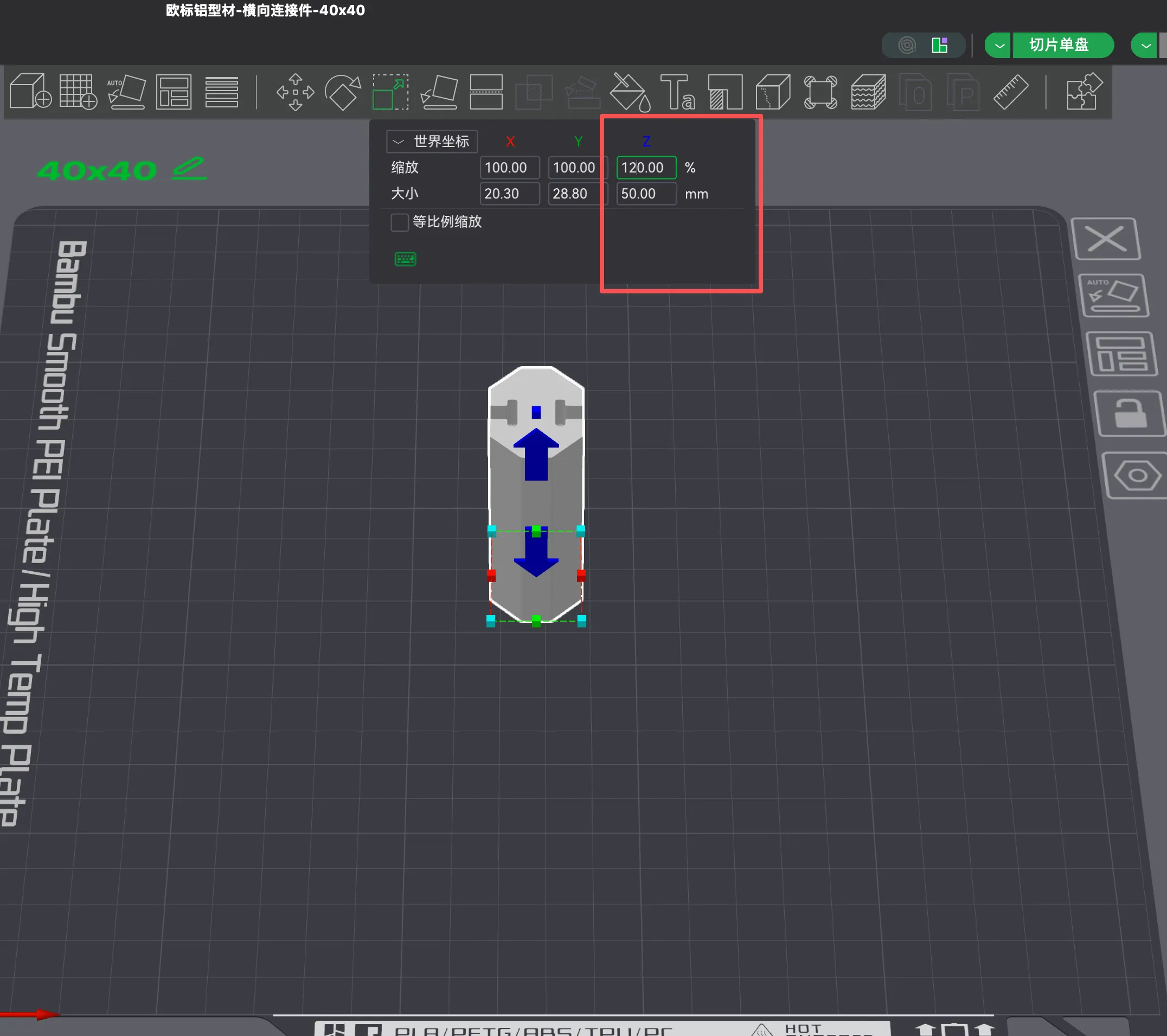

All models support flexible length adjustment in Bambu Studio or other slicer software via the "Z-axis independent scaling" feature, achieving true "one model, multiple uses."
How to operate?
- Press the hotkey S or click the [Scale] button in the top toolbar
- Uncheck ☑️ "Uniform Scale"
- In the Z-axis input box, set the desired ratio (for example: 200% = 100mm)
- Click confirm to complete the adjustment
💡 Example: Scale the default 50mm height to 300%, and you will get a 150mm long horizontal connector.
✅ X/Y axes remain unchanged, ensuring the cross-section perfectly matches the actual aluminum profile size and guaranteeing assembly accuracy.
🔍 Design Highlights
✅ Snap-in Embedded Structure
- Internally equipped with elastic flanges and guide grooves, automatically aligning and locking upon insertion
- No screws required, quick installation, suitable for frequent disassembly scenarios
- Supports bidirectional insertion, making it more flexible to use
✅ High-Strength Structural Optimization
- Multi-rib reinforcement design to enhance bending resistance
- Thickened bottom treatment to increase contact area and disperse stress
- Smooth surface to avoid scratching the profile surface
✅ No Supports Required for Printing
- The model has been fully optimized and can be printed flat
- All overhangs use an inwardly recessed design to avoid support residue
- No sanding needed after printing, can be installed and used directly
🖨️ Printing Recommendations
Table
| Parameter | Recommended Value |
|---|---|
| Material | PETG (preferred), ABS, PLA |
| Layer Height | 0.2 mm |
| Number of walls | ≥5 (for enhanced edge strength) |
| Infill Density | 40% ～ 80% (adjust according to load) |
| Support | ❌ Not required |
| Print Orientation | Bottom face down, print upright |
⚠️ Note: If printing with PLA, ensure a dry environment; for PETG printing, it is recommended to turn on the fan and use an enclosed printer.
🛠️ Ecosystem Expansion, Infinite Creativity
This product is a core connection component of the [Aluminum Profile Accessories Collection] and is recommended for use with the following parts:
- 🔷 3D Right-Angle Connector (M2/M3) —— For building right-angle frames
- 🔷 T-Bracket & Straight Connector —— For branching and extension
- 🔷 End Cap & Seal Strip —— For beautifying profile end faces
- 🔷 Sliding Rail Base & Guide Rail Clamp —— For connecting motion mechanisms

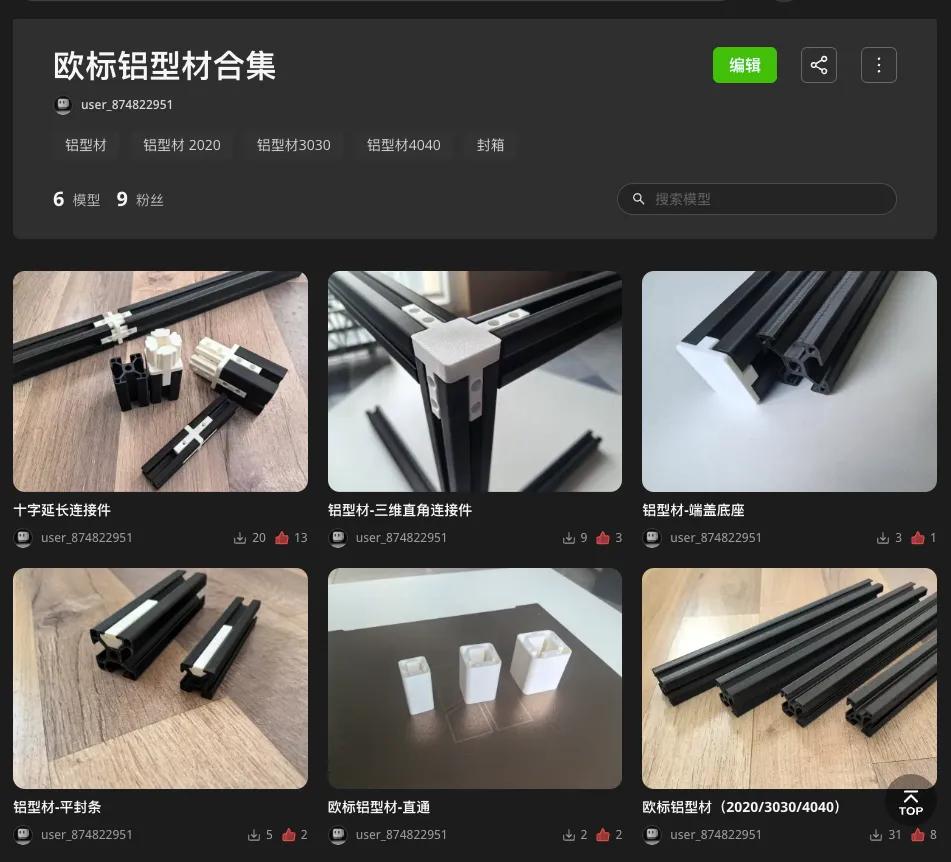

👉 Click to view: Aluminum Profile Accessories Library Collection (continuously updated)
🌟 Recommended Use Cases
- ✅ Robot Chassis: Used for connecting front and rear beams, enhancing structural stability
- ✅ Workbench/Display Stand: Serves as horizontal support, increasing load-bearing capacity
- ✅ 3D Printer Frame: Replaces traditional metal guides, reducing assembly difficulty
- ✅ Industrial Prototype Rack: Quickly builds test platforms, supports modular upgrades
- ✅ DIY Storage System: Builds expandable shelf support structures
🚀 Download and Use Immediately, Easy to Get Started
Download the model files now and start your creative building journey!
Boost Me (for free)
❤️ If this model catches your eye, don't hesitate to click 【Help】! Your one-second action is the warmest cup of coffee ☕️ for me while I stay up late tuning parameters. A quick 【Like】【Save】【Download】 is equally heartwarming support! Even better, share your printed creations 📸—learn from each other, grow together, and let creativity flow!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
