Side Locking Clamp for Roller Shutters 55 mm
Print Profile(1)
Description
📏 General Description

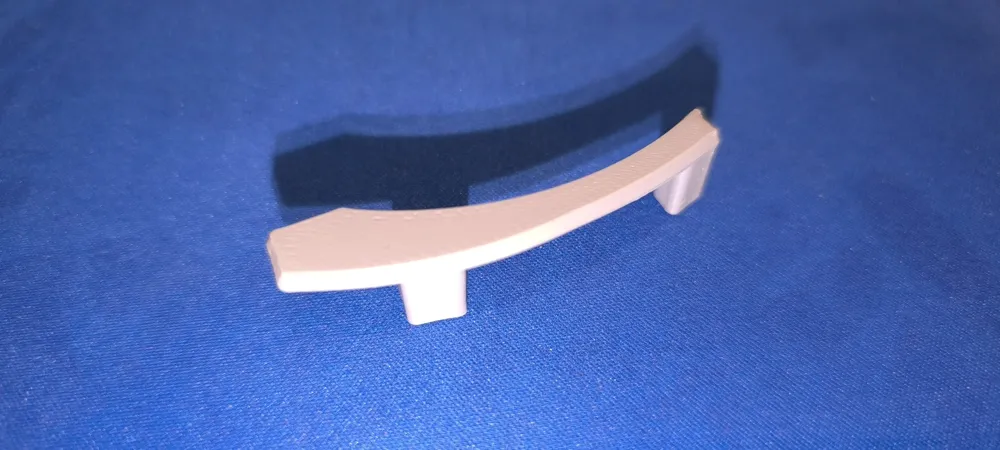

This side locking clamp serves to secure roller shutter profiles laterally, to prevent individual profiles from shifting against each other.
The model is designed for a cover dimension of 55 mm.

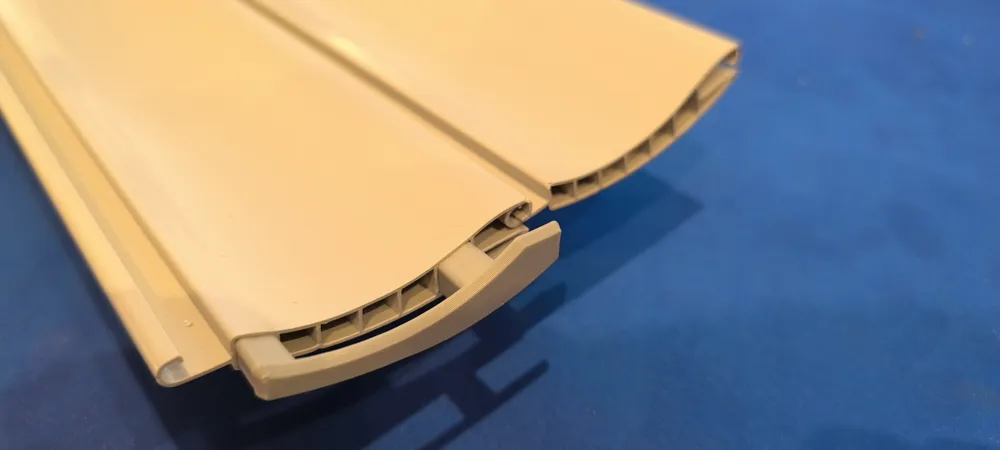

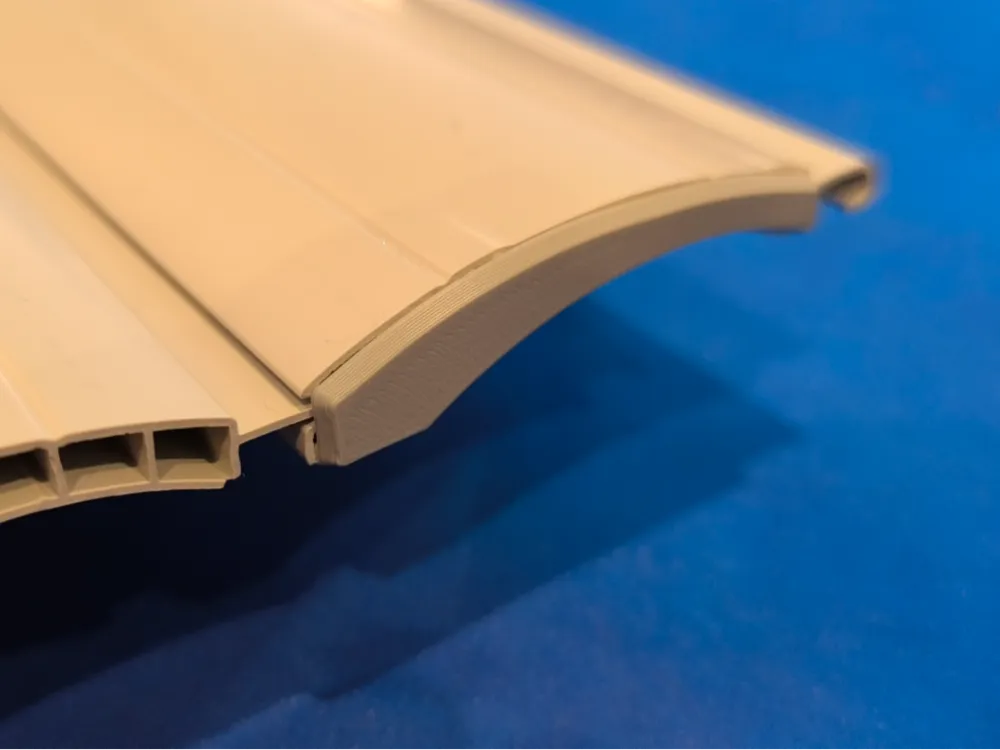

In the present application, the clamp is used with the Aalen P55 profile.
🧩 Compatibility
- ✔️ Designed for 55 mm cover dimension
- ✔️ Tested with Aalen P55 profile
- ⚠️ Other profiles might fit, but this must be individually checked before use
🖨️ Print Recommendations
- 🧱 Printed Material: PETG
- 🔁 Alternative: TPU
- Advantage: higher flexibility
- Can improve clamping effect and reduce material breakage
⚠️ Important Notes
- ❗ 3D printed parts are not to be equated with industrially manufactured components
- ❗ The mechanical durability strongly depends on:
- Print settings
- Material
- Installation situation
🛠️ Use at your own risk
This model is intended as an aid and spare part.
Its use is exclusively at your own risk.
💡 Note
Before final use, it is recommended to:
- perform a test print
- check the fit
