Parametric Holster Belt Mount

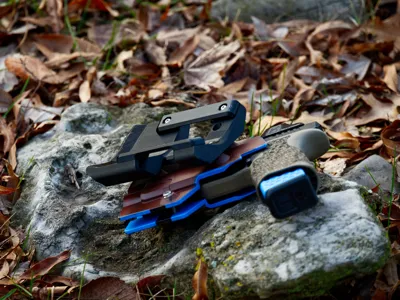

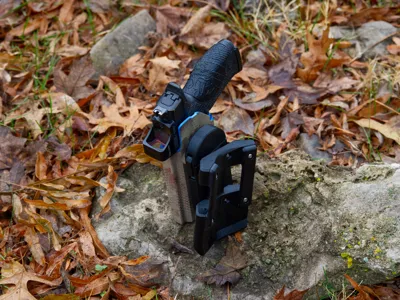

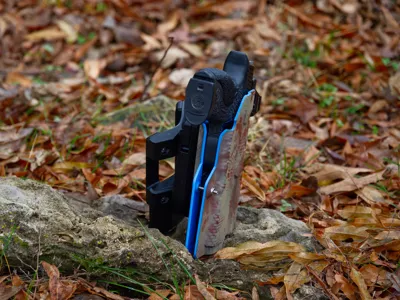

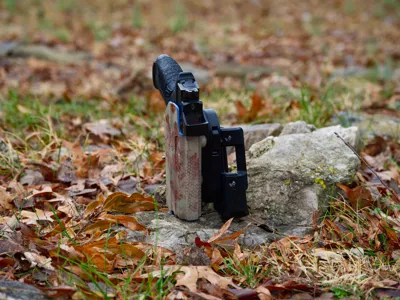

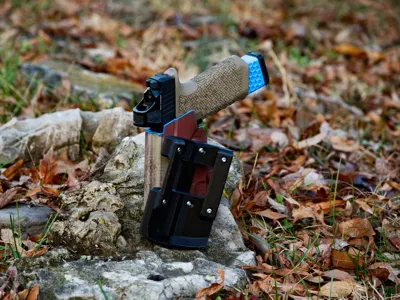

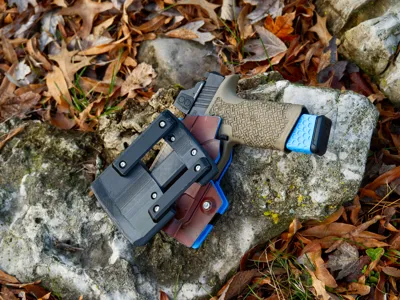

  This is a long requested item to support my existing OWB Holster designs.  They were originally supported by my parametric competition shooting rig, but many guys wanted a way to mount it on the belt directly.  Here it is.  A parametric belt mount for Safariland pattern holsters, including the plethora of OWB holsters I have available for Glock 19/17s, Smith and Wesson M&Ps and Walther PDPs.

  The basic print profile is my personal setup.  It's a right handed design, canted forward 17 degrees, using #8-32 hardware which is standard for these types of holsters.  Using the parametric setup, you can adjust the angle up to 40 degrees, which would be -20 degrees back and up to 20 degrees forward.  If you don't want to use #8-32 hardware,  you adjust the mm measurements in the parametric settings to whatever hardware you prefer.

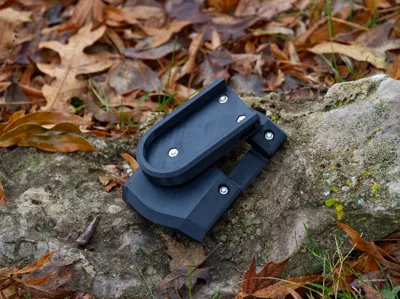

  Currently, you'll need 7 #8-32 button head screw.  4 for the belt loops and 3 for the holster.  You'll need 4 nylock nuts for the belt loops, and then whatever fits in your holster, if it doesn't come with them installed.  If you're using one of my holsters, you'll need 3 regular #8-32 nuts.

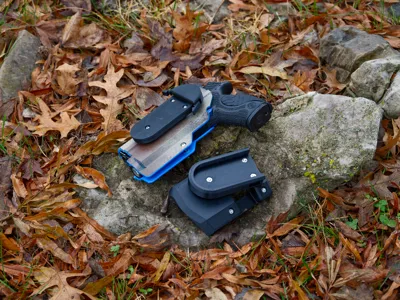

  This is also compatible with the AX Mount in my Parametric Holster Hanger Design.  You can print the hub from there, attach it to this belt mount and swap out holsters as needed.

  If you're new to the AuxArc lineup of shooting gear, be sure to check out my other stuff, including parametric ammo boxes, a wide variety of Optics Cut OWB and IWB holsters that accommodate a growing number of firearms with and without lights, and other accessories like battery packs for your range box.  Appreciate any comments, critique, requests, etc.  The stuff that you guys are seeing and requesting is what's driving the pipeline here.  I have a Glock 17 w/ TLR-1 in testing right now, and I'm starting the process on Walther PDP holsters now that I have the first one out.  Thanks so much guys.
