PICATINNY RAIL FOR HK G-36

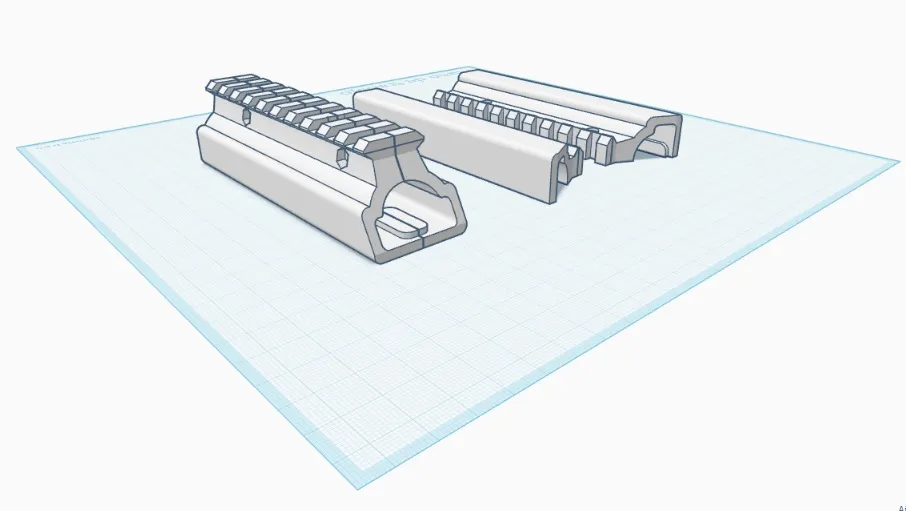

It is difficult to find an adaptable rail for this rifle (1:1 airsoft size, a completely exact replica ;-)), without replacing important parts, which often leads us to forgo certain conveniences, such as a flashlight or a laser sight. Based on this idea, I decided to design a "remove and replace" (plug & play) accessory that would allow adding options without having to make modifications to the weapon.
ASSEMBLY:

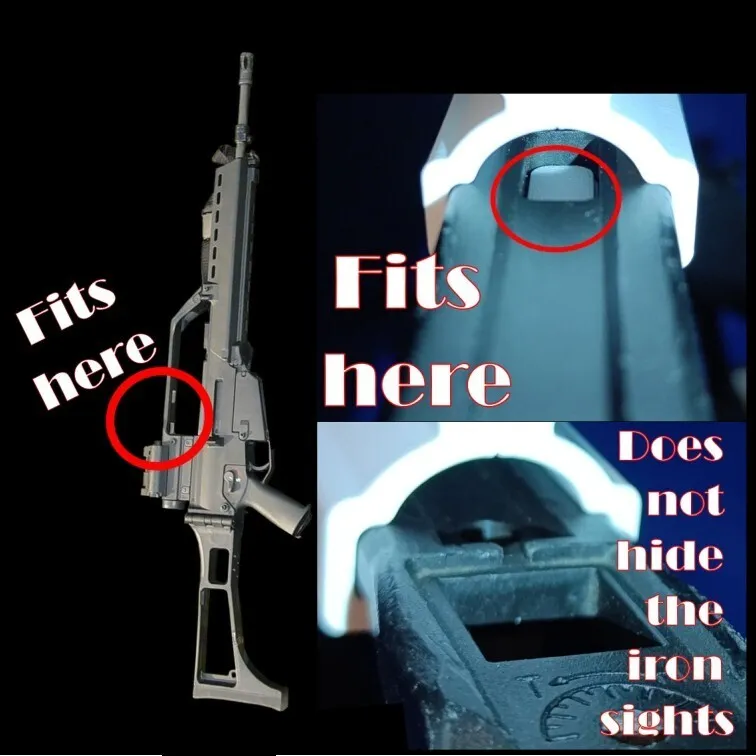

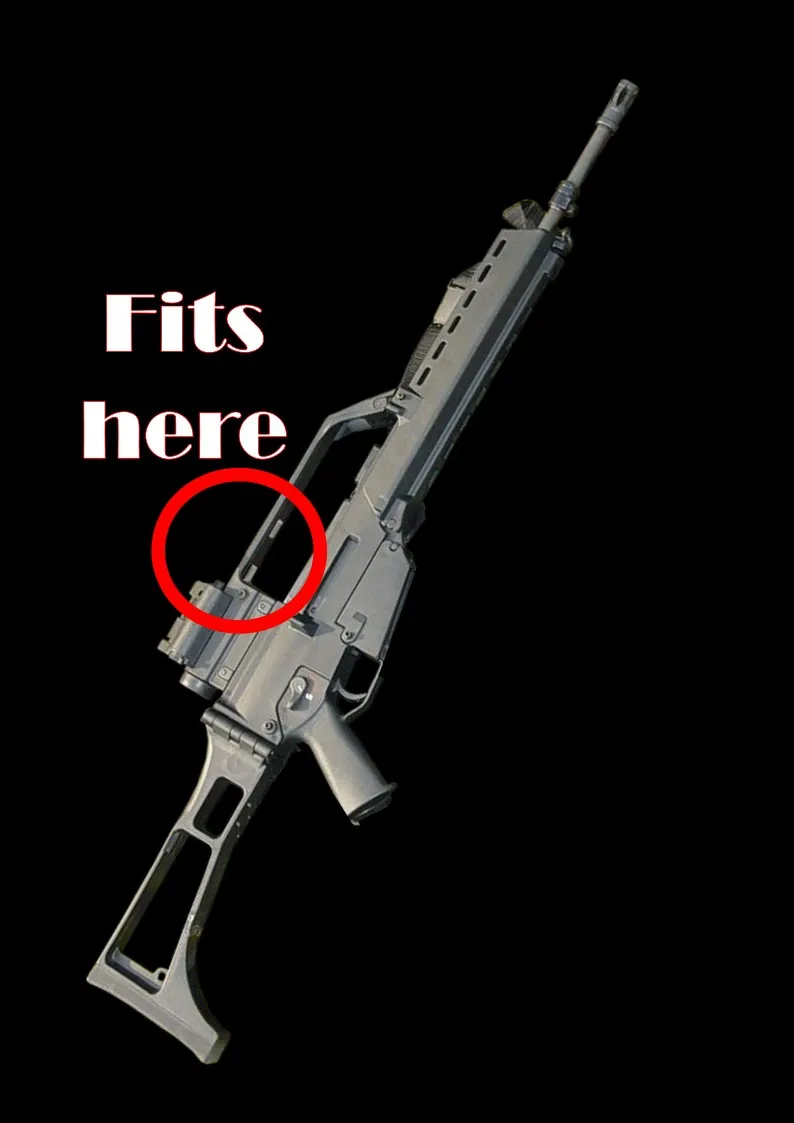

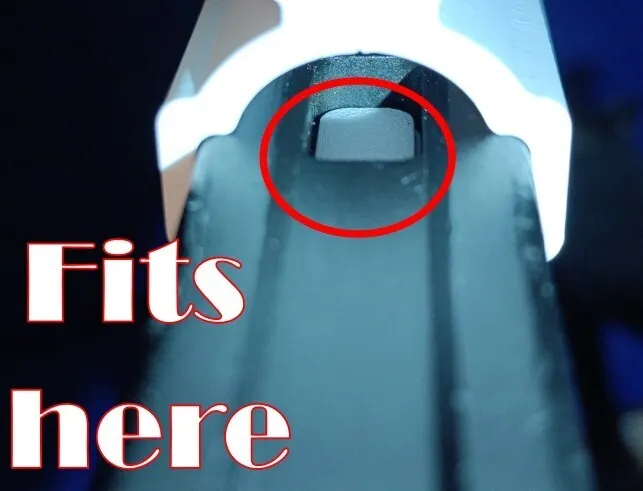

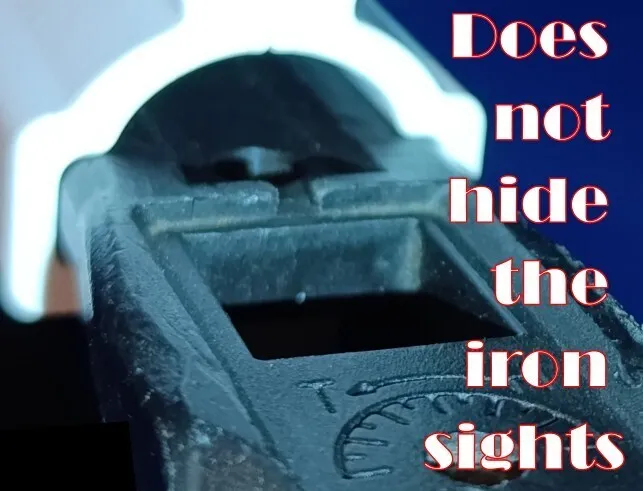

This attachment is applied to the area indicated in the image. It is adjusted laterally by two screws with nuts, which keeps it centered, and it uses a recess in the sight area to secure it and prevent it from moving forwards or backwards. It installs quickly and removes easily, with the aid of just a screwdriver.
REQUIRED MATERIAL:

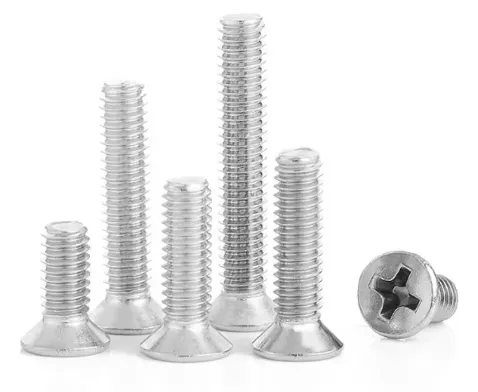

Regarding the screws, the size should be M3 40 mm with a countersunk head, available at any large retailer. Although they are easy to find, as I have indicated, below I share a link to a famous product sales website:
