🔧 Parametric Multi-Cable Clip – Fully Customizable
This is a fully parametric multi-cable clip designed in Fusion 360, allowing you to easily customize all key dimensions using the Customise menu before printing.

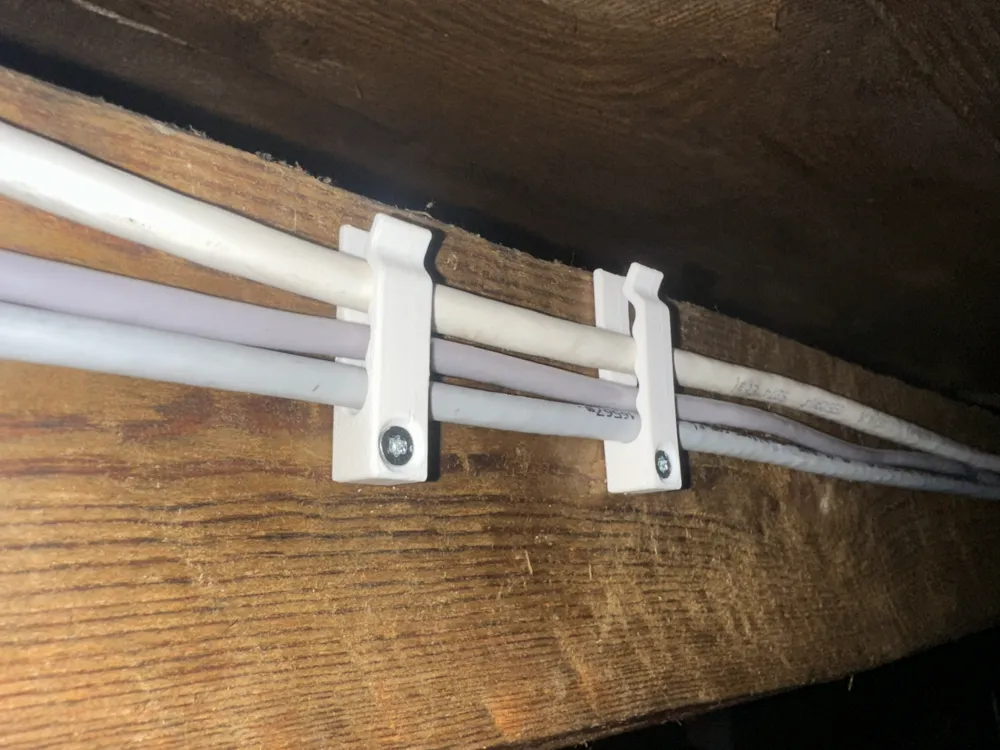

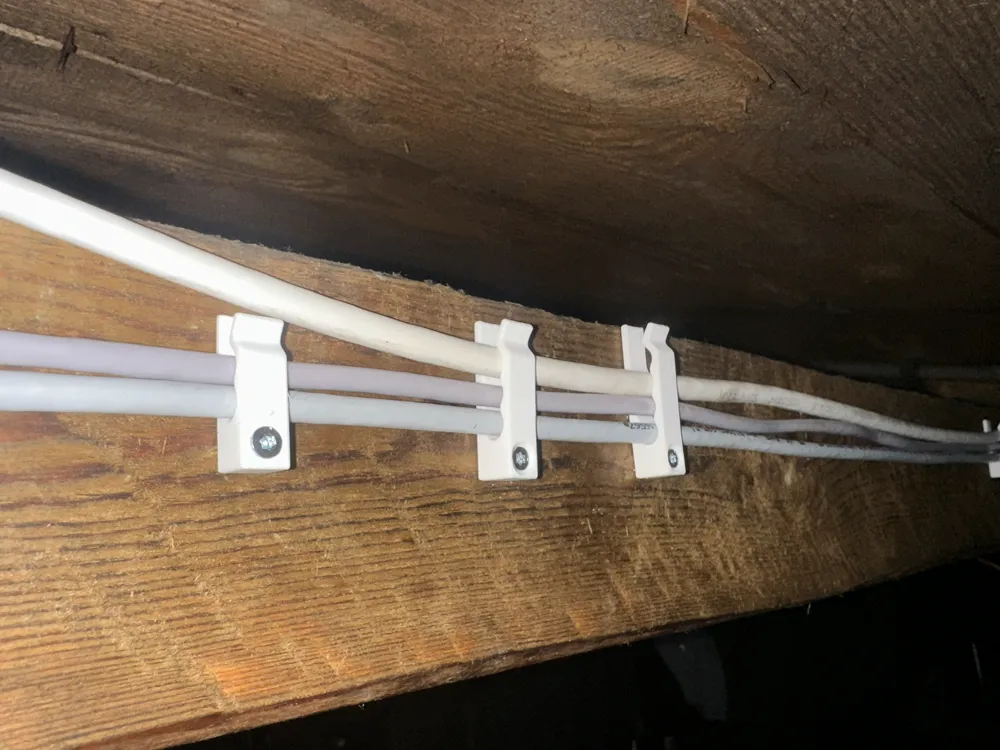

The clip supports multiple cables, adjustable entry and gap tightness, and a screw-mounted design, making it ideal for clean and secure cable management in workshops, homes, server racks, and 3D printer setups.
✨ Features
- Fully customizable parametric design
- Adjustable number of cables
- Configurable cable diameter and fit tolerance
- Adjustable entry and inter-cable gap tightness
- Secure screw mounting
- Print-friendly geometry (no supports required)
🛠 Customisable Parameters
- Number of cables
- Cable diameter and tolerance
- Entry tightness (snap-in strength)
- Cable gap tightness (retention between adjacent cables)
- Wall thickness
- Screw diameter and offset
🖨 Printing Tips
- Recommended material: PLA / PETG
- Layer height: 0.2 mm
- Infill: 15–25%
- Supports: Not required
- Print orientation: On its side
If you find this model useful, feel free to like, download👍
