Xtool F2Ultra Dual Laser and UV Docking station
Print Profile(2)
Bill of Materials
.jpg){kind=small}
Description

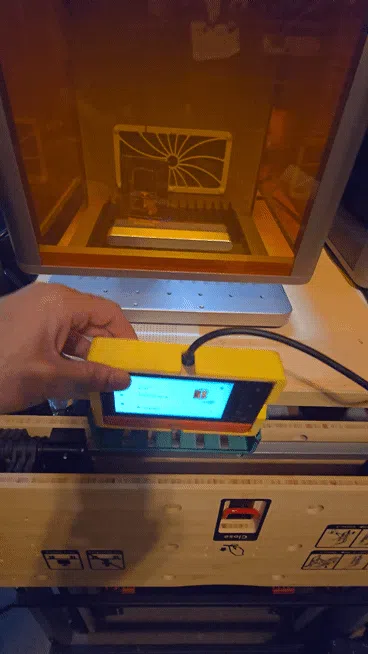

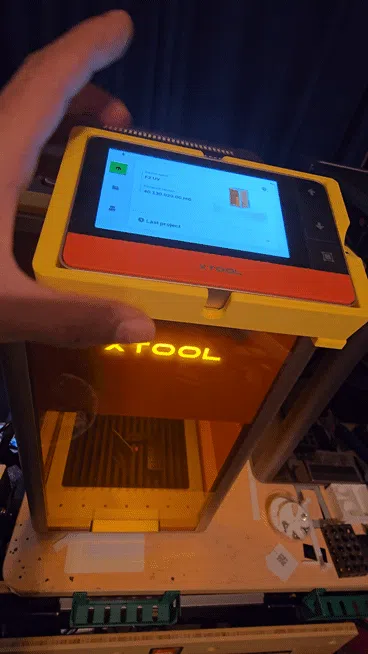

!!! Warning, DO NOT LIFT THE COVER ALL THE WAY UP WITHOUT REMOVING THE DOCK FROM THE STATIONARY STATION !!!
The reason for this is: The cable isnt long enough! Remove the Dock with the touchscreen in you are intending to Lift the cover.
Use PLA Tough + or PETG or something good.

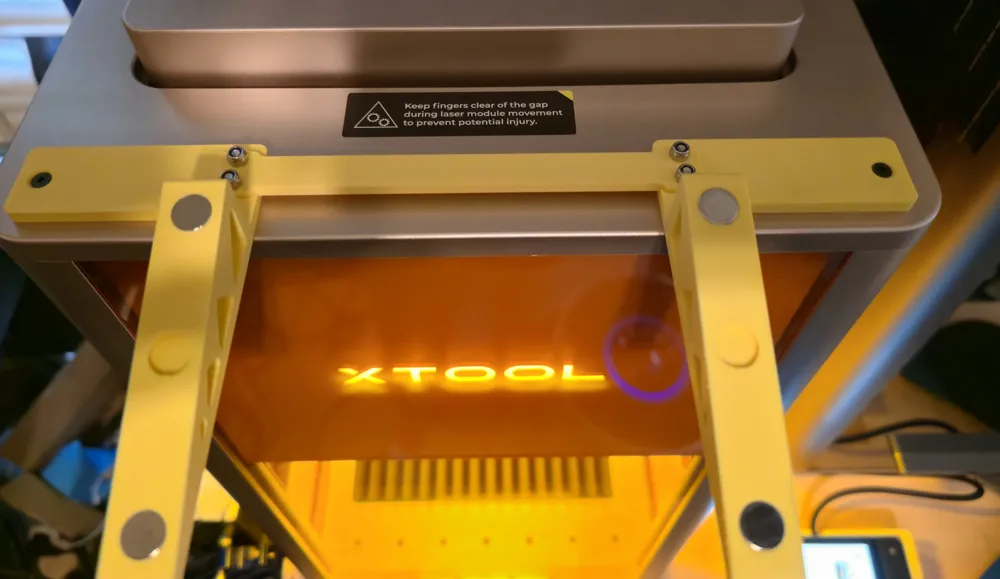

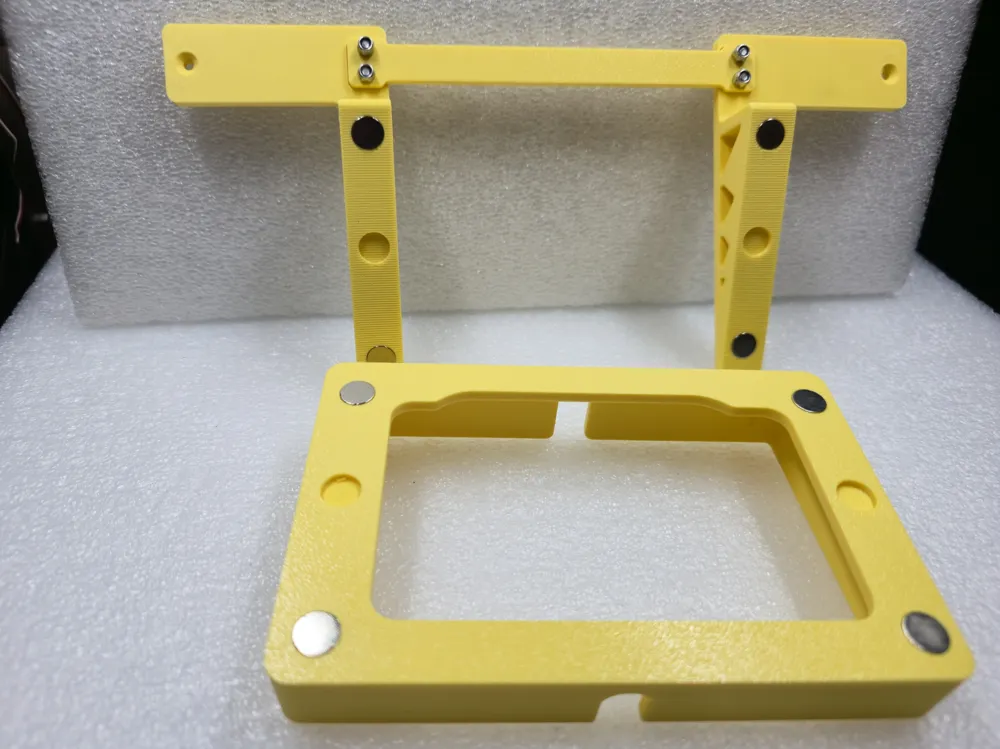

You can use either 8 or 12 Magnets.Press in 10mm Dia and 2mm Thick Magnets. make sure polarity is opposite and use super glue.
You will need some countersunk M3 screws and nuts.
Remove and store the original screws that are on the top of the frame.

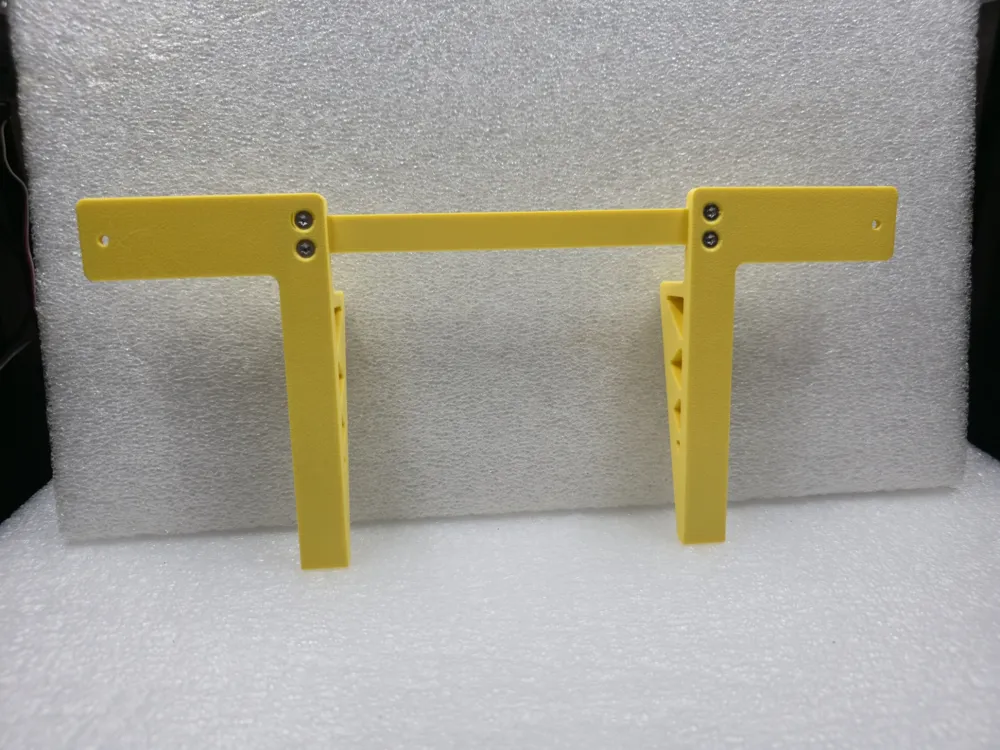

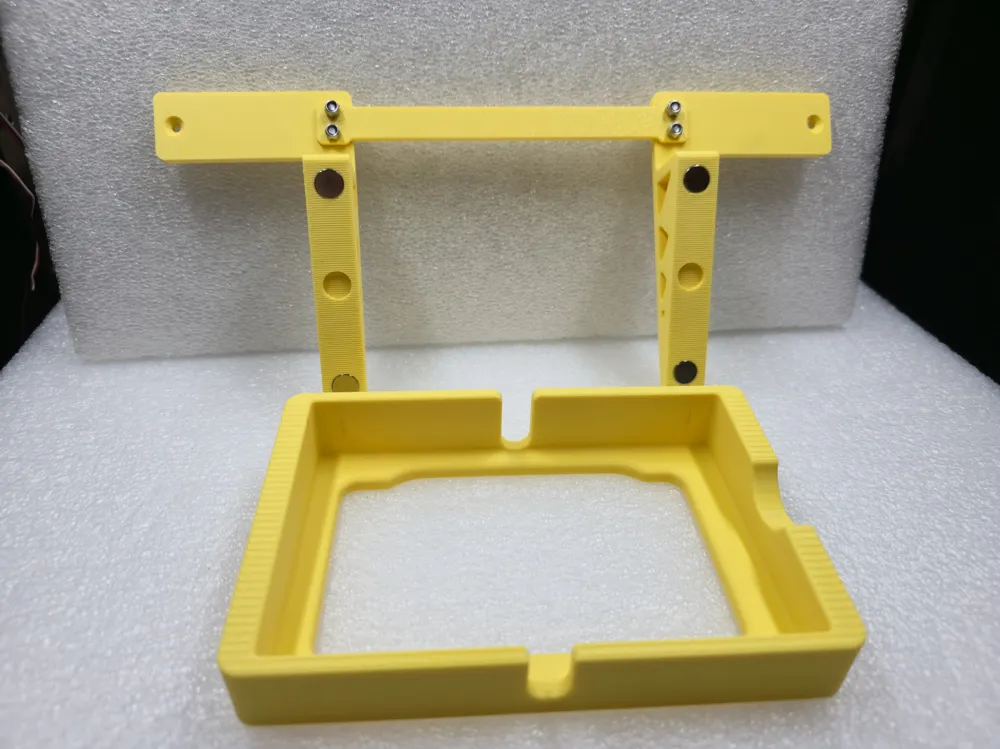

Join the 2 halves with 3 screws and locknuts.

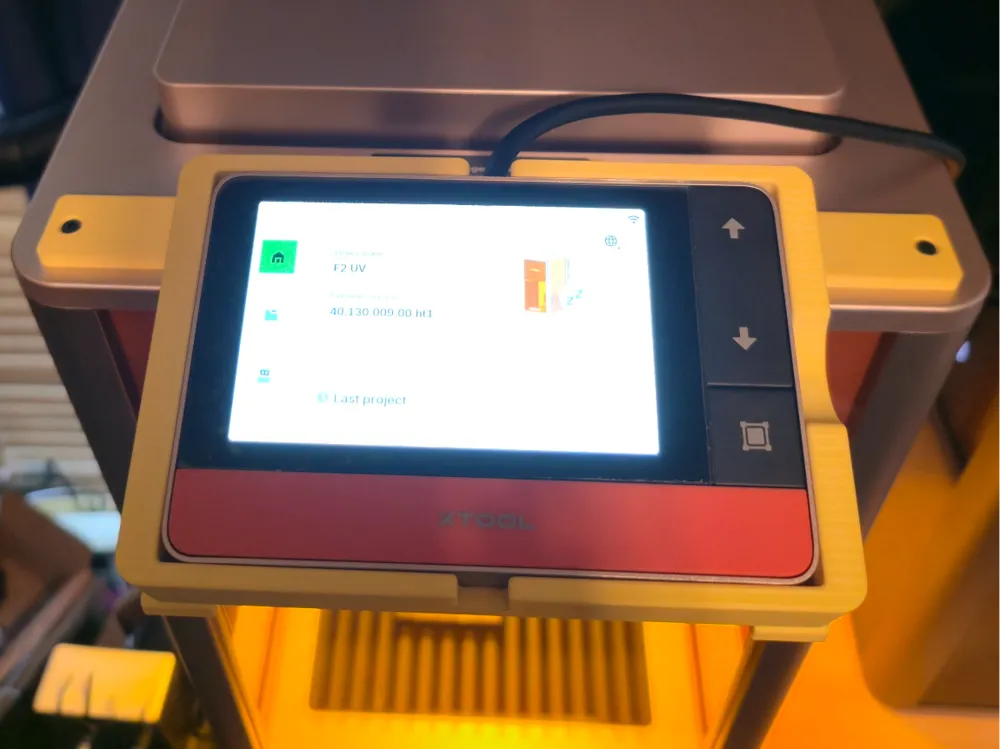

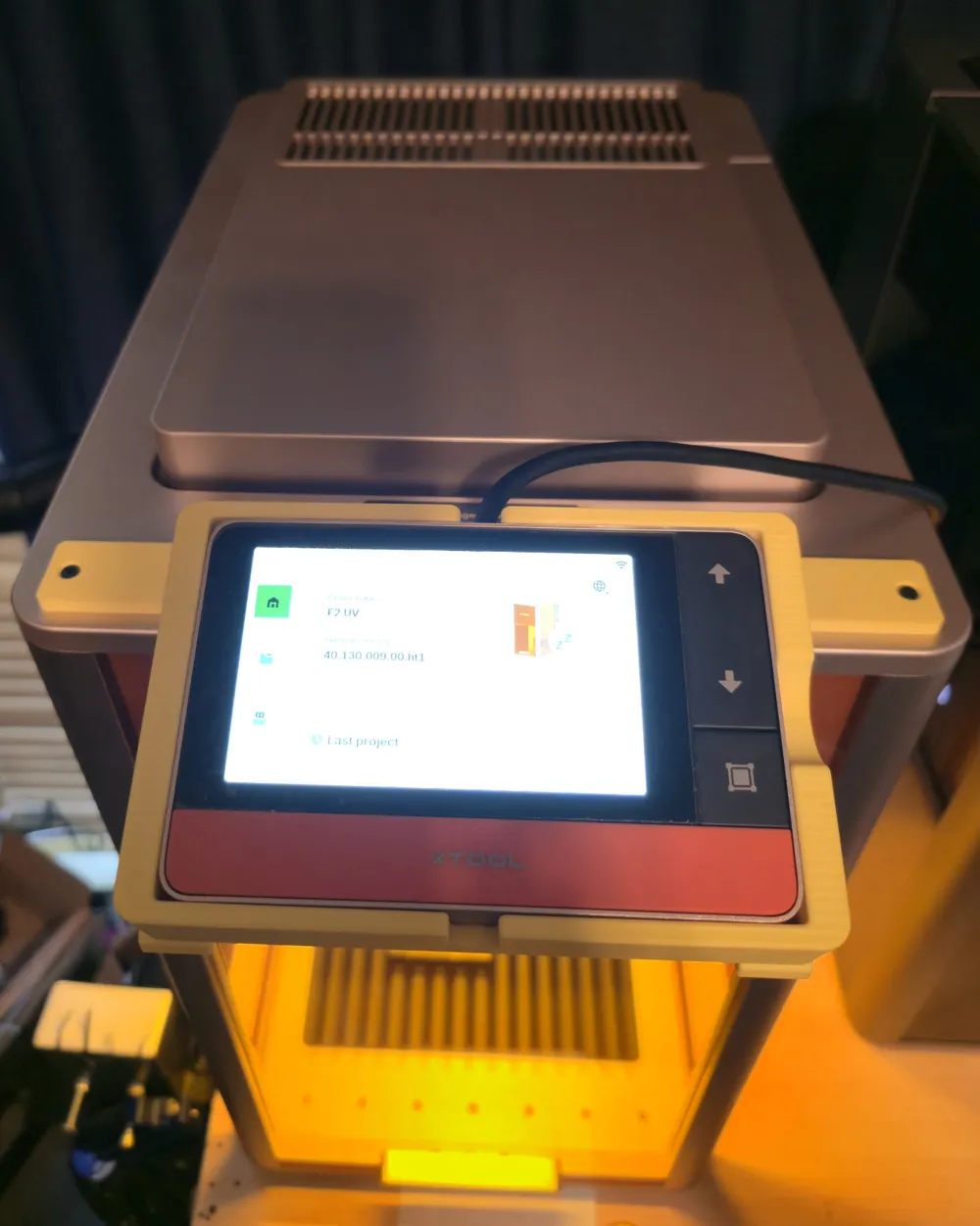

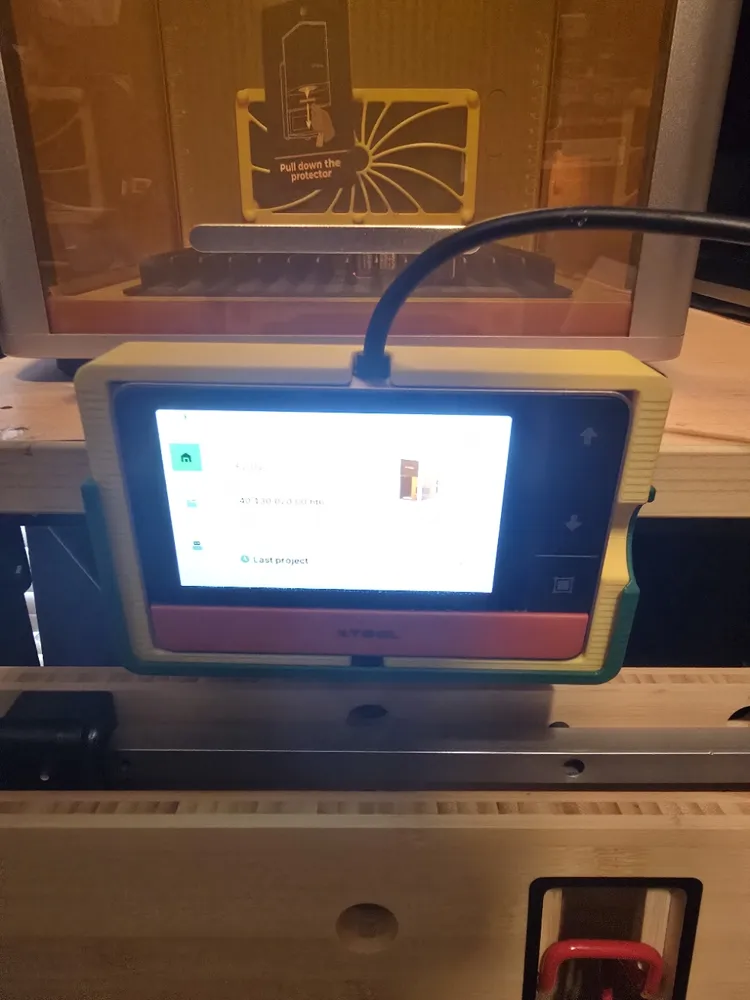

Install the station onto the frame, Use M3 x 12mm Screws.

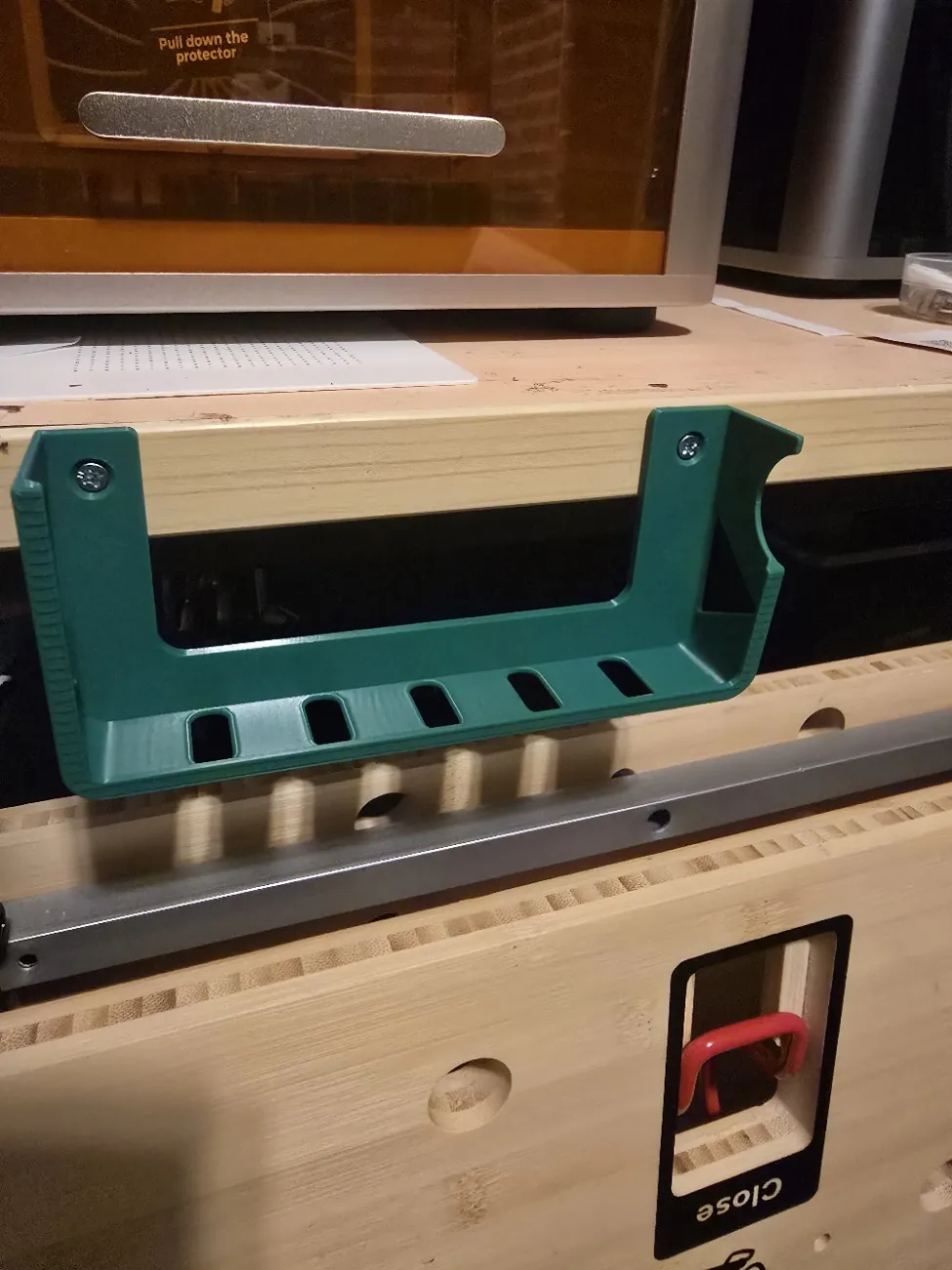

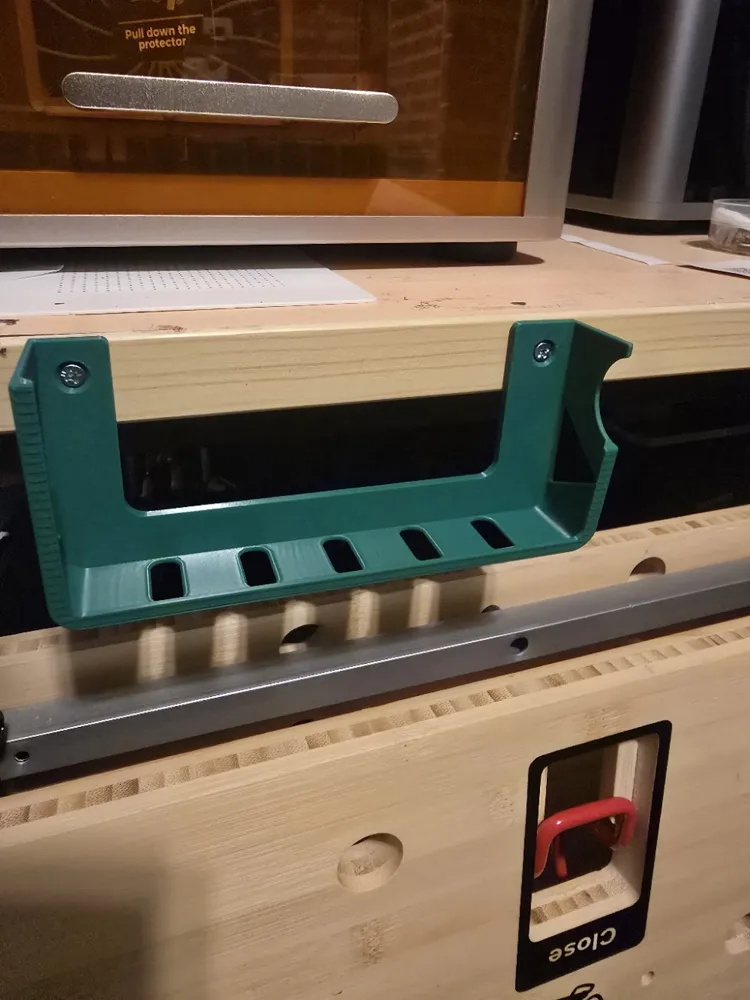

Added the Vertical Resting Dock as well.
