3D Scanning Manual Turn Table XL
Print Profile(1)
Bill of Materials
.jpg)
- 1/4-20 x 1/2 Flat Head Screw x 1:
- Airsoft BBS x 1:
Description
Boost Me (for free)
Help me buy a P2S
DIY 3D Scanning Manual Turn Table XL– 275mm Diameter
With a 275 mm diameter, this turntable offers the ideal size for most desktop 3D scanning needs, providing ample surface area for models, collectibles, and functional prototypes. The XL platform improves balance and reduces the need for repositioning during scanning sessions.

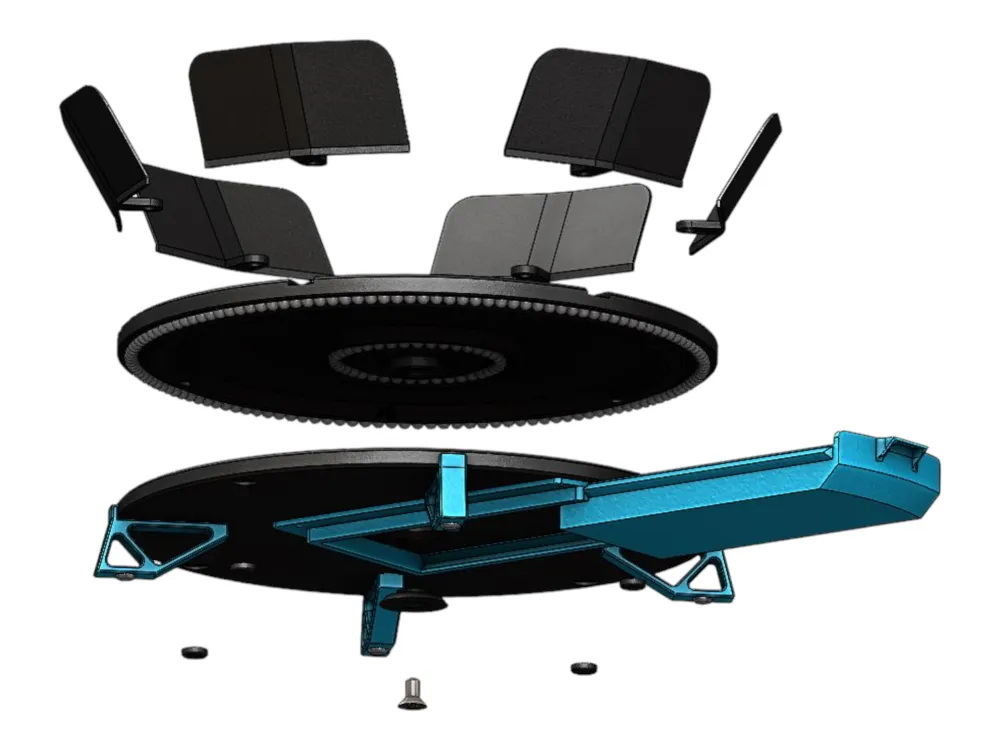

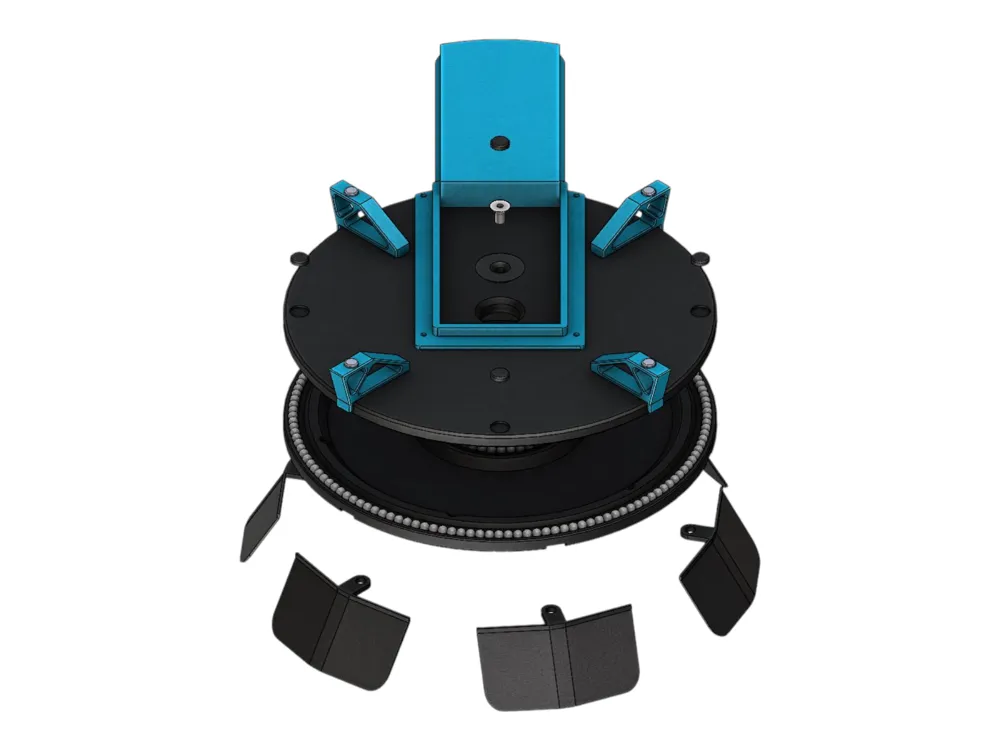

The rotation system combines a double bearing design with airsoft BBs, resulting in smooth, low-friction motion that allows for precise manual control. For added stability, the turntable features soft TPU feet, which help keep the table firmly in place while reducing vibration for cleaner, more consistent scan results.

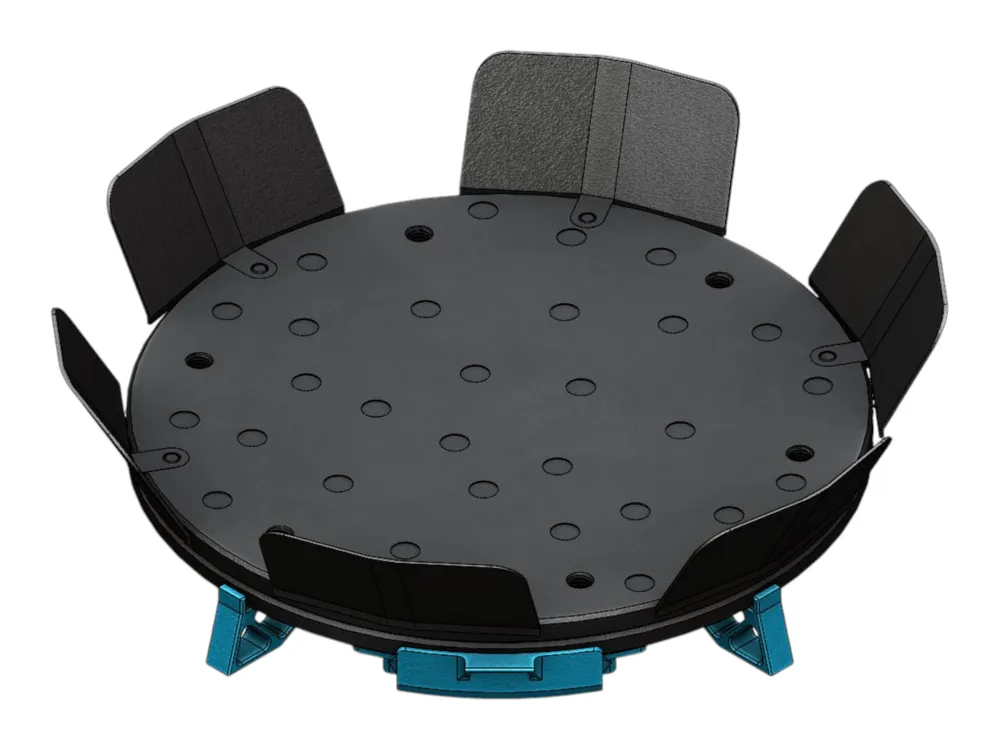

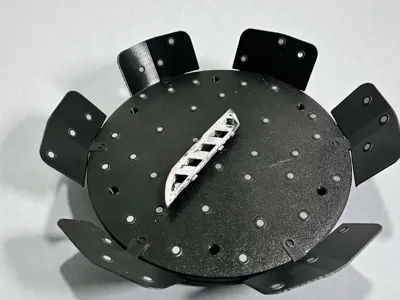

To assist with alignment, the design includes removable side walls that can be used as visual references during scanning and removed when not needed. The surface is scan target ready, making it compatible with popular tracking marker systems or usable as-is, depending on your scanning workflow.

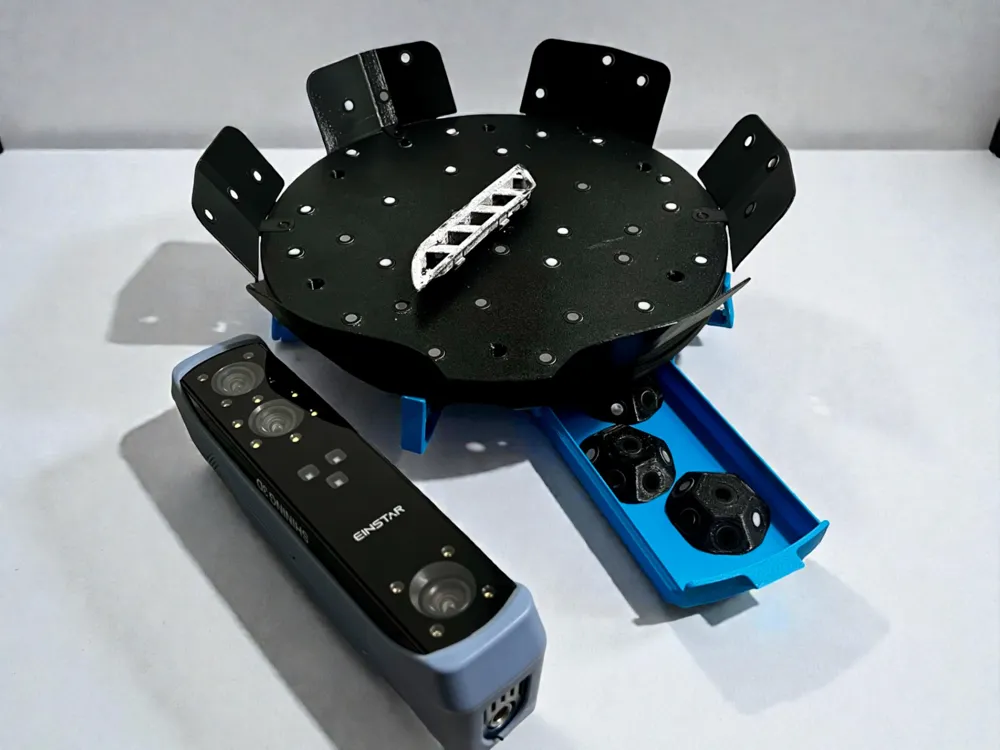

An optional integrated drawer provides convenient storage for airsoft BBs, markers, or small tools, keeping everything organized and within reach.
Simple, intuitive, and efficient—just place your object, align your scanner, and rotate the table by hand for smooth, controlled scanning.
⚠️ Note: This model requires a 300 mm+ build volume 3D printer to print the full platform.
🔧 Key Features
- 275 mm diameter platform — ideal for most desktop scanning applications
- Double bearing system for improved stability and accuracy
- Airsoft BB rotation system for ultra-smooth, low-friction movement
- TPU feet to reduce vibration and prevent slipping
- Scan target ready surface — compatible with popular tracking systems
- Removable side walls for scan alignment
- Optional drawer for storage
- No motors or electronics required
- 🖨️ Optimized for 3D printing
Specifications & Compatibility
- Platform diameter: 275 mm
- Use case: 3D scanning / photogrammetry
- Assembly required: Yes
- Additional hardware: Bearings + airsoft BBs
- Compatible with handheld scanners and camera-based scanning setups
- Requires 300 mm+ build volume printer
🖨️ Print Recommendations
- Material: PLA / PETG
- Layer height: 0.25 mm
- Infill: 5–10%
- Supports: No
- Orientation: Flat on build plate
