PC WALL CASE

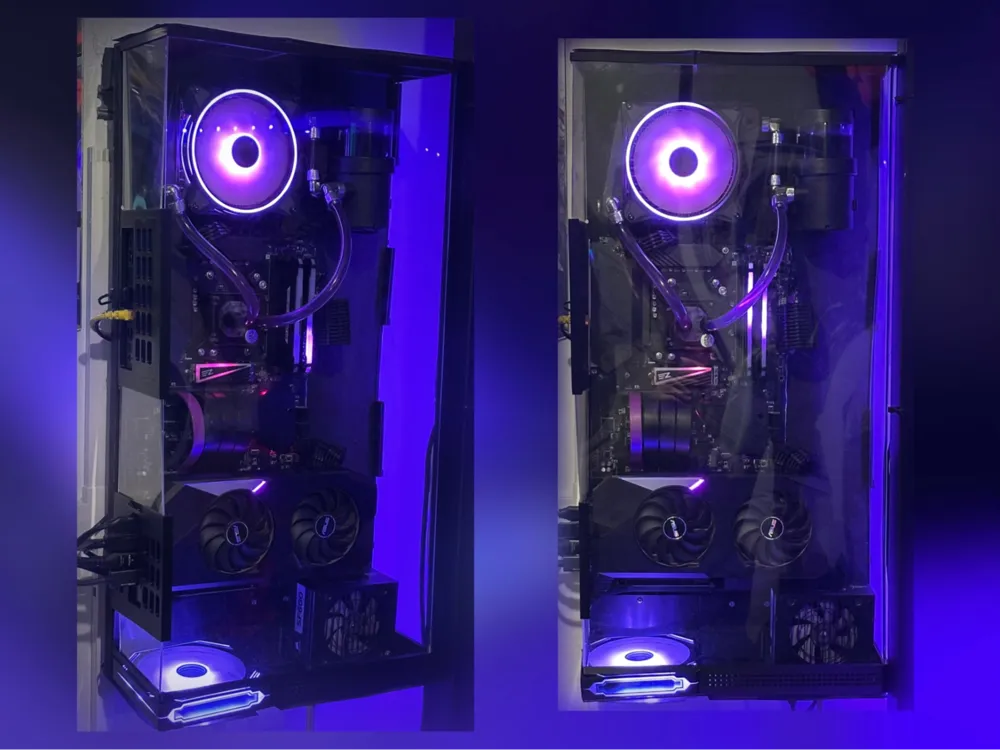

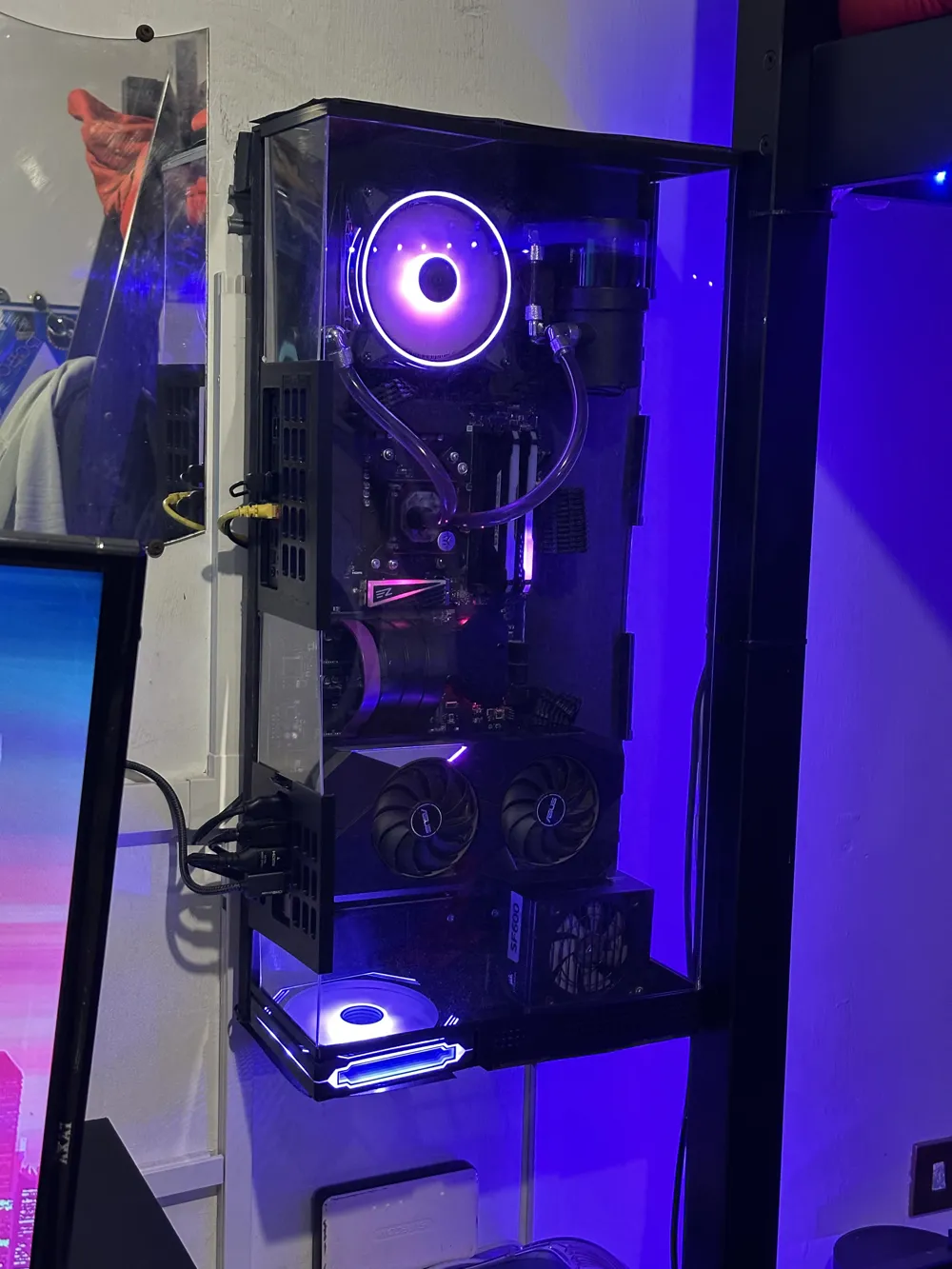

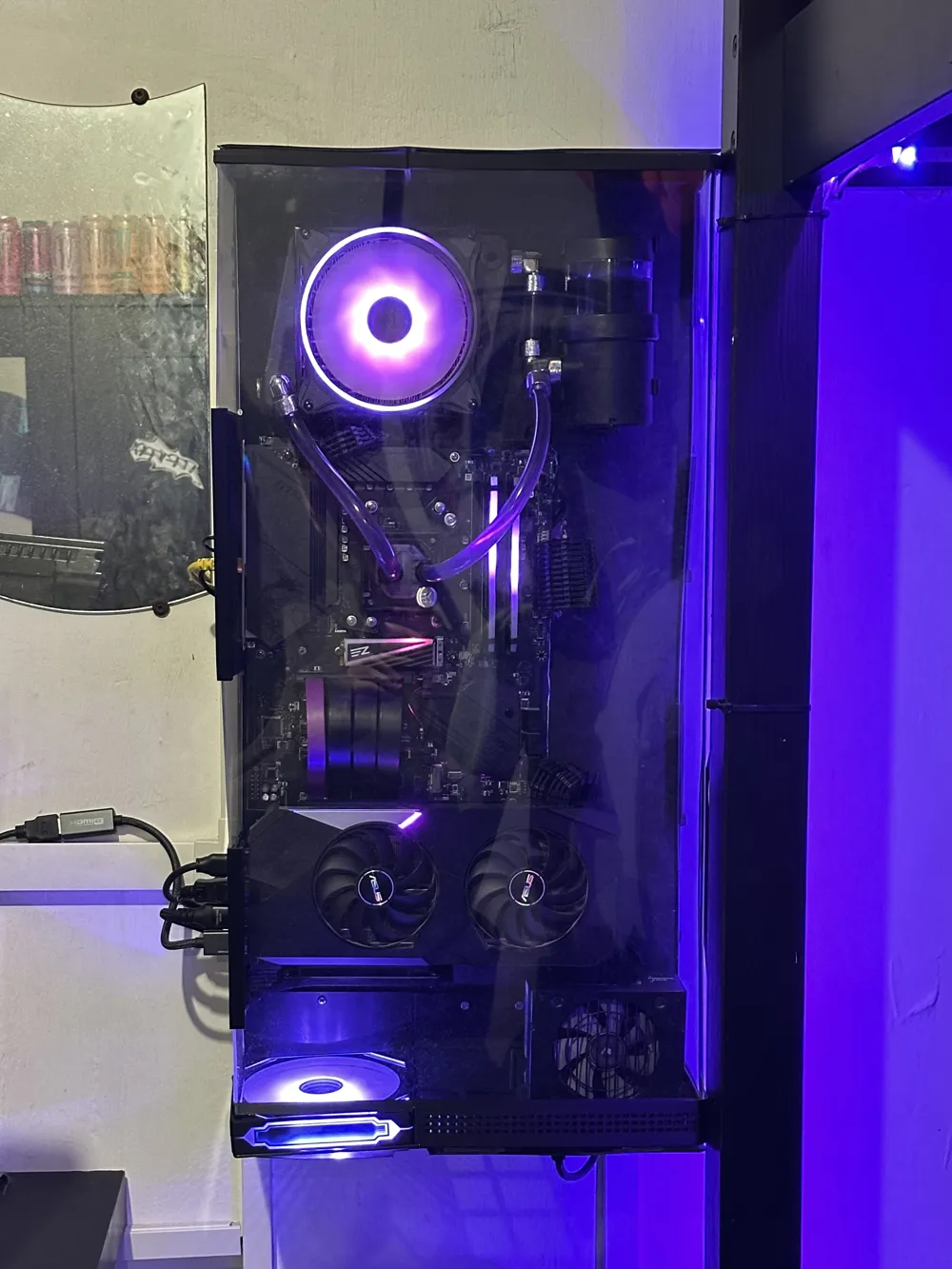

Full Wall-Mounted PC Case

This project provides all the necessary 3D printed components to build a custom wall-mounted PC case. It is designed to be modular and secure, featuring integrated supports for your power supply and cooling system.

Included Components

• GPU Bracket: Secure mounting for your graphics card.
• IO Shield: Custom backplate for motherboard input/output protection.
• Top & Bottom Supports: Structural mounts featuring integrated slots for the PSU and cooling fans.
• Side Panel Supports: Clips/brackets to hold a glass or acrylic side panel.

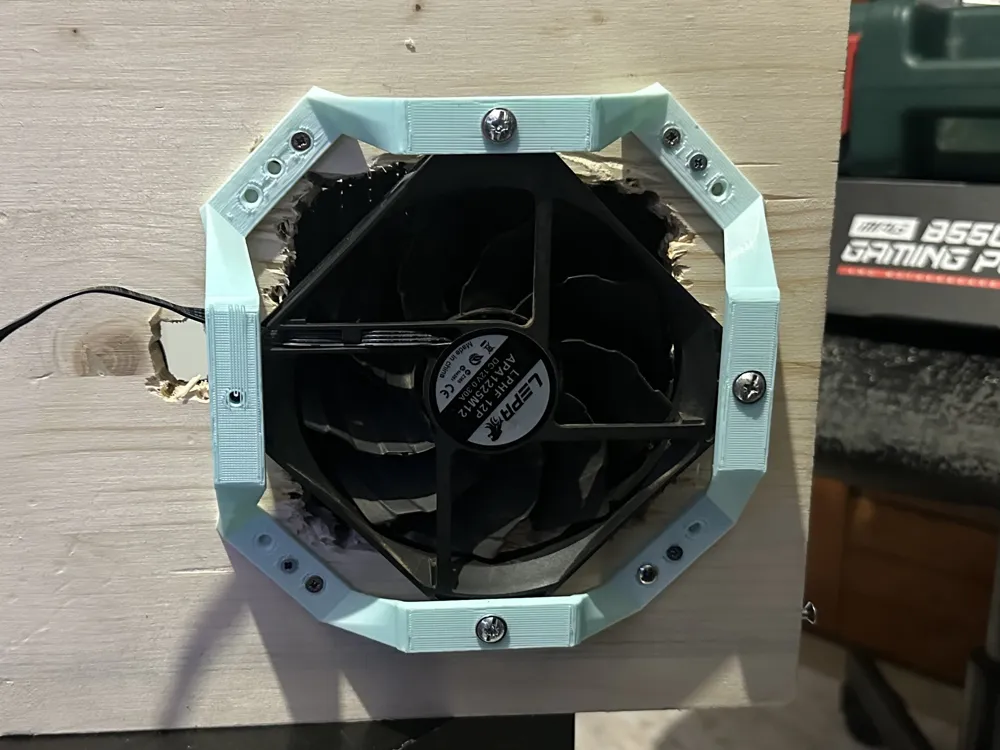

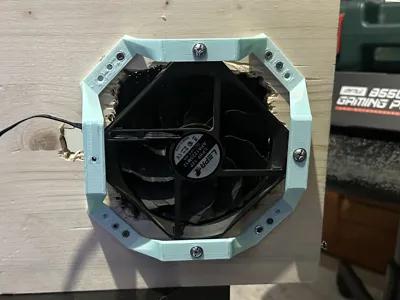

• Fan Adapter (140mm to 120mm): Specifically designed to support the radiator from the rear.

Dimensions & Board Setup

• Board Width: The mounting board must be 37 cm wide to fit the printed parts.
• Board Thickness: Designed using an 18mm thick wooden board, but compatible with thicker boards.
• Height: The total height is customizable , allowing you to choose the size that fits your setup.

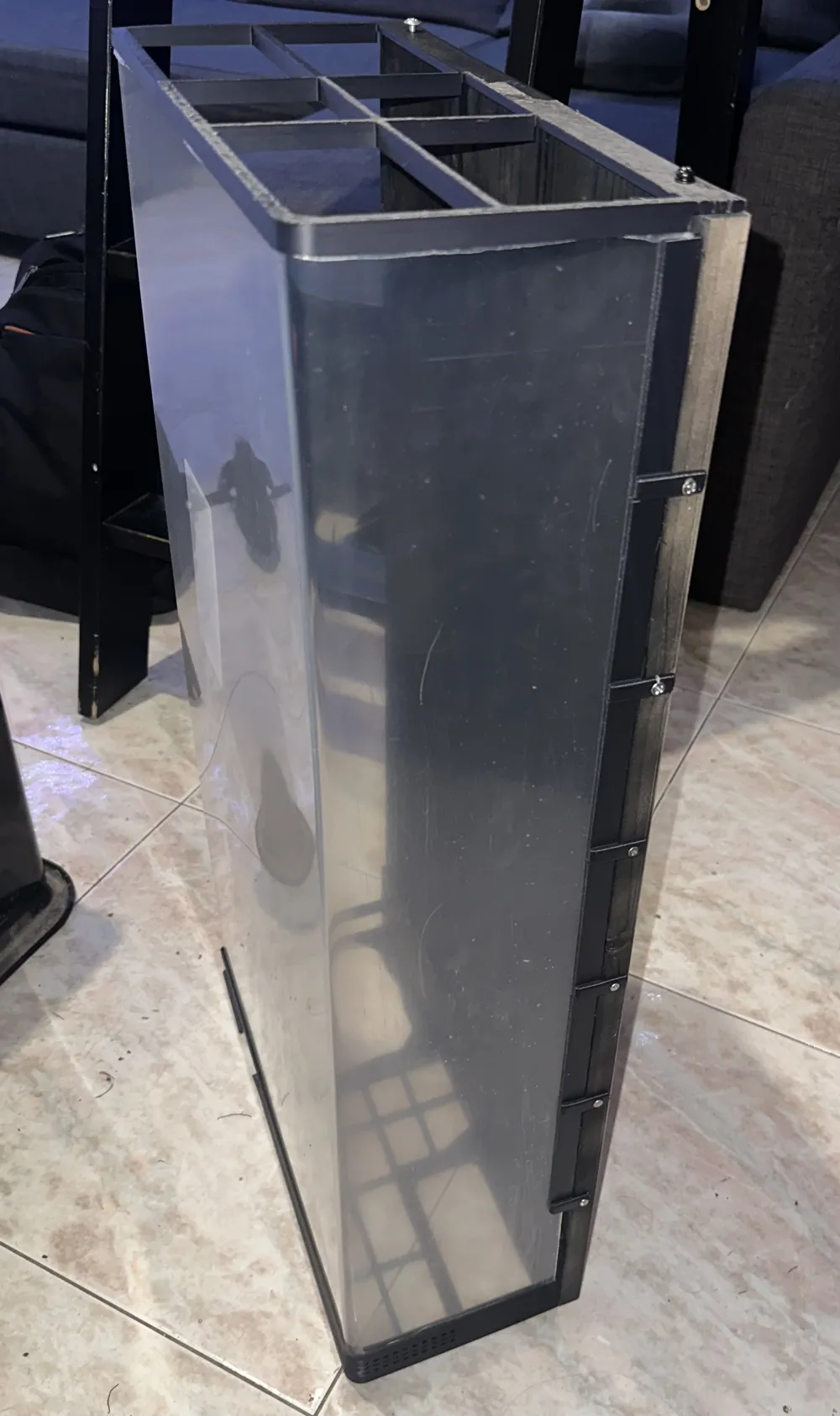

• Front Panel Bending: The front panel width must be 50 cm and then bent/folded at 36.5 cm to wrap around the side.
• Glass/Panel Thickness: 2.5mm

Specifications & Hardware

• PSU Form Factor: SFX

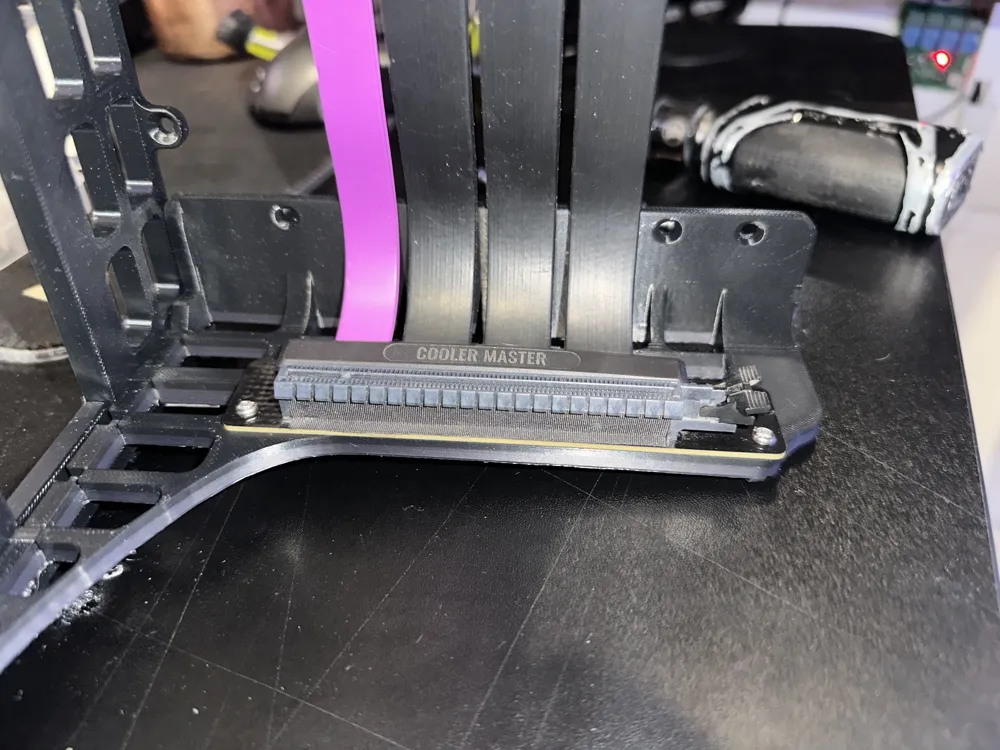

• Tested PCIe Riser: Cooler Master PCI-E Riser Cable 4.0 x16 (300mm)
• Bottom fan: 140
