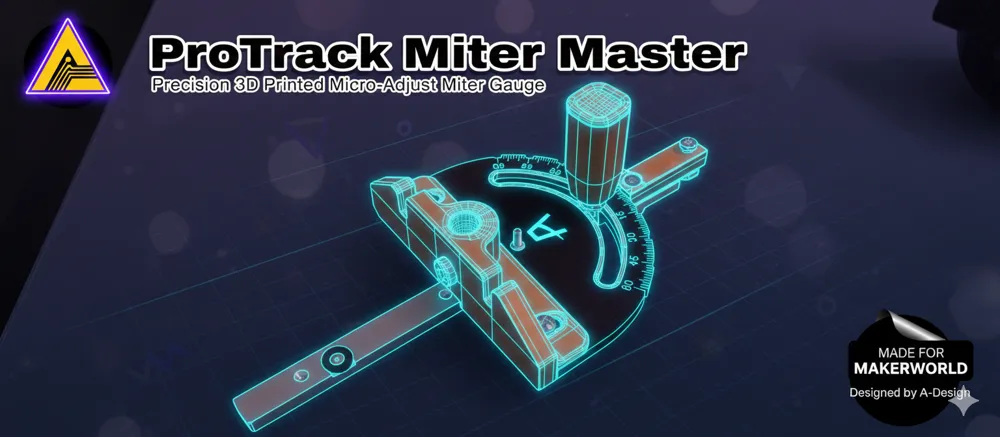

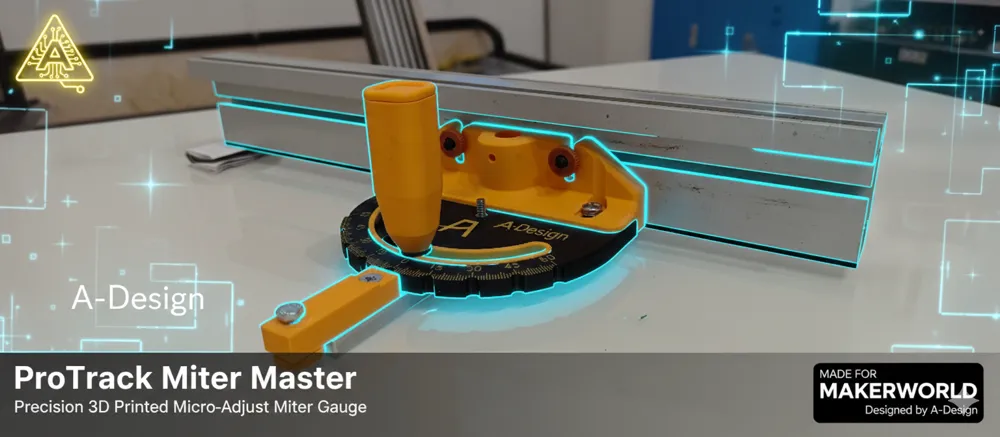

ProTrack Miter Master

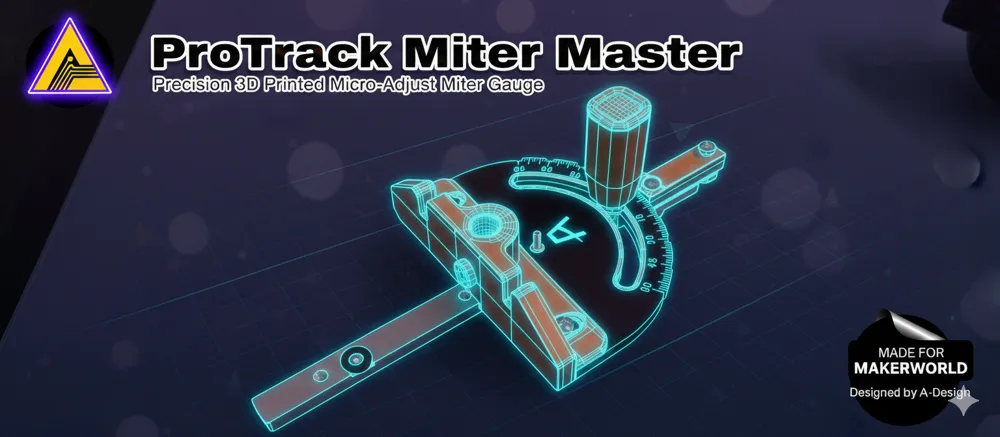

🛠️ ProTrack Miter Master: Technical Specifications

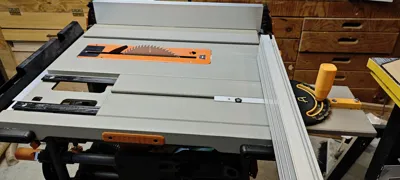

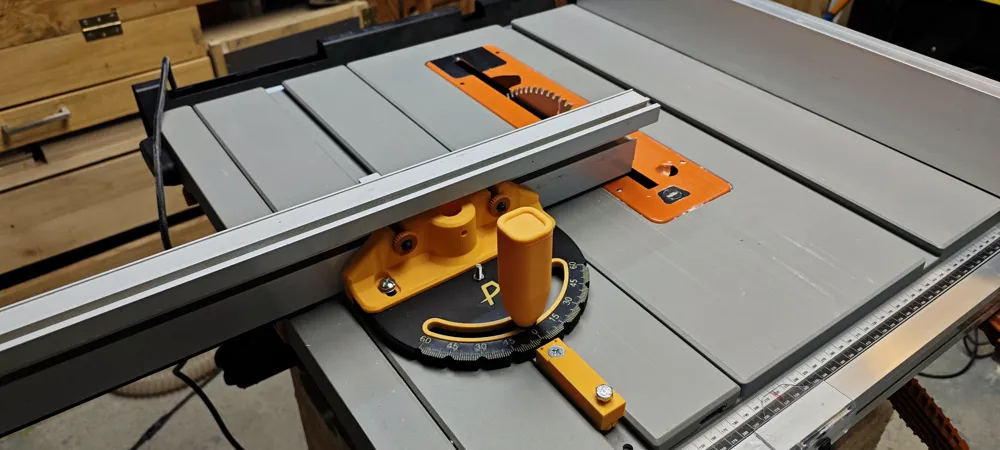

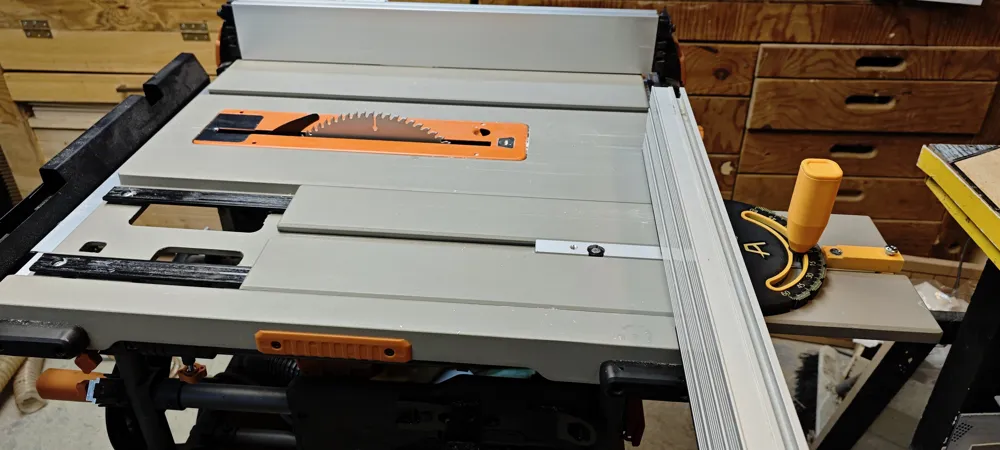

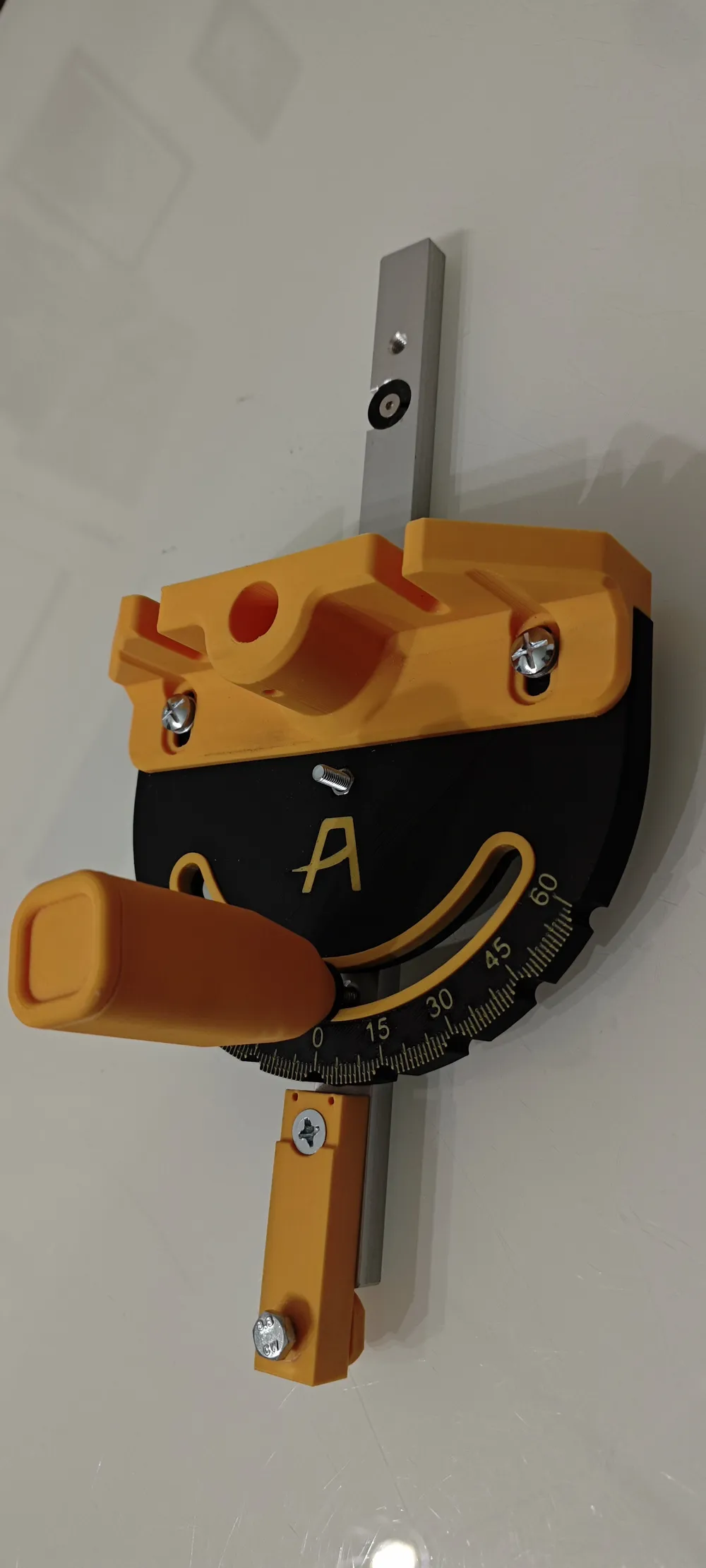

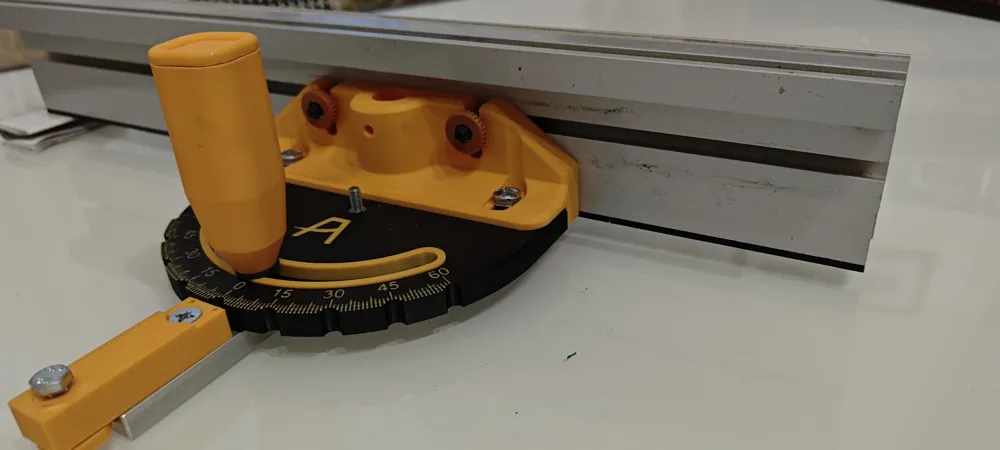

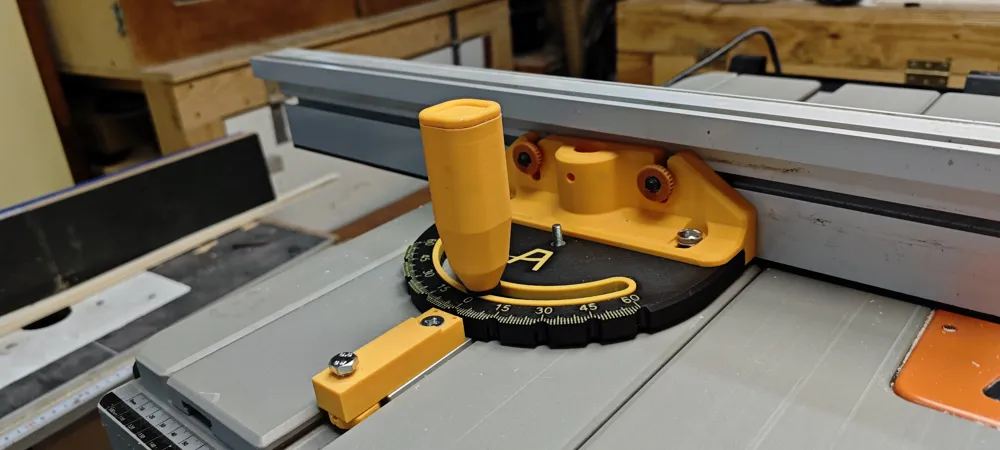

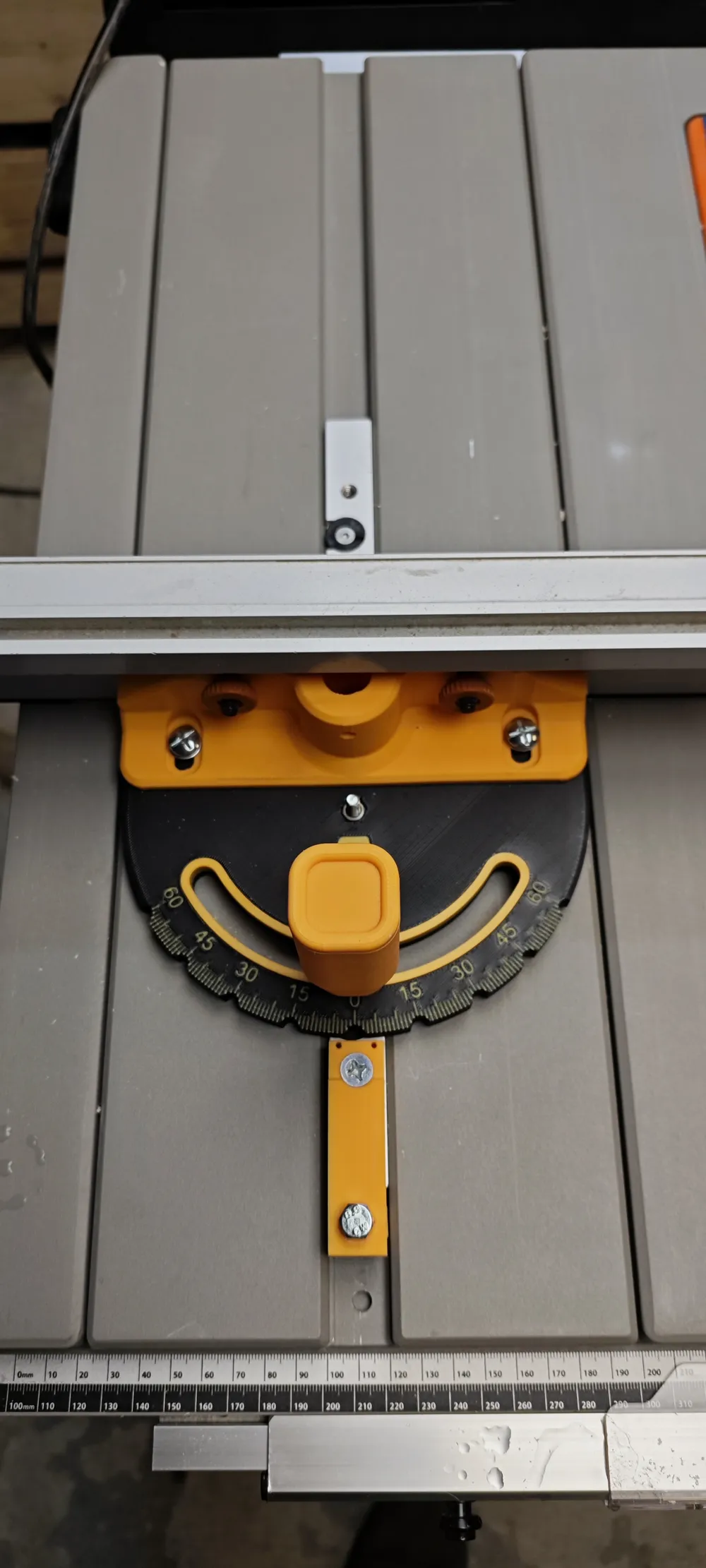

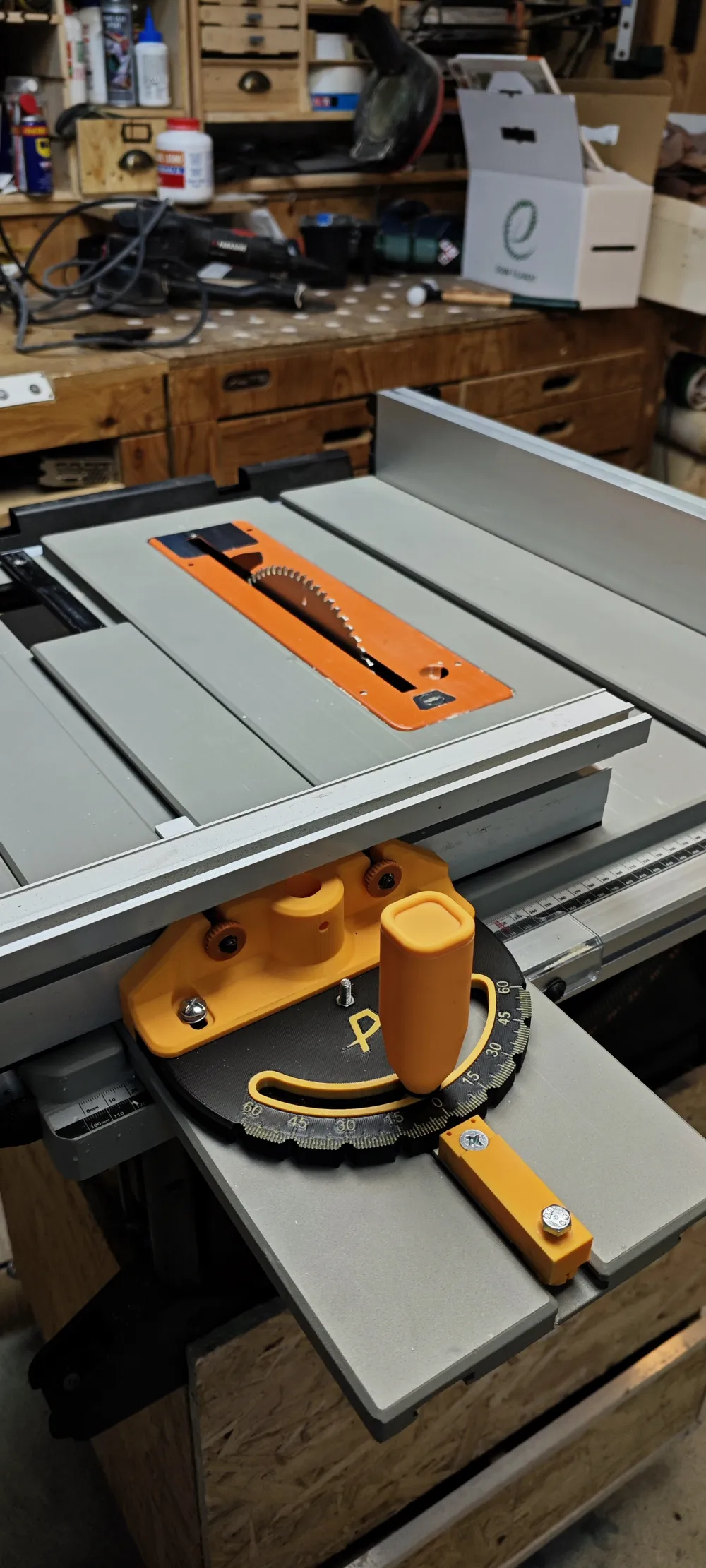

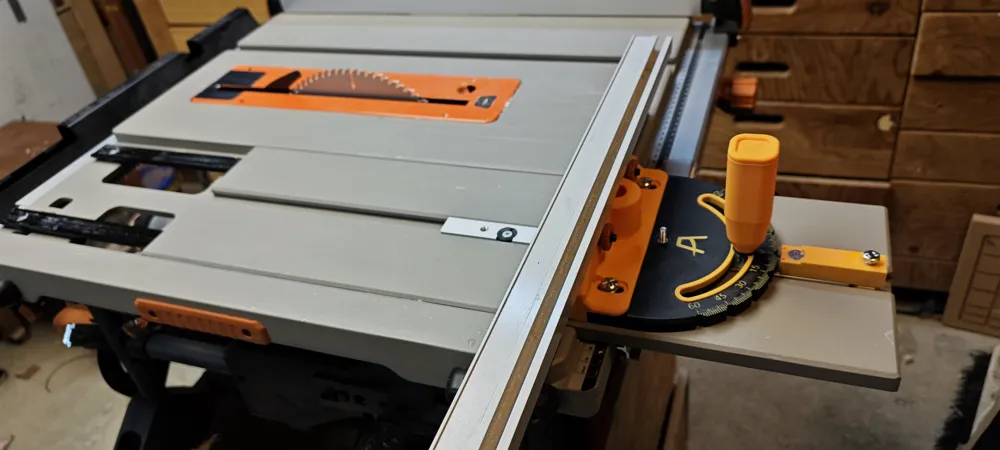

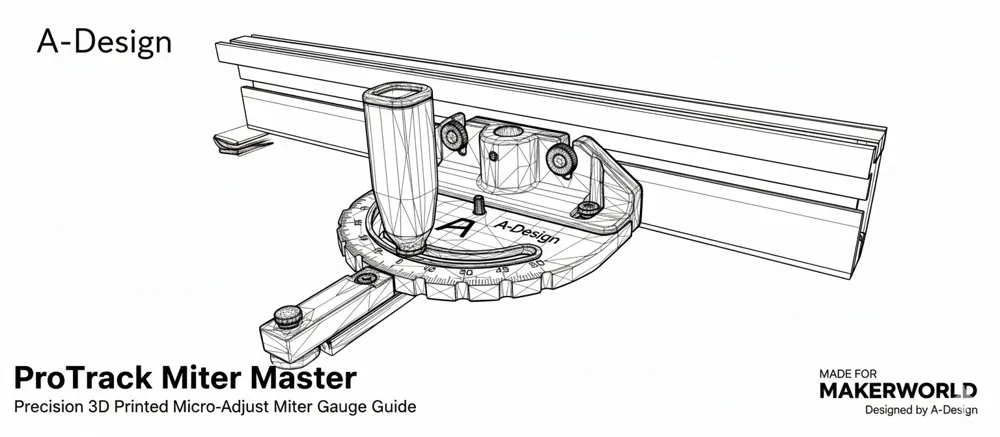

The ProTrack Miter Master is a high-performance precision protractor, designed to bridge the gap between inexpensive stock accessories and professional workshop tools. This system is optimized for machines like the Evolution Power Tools table saw and custom-built router tables that use standard tracks.

📐 Key Features and Innovations

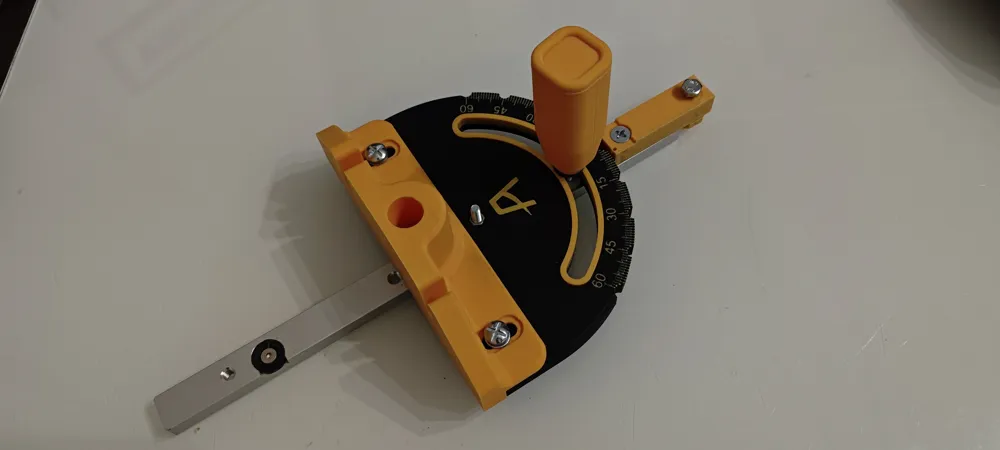

• 90° Micro-Adjustment System: The front block integrates two large-head screws that act as micrometric stops. This allows for calibration of absolute perpendicularity to the blade, compensating for any printer or table tolerances.

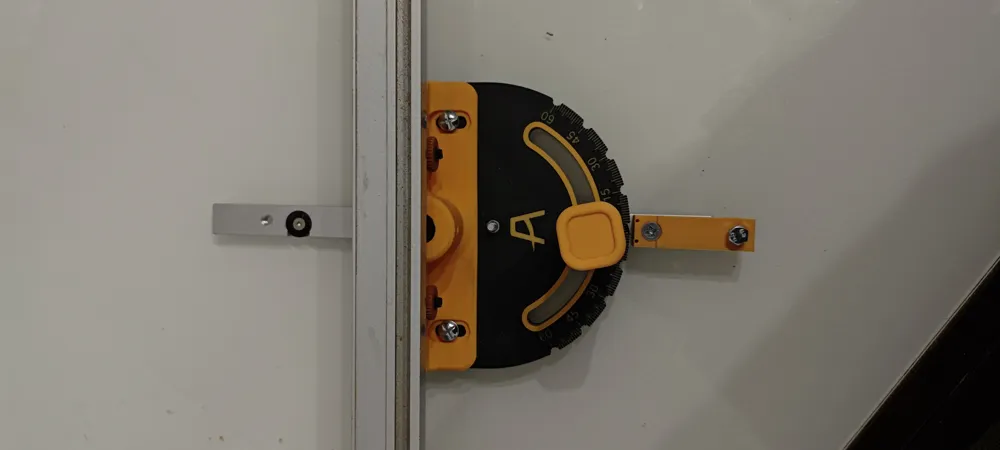

• "Zero-Play" Slide Bar: Designed for an aluminum guide measuring $19\text{ mm} \times 9.5\text{ mm}$ (length $450\text{ mm}$), the system uses the bar's set screws to eliminate any lateral play in the T-track.

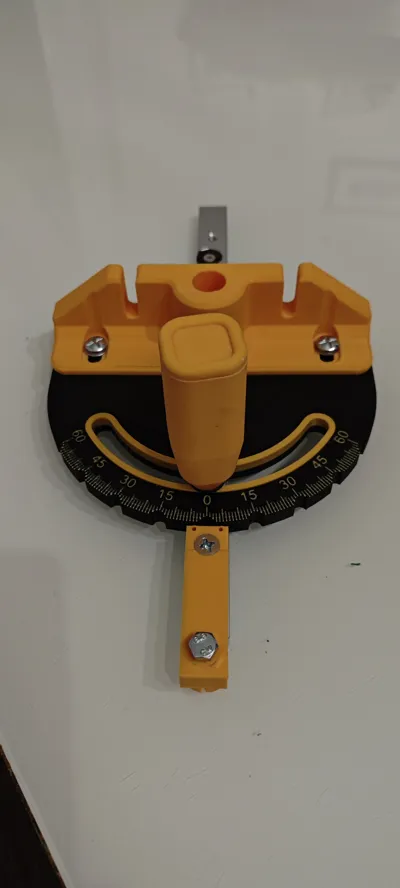

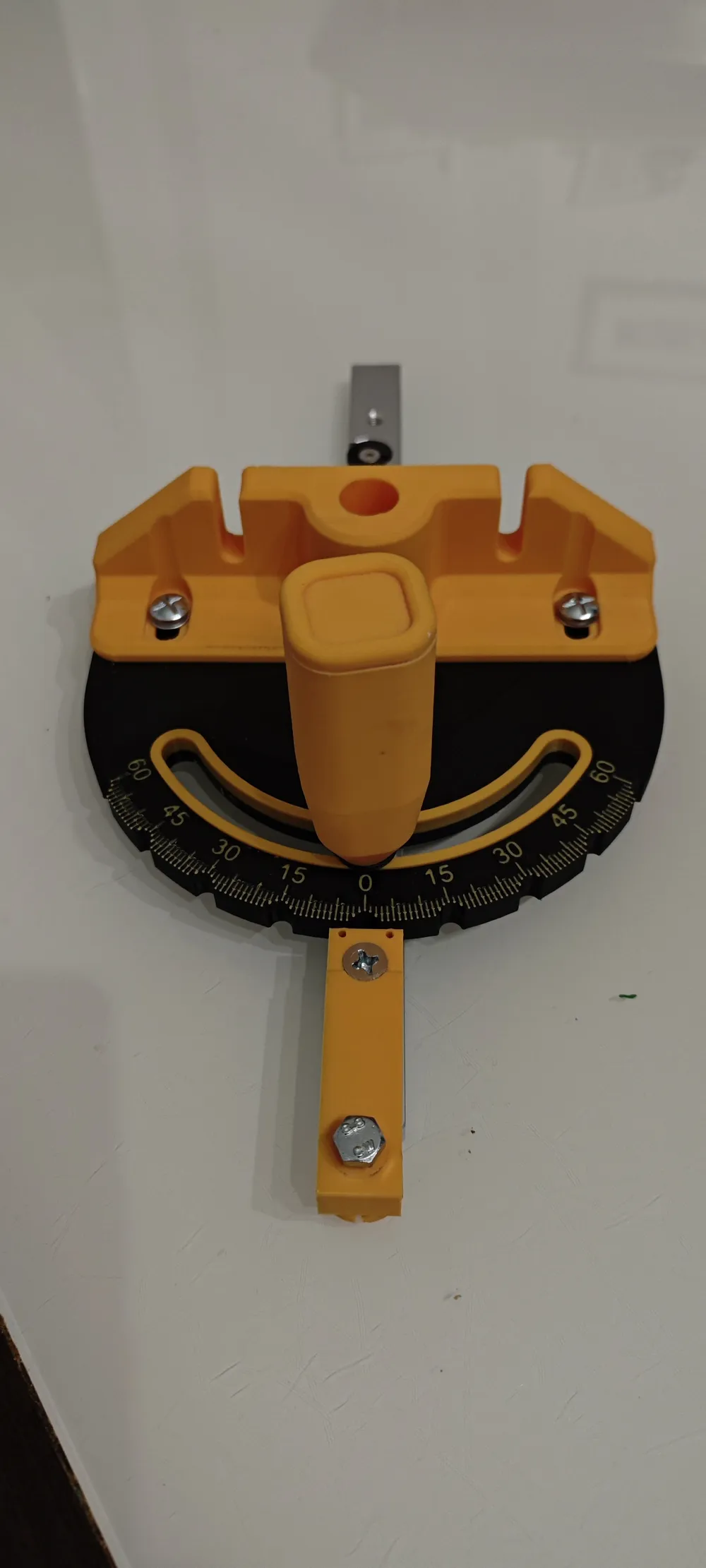

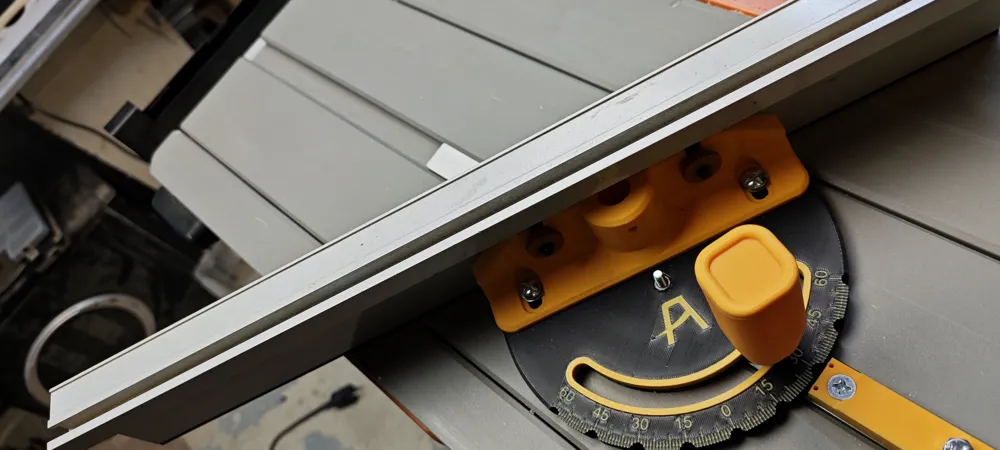

• High-Visibility Graduated Scale: The base features a large engraved scale with a range of $\pm 60^{\circ}$, optimized for quick and precise degree readings.
• Ergonomic and Robust Design: The oversized locking knob houses a recessed M6 nut with a cap, ensuring a secure grip and high clamping force without effort.

🔩 Hardware Details (BOM)

• Guide: Aluminum bar with a rectangular cross-section and countersunk holes.
• Adjustment Screws: 2x large-head screws for zero-point fine-tuning.
• Assembly Hardware: Central M6 bolt for the knob and countersunk screws for attaching the bar to the printed base.

🖨️ Recommended Print Notes

To ensure maximum mechanical precision, the use of low-shrinkage materials such as PETG or ASA is recommended.

• Wall (Wall Loops): 4-5 layers to prevent deformation under load.
• Infill: 40-50% for optimal structural rigidity.
