Description

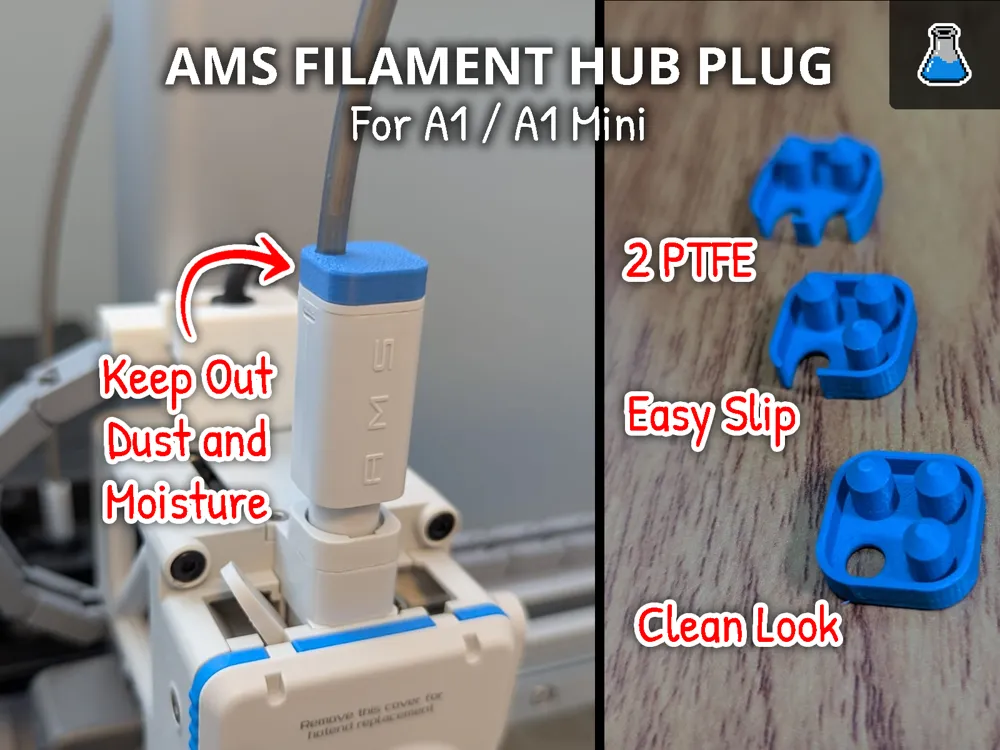

Stop the Rattle, Block the Dust/Moisture: The Essential AMS Hub Protector!

I designed the AMS Filament Hub Plug after noticing a frustrating trend with PETG prints. If the A1 sat idle for even a day, I would hear "popping" and see bubbles during the initial calibration lines. This moisture ingress into the PTFE tubes was ruining the most critical first steps of my prints. While other plugs exist, I found they either didn't match the sleek A1 aesthetic or relied on thin, fragile overhangs for their "slide-on" functionality that didn't print well.

Whether you are looking to protect your filament from humidity, just want to eliminate that annoying toolhead rattle or just to have a cleaner look, this plug will solve your issues while looking like it came with your Bambu Lab printer.

Support Me!

Boost Me (for free)

If you enjoy this design please give me a Boost if you can!

Features

Dust & Moisture Barrier: Seals the top of the Filament Hub to prevent dust and ambient humidity from entering the PTFE tubes and reaching the hotend while the printer is idle.
Anti-Vibration Design: Secures the black retaining collets to eliminate "rattle" or vibration noise during high-speed printing movements.

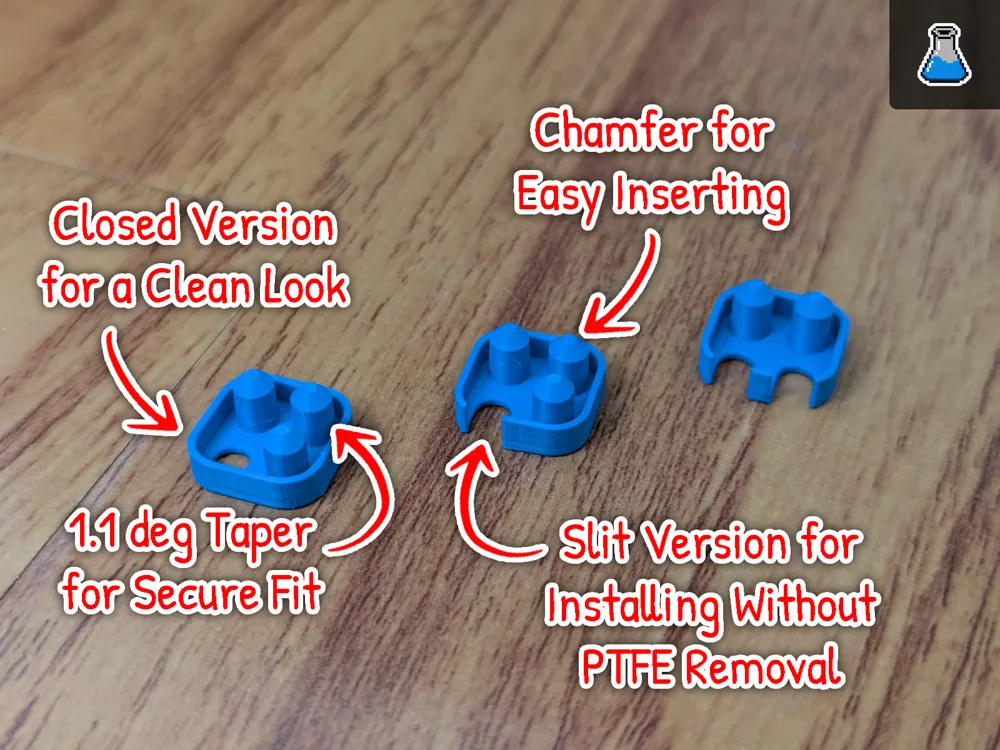

4 Design Options:
- Standard Version: Provides a clean, 360-degree seal for unused ports.
- Easy-Slip Version: Features a side-slit for quick installation or removal without needing to disconnect your existing PTFE tubes.
- Standard Version for 2 PTFE tubes
- Easy-Slip Version for 2 PTFE tubes
Snug Tapered Fit: Engineered with a 1.1° taper to ensure the plug tightens as it is inserted, creating a reliable friction fit that won't vibrate loose.
OEM Aesthetics: Minimalist design language and rounded corners to match the official Bambu Lab toolhead appearance.
Quick Alignment: Integrated chamfers on the bottom edge allow for effortless "blind" insertion.

Specifications

Compatibility: Bambu A1 and Bambu A1 Mini
Filament Type: Tested in PLA. Should work well with anything.
Filament Usage: less than 1 gram

Assembly Guide

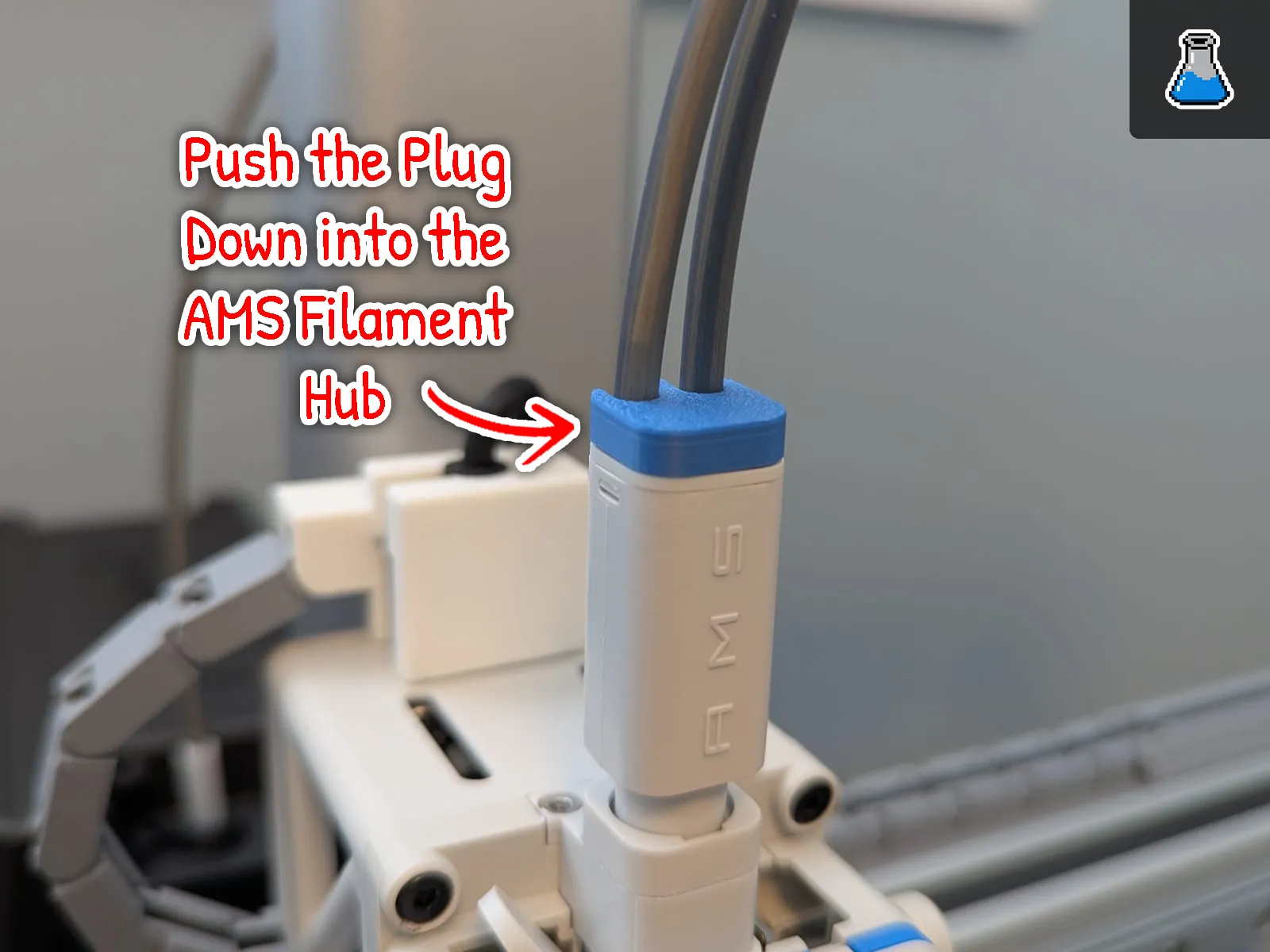

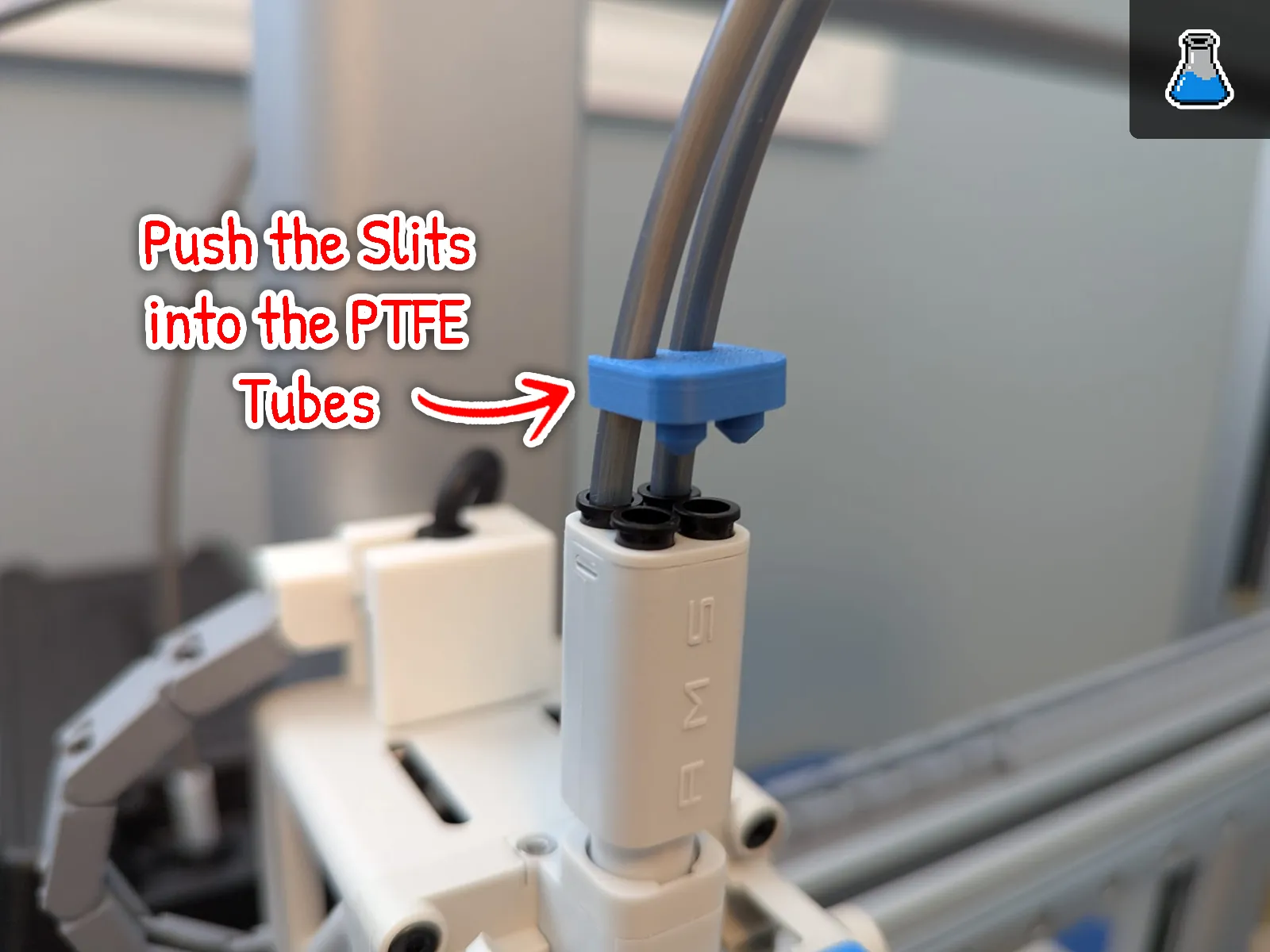

Easy Slip Version:

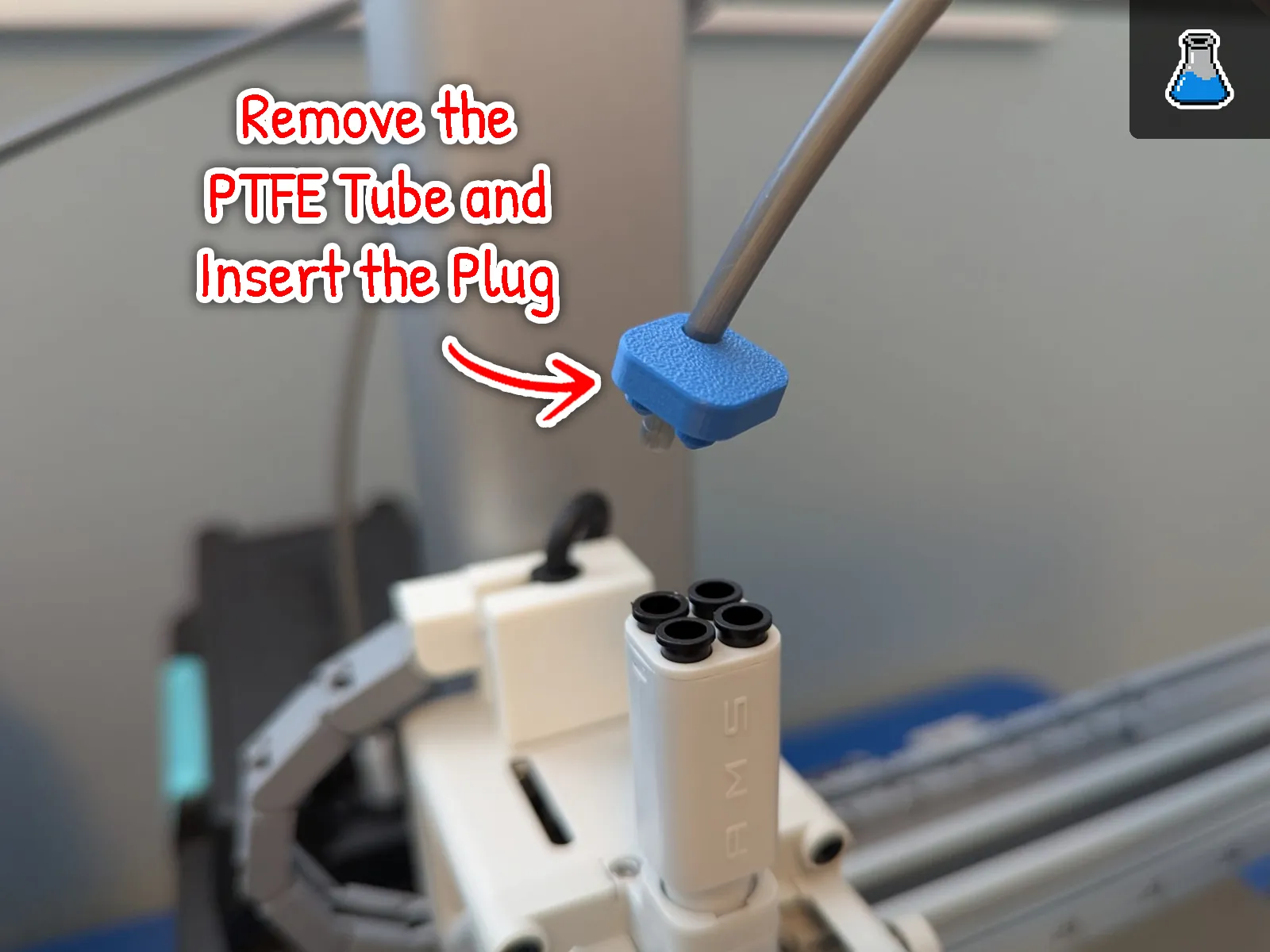

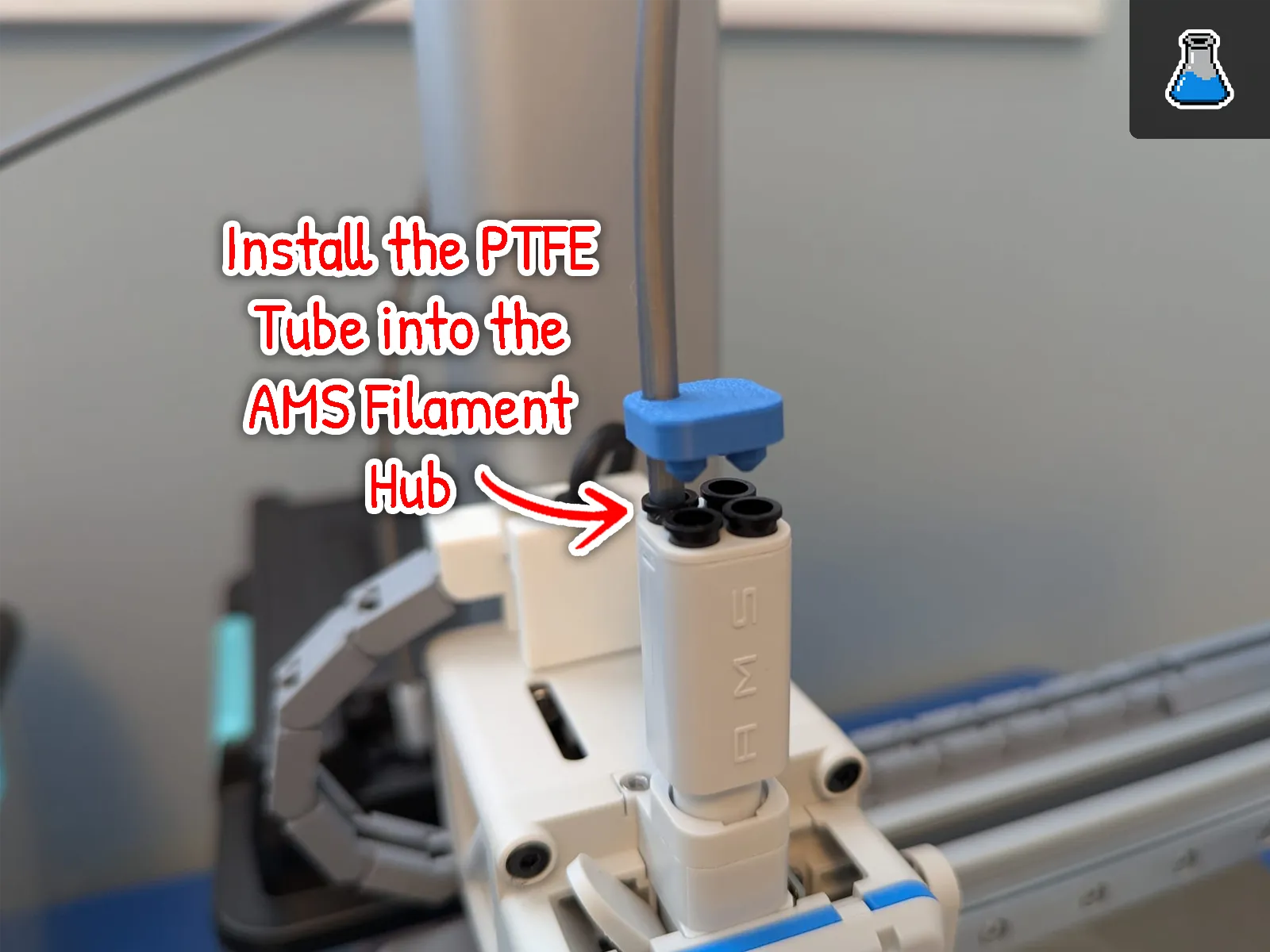

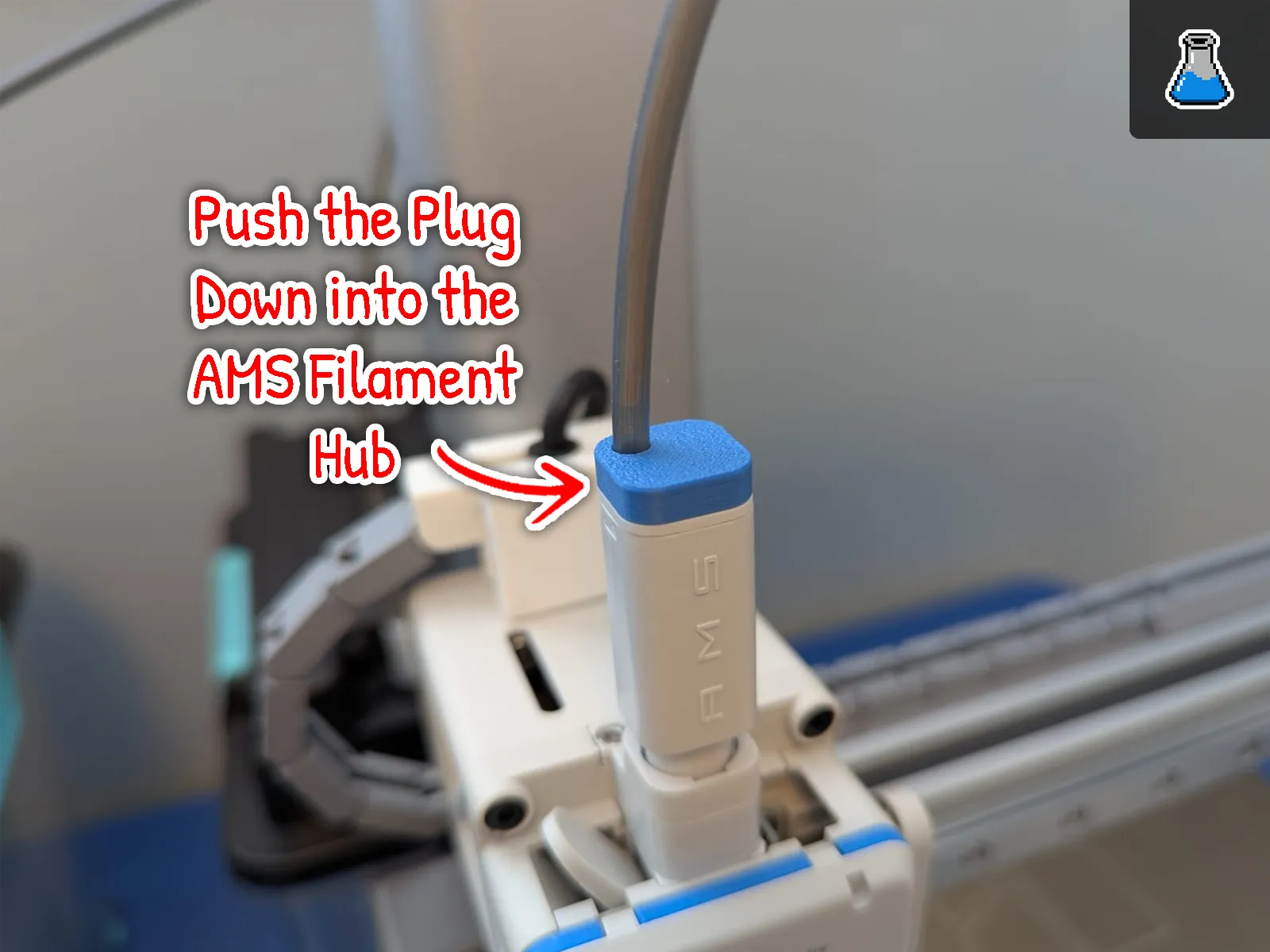

Clean Closed Version:

Credits / Licensing

Design by PixelFanLabs – With a curious mind, integrity, and your hands in the soil, you can create anything.
License – All Rights Reserved
- Personal Use Only: You may print this for your own use.
- No Redistribution: Do not re-upload or distribute these digital files on any other platform.
- No Derivatives: Modification of this design—including the removal of the engraved PixelFanLabs signature—is strictly prohibited.
