A.R.C Land Sharc LCG Sporty Chassis
Print Profile(1)
Description
Summary
Hey All,

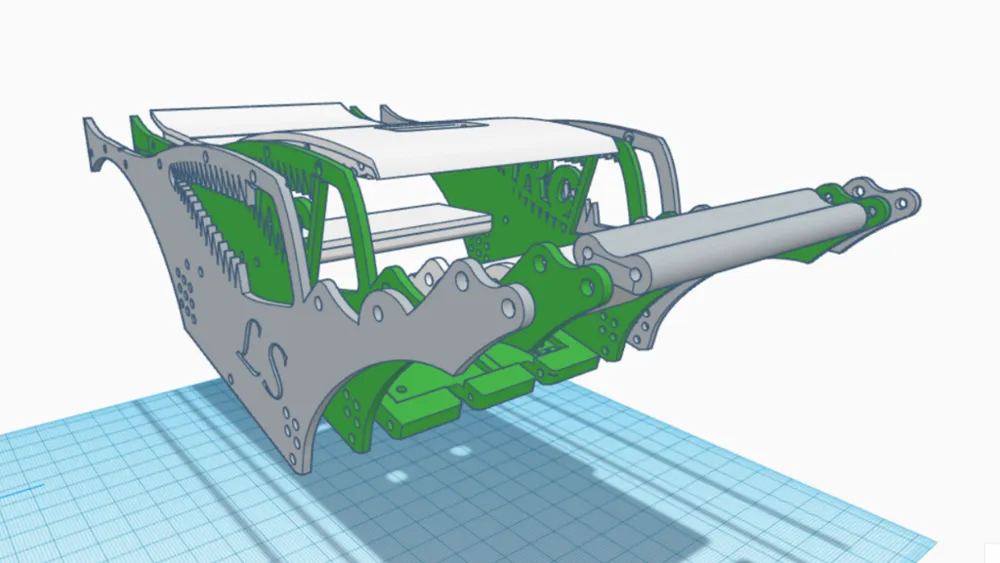

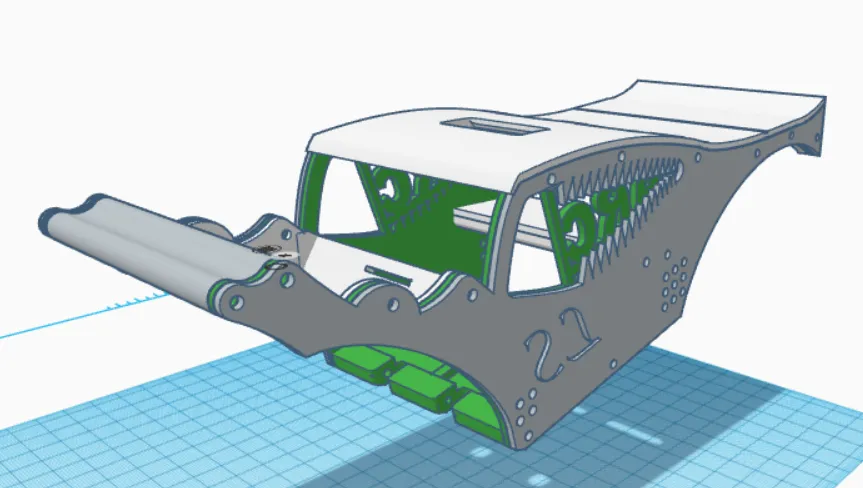

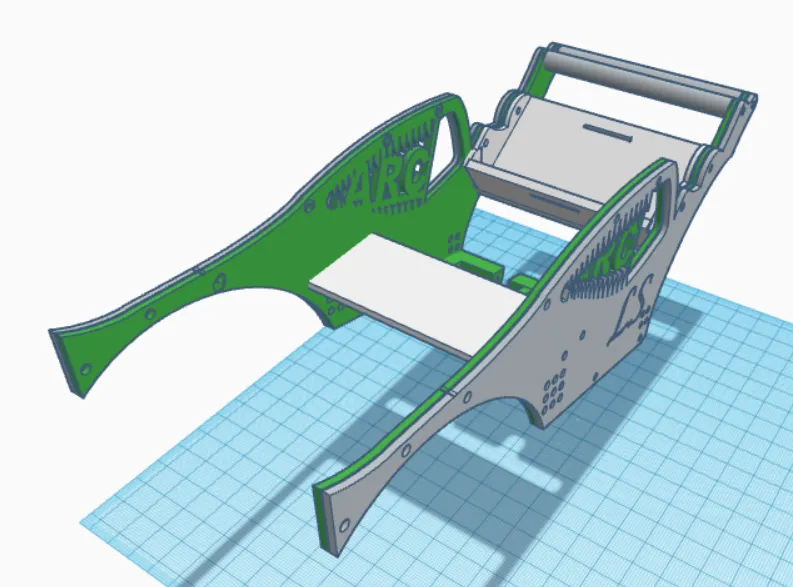

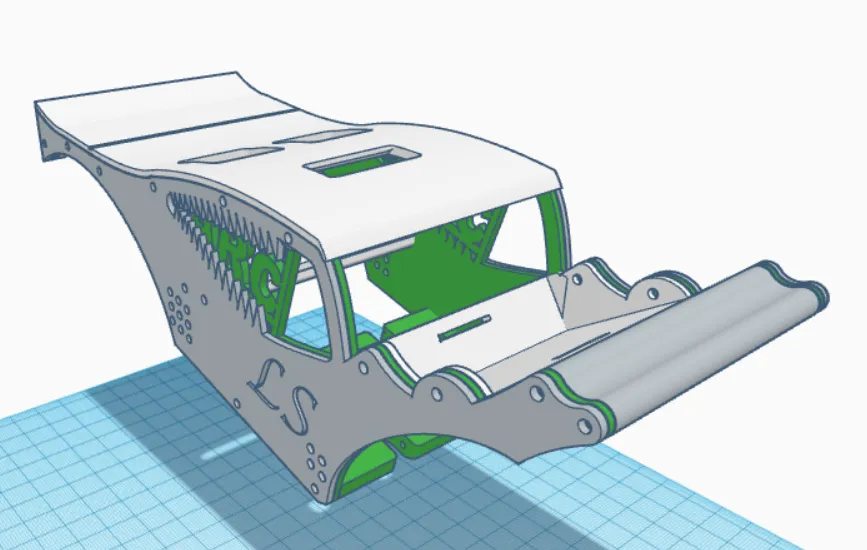

Available here is a Custom Designed Chassis From A.R.C.

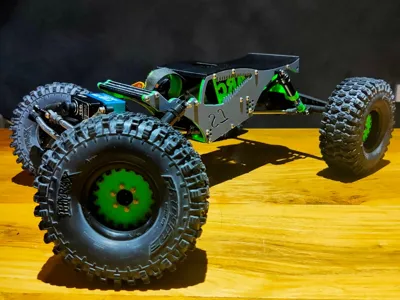

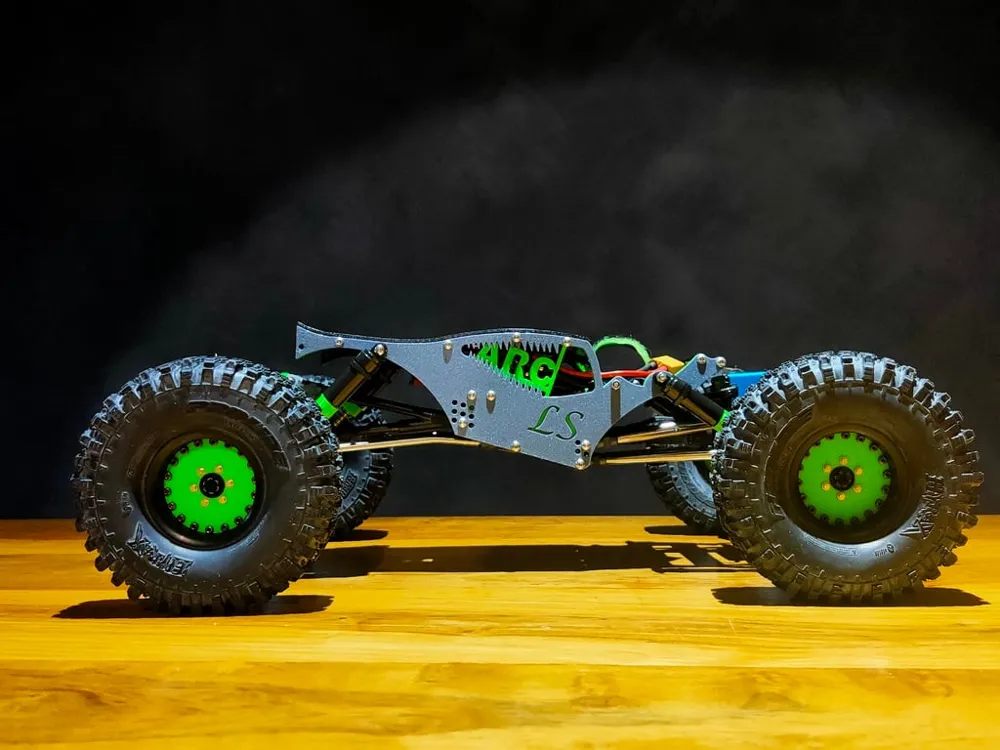

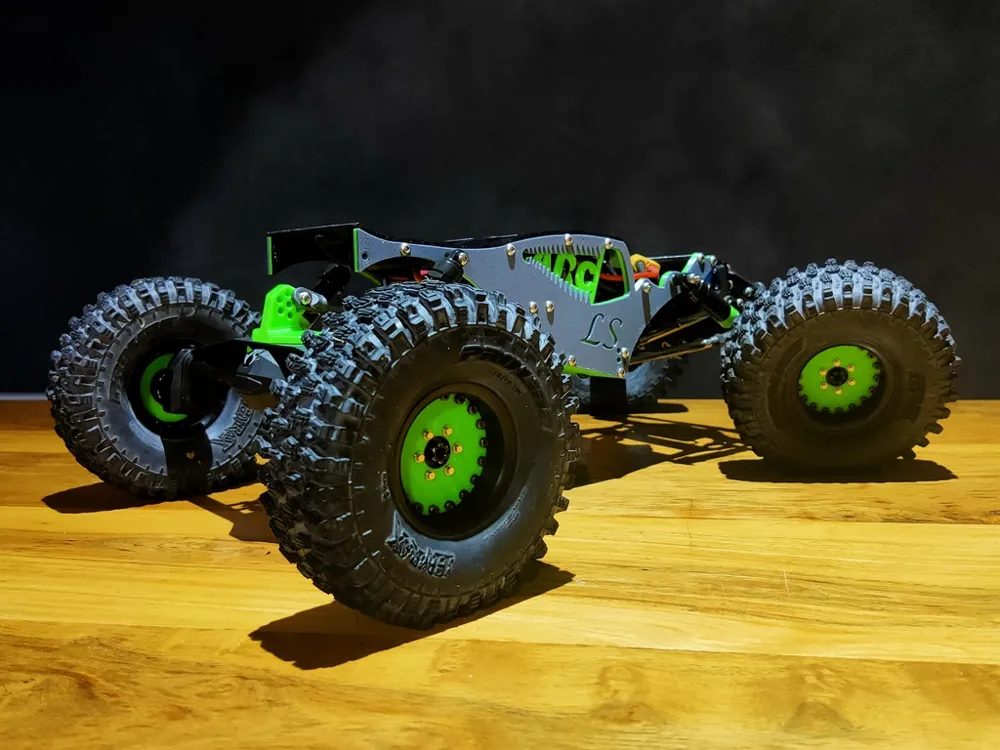

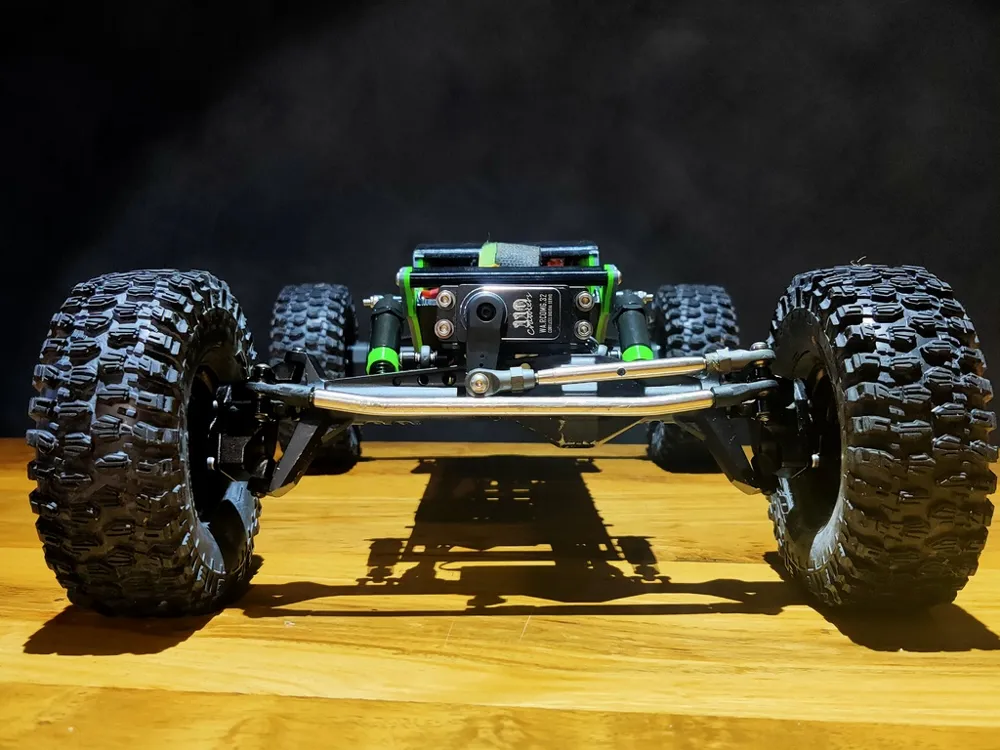

Its a Multi piece Chassis designed Originally to Run Axial AR44's, as you can see from pictures i opted to go for the Axial Capra Portals.
To run the Vanquish Front portal you'll have to flip the skid around and also dissemble the Axial Transmission and have the Top shaft exiting the other side and using the STL for the spacers you can mount it back together. If you are running Straight axles, or a stock capra front axle you wont have to do this.

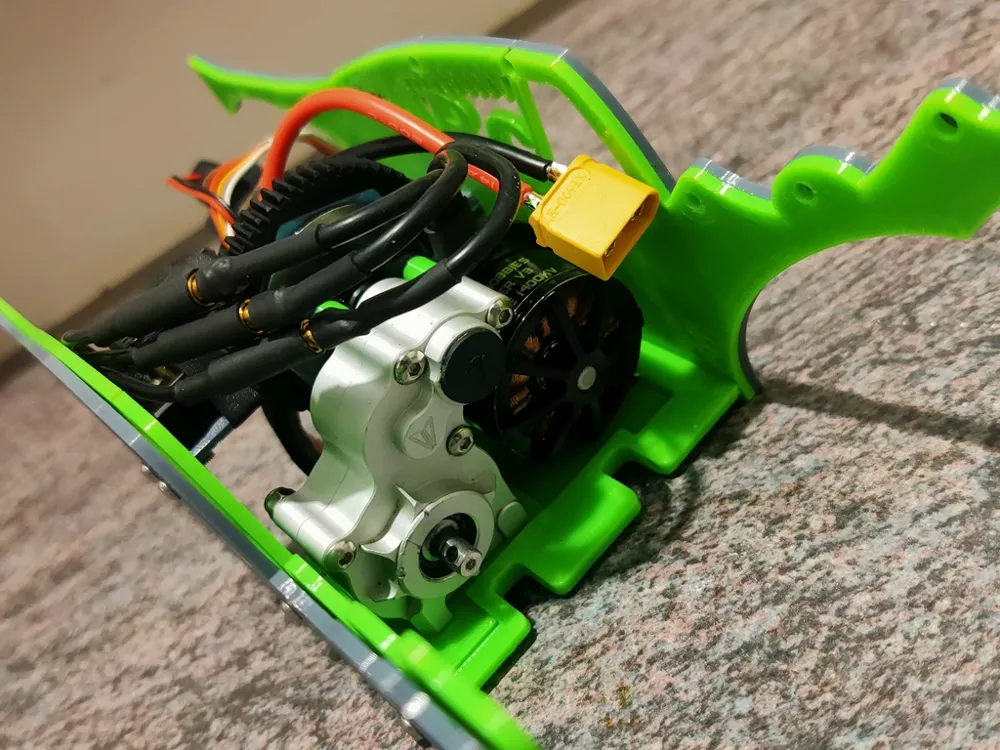

You also wont be able to run a normal 540 motor or a fusion setup, there is just enough room to run a Outrunner brushless setup and a Castle Mamba x2 Micro esc. Another option would be the Rhino AM32 ESC and Motor combos widely available for a good price.
Parts List for what you see in pictures is the following, be aware you can pretty much run any axle, link, shock, wheel setup you want too.
Axial Capra portals
Mixed links to get a 12.4" wheelbase
Traxxas 2660 big bore shocks with custom perches to run desert lizard shocks

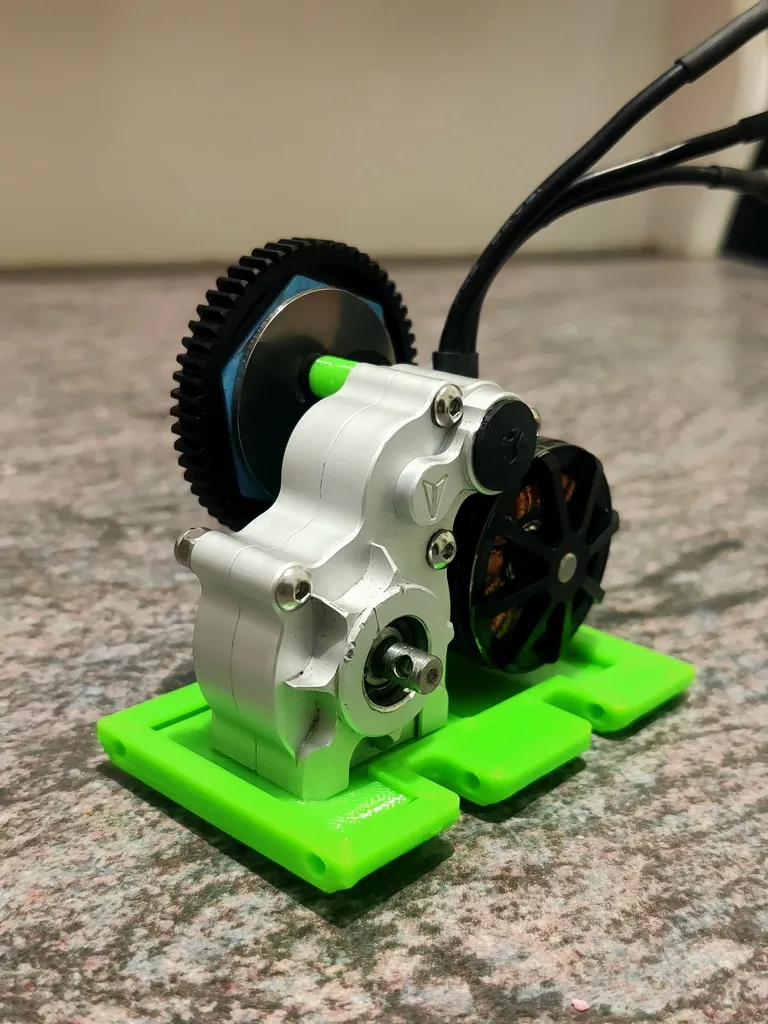

Axial 3 gear transmission
Boom Racing Pro Build 1.9s with Custom Centers, Proline Hyrax Tyres
Castle Mamba x2 mico ESC
Castle 8.4v BEC
Holmes Hobbies Revolver v3 Brushless motor
110 Crawlers 32kg servo

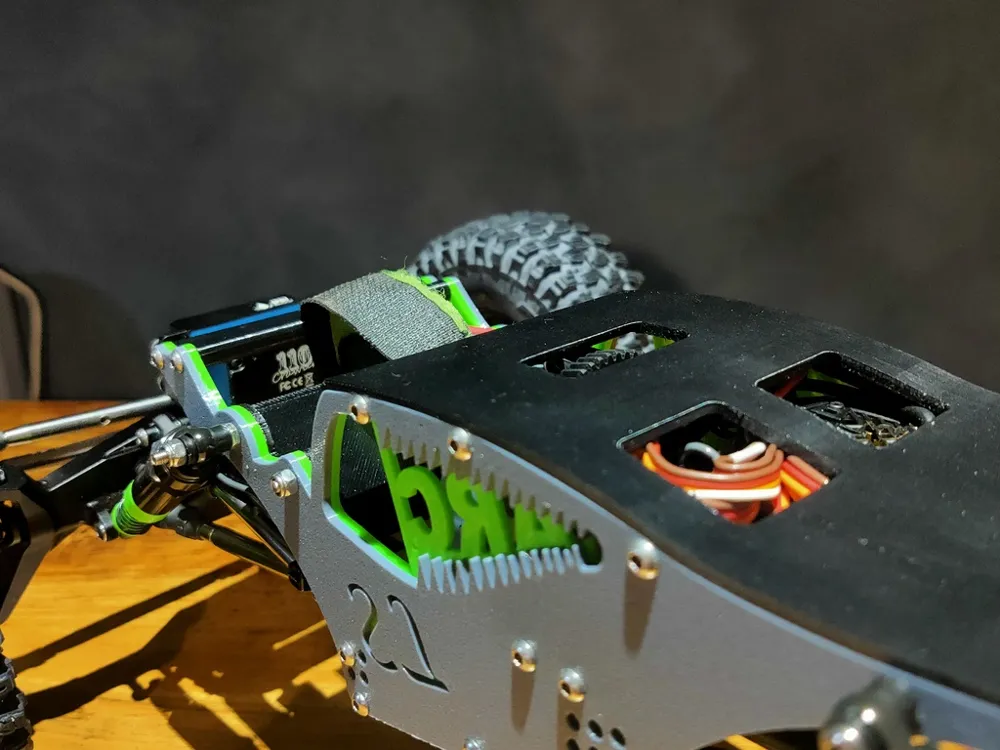

There is minimal Space for electronics, so be cautious on where you mount things, zipties are your friend.
As Usual, All issues, requests, ect ect then please comment, inbox or comment on my Facebook Page https://www.facebook.com/profile.php?id=61554365281091
Please send through your own build, would love to see and Share.
Regards
A.R.C
Print Settings
Printer Brand:
Bambulabs
Printer:
Bambu P1S
Rafts:
No
Supports:
Yes
Infill:
100%
Filament: eSun PETG Any
Notes:

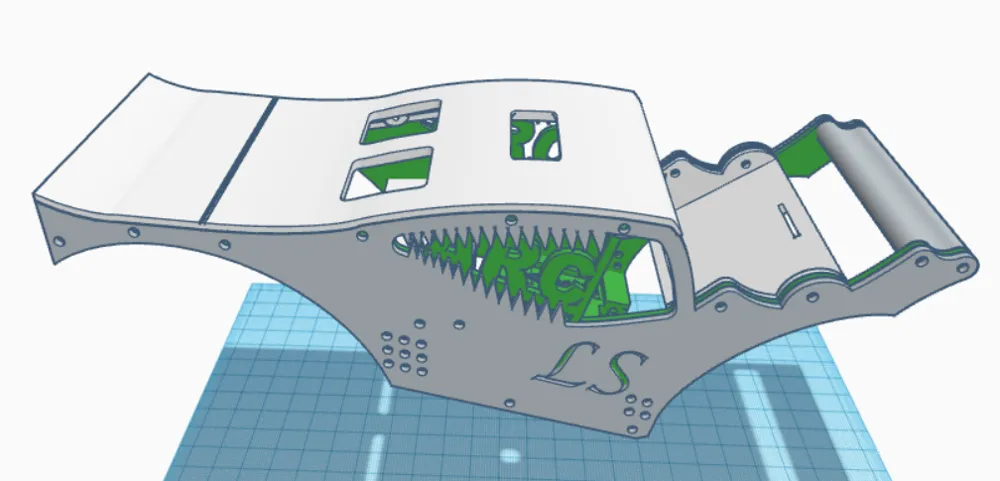

I found having the Roof on its side provided the best results in my testing, feel free to experiment and report back, all feedback appreciated.
