A.R.C AR60 Shafty Chassis

Summary

Hey All,

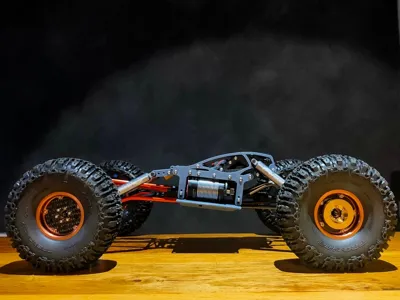

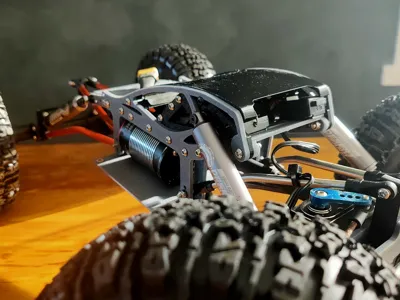

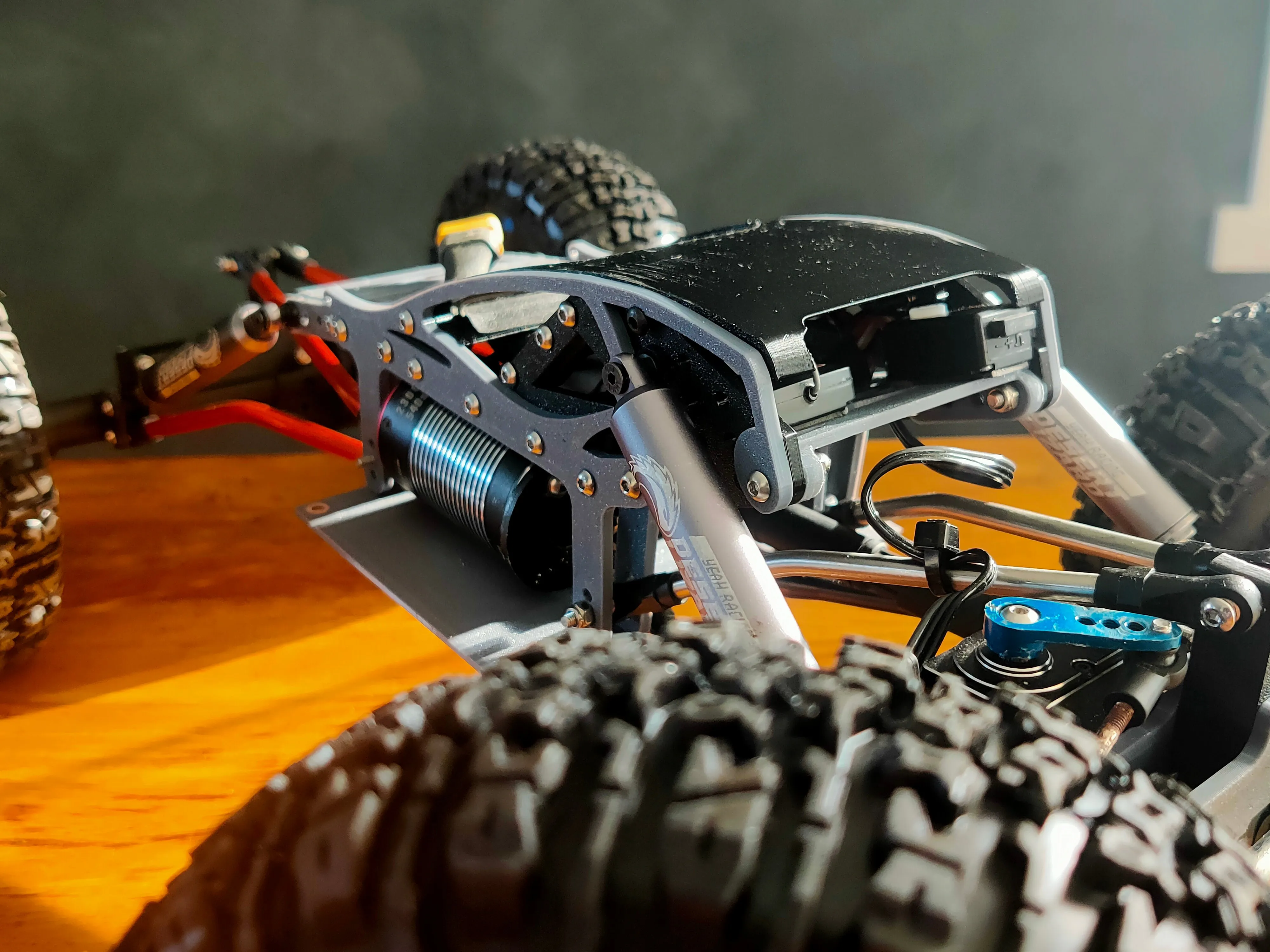

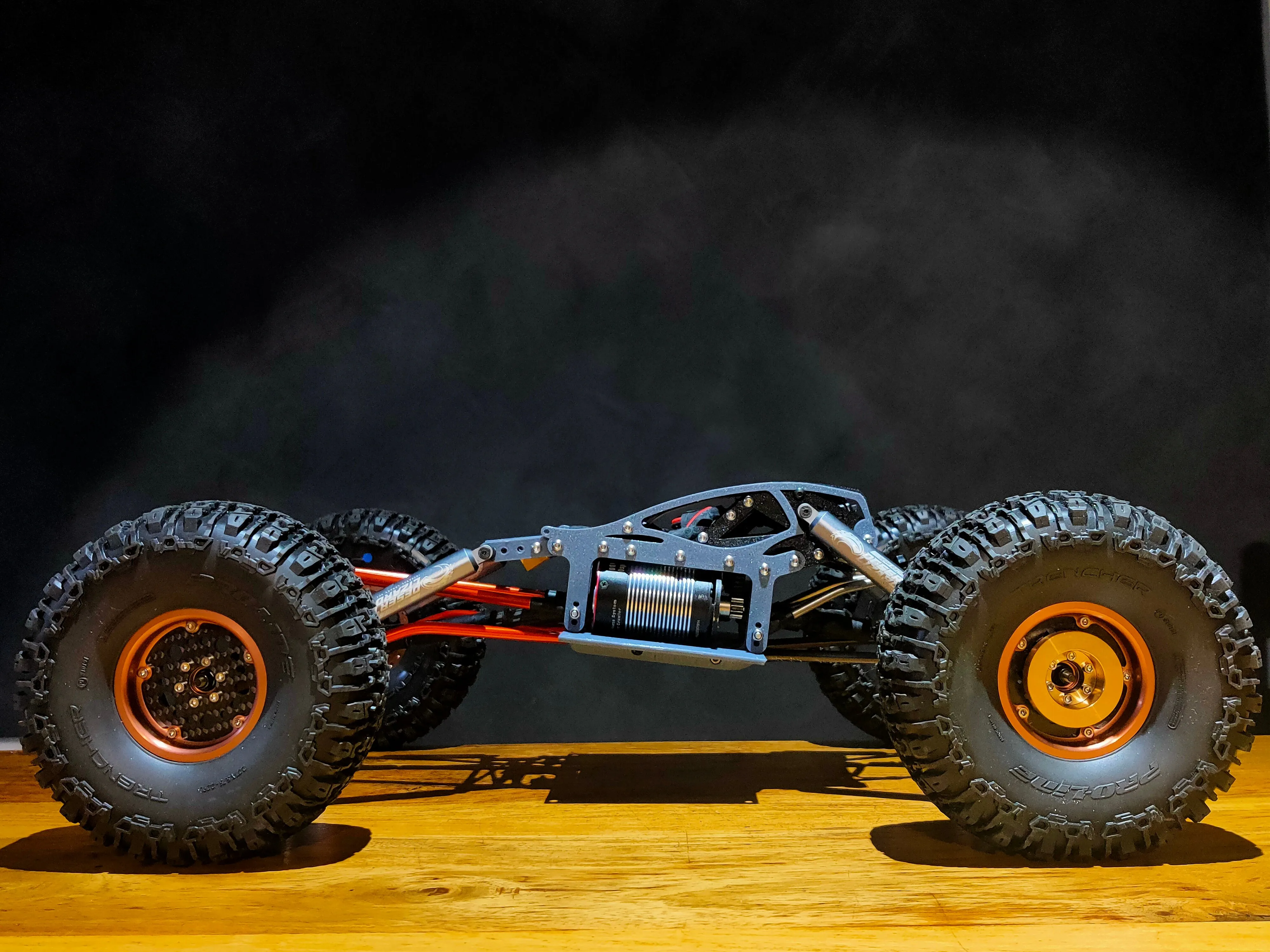

Here is my Remixed version of Benjiv's Super Shafty.

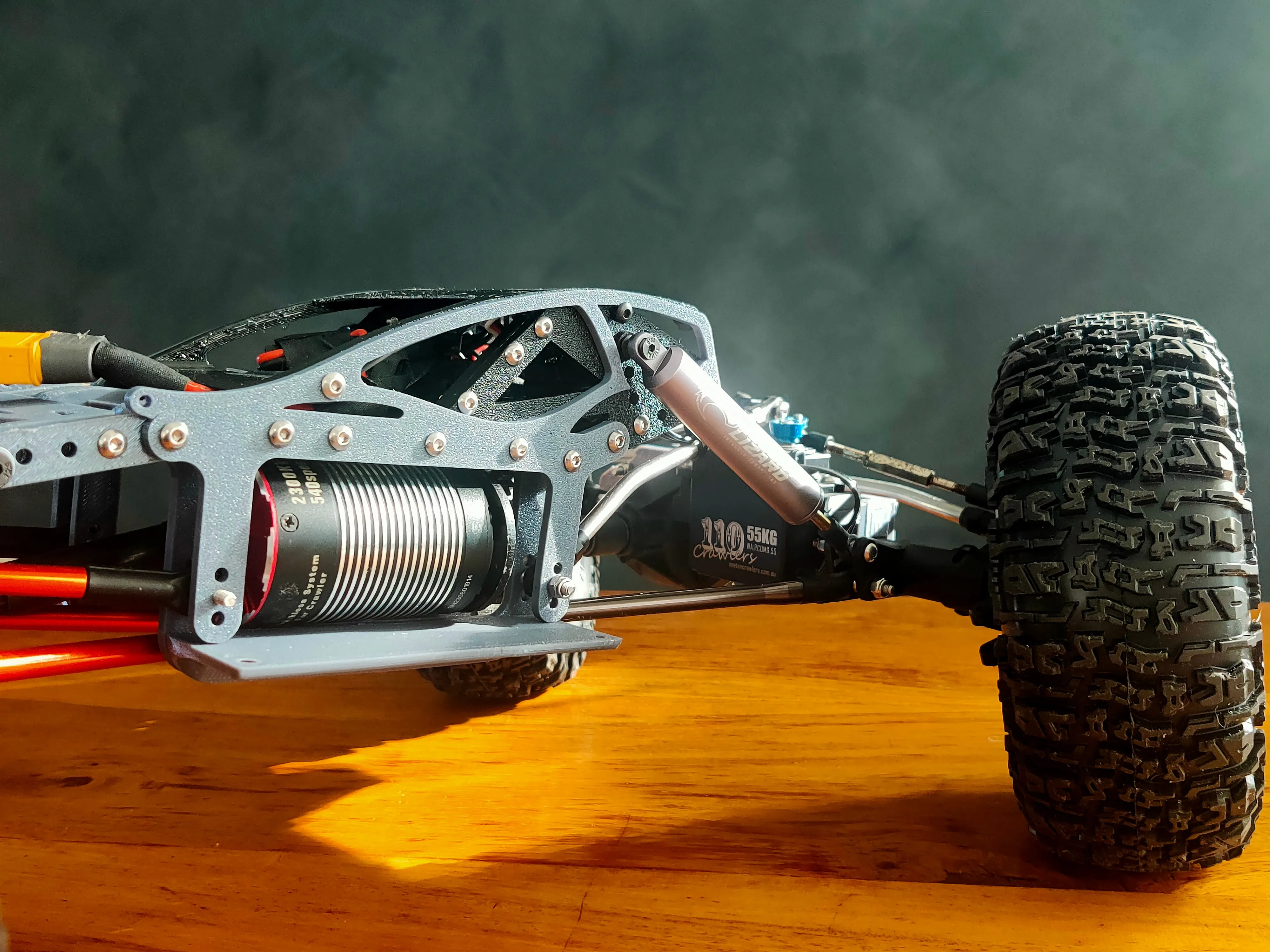

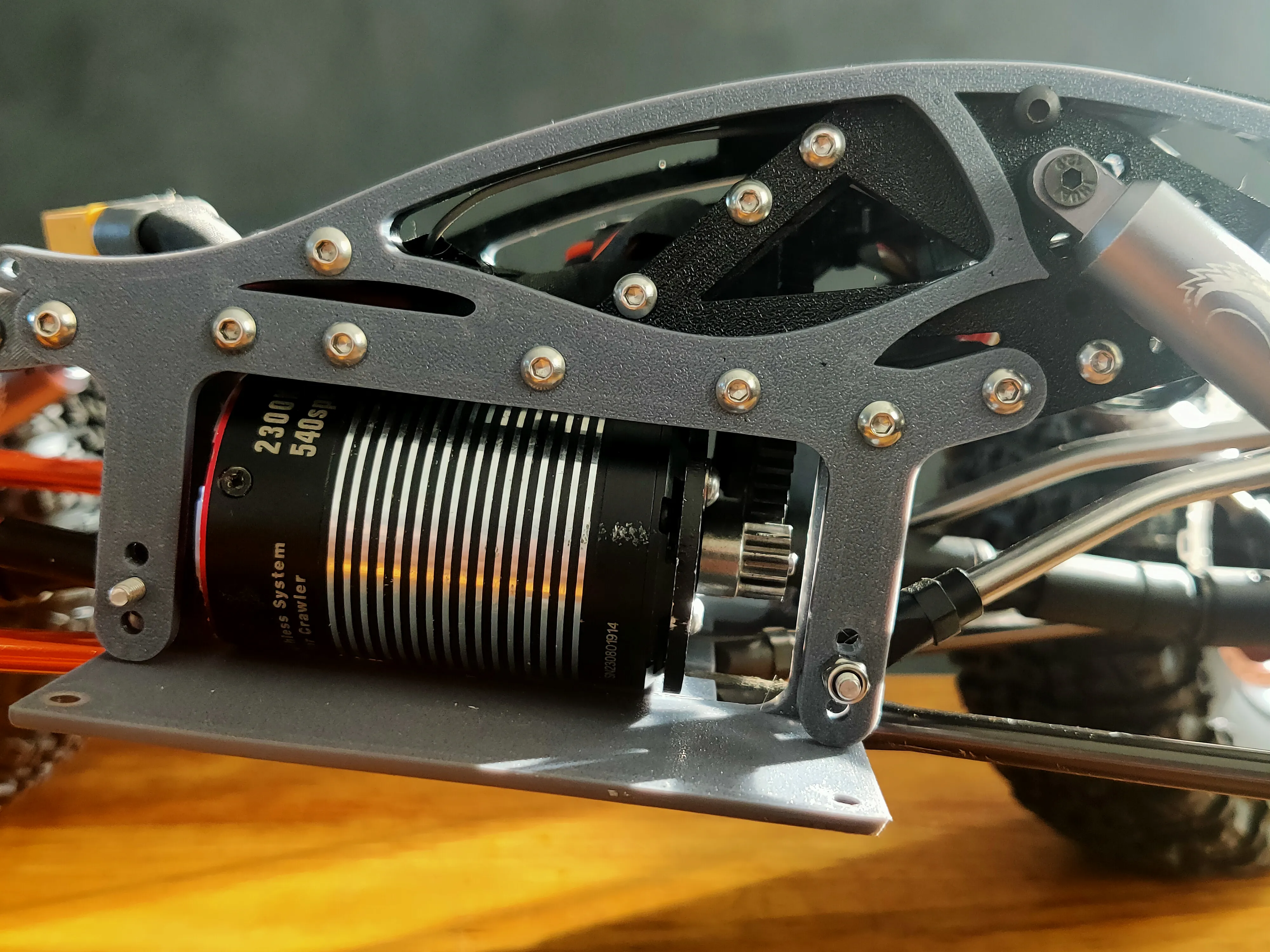

Chassis has been extended to fit a Hobbywing Fusion motor.
All supports are now 3D printed so you wont need anything else other than the hardware.
Couple other changed, Add a roof and more to the side panels.

There is two versions of the AR60 servo mounts, one is the full length of axle to suit standard link mounts and the other version is shorter to allow for the link supports that are for the SMT10 with the extra two mounting options.

I have added a x2 to the end of file names for parts that require two prints.

All issues, requests, ect ect then please comment, inbox or comment on my Facebook Page https://www.facebook.com/profile.php?id=61554365281091

Edit 25/07/2024

You will require the following to complete the Chassis,
Axial AR60 axle (or any axle of your choice really)
Driveshafts
3 gear Axial Trans
Shocks
Links
Wheels/Tyres
and Electrics

As for hardware, its Various lengths of M3 hex bolts and nylon lock nuts.

Edit 27/07/2024

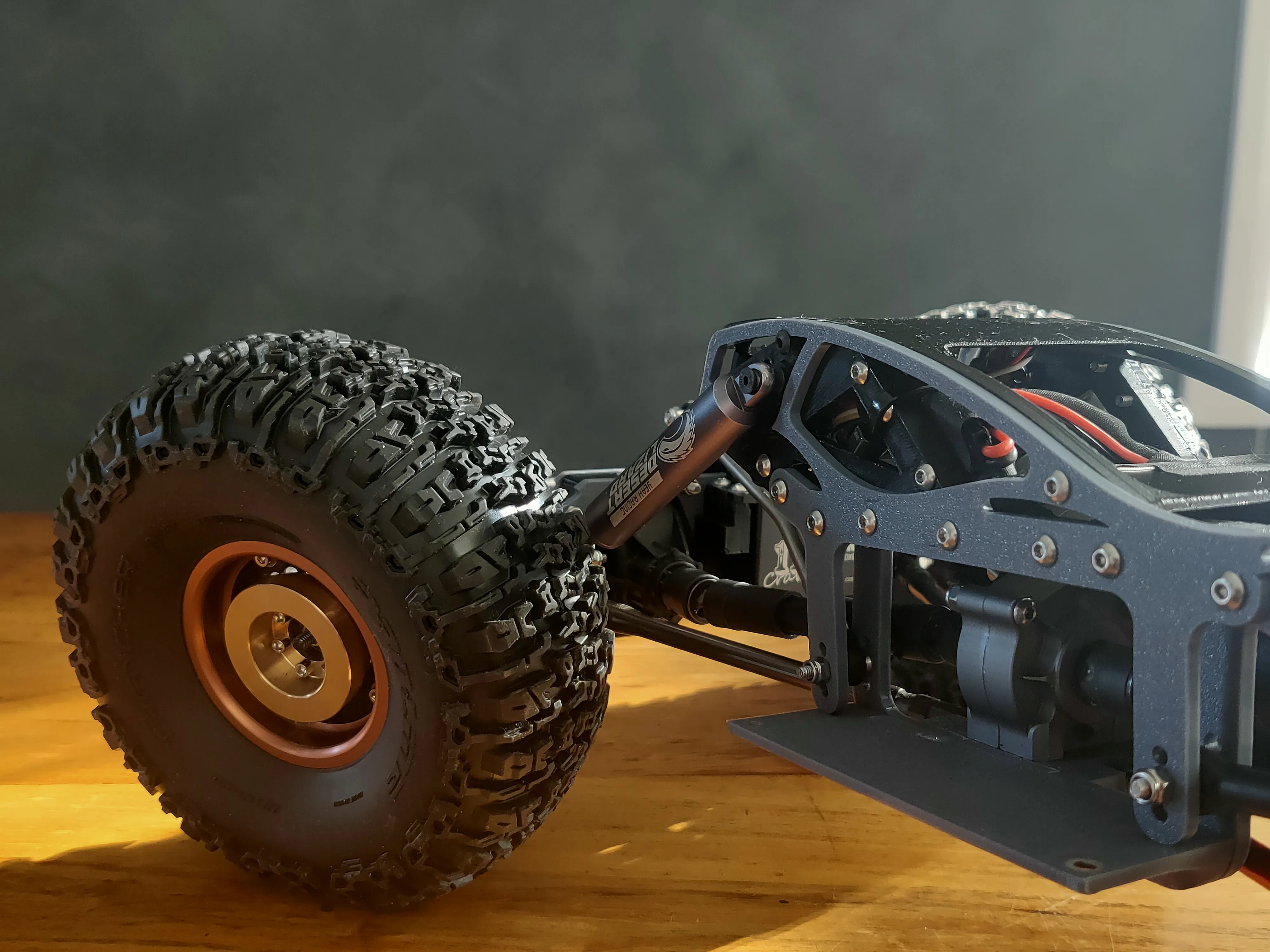

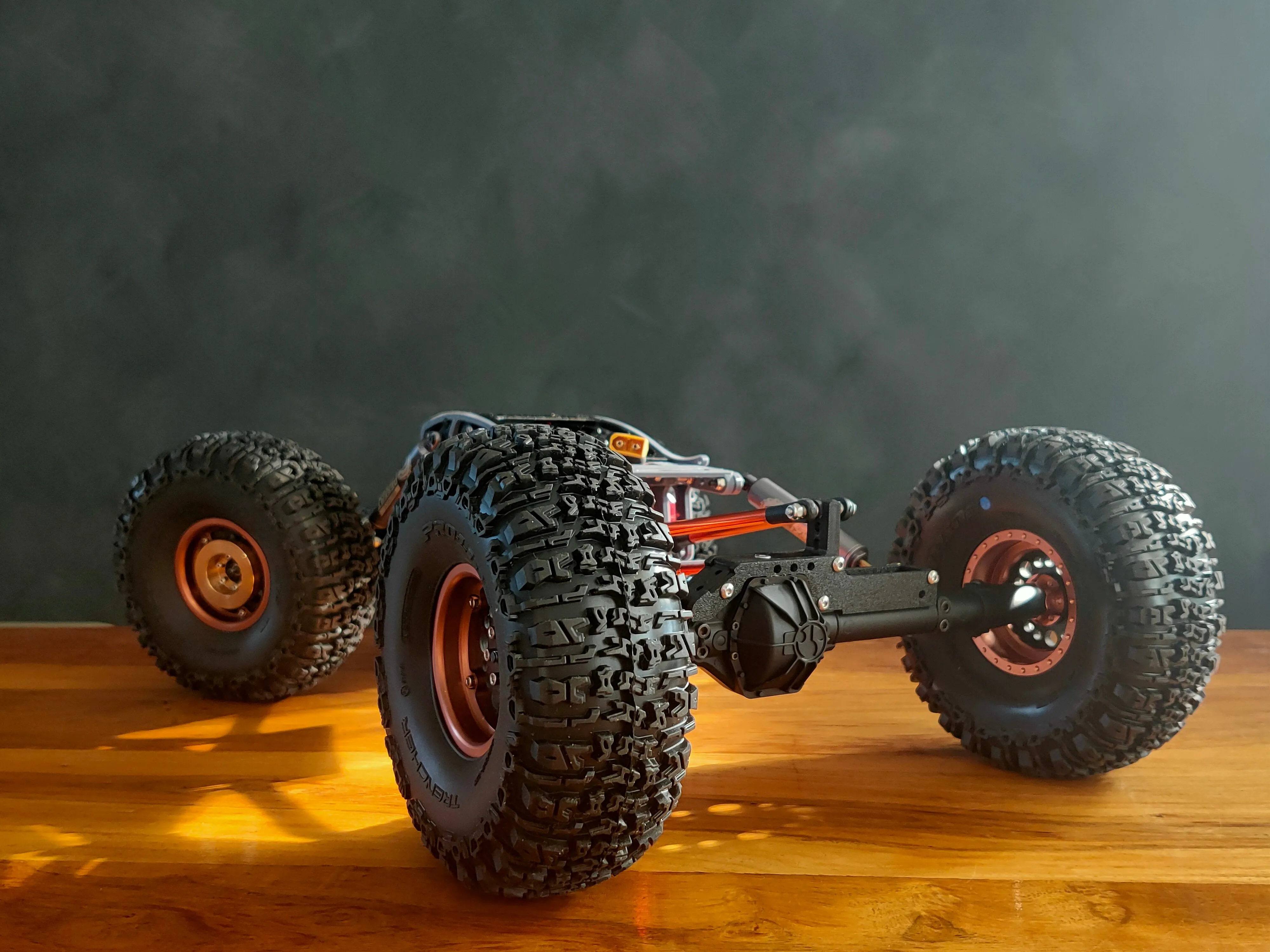

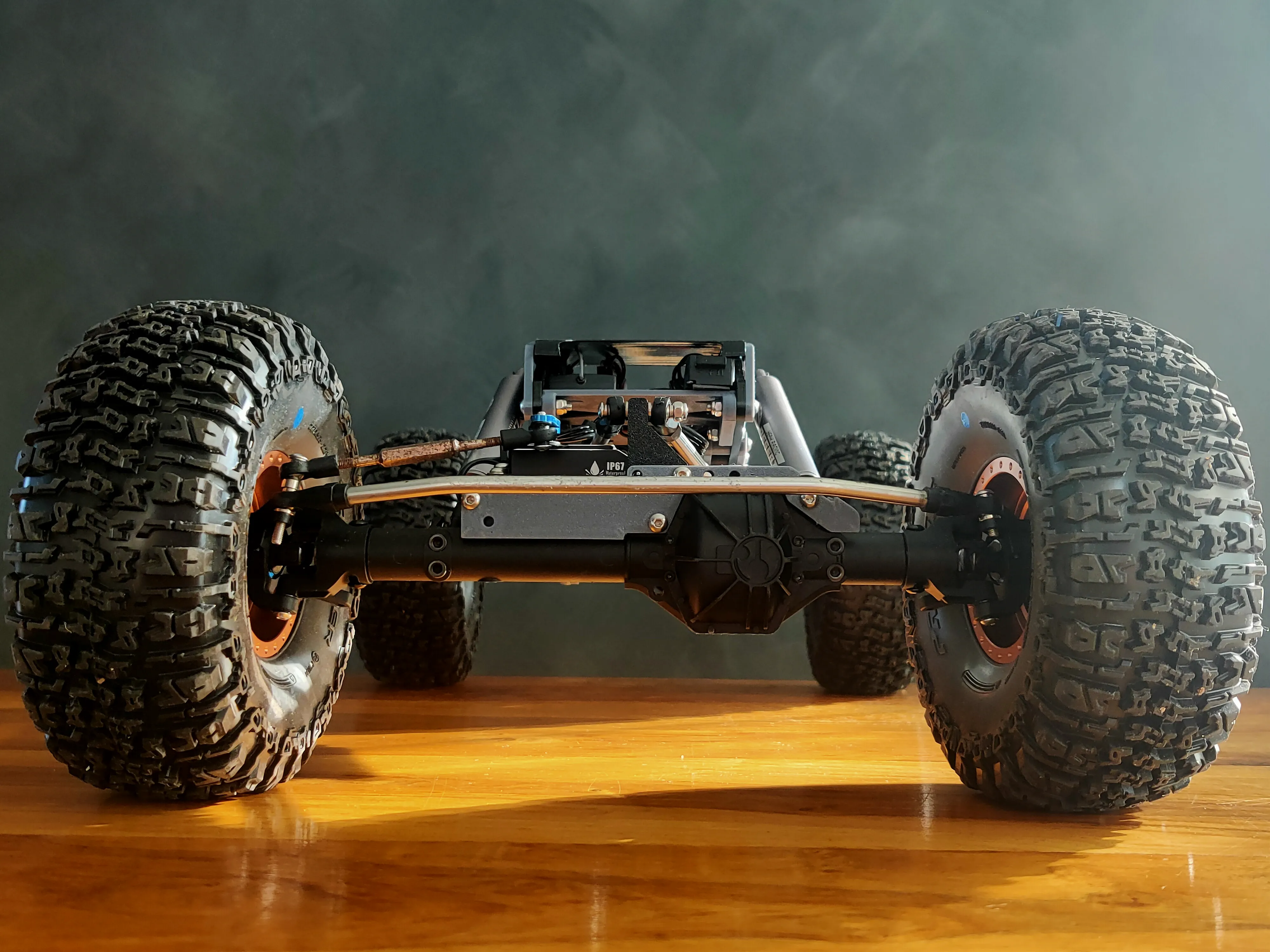

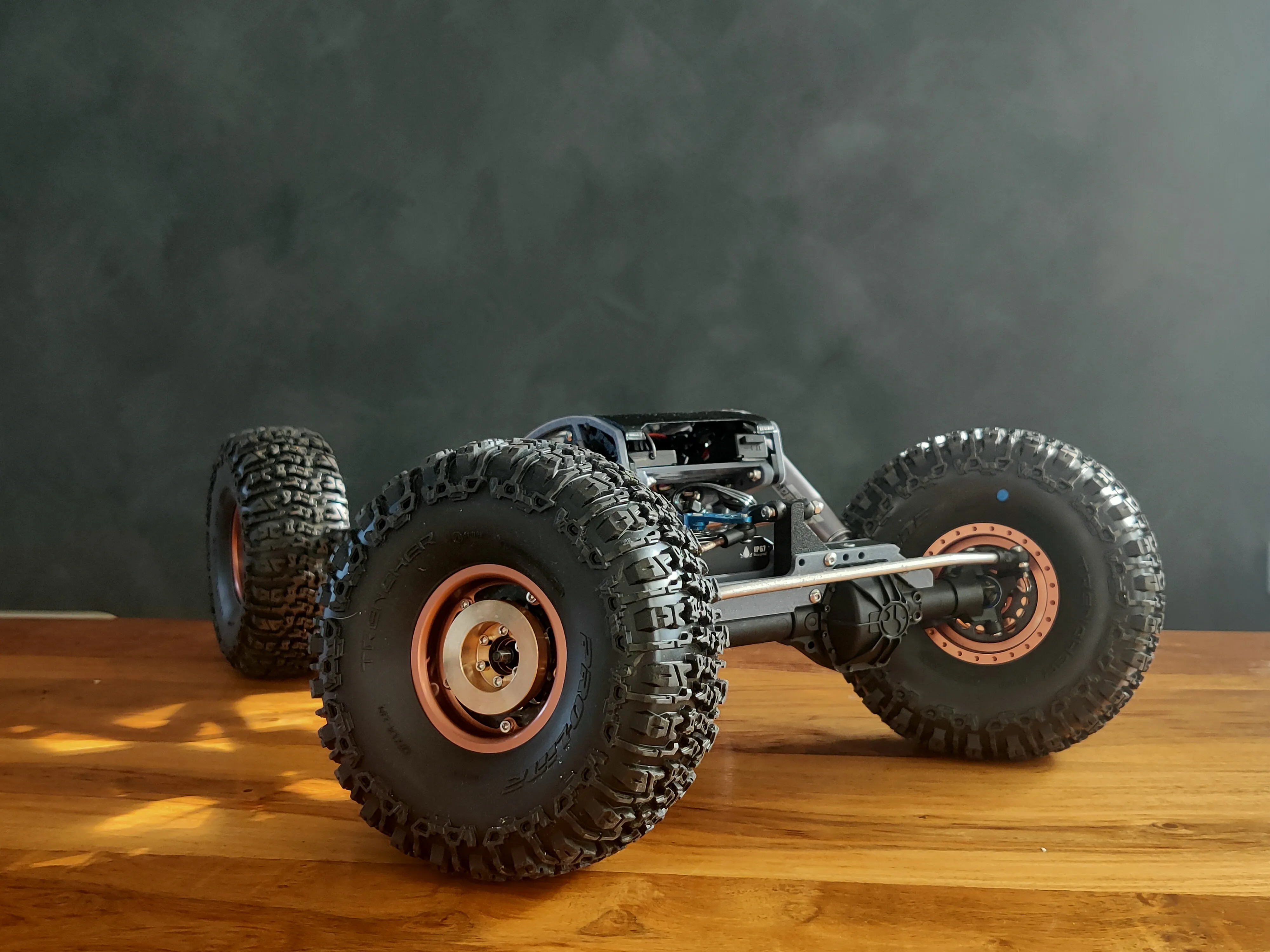

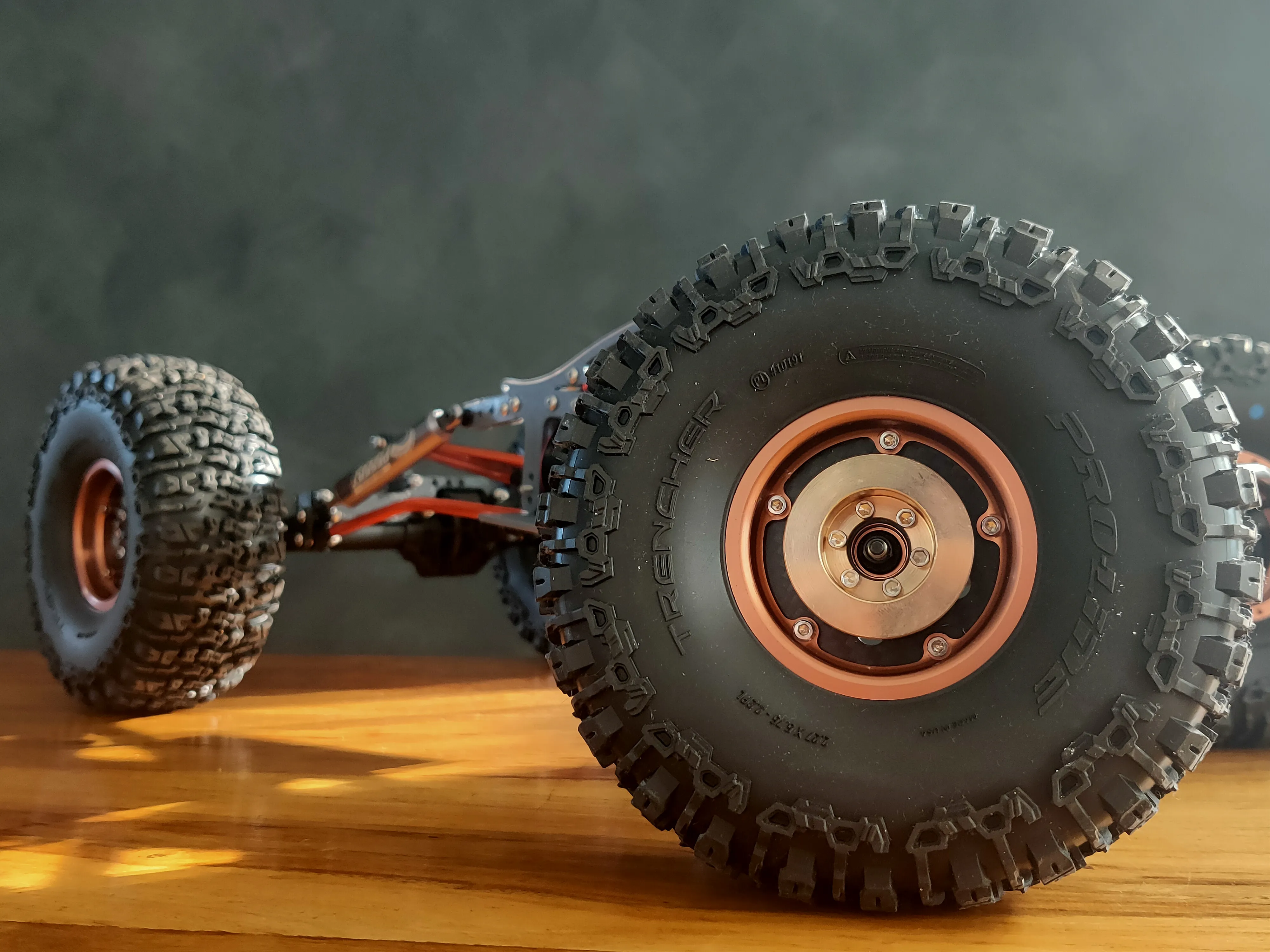

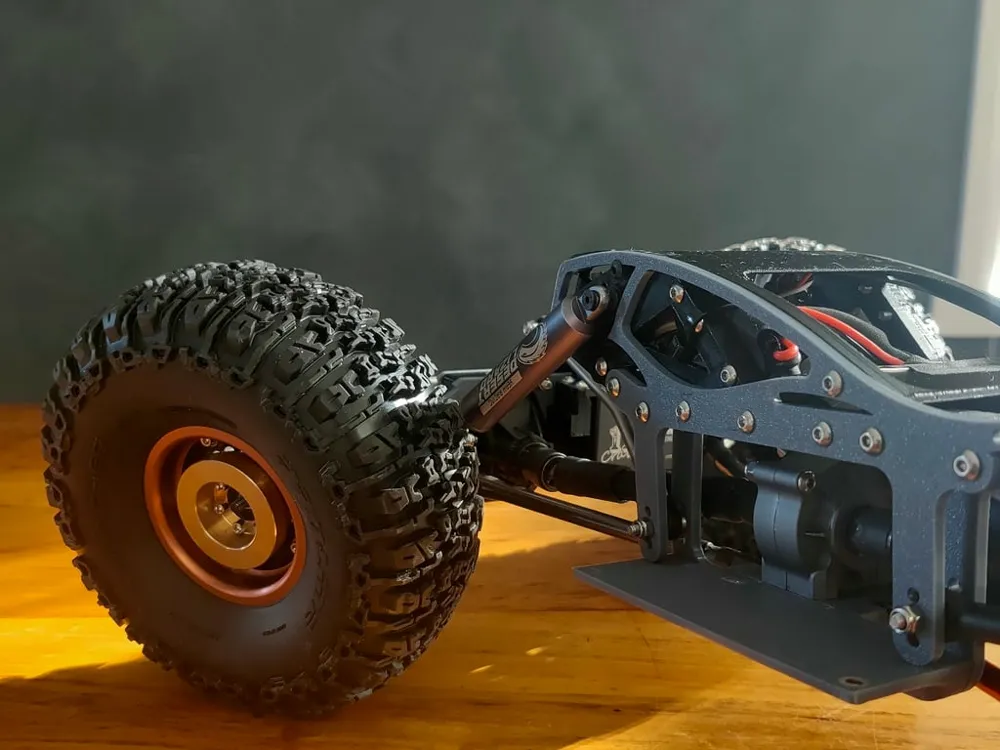

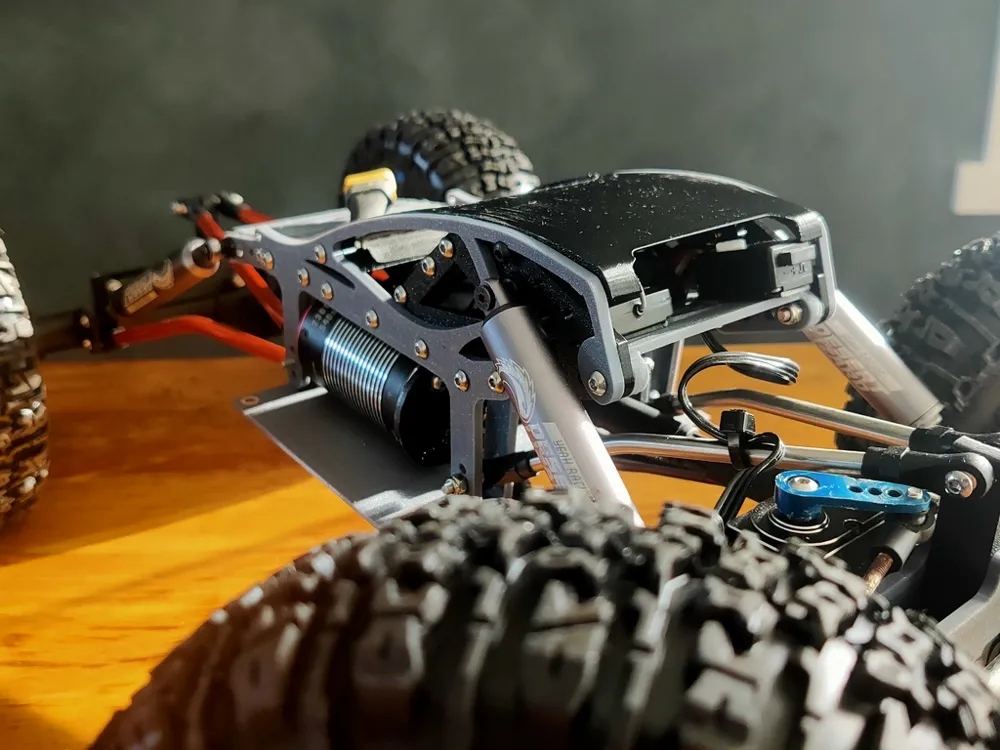

Added a Few more pictures, hopefully helps explains how it goes together.

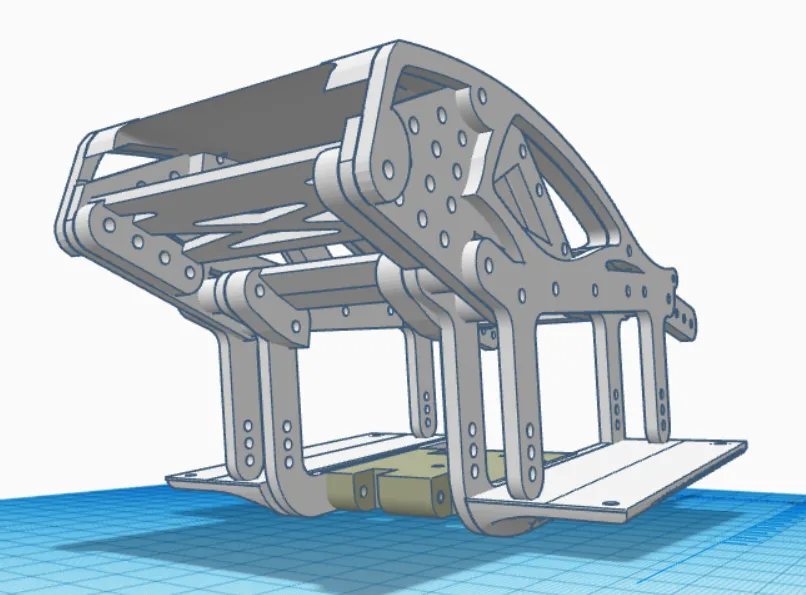

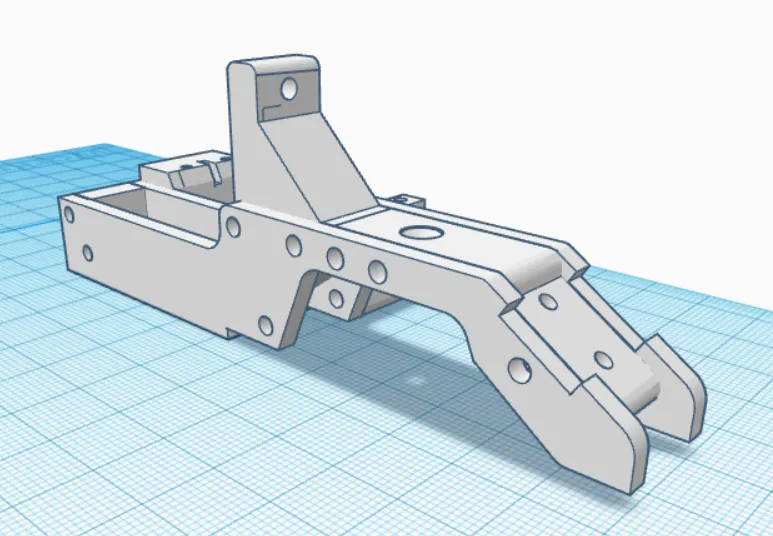

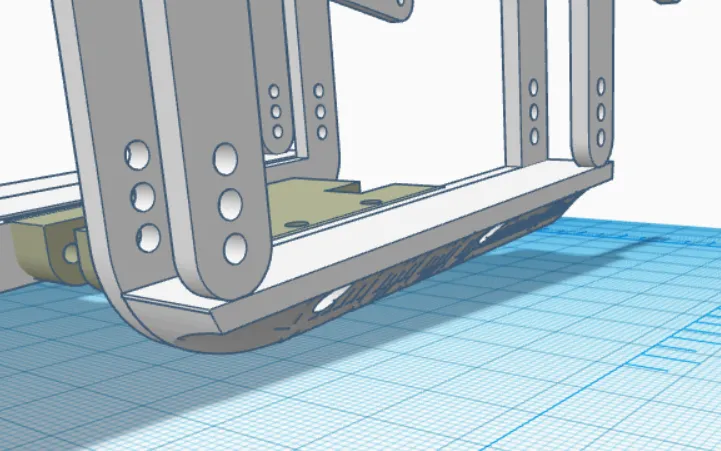

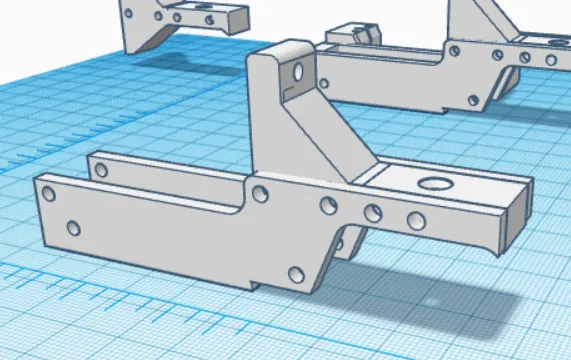

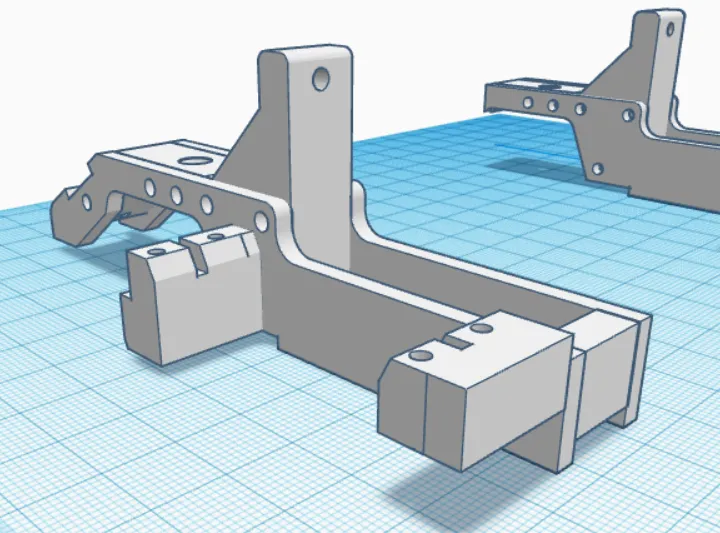

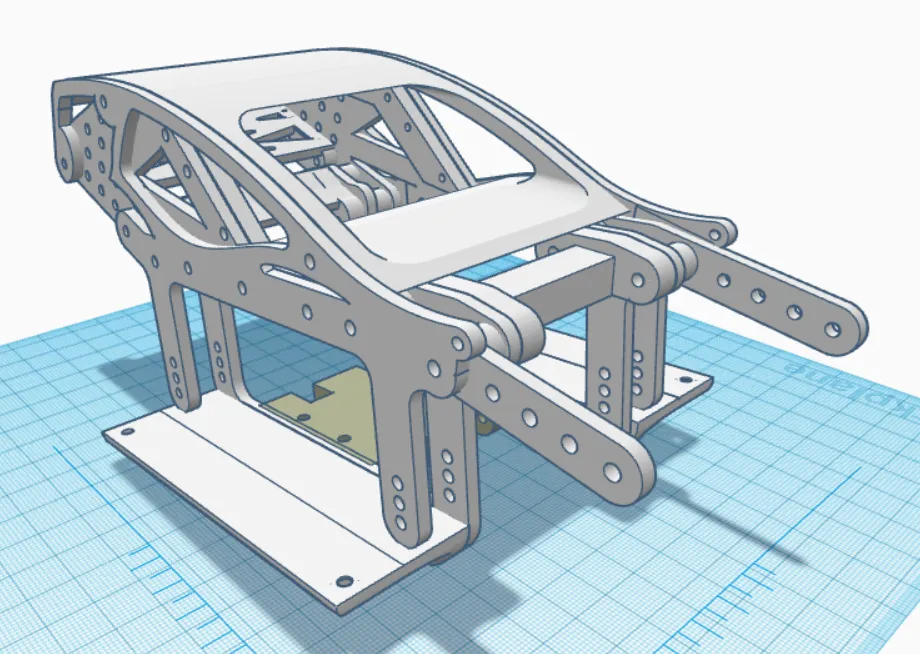

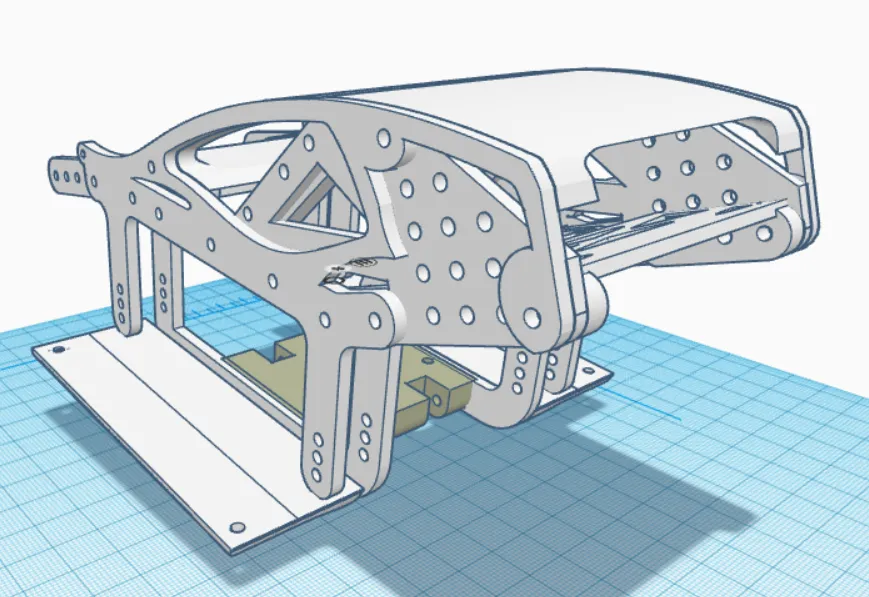

Also added screenshots of the 3d Images to get a better idea.

Edit 13/08/2024
Changed the front and rear Space files slightly for better printing, also added a Shorter Slider for those running a battery on Axle or somewhere else.

Thanks and Happy Crawling

A.R.C

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

No

Supports:

Doesn't Matter

Infill:

100%

                                                    Filament: eSun PETG                Any


Notes:

Most Parts will print with no supports and raft minus the roof.

Post-Printing

How I Designed This

Was created from bejiv's version of the RC shafty AR60 Crawler.
