Under Desk Touch Light Controller (TTP223,ESP32)
Print Profile(1)
Description
UPDATE - I've added multiple sizes :)

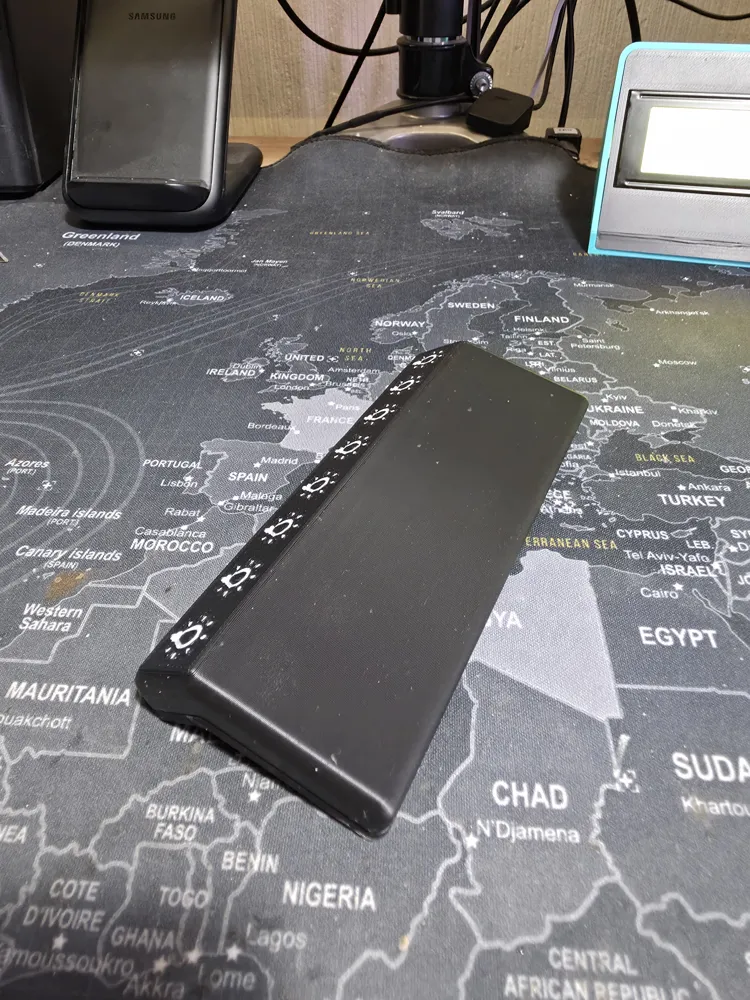

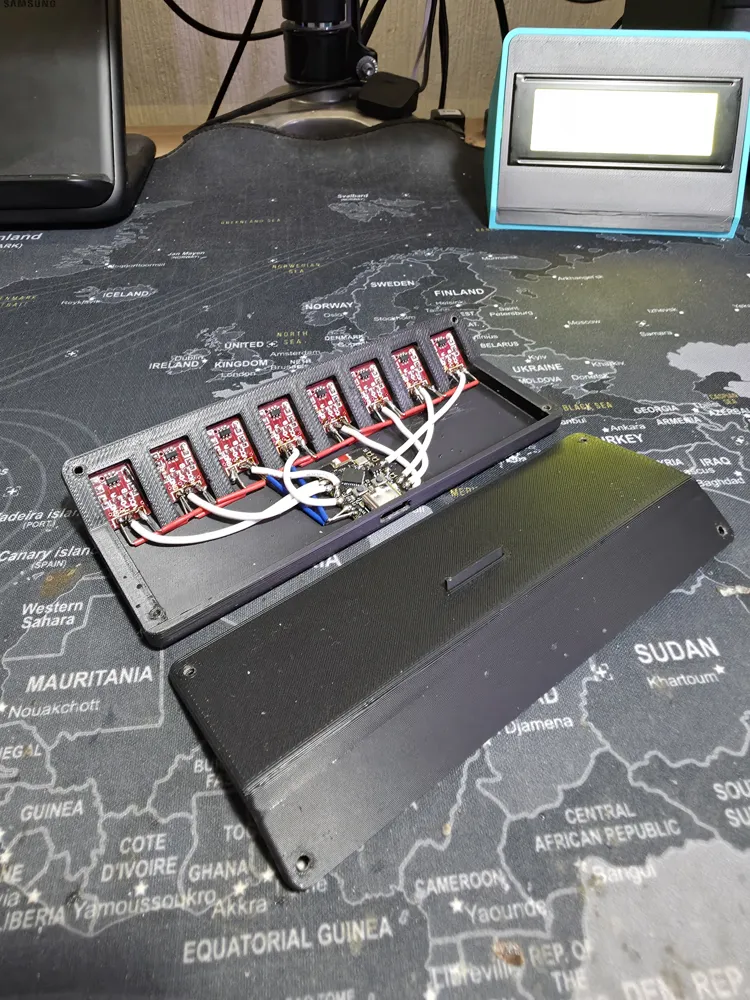

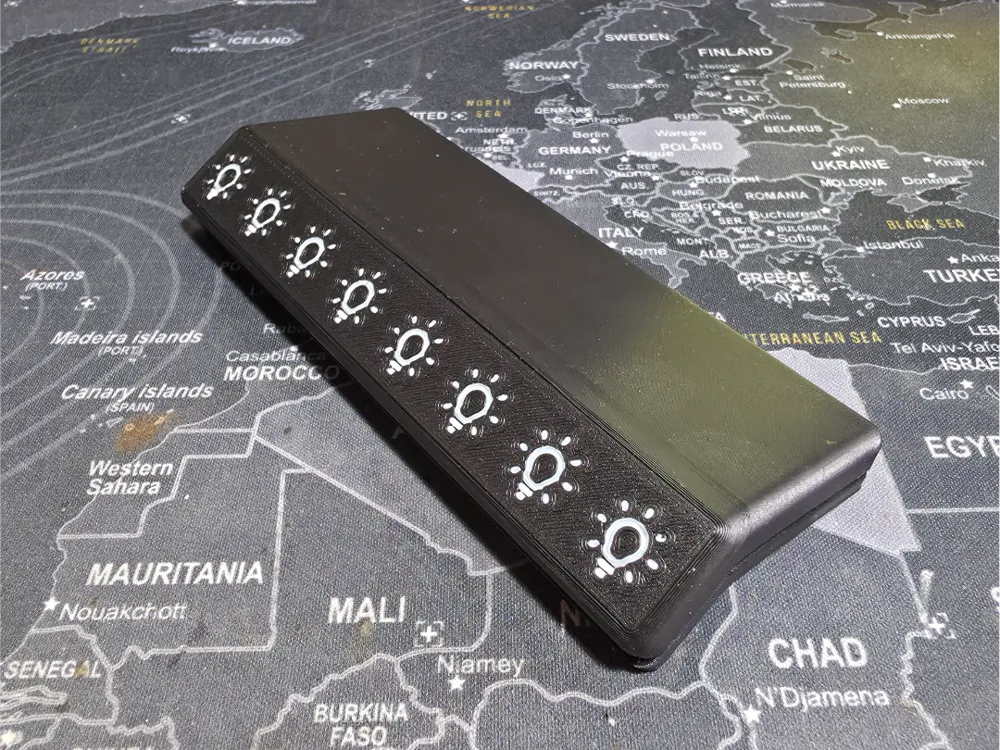

Slim under-desk touch light controller enclosure for ESP32-C3 SuperMini and TTP223 capacitive touch sensors.
The TTP223 sensors i got from here: https://de.aliexpress.com/item/1005009592445922.html?spm=a2g0o.order_list.order_list_main.5.1a285c5fCzeYBA&gatewayAdapt=glo2deu
Those sensor are not always the exact same size, so you might need to sand them off a little bit or secure with a hot glue.
You'll need 4 M2.5x6 screws to put it together.
If you are having trouble with your sensors activating on their own, try new sensors or different power source. (when i put mine together i had to swap 2 sensors)
After more testing i noticed those touch sensors are quite sensitive to other electronics so be careful where you mount it or you may experience touch sensors activating on their own.
Below you can find my yaml as an example but of course you'll need to adapt it for your setup.
