Pineapple Optic Mold for Lost-PLA Casting
Remixed by
IP Report
Print Profile(1)
0.08mm layer, 1 walls, 2% infill
Designer
6.4 h
1 plate
Open in Bambu Studio
Boost
3
3
0
0
1
0
Released
Description

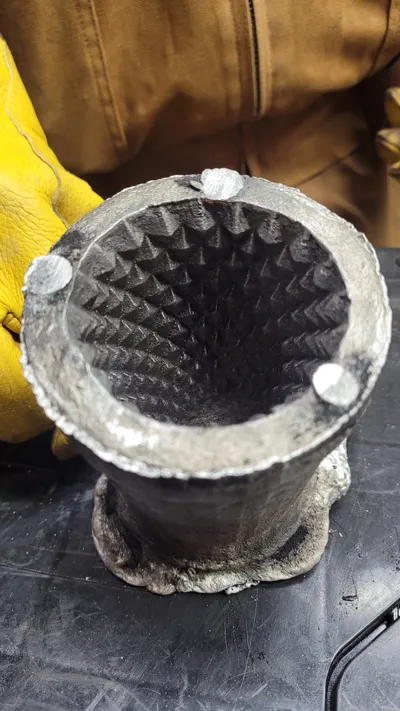

This is a lost-PLA mold, designed for aluminum casting to create a mold for use in glass-blowing. This model is based off Dygar's excellent model at the core, to which I added the casting-specific elements.
Best: Coat with plaster of paris, burn out the interior, pack in sand*, cast.

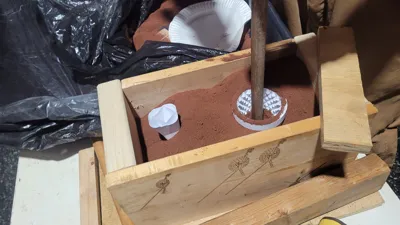

Works: Remove the sprues and risers. Pack interior with sand. Invert model and add sprue/vent to the base of the cup, now the top. Pack with sand*, cast
*Red/Green sand. If you don't know what that means, go fall down that youtube rabbithole and come back :)
Print in PLA (white or natural preferably) with minimal infill and wall thickness. 3mf model has a region of increased interior support to allow for packing.
