N3DSXL and modded Gameboy Advance SP Charger

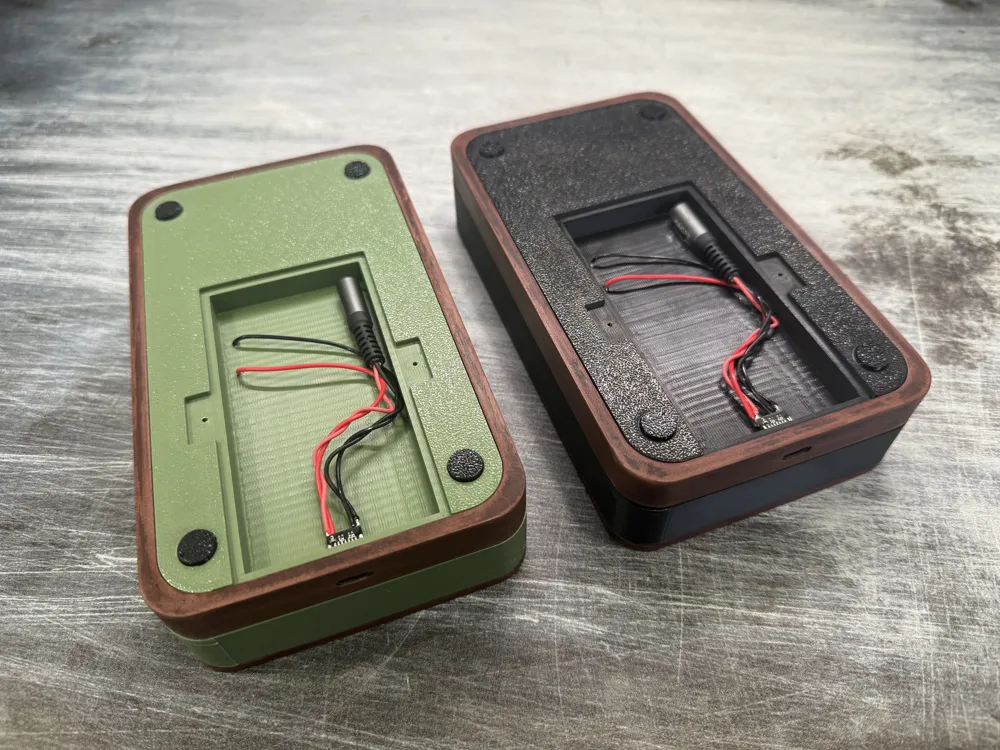

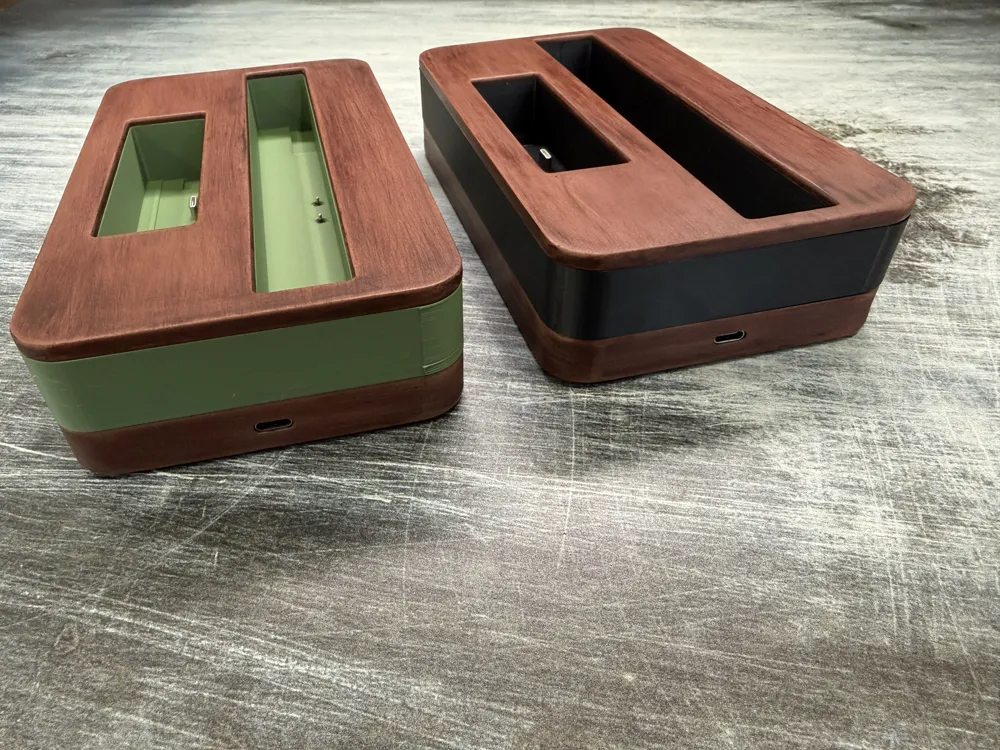

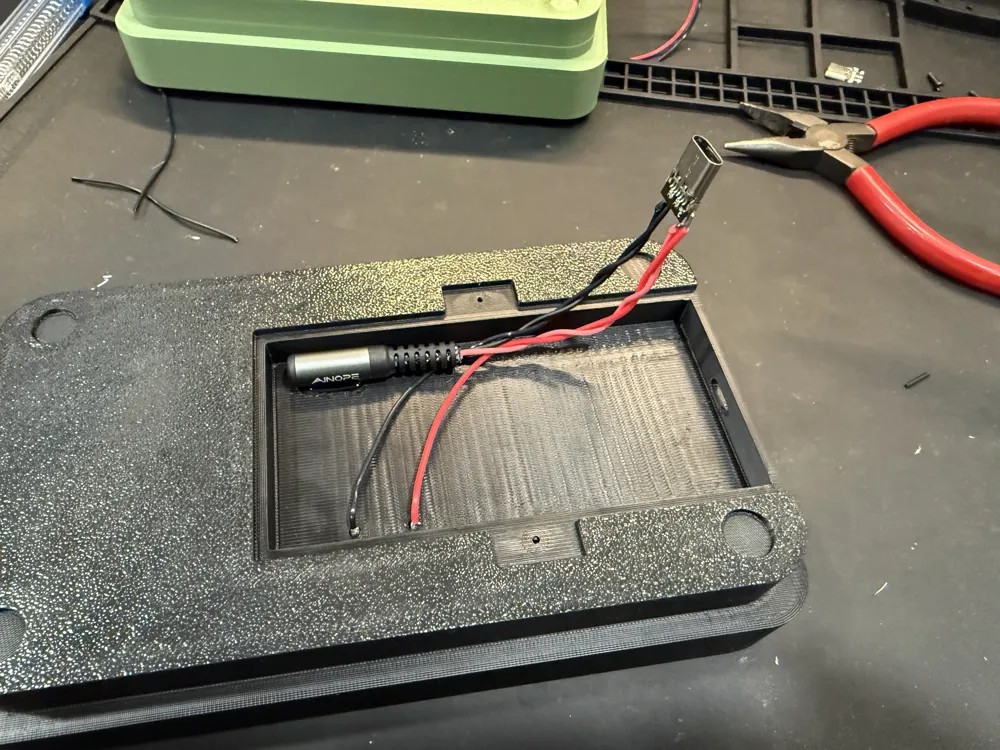

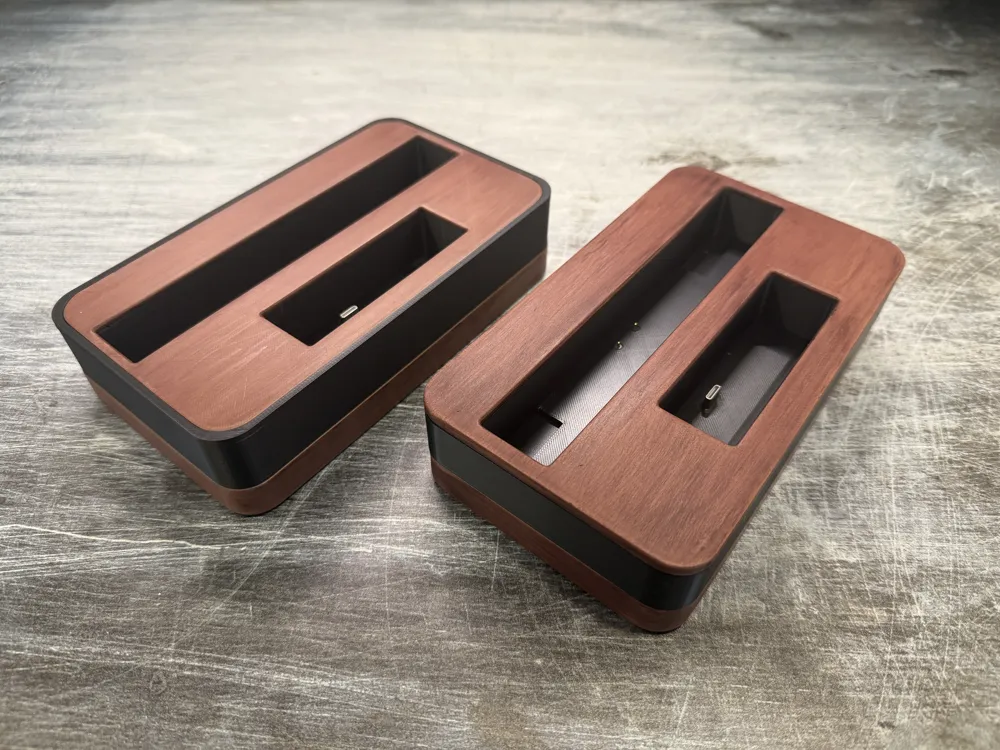

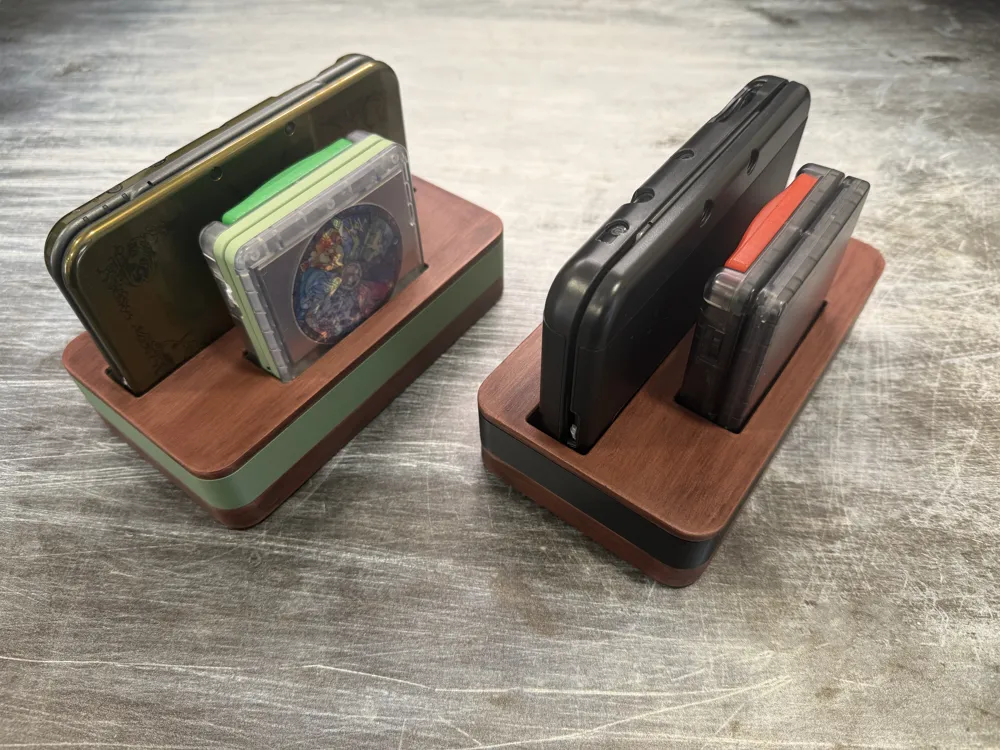

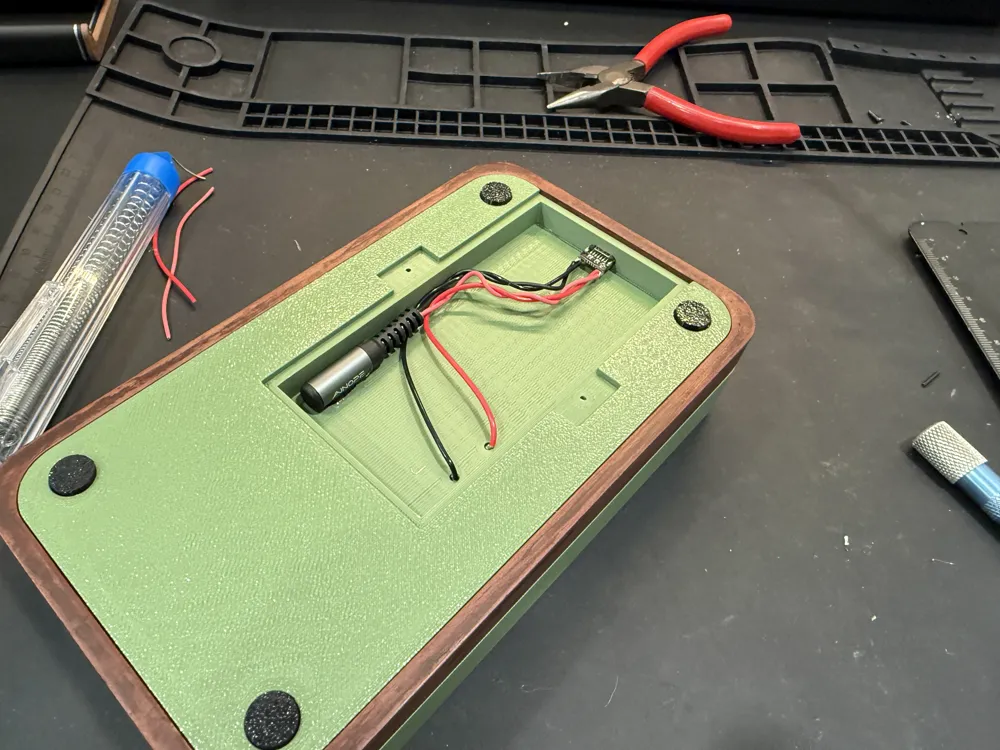

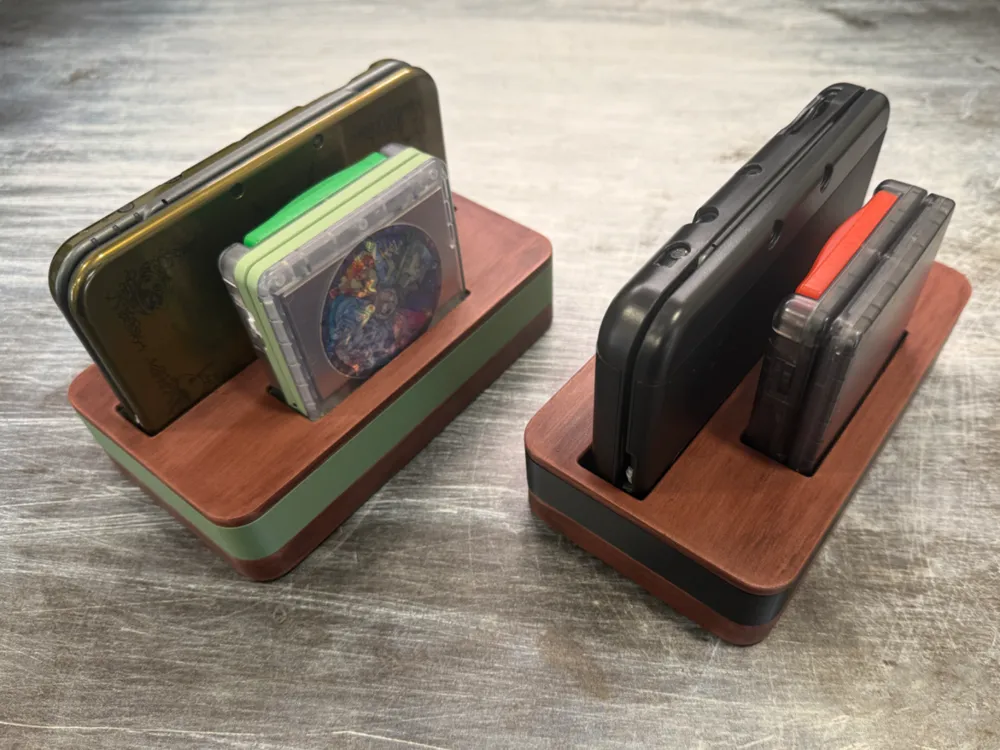

This is a charging cradle that I created for my N3DS XL and my modded GBA SP. It uses two spring loaded contact pins for the 3DS charging and a USB-C connector for the GBA SP charging. Both are wired together into a single USB-C Female port which would then go to the wall for power suing a 5V wall puck.

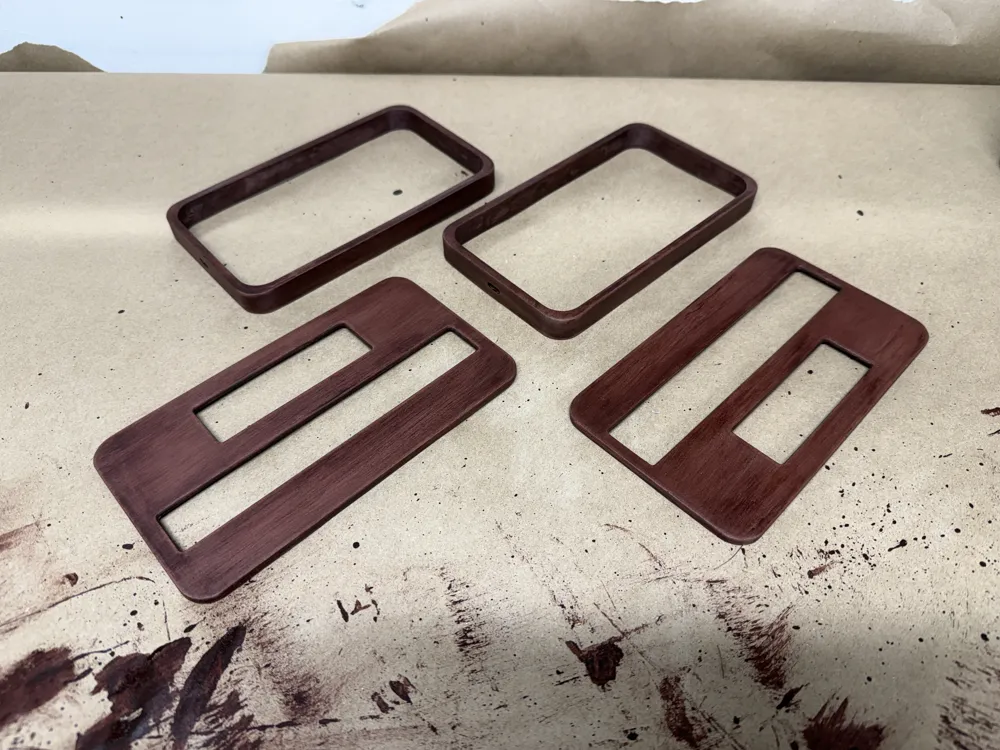

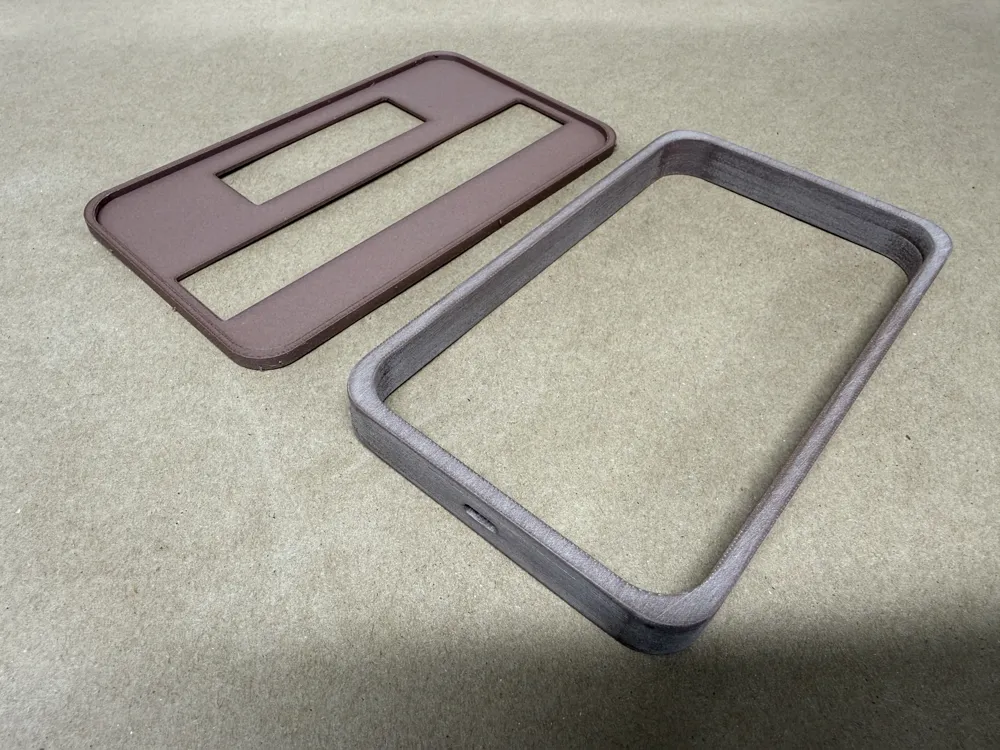

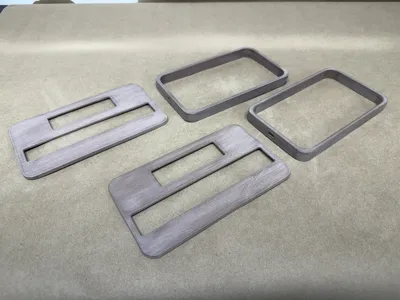

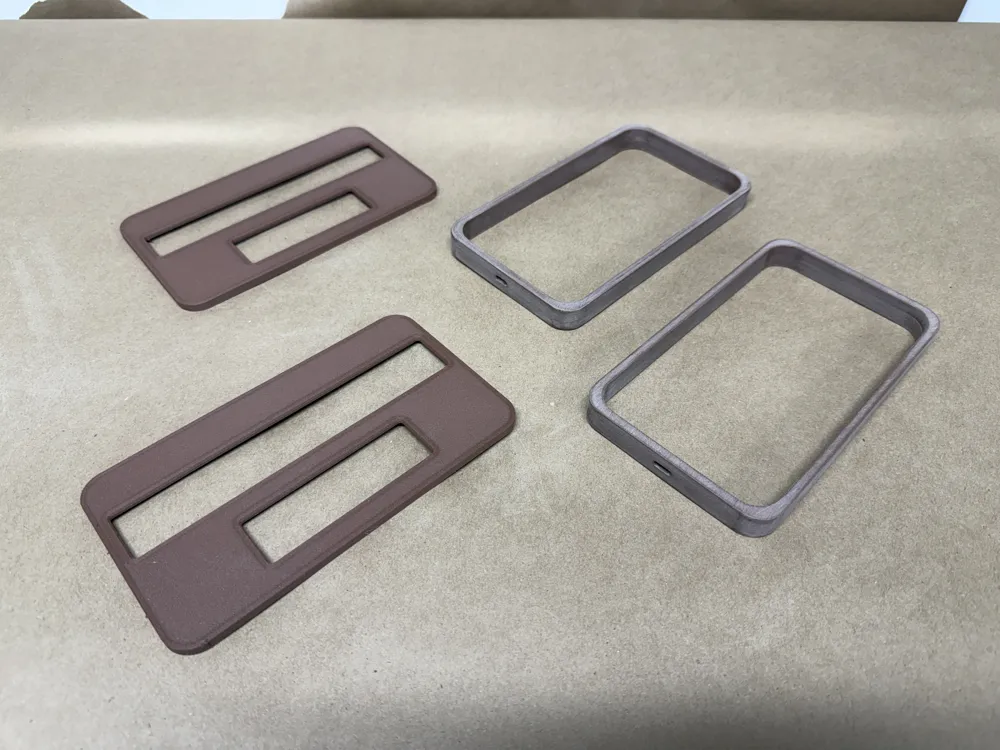

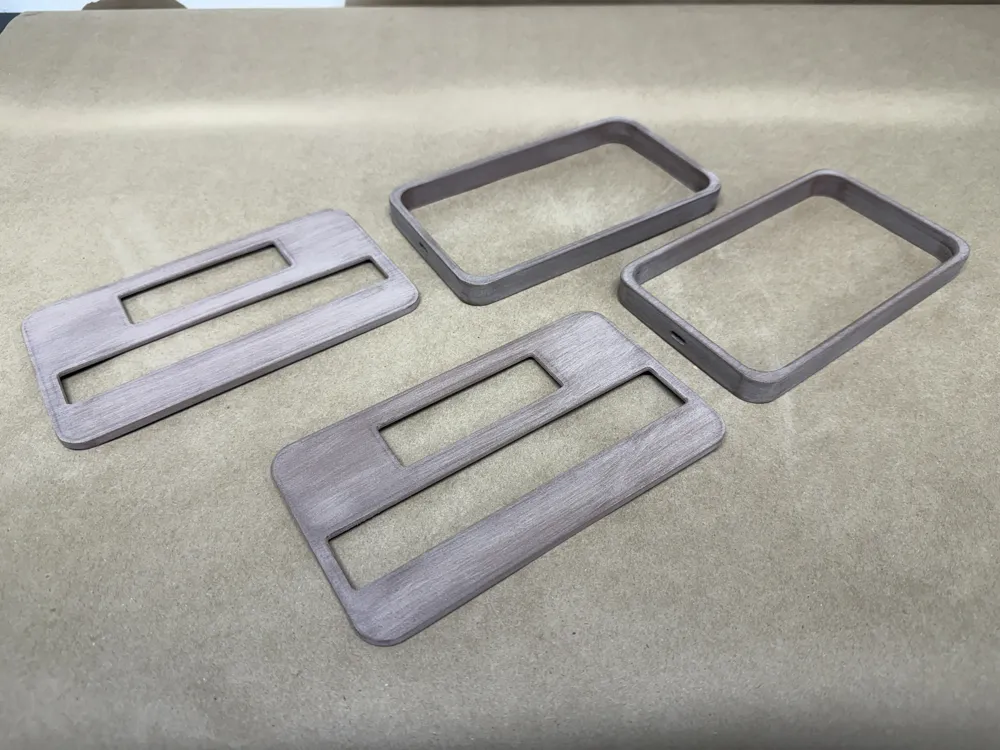

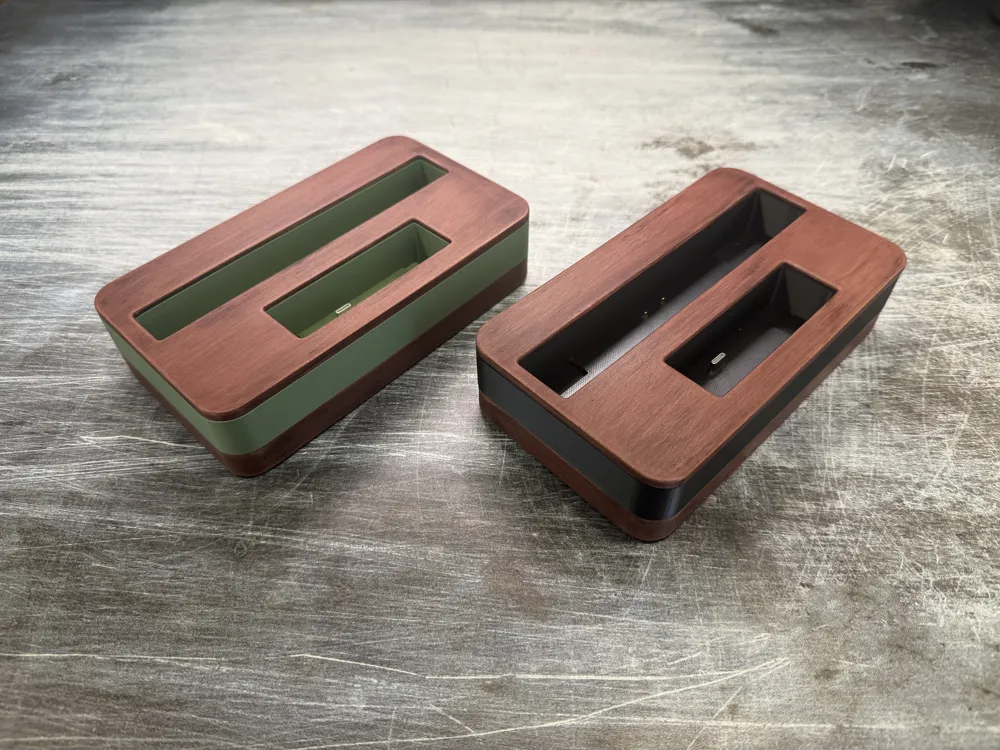

I used wood-filled PLA for the top and bottom pieces, sanded them smooth, and applied a few coats of  wood stain to get the desired wood appearance and grain-like effect. I used PETG or PLA for the main body, and TPU for the “rubber” feet on the bottom.

The files include the parts for if your N3DS XL has a case or without a case. I can only confirm the one with a case works with my specific one. But it might work with other cases.

This will not work with any other 3DS or a GBA SP without the USB-C charging mod.

I may try to make the design more modular in the future with TPU inserts for changing the 3DS acceptability.

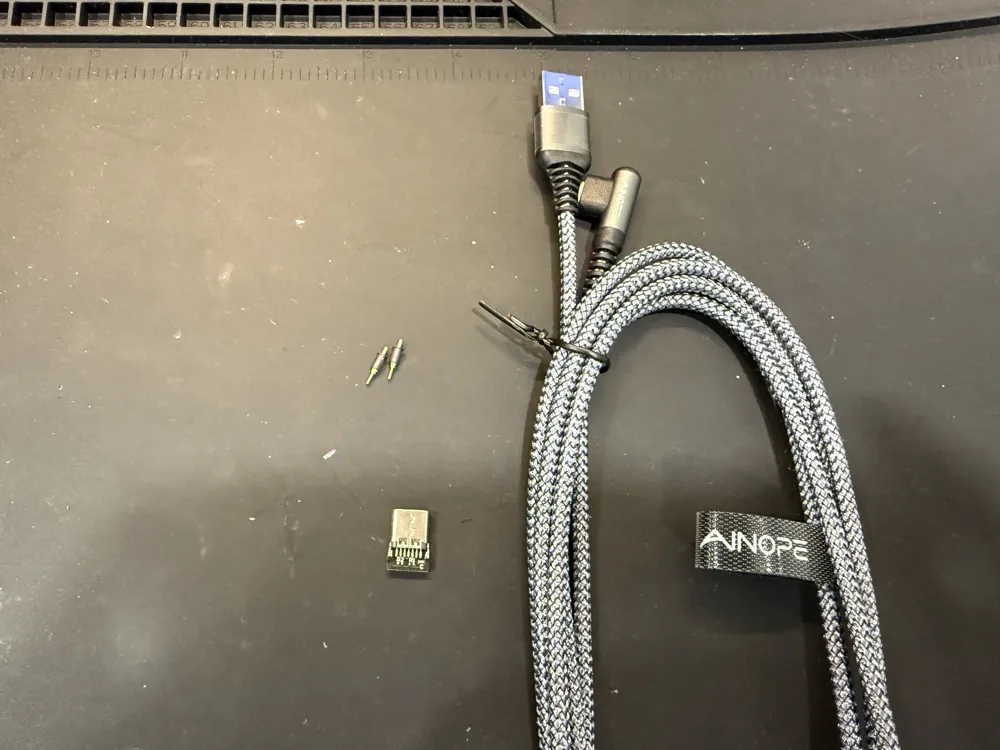

Here is a list of electronics I used:

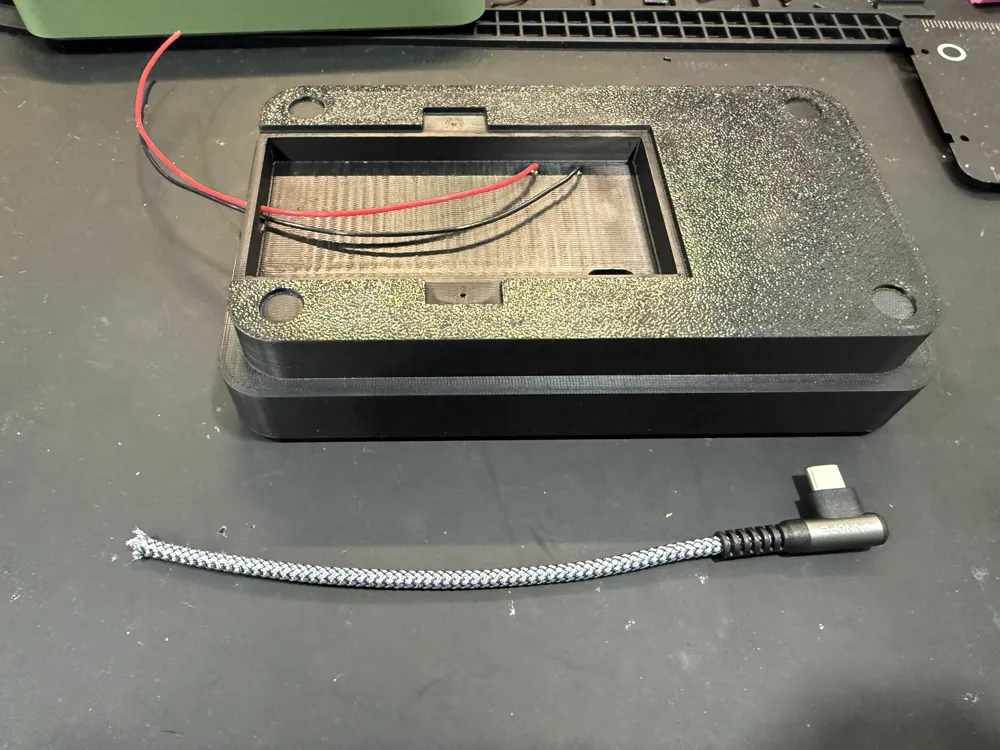

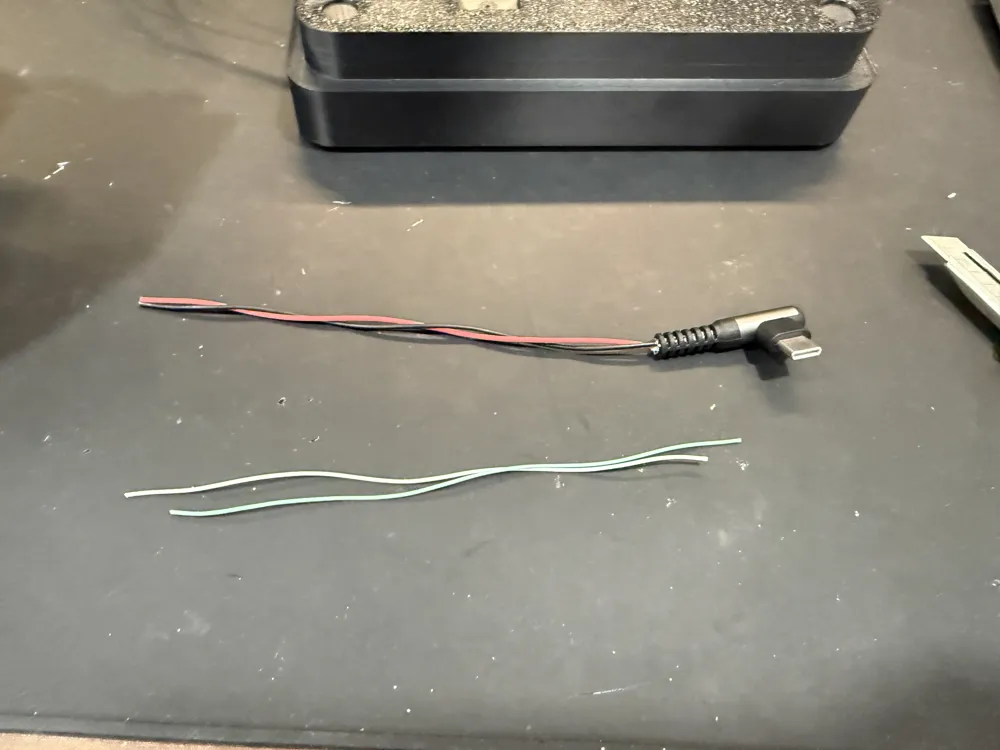

22AWG red and black PTFE wire - You can get it anywhere, or use the extra wire once you cut the wire from the USB-C cable below.

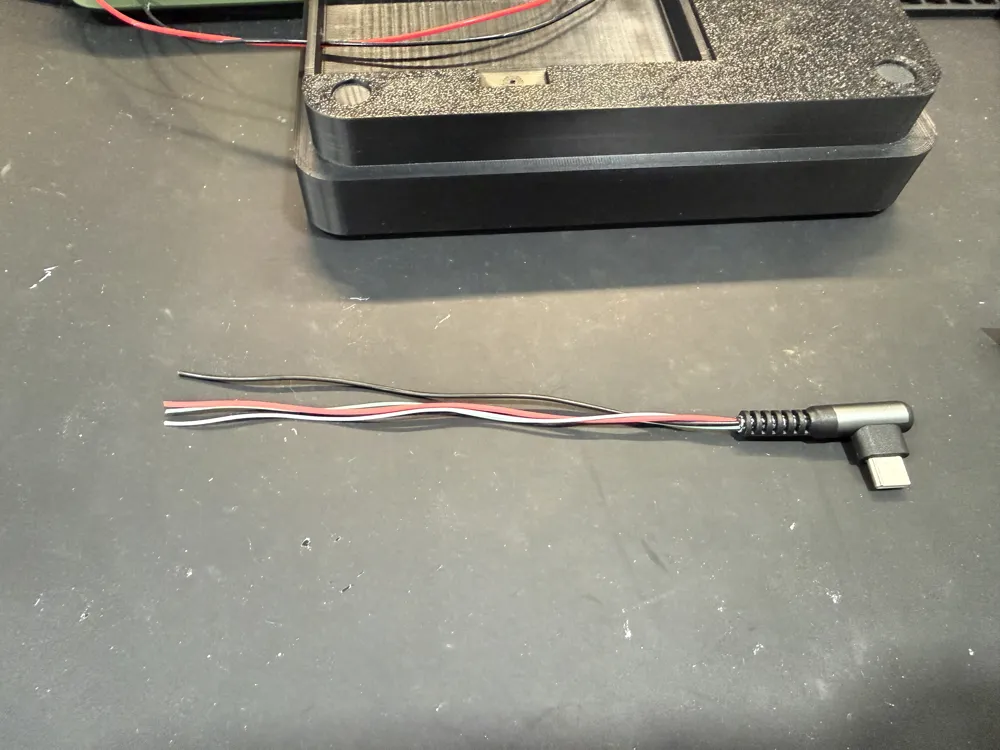

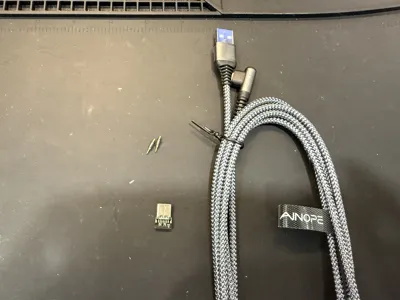

USB-C for the GBA - https://www.amazon.com/dp/B088FSHMQ3?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

USB-C female port - https://www.amazon.com/ANMBEST-Connector-Receptacle-Adapter-Support/dp/B09WCSF8FC/ref=sr_1_3?crid=30ZFOOIMBP1DC&dib=eyJ2IjoiMSJ9.U1TI-6NRCj5cHFKub9aOm8fTDlORzwZz1d4Le_CrAakoxl0d7GzdBDzIYy06wb3hvYiStsZHUENU1zF0znRvOKT00QQ4FmXuUiFsKI4E6Nk5N5fRD67HkvDxl2Qb5trx-59sIcqxTBSfyrwEifk_ylZcCye1RHAlJJGFhsC85cptASIXA8lul1R3RTSO-8XlNXsOE9bFxzLV9ax2YaoVRVg4gzXaSLMO6N0RvFHsdSk.Dri8KSTcTloDW6xMCY1xIs17hOMdrjVlw45iNlZgato&dib_tag=se&keywords=usb-c%2Bfemale%2Bport&qid=1768929767&sprefix=usb-c%2Bfemale%2Bpor%2Caps%2C194&sr=8-3&th=1

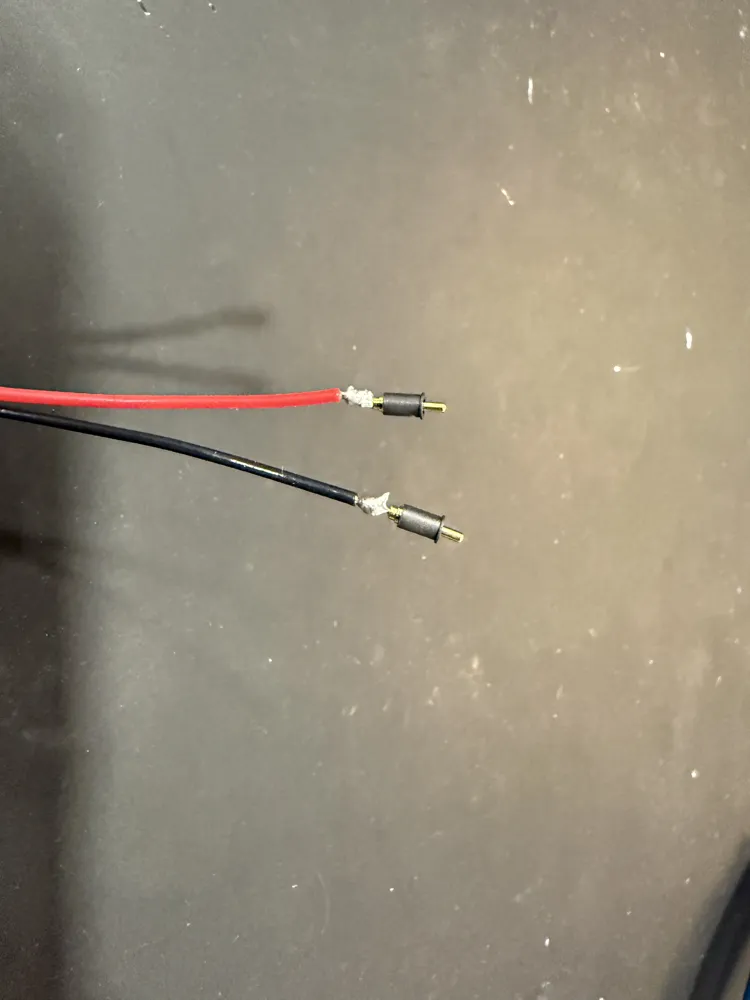

Spring loaded pins - Part #807-22-001-10-020101 - https://www.mouser.com/ProductDetail/Mill-Max/807-22-001-10-020101?qs=BZBei1rCqCDGIvNy4mNH%252Bg%3D%3D&srsltid=AfmBOoo991Y9RKUgigSS_ZE86dI7W_EXLAaIPzgAnvHjCBVbTQ3Ul6g0
