LED Driver Junction Box
Print Profile(1)
Description

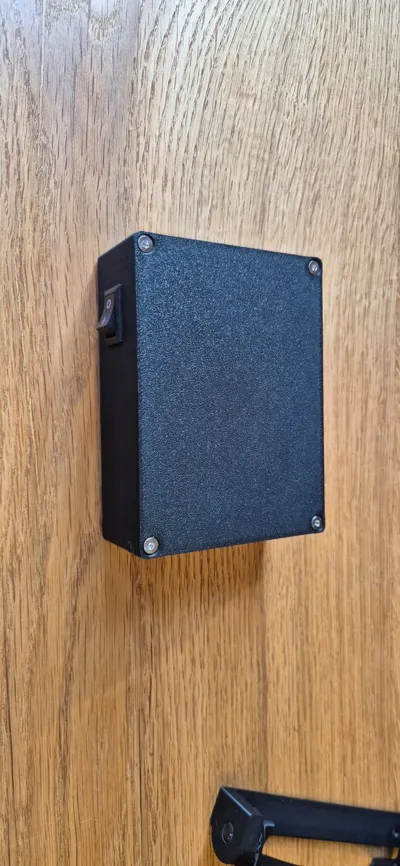

🔌 Junction box for ADOGO 24 W LED driver – safe, clean, well-designed
This 3D-printable junction box was specifically developed for the ADOGO 24 W LED driver and offers a stable, secure, and tidy way to house the driver and wiring neatly. All details are designed to make installation and maintenance as convenient as possible.
- Driver is screwed with 2× M3 threaded inserts + 2× M3×6 button/socket head screws

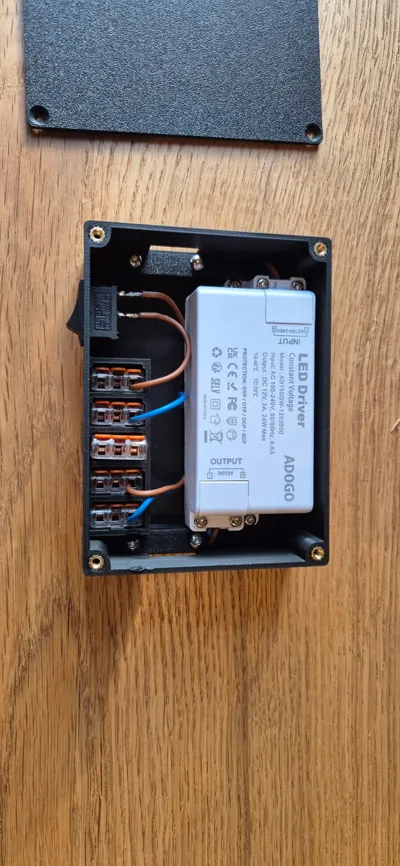

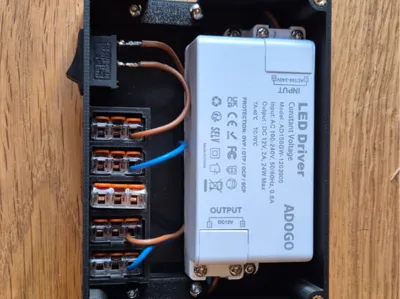

- integrated 5× Wago‑221 holders for neat, secure wiring
- Cutout for standard rocker switch (20×14 mm)
- Strain relief for input and output
- requires 4× M3 threaded inserts
- 4× M3×10 button/socket head screws

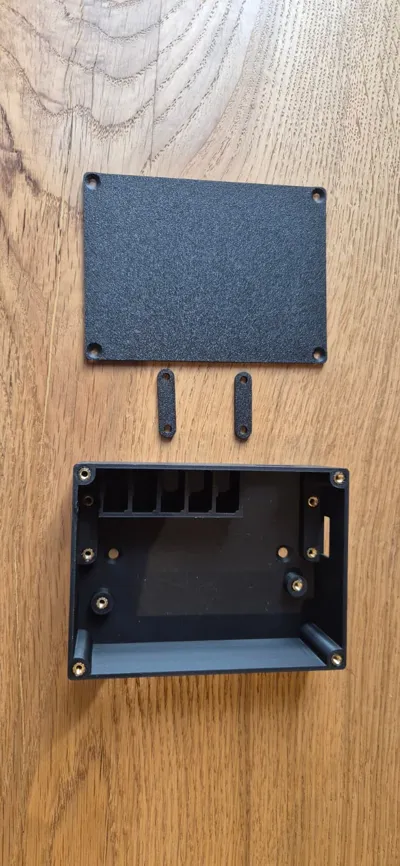

- Lid attachment:
- 4× M3 threaded inserts
- 4× M3×6 countersunk screws
- Wall mounting via 2 countersunk screws (e.g., 3.5×16 mm)
- fully 3D-printable, stably built and service-friendly
