Gens Ace iMars D300 / Dual Charger Angled Stand

This is a support-free, airflow-optimized angled stand designed specifically for the Gens Ace iMars D300 Charger and also compatible with the older iMars Dual model.

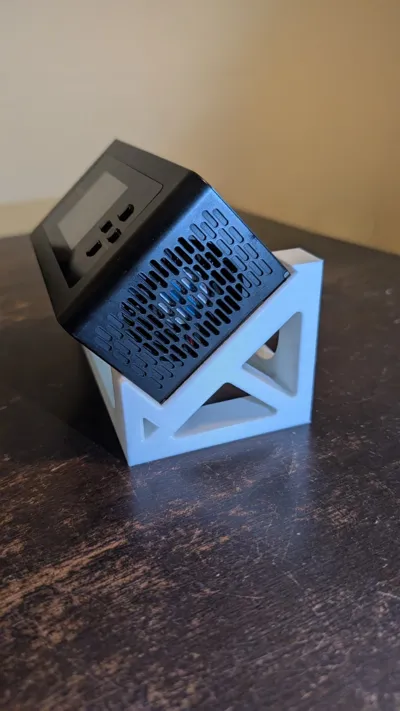

The stand holds the charger at a 40° viewing angle, making the screen easy to read while charging — ideal for bench use, pit tables, or on-track setups.

Key Features

• 40° viewing angle: Optimized for clear screen visibility during charging and setup.
• Support-free print design: All geometry is engineered with printable angles, arches, and ribs — no supports required.
• Minimal rear material for airflow: The back of the stand is intentionally open to maximize airflow and avoid heat buildup.

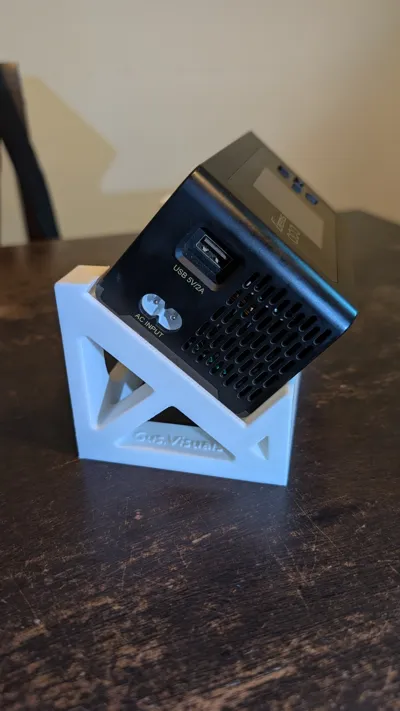

• Does not block ports or fans: All connection ports, side vents, and cooling fans remain fully unobstructed.
• Sturdy and track-ready: Reinforced side frames and triangular geometry provide excellent rigidity for on-track use.
• Lightweight but strong: Uses material only where needed, reducing print time while maintaining strength.
• Charger-specific fit: Designed to securely cradle the Gens Ace iMars D300 and iMars Dual chargers without wobble.

Print Recommendations

• Material: PETG recommended (PLA also works for indoor or shaded areas)
• Layer Height: 0.28mm, you can do 0.20 if you care about smoothness
• Supports: Not required except for brim ears on the corners to prevent warping
• Orientation: Print flat on the build plate as shown
• Infill: 10% (gyroid)
• Walls: 2. You can add walls for extra rigidity, but the model is already very sturdy
