Universal Cable & Pipe Clip System - 14mm
Print Profile(3)
Description
Organize your workshop, desk, or machine with these rugged cable and pipe clips.

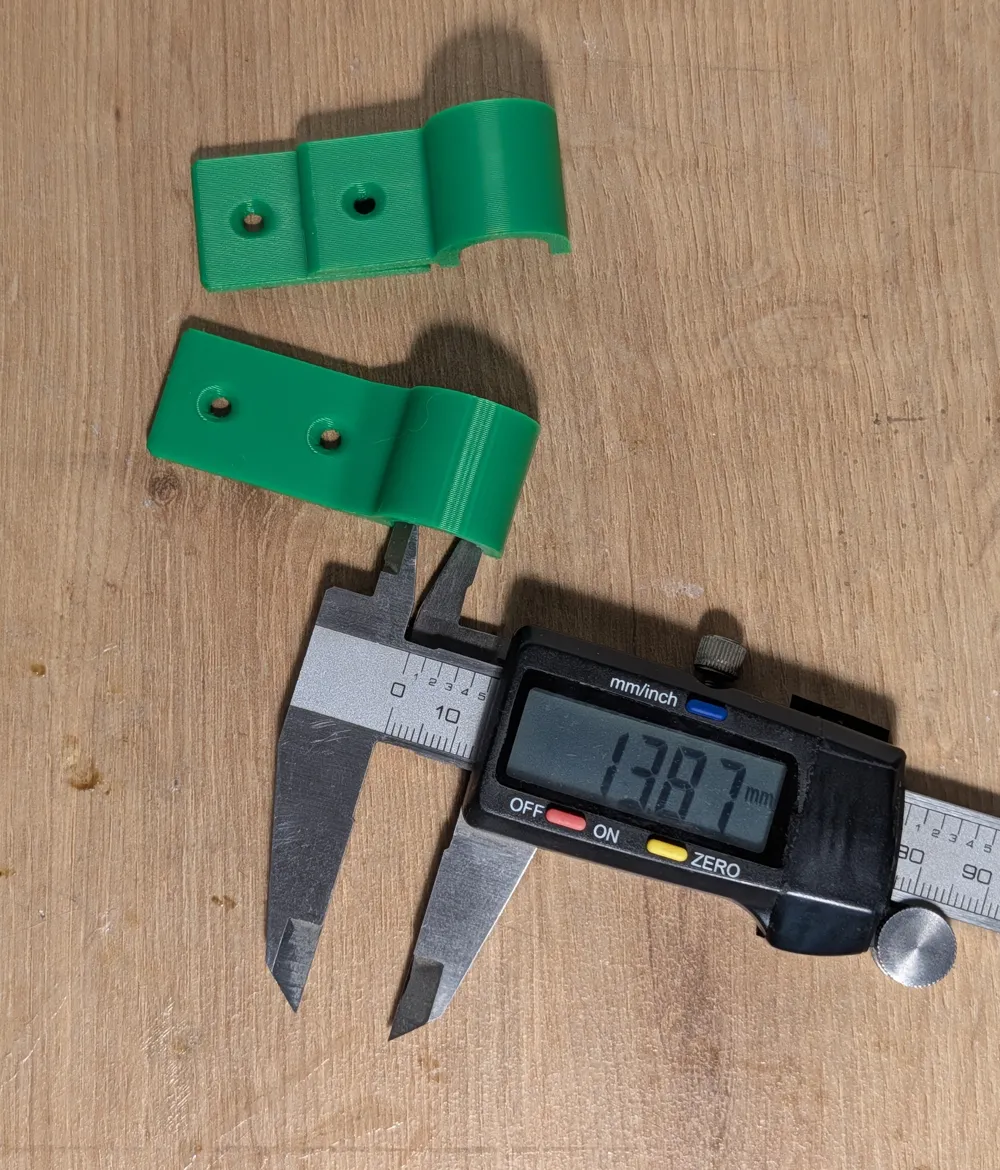

This model set includes two versatile variants of a mounting bracket designed for holding cables, tubes, or pipes. The internal diameter is approximately 14mm

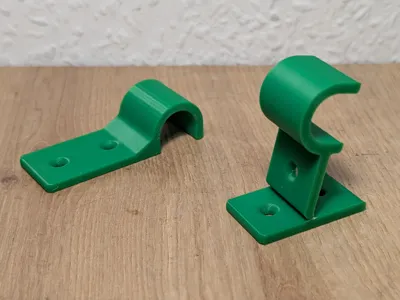

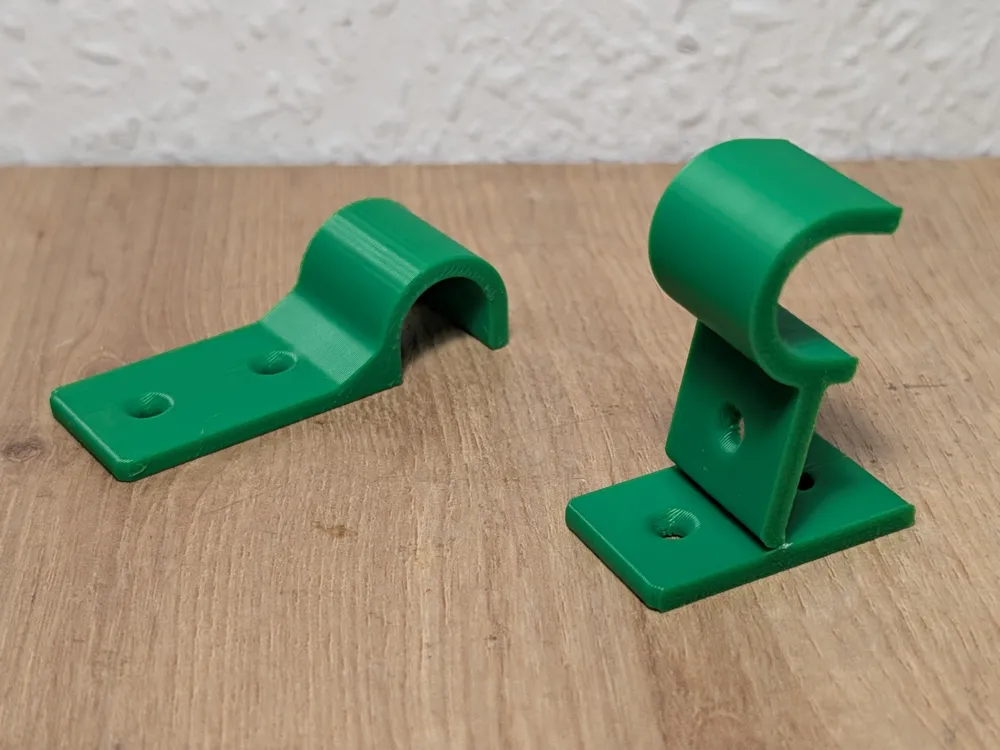

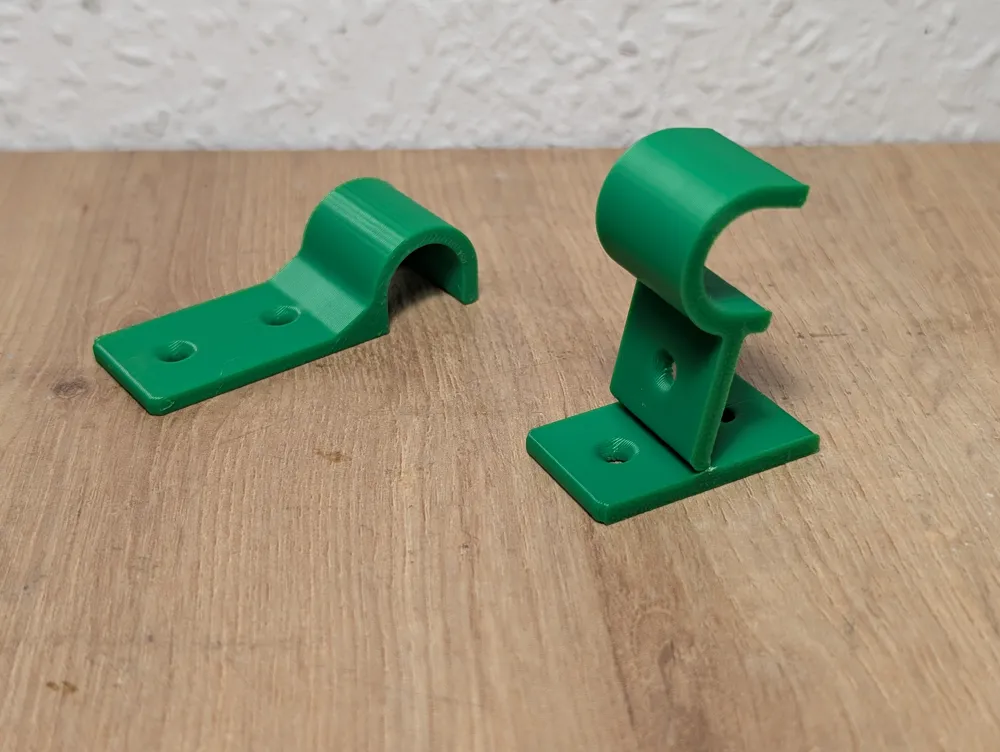

Included Variants:

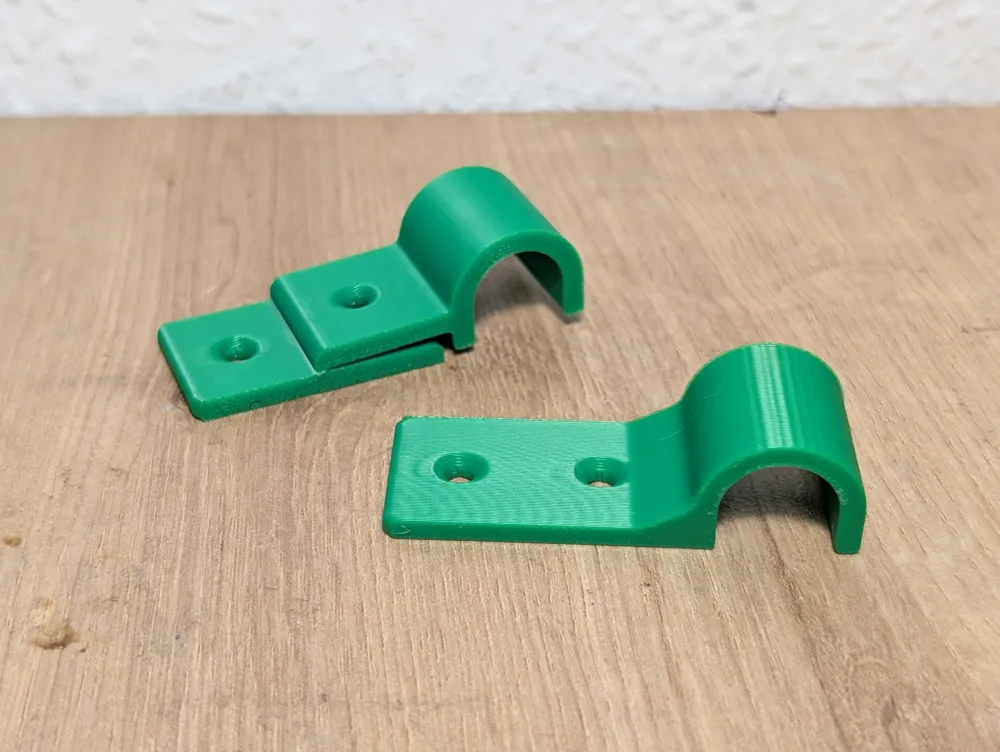

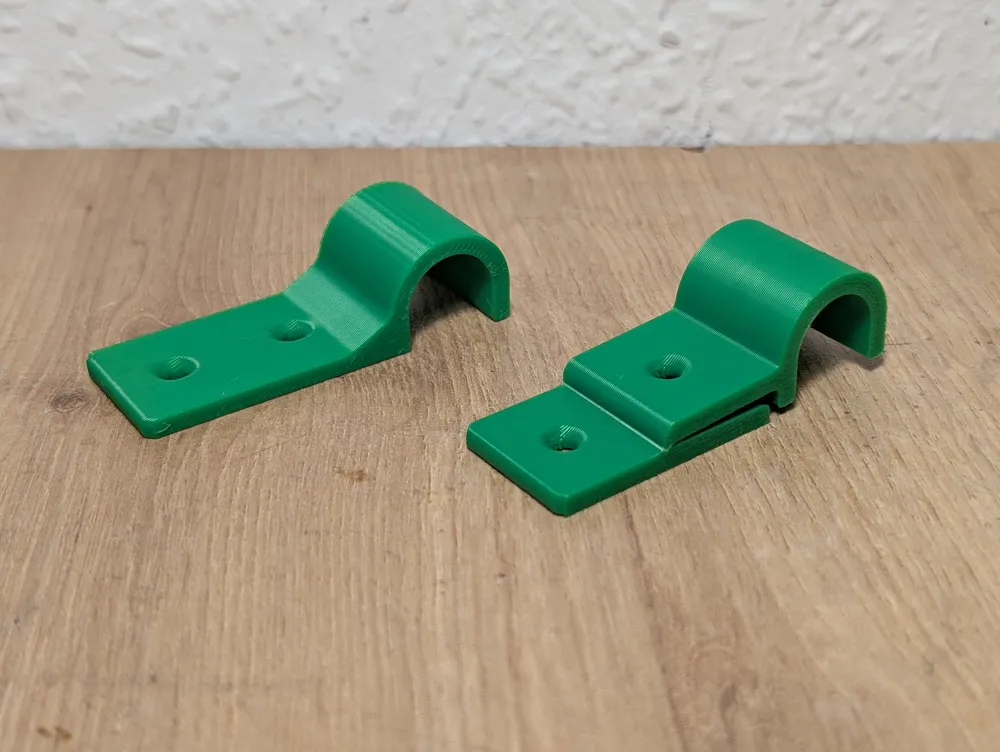

- Fixed Clip: A standard, robust "bridge" style clip for permanent mounting. Great for high-vibration environments or permanent installations.

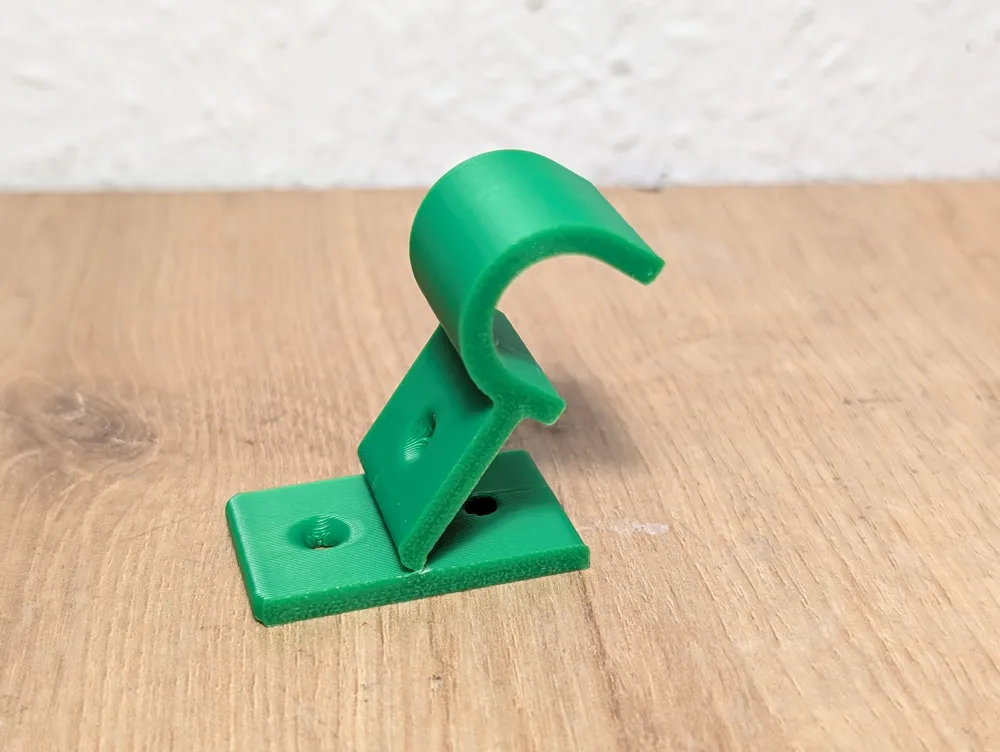

- Hinged / Tiltable Clip: A smart design featuring a swing-out mechanism. By simply removing the front screw, the upper bracket flips up, allowing you to add, remove, or adjust cables without unmounting the base from the wall or table.
Printing Recommendations:
- Material: PET-G is highly recommended. It provides the necessary flexibility for the hinged version and durability for the mounting tabs without cracking.
- Supports: Designed to be printed on the side (as shown in the photos) to minimize or eliminate the need for supports.
- Infill: 20% to 100% (depending on the strength required).
- Perimeters: 3 or more for added strength.
Hardware: Designed for standard countersunk wood screws or similar fasteners.
