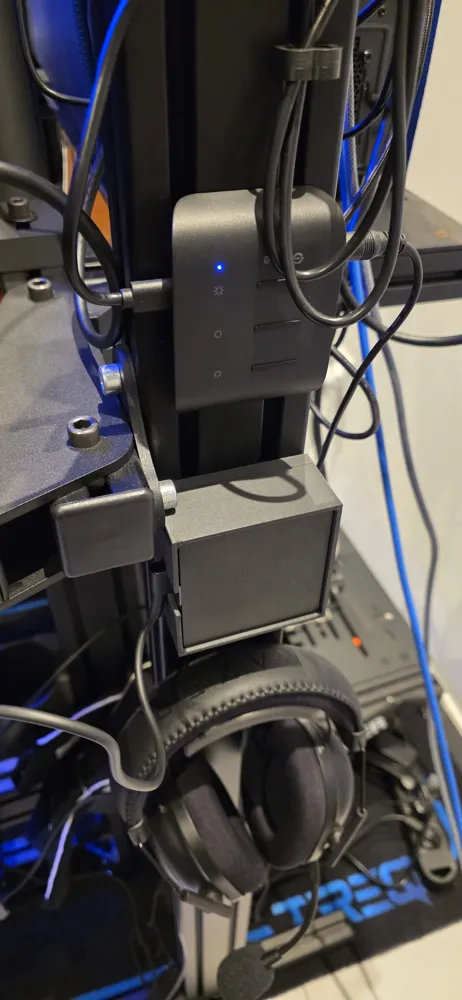

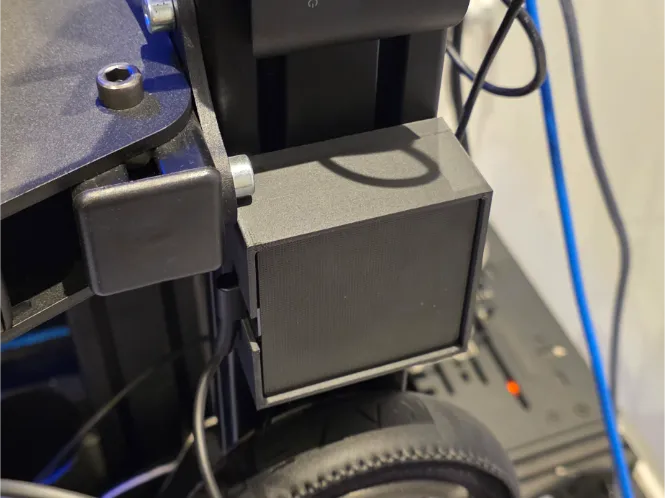

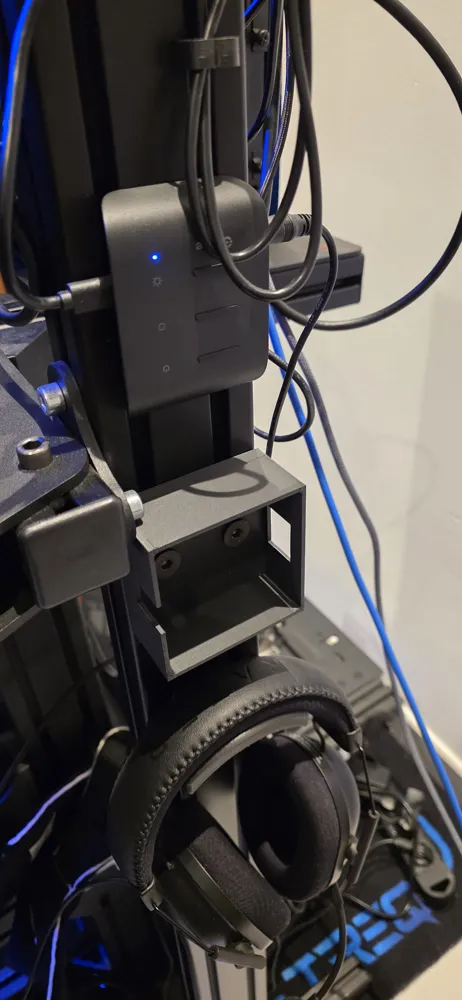

ASUS ROG Strix M06 PSU Mount for 8040 Extrusion
Keep your sim rig or workstation tidy by securely mounting your ASUS Strix Screen PSU (Model M06) directly to your 8040 aluminum profile. This bracket eliminates cable clutter by providing a snug, drop-in fit for the power brick, ensuring it stays off the floor and away from moving parts.
Features

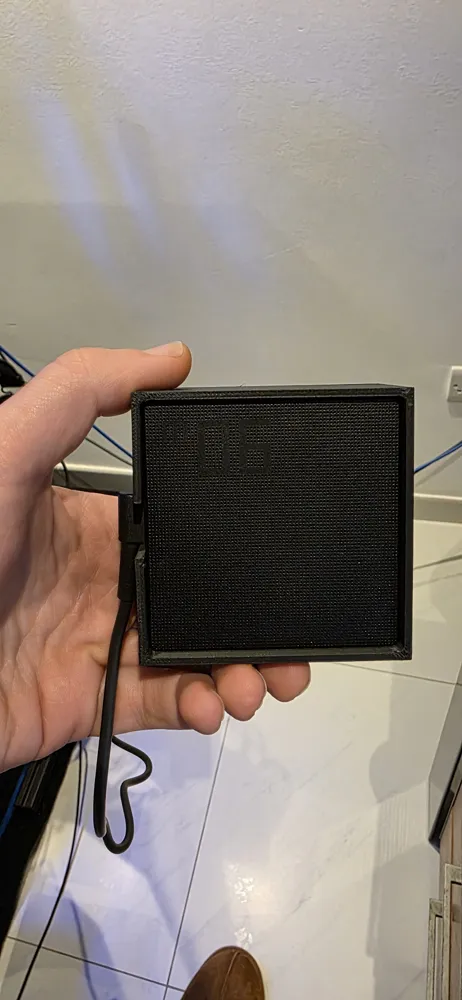

- Precision Fit: Specifically designed for the square M06 power adapter.

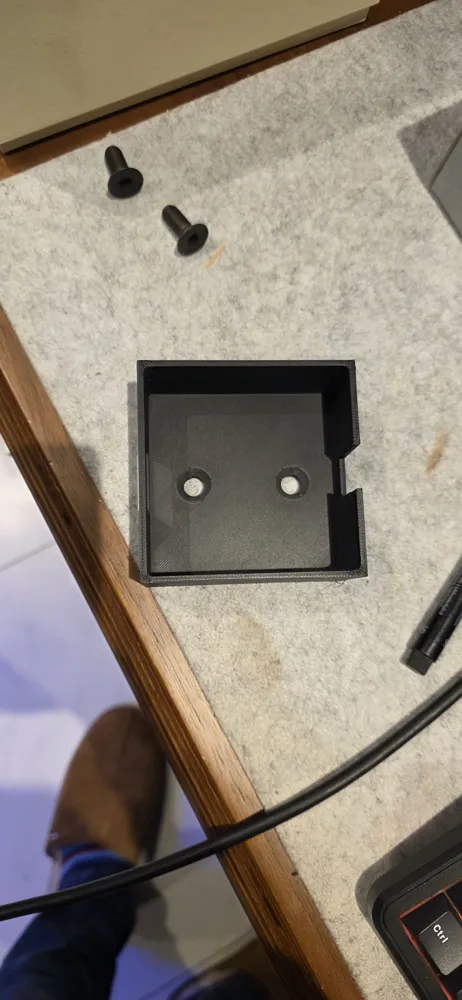

- Low Profile: The bracket features countersunk mounting holes to ensure the bolt heads don't scratch or interfere with the PSU.
- Side Cutout: Includes a dedicated cable relief notch to allow for clean wire routing without bending the connector.
- Industrial Aesthetic: Matches the clean lines of black aluminum extrusion rigs.
Hardware Required
To mount this to your 8040 profile, you will need:
- 2x M8 x 20mm Countersunk Bolts
- 2x M8 T-Nuts (standard for 8040 profiles)
Print Settings Recommendations
- Material: PETG or PLA
- Walls: 3–4 wall loops for structural rigidity.
- Infill: 15–20% Gyroid.
- Supports: Not required if printed with the back (mounting face) on the build plate.
