Soft Lure Mold – 6 × 5cm ( 2inch ) Fishing Lures
Print Profile(2)
Bill of Materials
Description

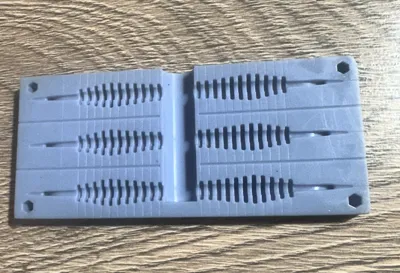

DIY soft bait injection mold for fishing lures
This 3D-printed injection mold allows you to produce 6 soft lures of 5 cm in a single shot. The lure size and shape are ideal for perch, trout, and other small to medium predators, making it a great option for both freshwater fishing and DIY bait makers.
Designed with print quality and durability in mind, this mold is optimized for repeated use with soft plastics.
Mold Features
- 🎣 Produces 6 soft lures per injection

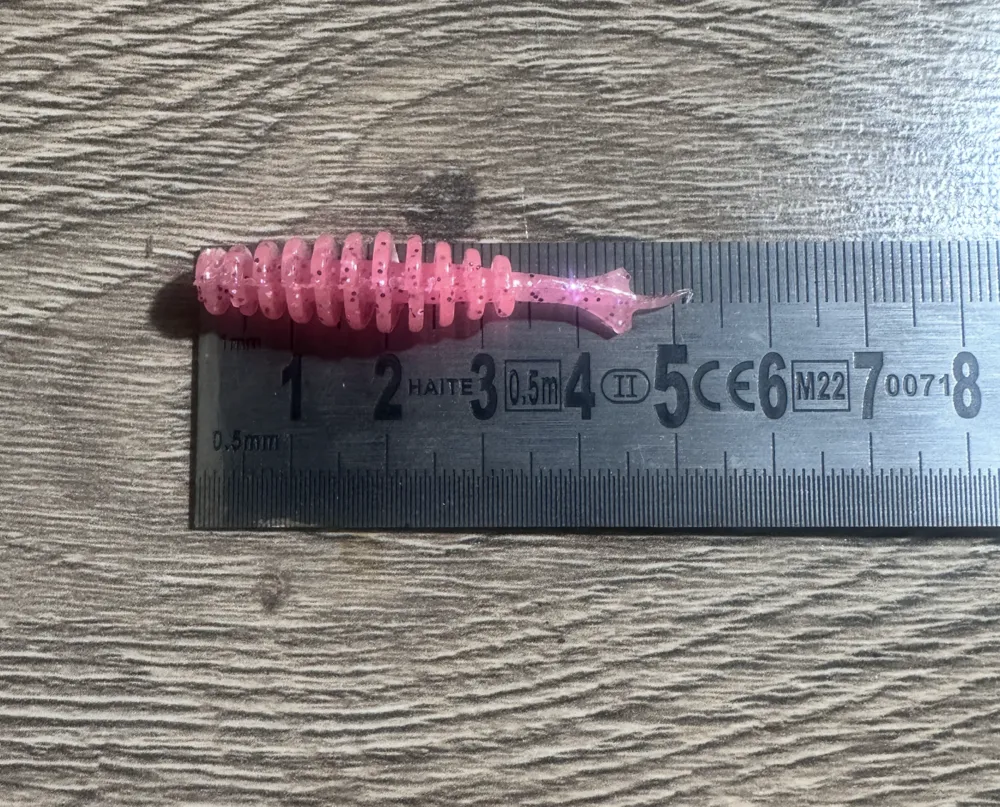

- 🎯 5 cm lure size – perfect for perch, trout, and finesse predator fishing
- 🧩 Optimized cavity layout for consistent filling
- 🛠️ Designed for DIY plastisol injection
- 🧪 Suitable for hobby and advanced lure makers
Recommended Print Settings
This model was tested with quality and heat resistance as priorities.
Suggested profile:
- Nozzle: 0.2 mm
- Material: ABS (recommended for heat resistance)
- Infill: 25%
- Layer height: 0.08 mm
If you are experienced with printing injection molds, feel free to use your own print profile and material choices.
Personal Advice for Shooting Soft Lures
⚠️ Safety first
- Always protect your lungs and eyes
- Work in a well-ventilated area
🔥 Preparation
- Pre-heat both the injector and the mold up to 40–50 °C (104–122 °F)
🧴 Mold release
- Lightly brush the mold with sunflower oil or similar oil using a paintbrush
- This helps the soft lures release cleanly and reduces tearing
🔩 Clamping
- Clamp the mold as tightly as possible
- Since this is not an aluminum mold, some flex may occur depending on material and print settings—proper clamping is essential for clean results
Ideal For
- DIY soft lure makers
- Perch and trout anglers
- Home bait production
- Testing custom colors and plastisol blends
My full list of soft lure molds can be found here - > https://makerworld.com/en/collections/18930132-injection-molds-soft-lures
