Flask boot in different sizes
Print Profile(1)
Description

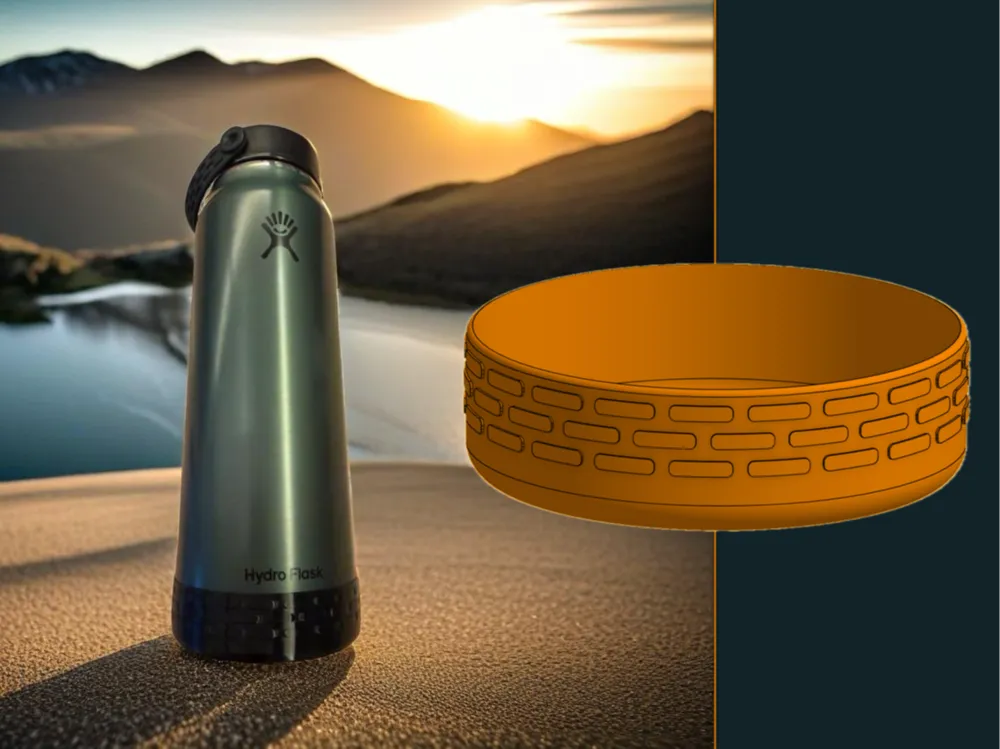

- Flask boot created for Hydro Flask Trail Series 32 oz / 946 ml (see picture)
- Lightweight (only 11.3 gr for 80mm version)

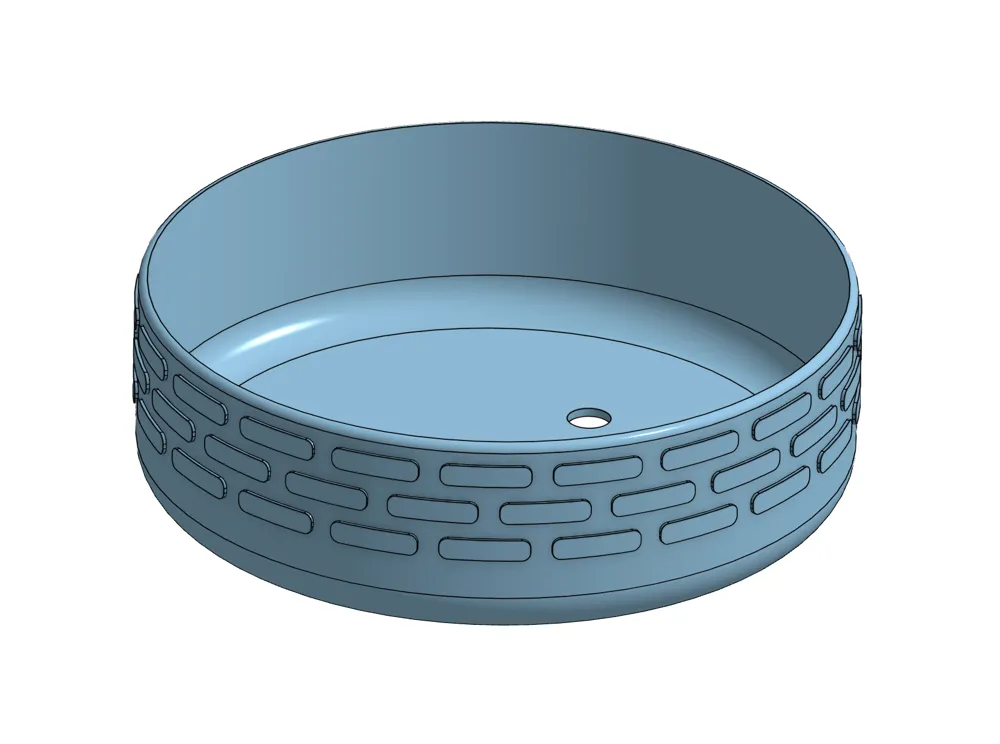

- Grip pattern
- Air hole
- Boot height 25mm
- Different sizes in the print profile; 70mm, 71.5mm, 73mm, 80mm, 90mm
Scale according to your needs in Bambu Studio if you need other sizes. The diameter is measured inside (hole).
Should work on flasks/bottles/tumblers from different brands. I have tested the following with success:
90mm
- Hydro Flask 40 oz / 1180 ml
80mm
- Hydro Flask Trail Series 32 oz / 946 ml
71.5mm
- Hydro Flask 24 oz / 710 ml
- Hydro Flask 21 oz / 621 ml
- Hydro Flask 18 oz / 532 ml
- Hydro Flask 12 oz / 354 ml (mug)

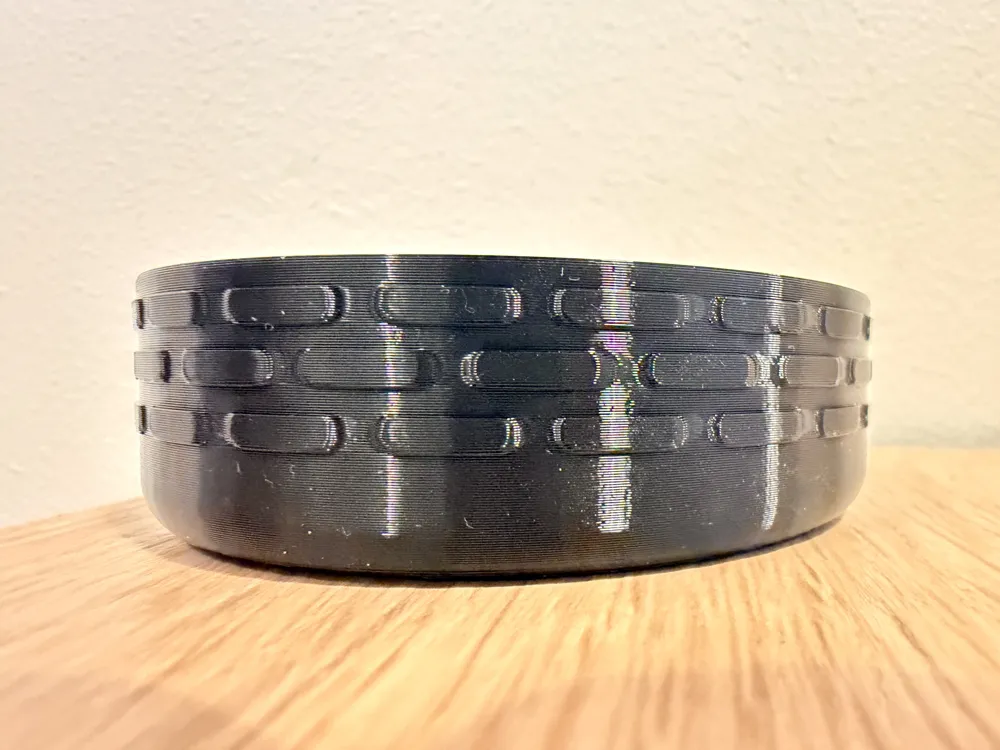

For this print I have used TPU 95A. “Auto circle contour - hole compensation” is turned on in the print profile to keep the inside diameter on the printed object as close to the 3D model as possible. I recommend to “print by object” if you are printing more than one object per plate.
