Try Square 20cm V2

Parametric Try Square (90°) – 200mm Metric V2 Version

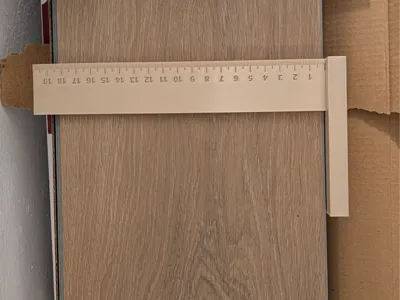

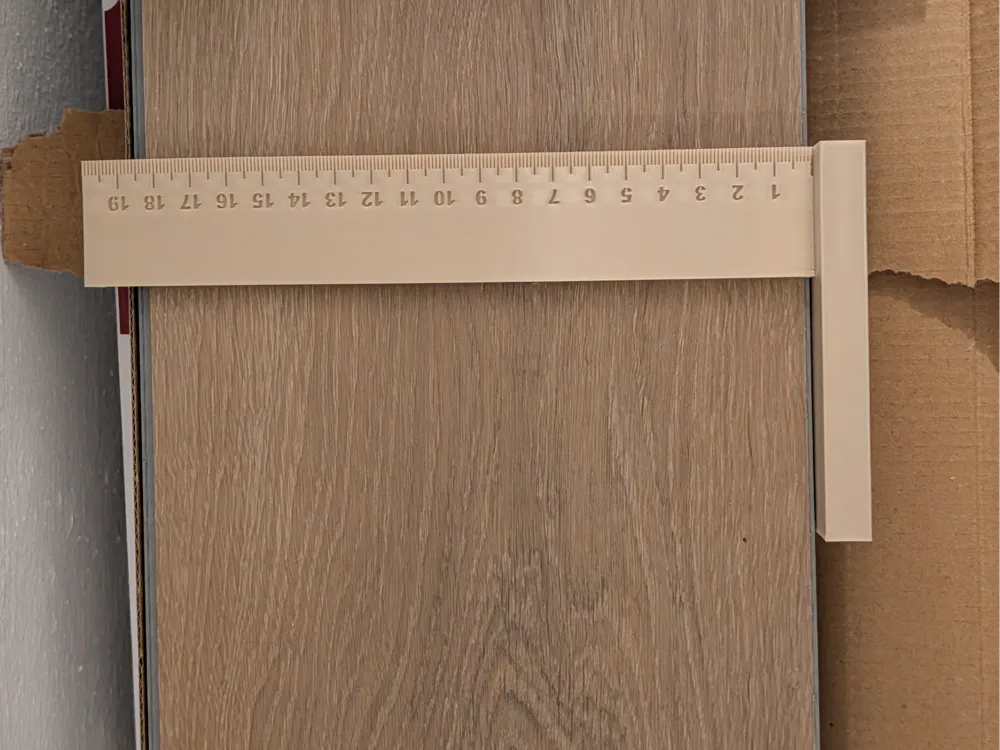

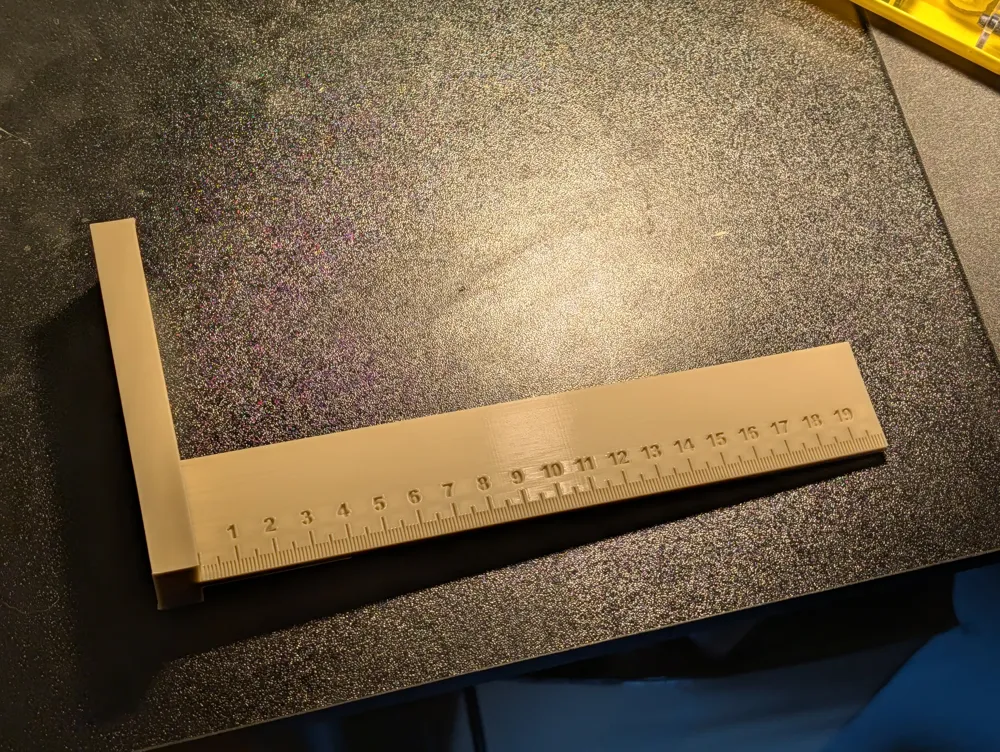

This robust try square is the ideal tool for any workshop. It was specially developed for precise marking and checking of 90° angles. The special feature of this design: The measuring blade is exactly centered in the fence, which allows for two-sided use and ensures excellent balance.

Features:

• Precise Scaling: Engraved metric scale (200 mm) with clear markings for millimeters, 5mm increments, and centimeter numbers.
• Centered Design: The 2 mm thick measuring blade is centrally positioned in the 12 mm thick handle, which guarantees maximum stability and accuracy.
• Parametric: Created with OpenSCAD, allowing easy adjustment of lengths and thicknesses.
• Workshop-ready: Wide contact surface on the fence for secure placement on workpieces.

Technical Specifications (Standard):

• Measuring Blade Length: 200 mm
• Blade Width: 35 mm
• Handle Thickness: 12 mm
• Material Recommendation: PLA+, PETG, or ASA for high dimensional stability.

Print Instructions:

• Orientation: For best scale accuracy, lay flat on the print bed.
• Support: Since the handle is centered, a little support is needed for the overhanging part of the handle.
• Infill: At least 25% (Gyroid recommended) for maximum stiffness.
• Tip: To make the scale more readable, the numbers can simply be highlighted with a paint pen or acrylic paint after printing.

English Description (for international reach):

Parametric Try Square (90°) – 200mm Metric

A reliable, 3D-printable try square for woodworking and DIY projects. Featuring a centered blade design, this tool provides perfect balance and can be used from both sides of the handle.

• Metric Scale: Deep-engraved markings every 1mm, 5mm, and 10mm (numbered).
• Balanced Design: The 2mm blade is centered within the 12mm handle for professional handling.
• Fully Parametric: Designed in OpenSCAD for easy customization.
• Pro Tip: Use a permanent marker or acrylic paint to fill the engravings for high-contrast readability.
