Motor Rotor Correction Tool

Used to correct motor rotors that have been bent out of shape.

Usage:

1. Remove the circlip from the bottom of the motor (be careful not to lose it)
2. Observe the rotor's misalignment, mark the point with the largest gap between the rotor and the stator (you can rotate the rotor to observe, professional tools are better)

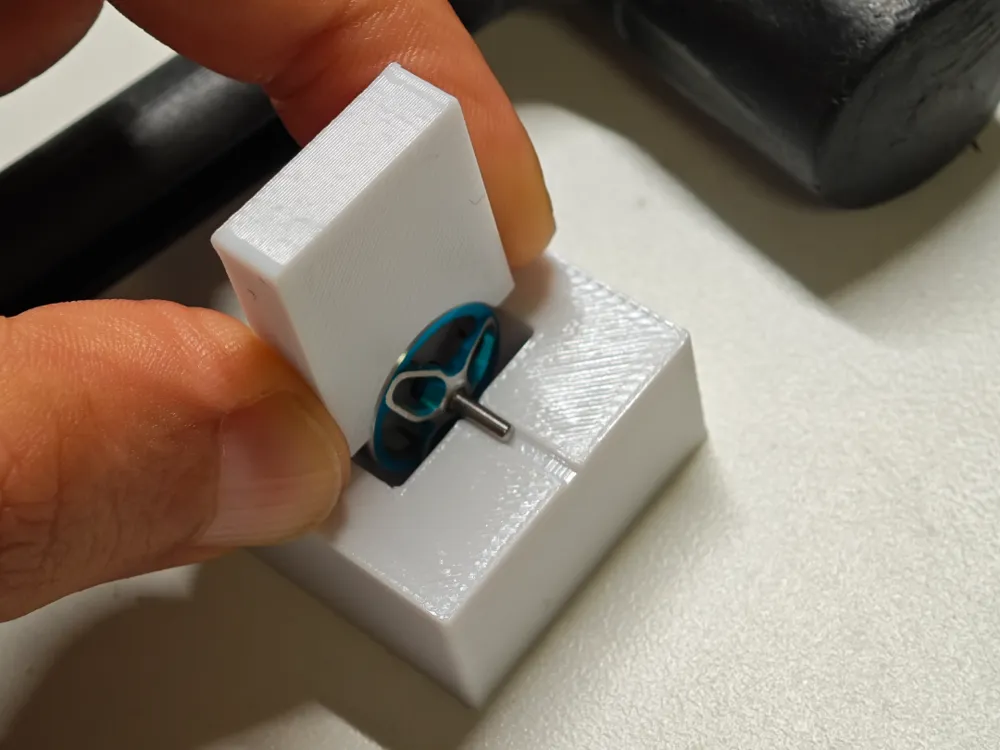

3. Remove the rotor, place it on the fixed base with the marked point facing up
4. Place the hammer block on the rotor, and gently tap the hammer block with a tool
5. Replace the rotor and repeat step 2

The tapping force needs to be tested by yourself, and even after correction, the dynamic balance will not return to factory state; it can only ensure usability

I have only uploaded the finished products of the Baida 0702 30000kv and 1102 22000kv motors that I have on hand. If needed, you can download the Fusion 360 source file and edit the parameters
