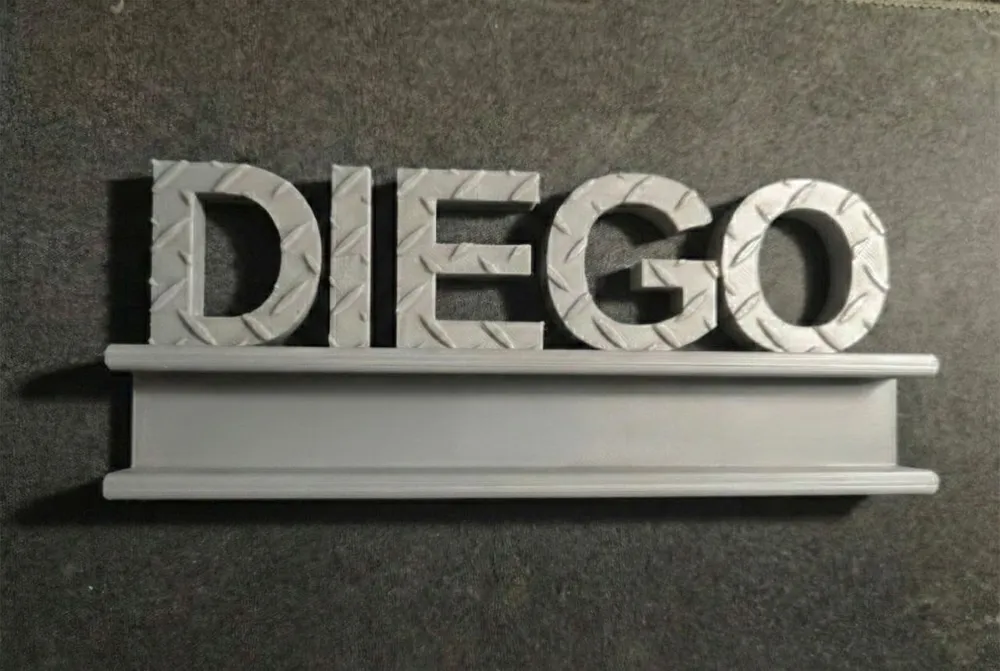

🏗️ Custom 3D Industrial Name Plate / Sign - Steel Beam Base
Create your own industrial sign with steel plate texture! This OpenSCAD model generates a fully customizable sign mounted on a realistic beam profile. Perfect for decoration, workshop names, garages, and industrial-themed spaces.
━━━━━━━━━━━━━━━━━━━━
MAIN FEATURES:
- Customizable Text: Type any word (automatically converted to UPPERCASE).

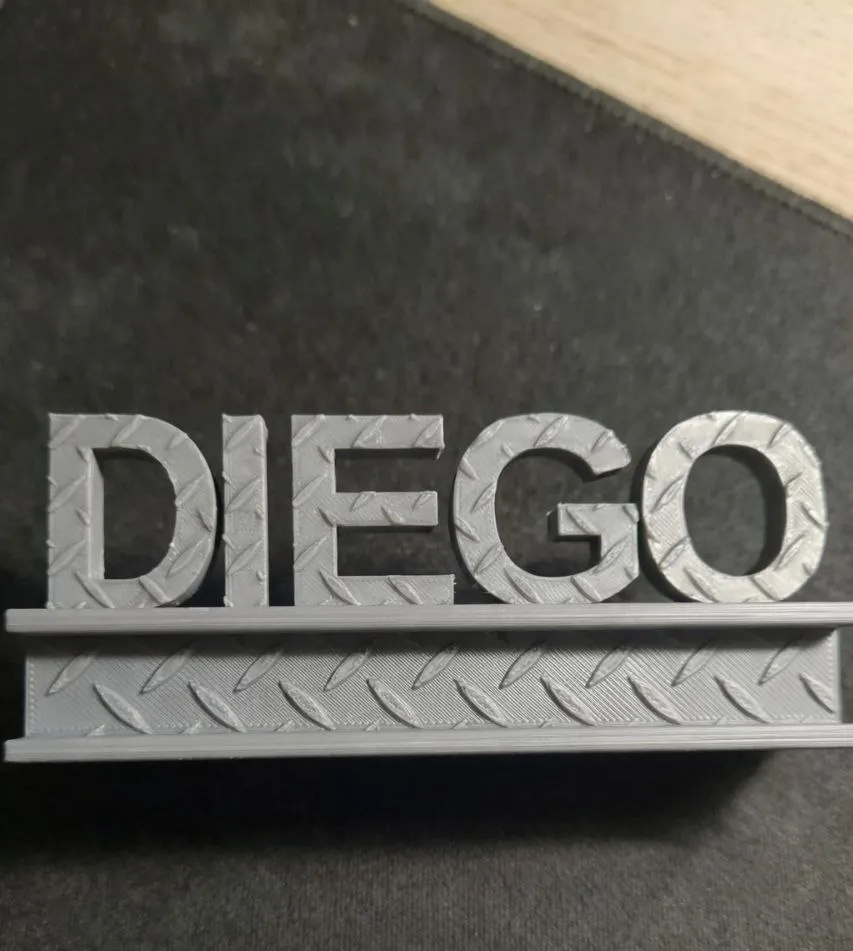

- Diamond Plate Texture: Classic anti-slip steel plate pattern in high relief.

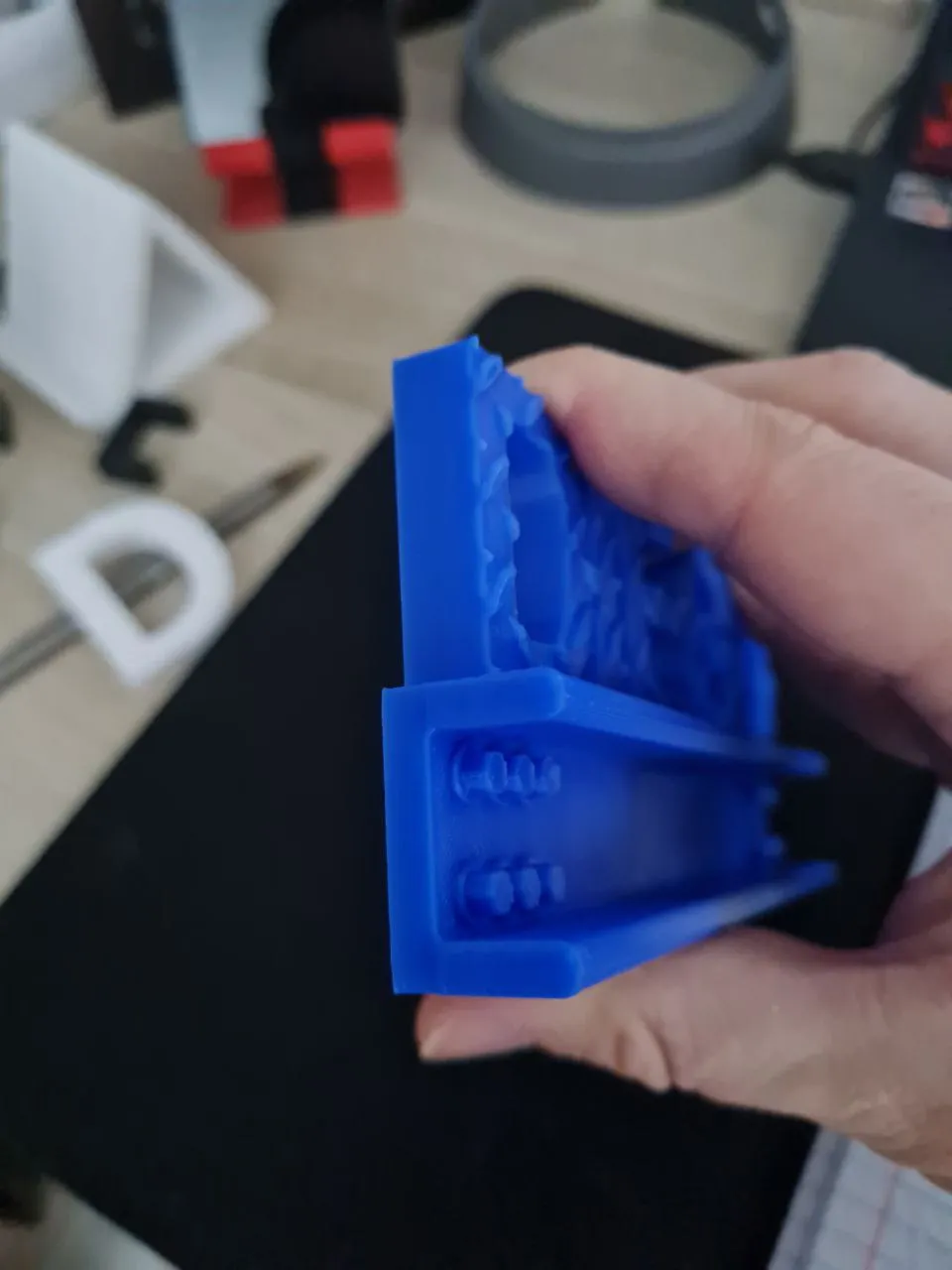

- Realistic Beam Profile: U-channel base with internal fillets and rounded toes.

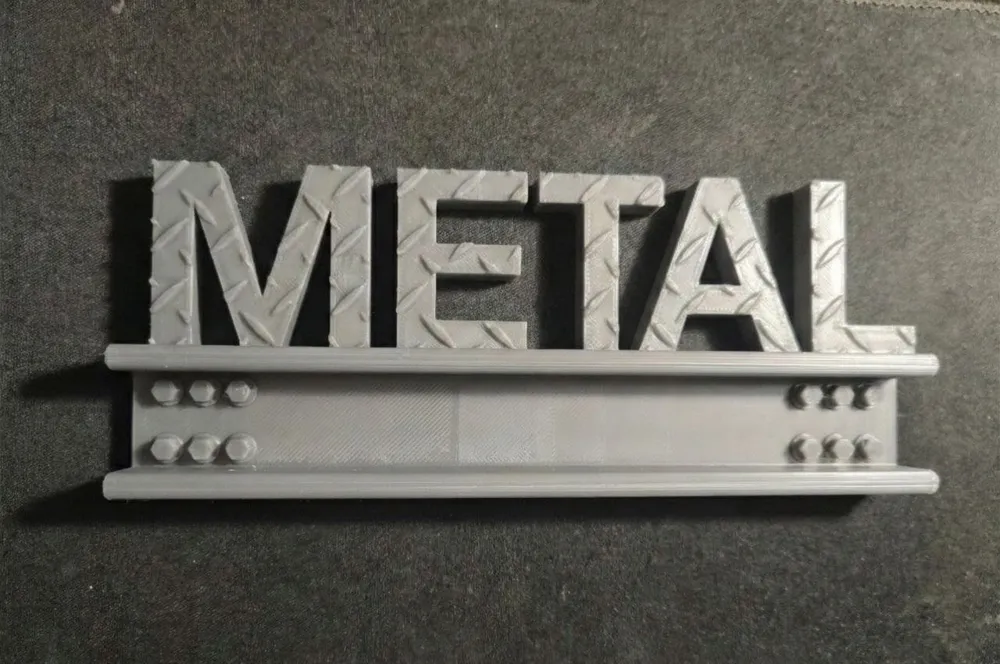

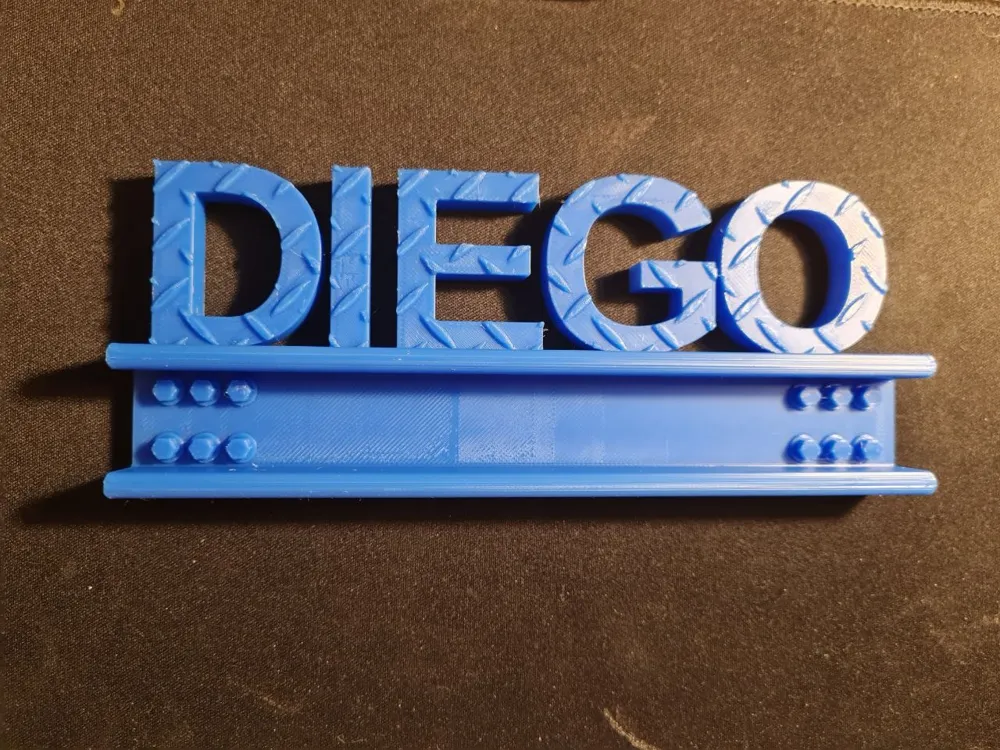

- 3 Base Styles: Mounting holes, clean look, or decorative bolts.
- Optimized for Flat Printing: Entire model is generated in print position (no supports needed).
━━━━━━━━━━━━━━━━━━━━
MAIN PARAMETERS:
- Text: Sign word (Default: "METAL").
- Font Size: Letter height (10-100mm, Default: 40mm).
- Base Style: Holes, Clean, or Bolts.
- Texture: Enable/disable texture on letters and base.
━━━━━━━━━━━━━━━━━━━━
USAGE TIPS:
- Short Text: Words with 3-6 letters look more proportional.
- Scale: Adjust font size and beam height proportionally.
━━━━━━━━━━━━━━━━━━━━
PRINT SETTINGS (IMPORTANT):
⚠️ For best results, we recommend using the Print Profile provided here on MakerWorld.
If configuring manually, use these settings:
- Material: PLA or PETG.
- Layer Height: 0.20mm (Standard) or 0.12mm (High Quality).
- Infill: 15% (Gyroid).
- Walls: 2 or 3 walls.
- IRONING: Recommended (not required) for top surfaces.
- Pattern: Rectilinear
Outer Wall Speed: 100 mm/s
━━━━━━━━━━━━━━━━━━━━
USAGE IDEAS:
- Workshop and garage decoration.
- Door identification plates.
- Personalized names for gifts.
- Industrial/steampunk style decoration.
- Signs for scale models and dioramas.
Enjoy your industrial sign!
