Description

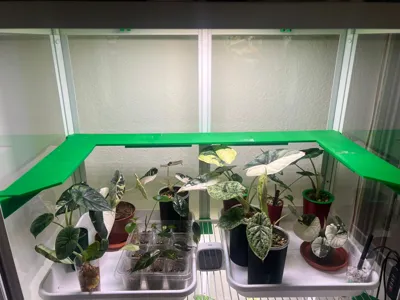

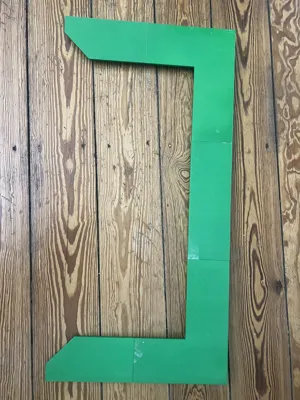

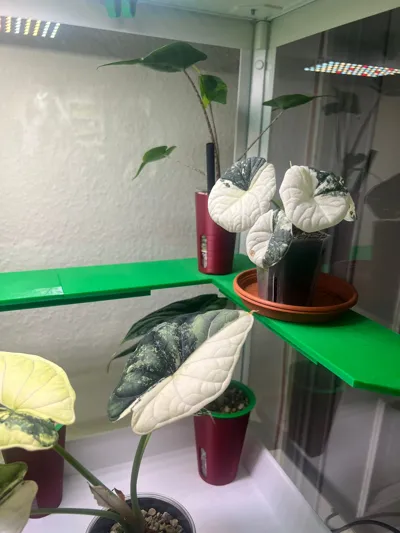

A U-shaped shelf for the Ikea Milsbo (high/tall) display cabinet. Including brackets.
The size of the individual parts is designed so that a 22x22 cm print bed is sufficient. Otherwise, simple settings:
Rotate the shelf parts and brackets by 180 degrees (top side must be on the print bed)
10 % Infill
Infill Pattern: Gyroid
The brackets need Support all other parts do not

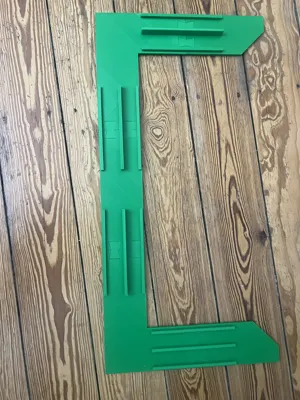

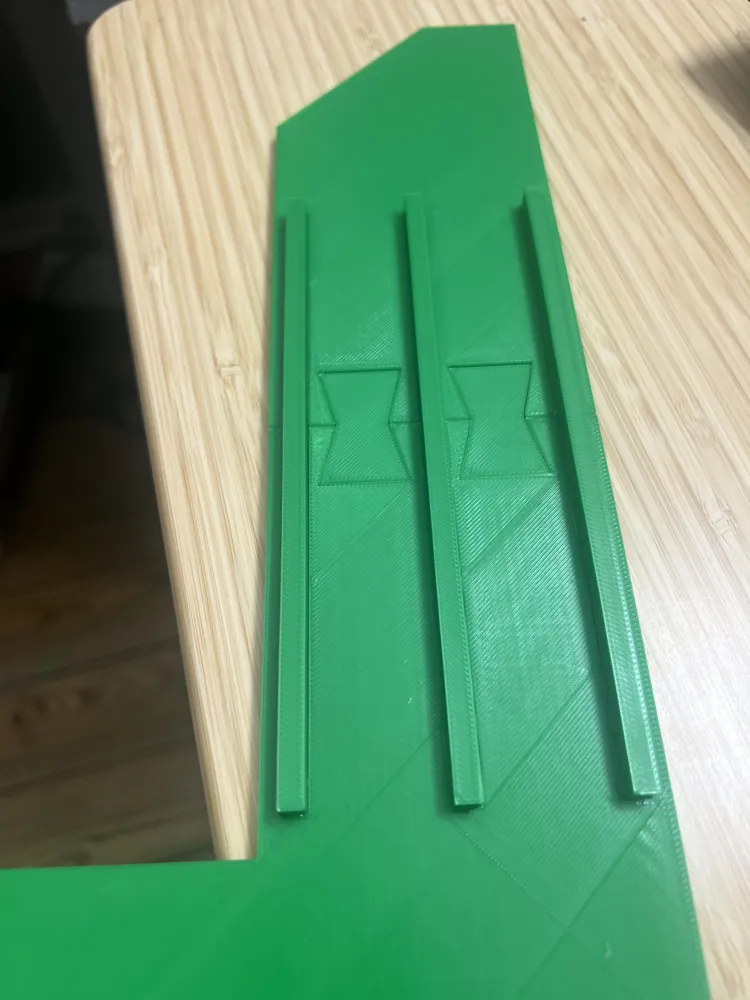

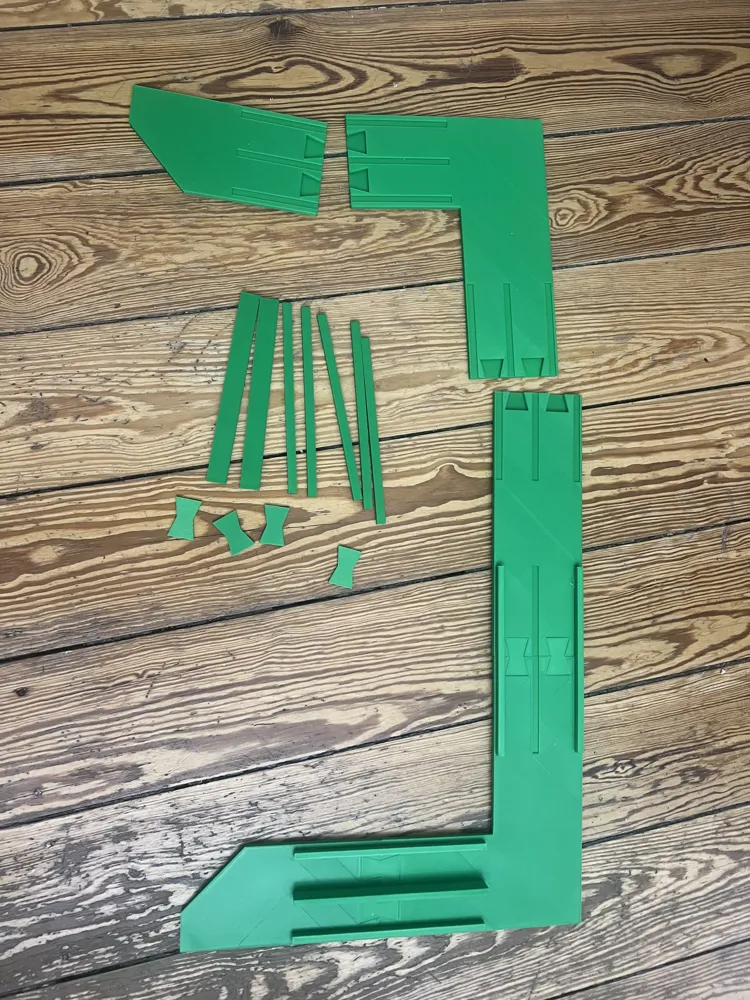

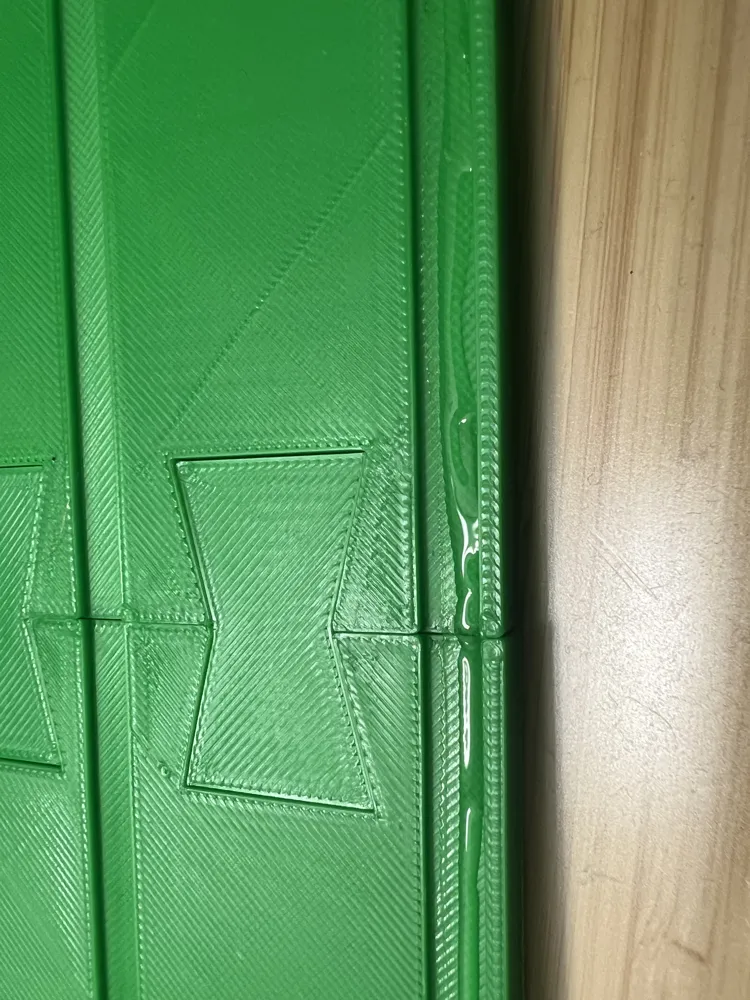

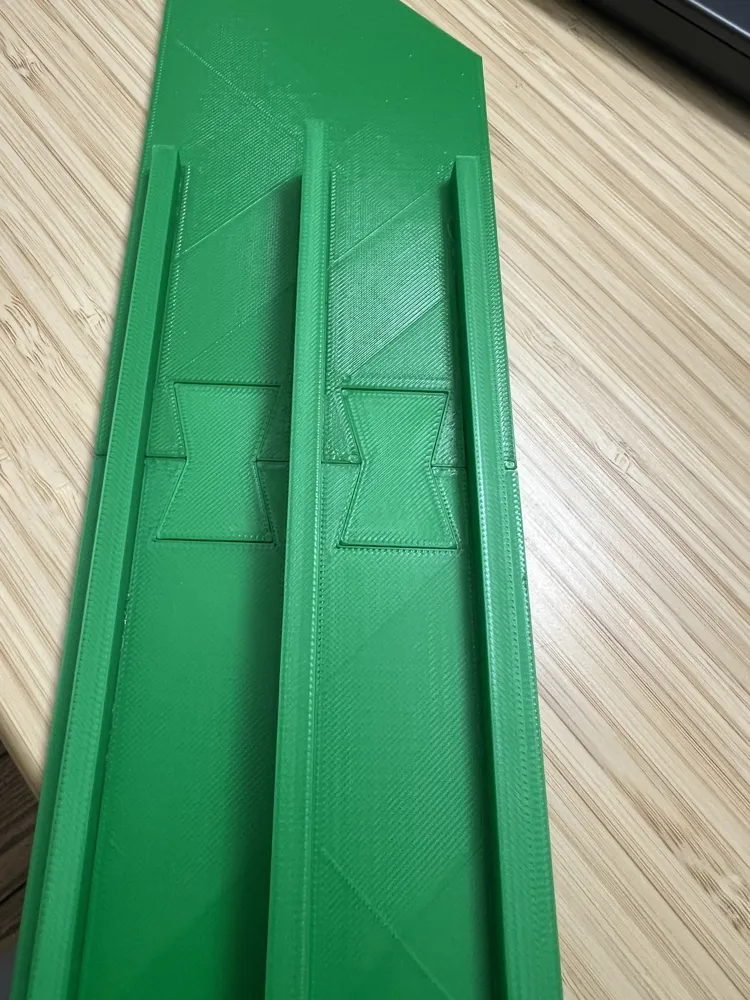

Each part for the base must be printed once. The connectors must be printed 8 times and the ribs (long rods) 12 times. The places where these parts need to be attached can be identified by the recesses. The parts must be glued with superglue and that's it :)
Additionally, 4 corner brackets and 1 wall bracket are needed. Also 5 M4x16 screws and 5 M4 washers
For questions and comments, please leave a comment
