Description

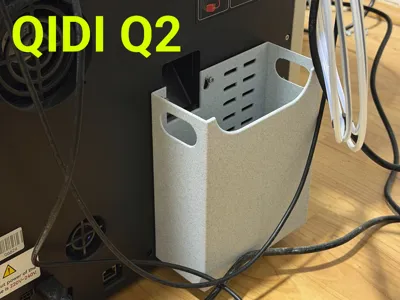

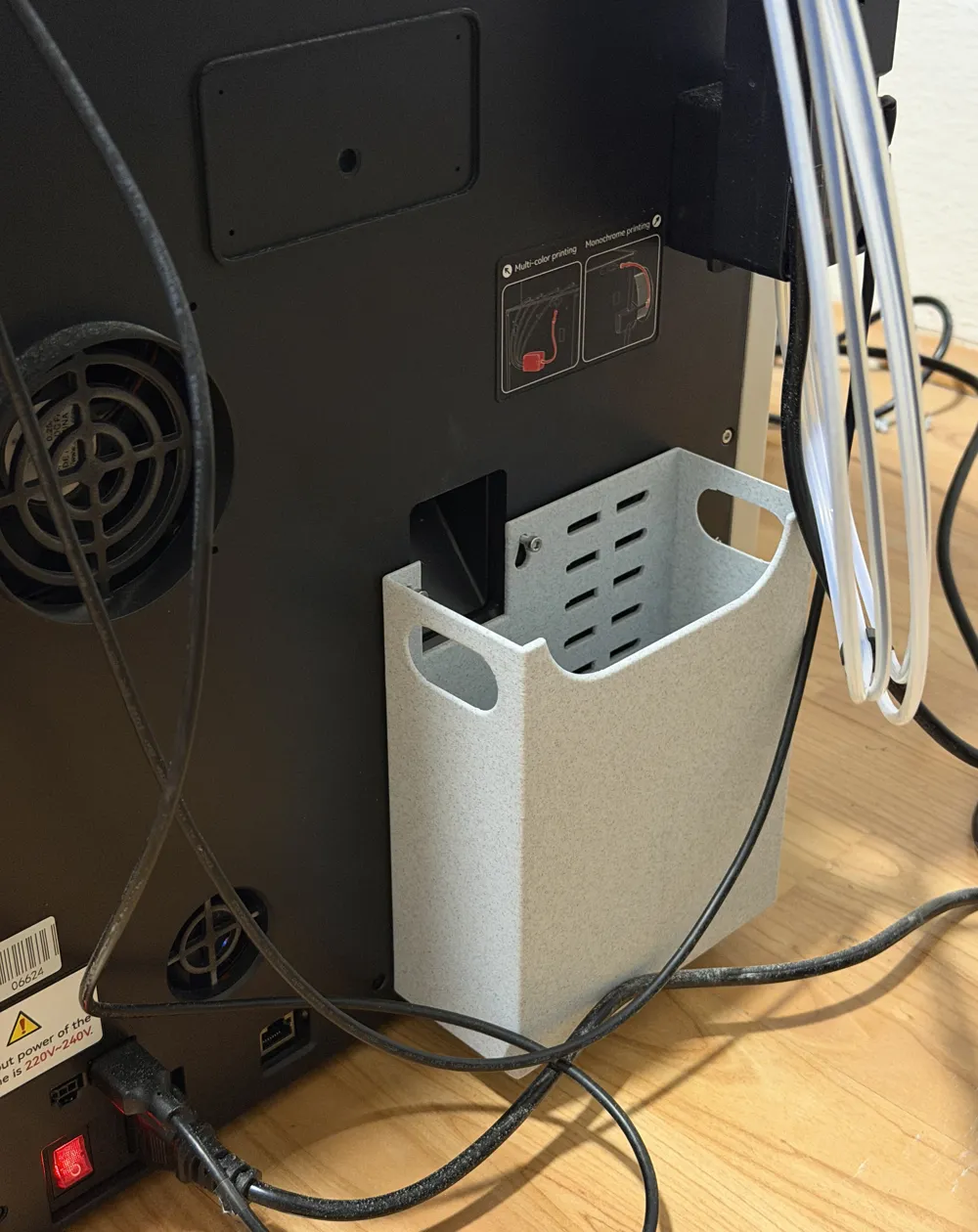

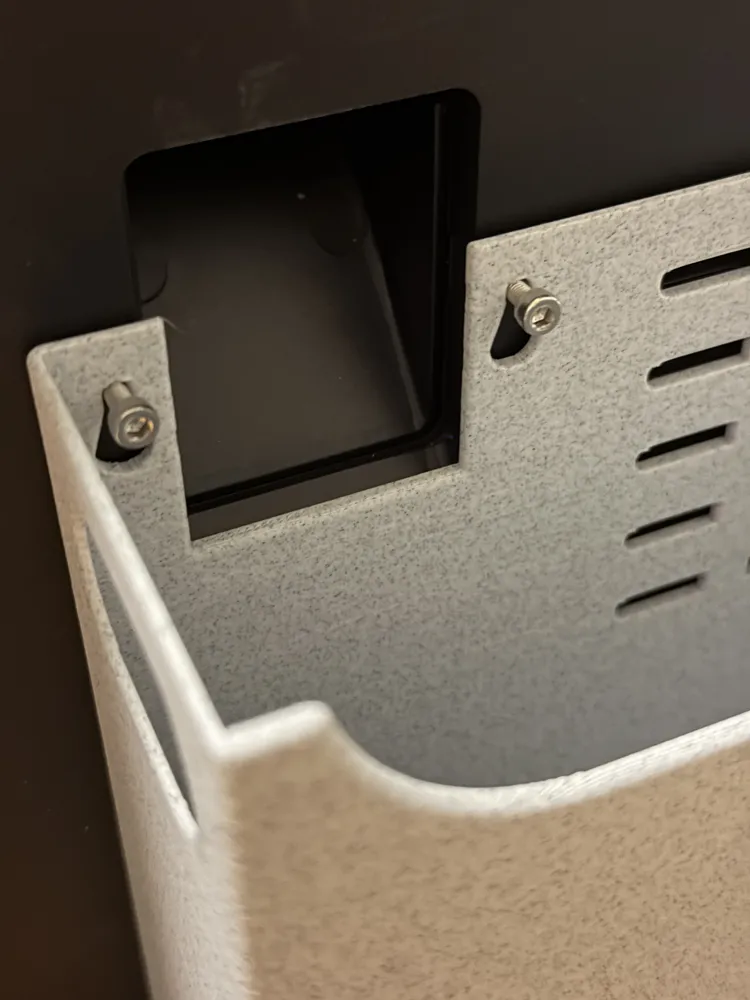

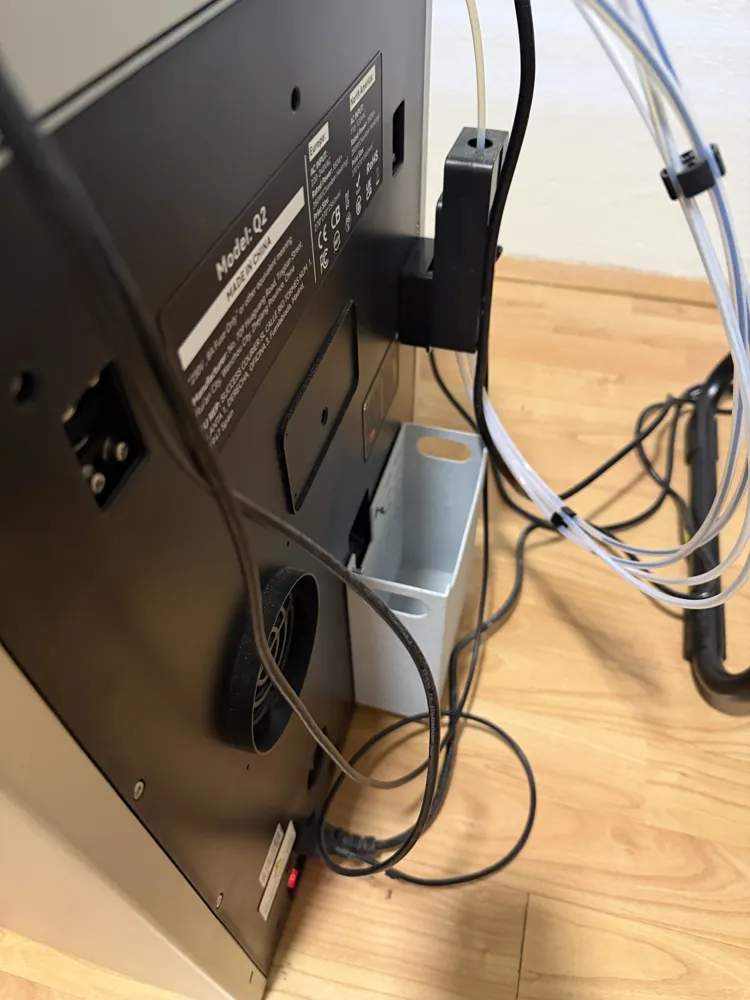

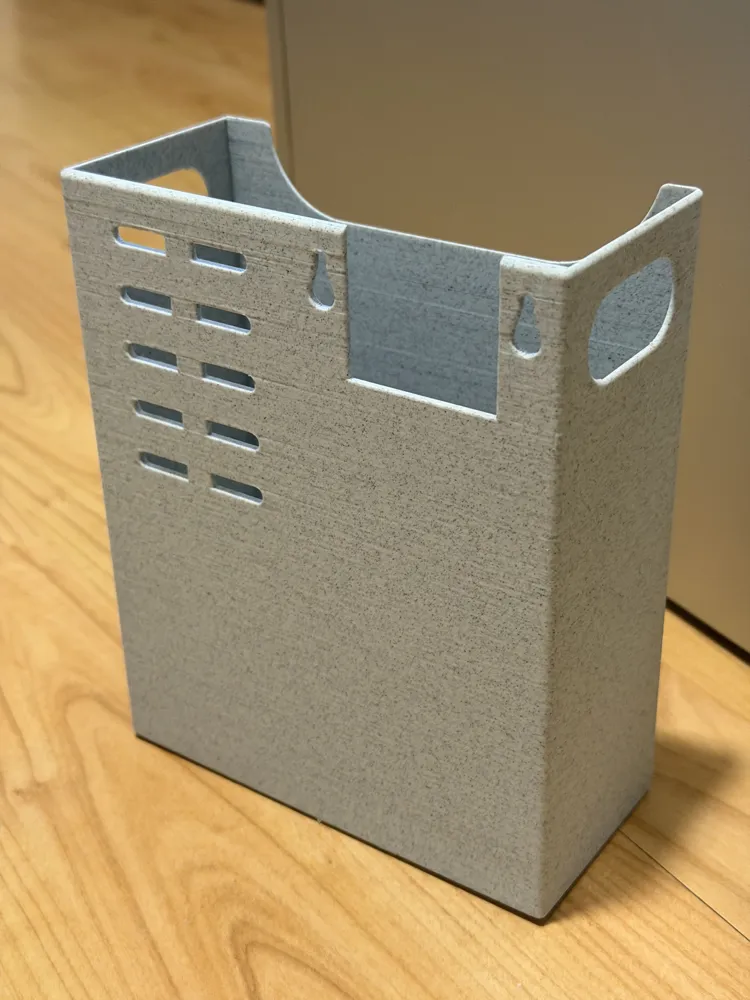

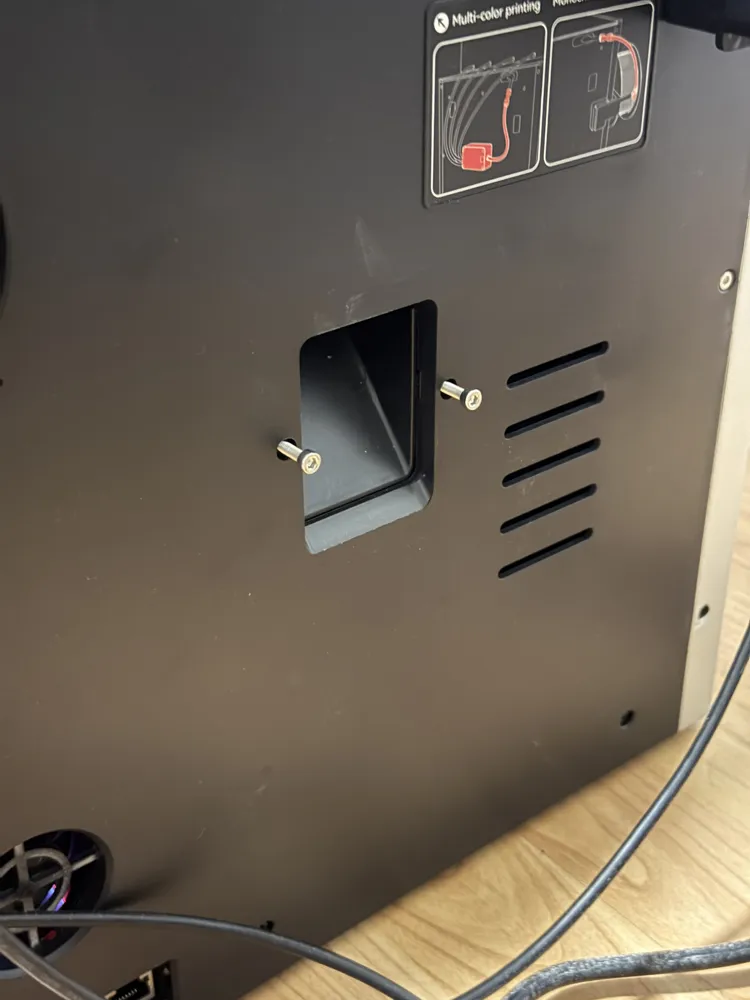

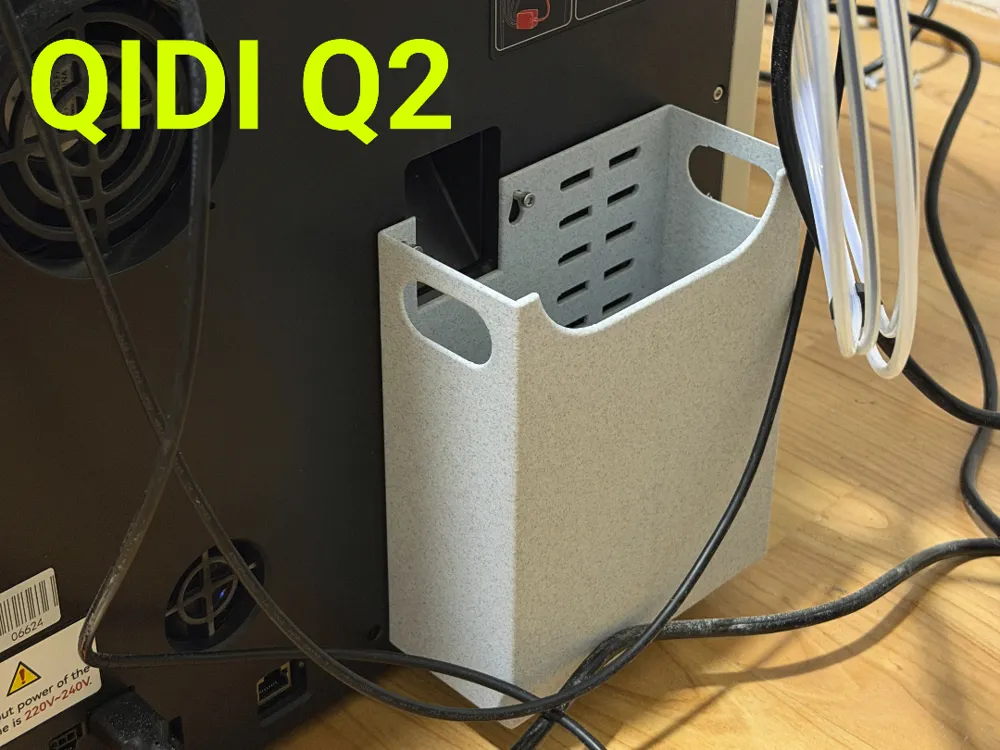

A purge chute I made for the QIDI Q2 and the QIDI Box to collect waste filament, because I needed something that is slim and easy to remove. The attachment is very simple, you just need to unscrew the two existing M3 bolts and screw in slightly longer M3 bolts. Print with supports at 0.20mm - 0.28mm layer height.



I used M3x16mm, but M3x10, M3x12 and M3x20 are all fine. It's possible some imperial screws could also fit.
