Revopoint T125 Turntable Extension (250 mm)
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 8% infill
Designer
3.6 h
2 plates
Open in Bambu Studio
Boost
3
16
1
0
6
7
Released
Description

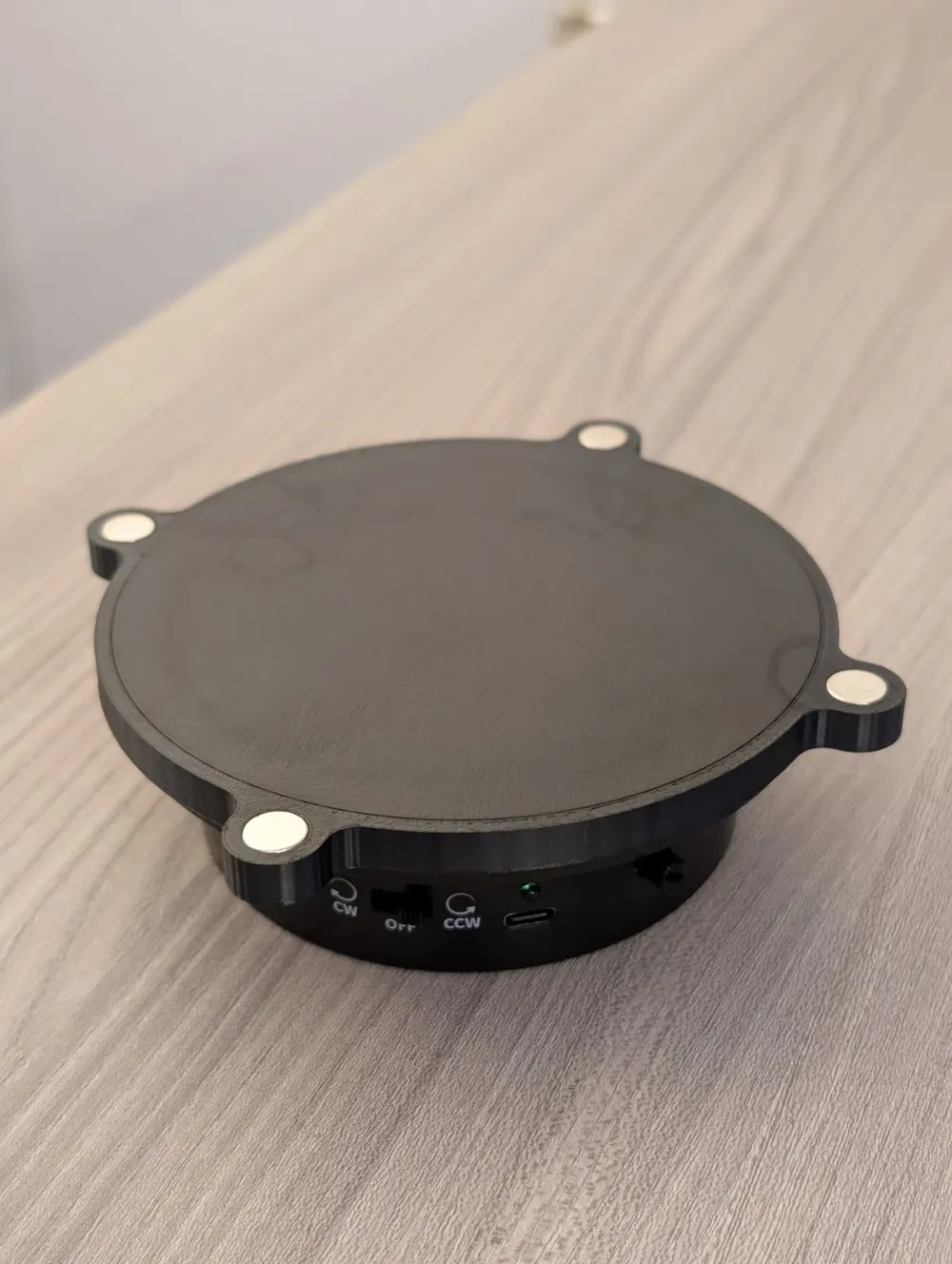

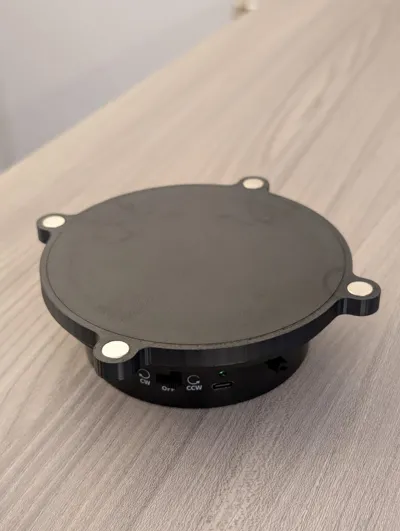

This model is a turntable extension for the Revopoint T125, designed to increase the usable platform diameter for scanning larger objects.
The extension consists of two separate printed components:

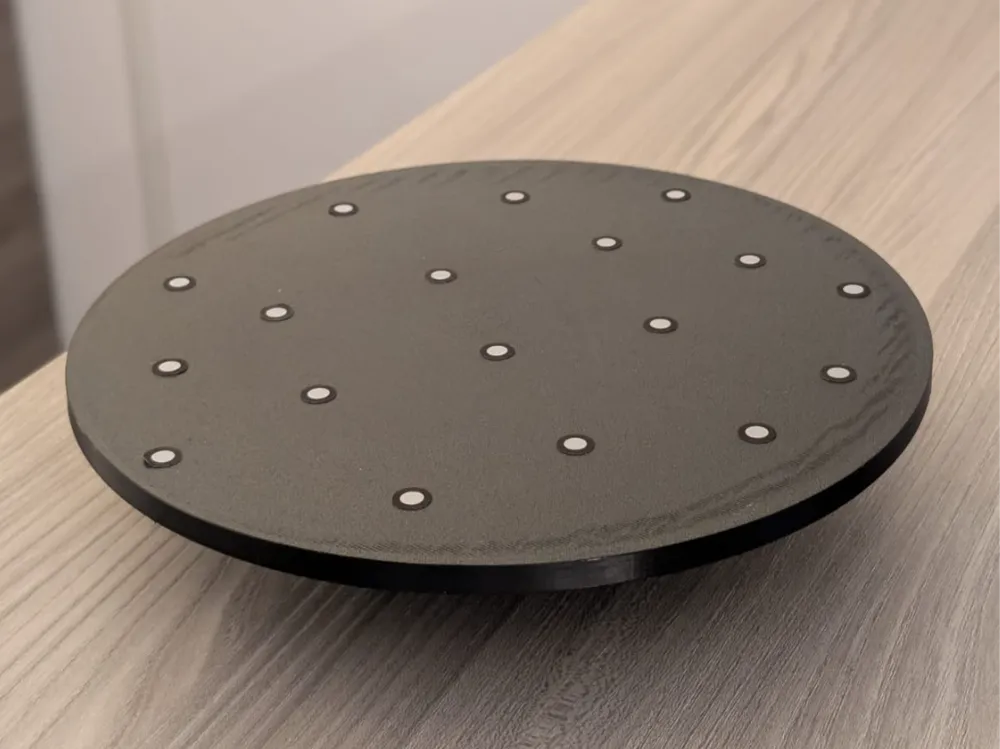

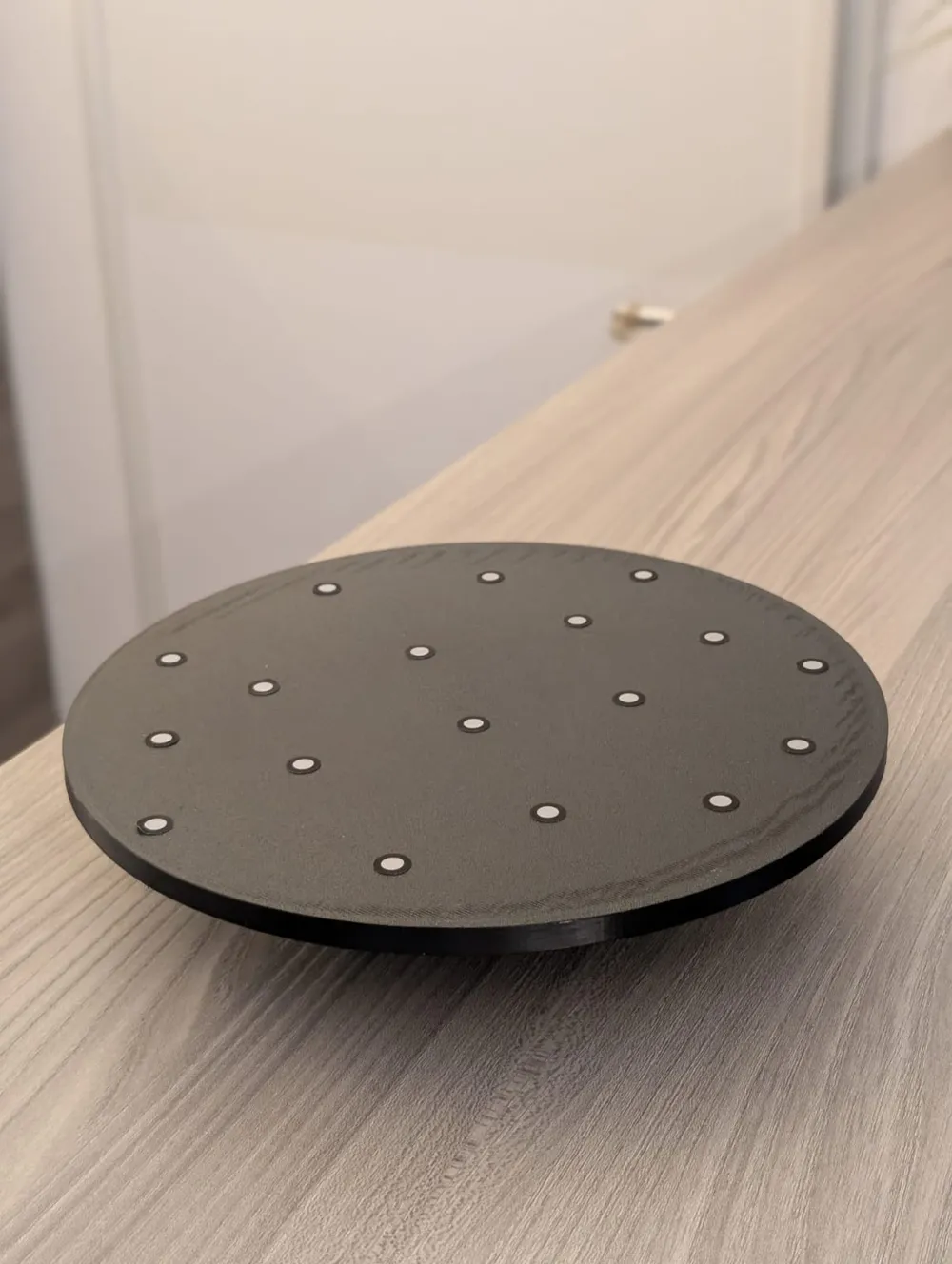

- A 250 mm diameter platform

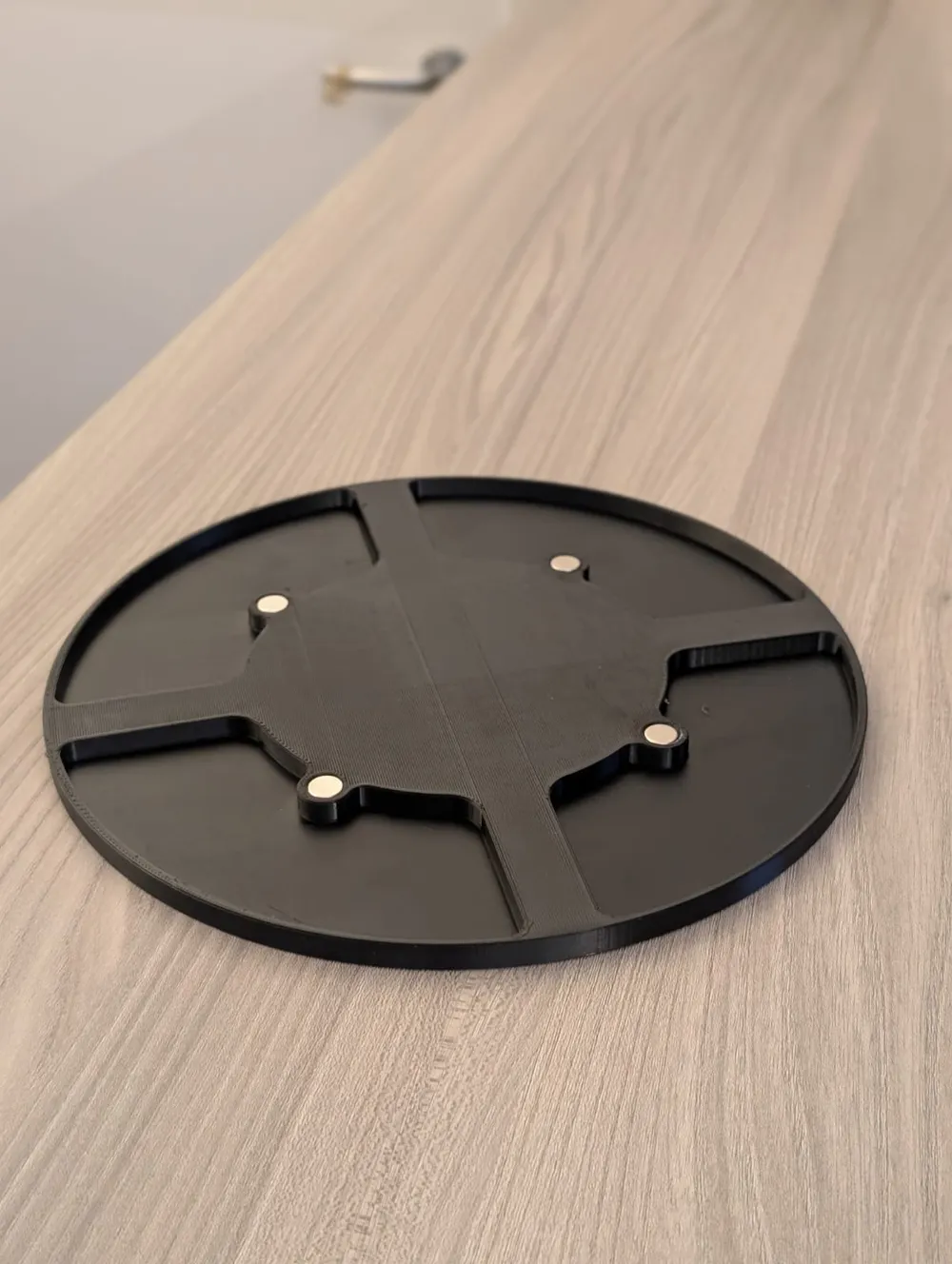

- An adapter ring to interface with the original turntable
The system uses embedded magnets to ensure proper alignment and stable positioning during rotation.
Compatibility
- Revopoint Turntable T125
Components
- Extension platform – Ø 250 mm
- Adapter ring
- Requires 8 magnets (10 × 3 mm)
Features
- Enlarges the scanning surface without modifying the original turntable
- Magnetic alignment for quick and repeatable positioning
- Modular design: extension can be removed when not needed
- Suitable for scanning larger or wider objects
Print Settings (Recommended)
- Nozzle: 0.4 mm
- Layer height: 0.24 mm
- Infill: 8% gyroid
- Supports: As per profile (if required)
Notes
- Ensure correct magnet polarity during assembly
- This is not an original Revopoint accessory
Designed by S3D.
License
This user content is licensed under a Standard Digital File License.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
