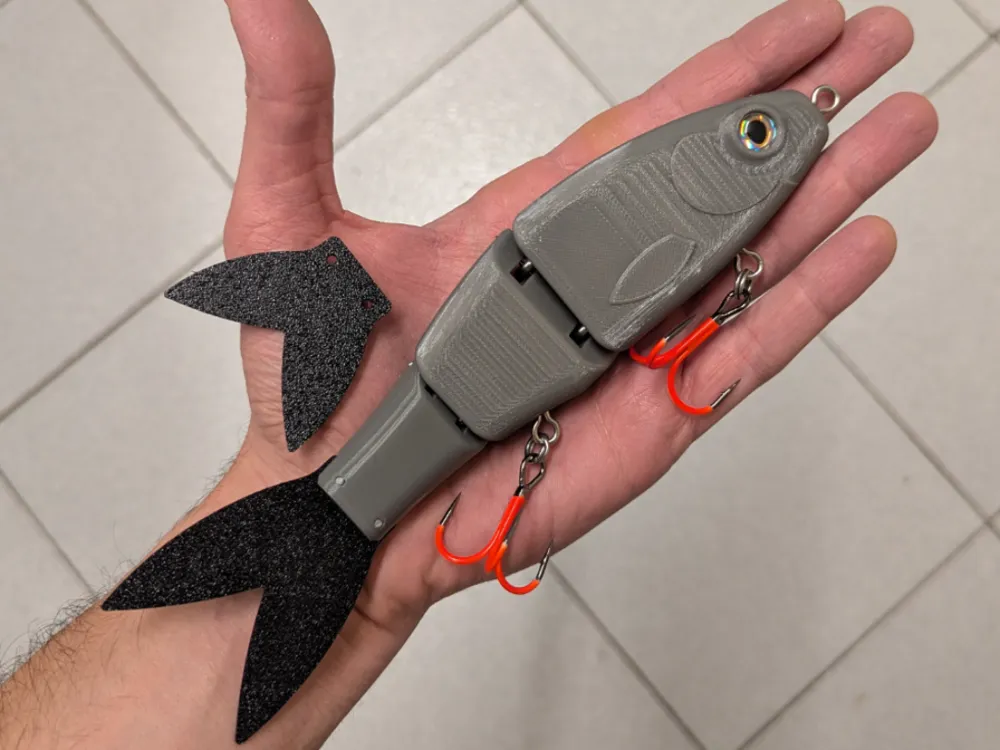

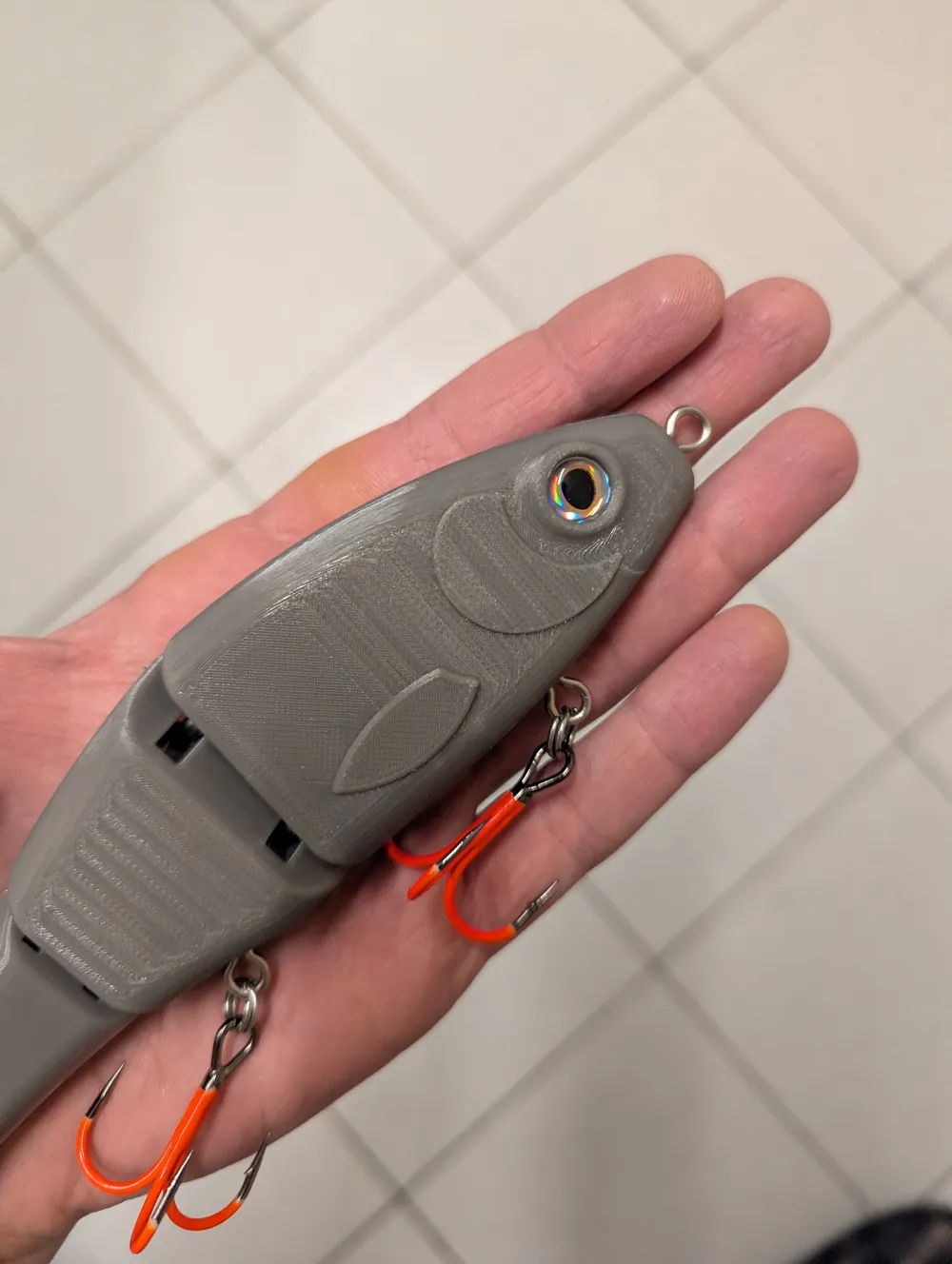

After requests from some of you, I made a 3-section swimbait with a soft tail that can be printed in TPU.
Lure type: 3-section swimbait
Target species: primarily designed for pike and black bass
Technical specifications
- Length: 200/220 mm (2 different tail)
- Weight: 110 g
- Buoyancy: Floating
Materials used
(For more details, please refer to the photos)
- PETG filament
- TPU filament

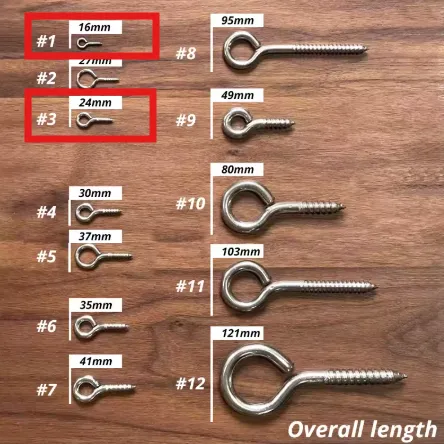

- Small screw eyes (N1) https://it.aliexpress.com/item/32959476182.html?spm=a2g0o.order_list.order_list_main.230.71983696mYeJqs&gatewayAdapt=glo2ita
- Large screw eyes (N3) https://it.aliexpress.com/item/32959476182.html?spm=a2g0o.order_list.order_list_main.230.71983696mYeJqs&gatewayAdapt=glo2ita
- Lure eyelets (8 KR-15-300pcs) https://it.aliexpress.com/item/1005005131879277.html?spm=a2g0o.order_list.order_list_main.275.71983696mYeJqs&gatewayAdapt=glo2ita
- Lead weights 10 g and 5 g (Cheburashka-style sinkers)
- 3D eyes 10 mm
Weighting
- 3 × 10 g lead weights
- 1 × 5 g lead weight
Rigging
- Hooks: size 2/0
Assembly

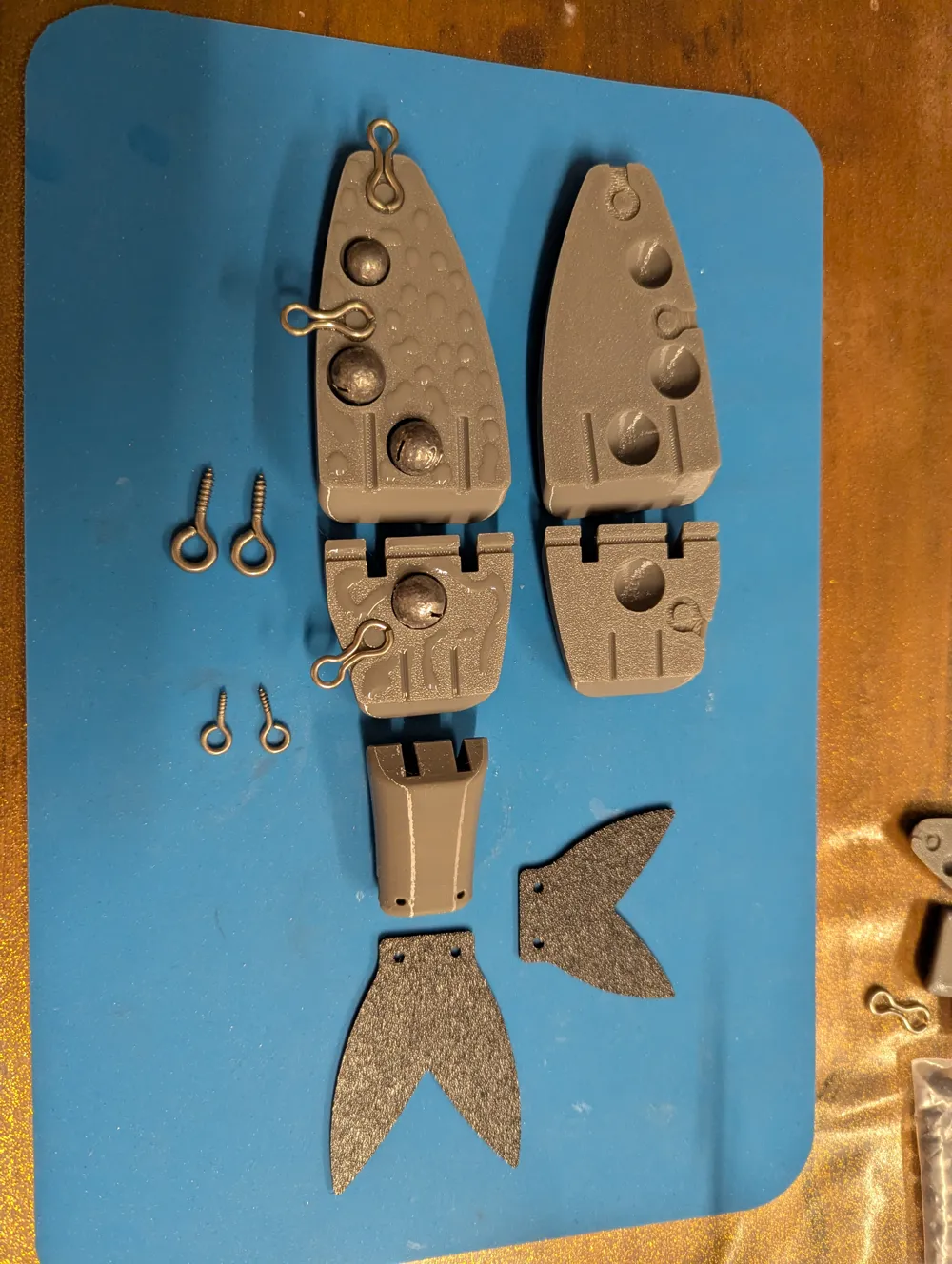

- Insert the lead weights and the lure eyelets into one half of the lure body.
- Apply cyanoacrylate glue and join the two halves of the lure.
- Clamp the parts together using clamps to ensure optimal adhesion and alignment.
- Once the glue is fully cured, insert the screw eyes into the dedicated holes after applying glue or, preferably, epoxy resin.
- It is recommended to apply a full epoxy resin coating to ensure complete waterproofing of the lure.

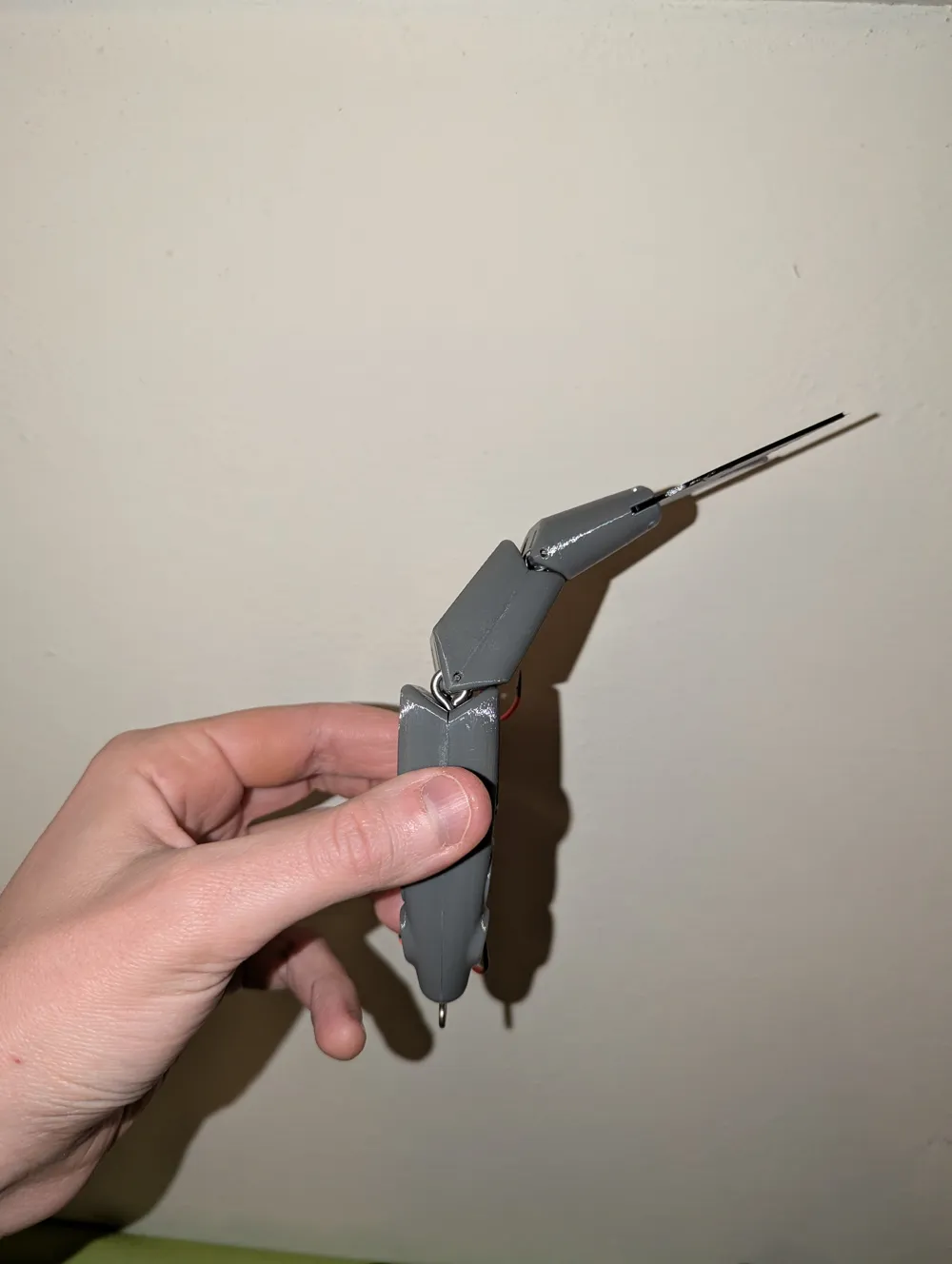

- Connect the three sections of the swimbait using two stainless steel wires with a diameter of 1.5 mm.

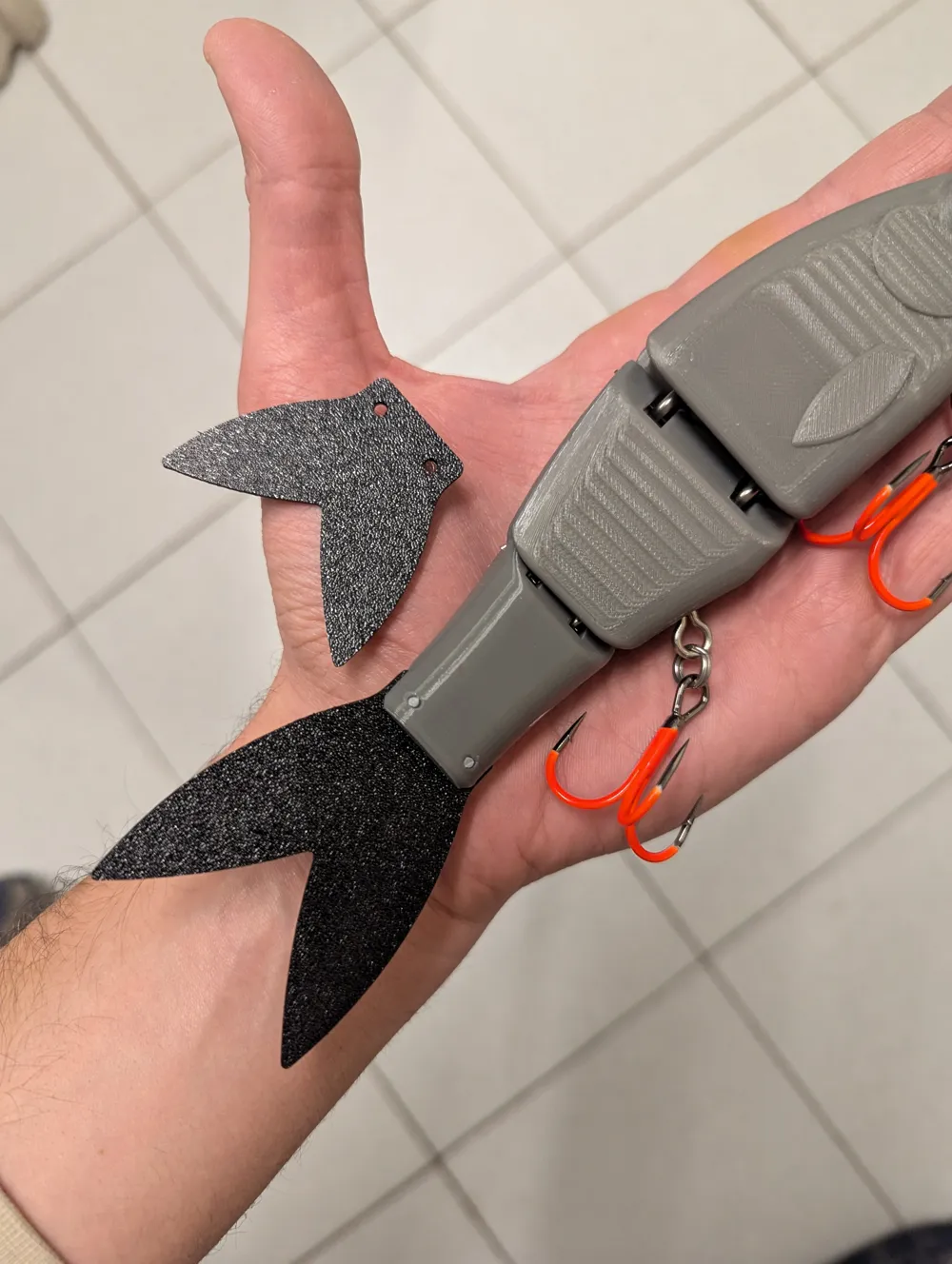

- Insert the TPU tail and secure it by inserting two PETG filament pieces.
Good luck! 🎣
