mudguard fox 36/38 custom style
IP Report
Print Profile(1)
0.6mm nozzle, 0.18mm layer, 2 walls, 15% infill
Designer
13.1 h
1 plate
Open in Bambu Studio
Boost
239
671
14
10
240
43
Released
Description

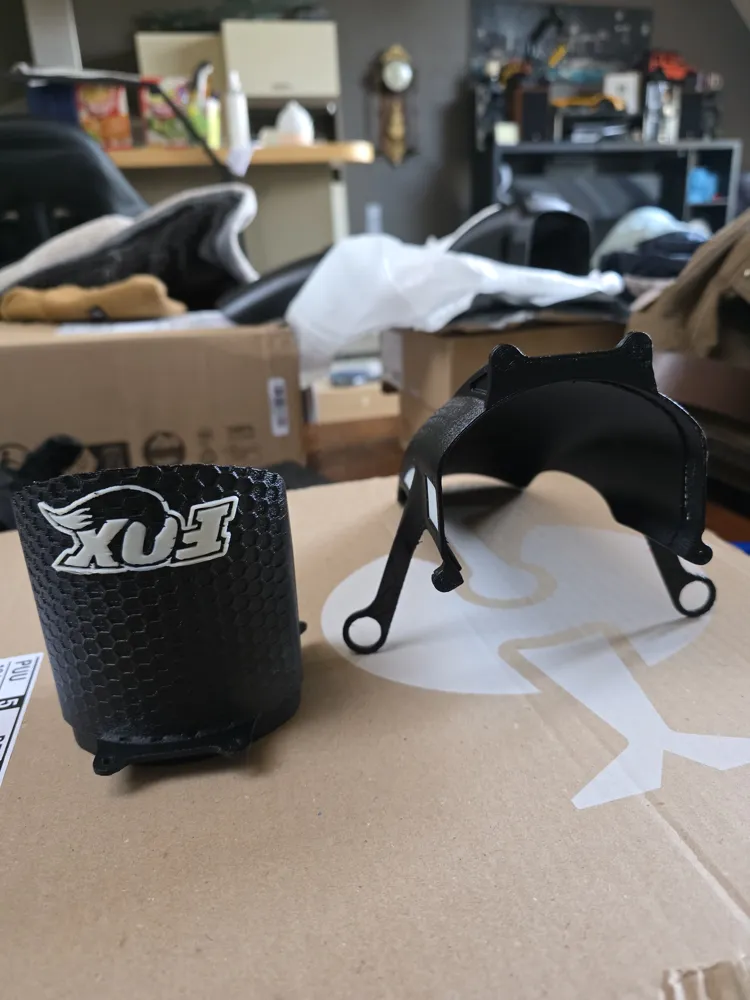

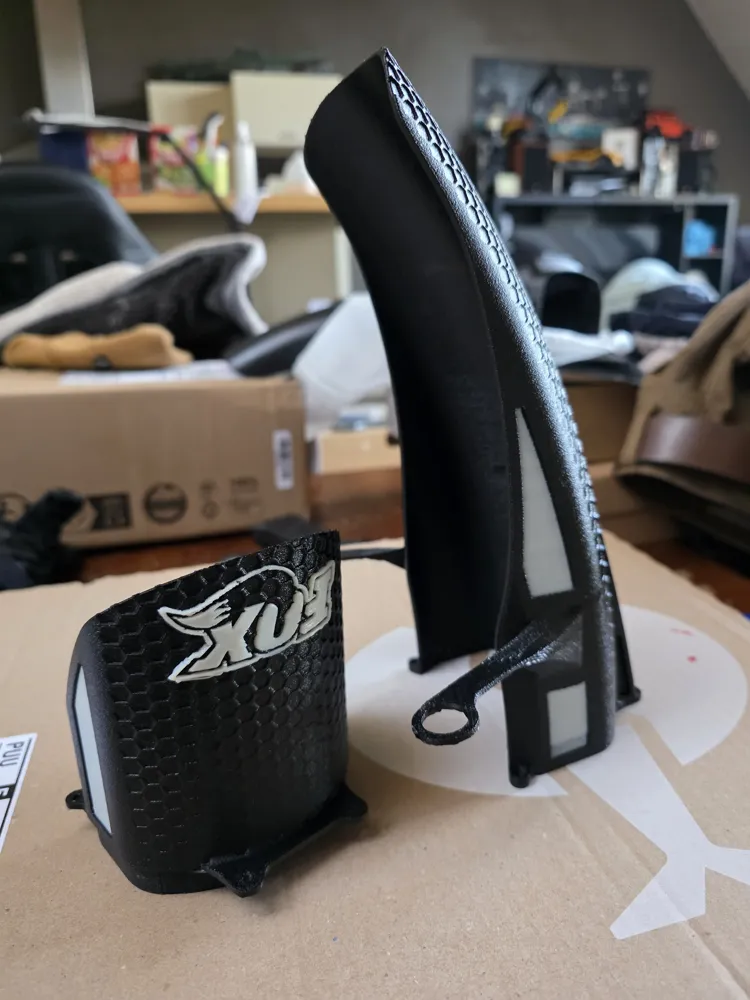

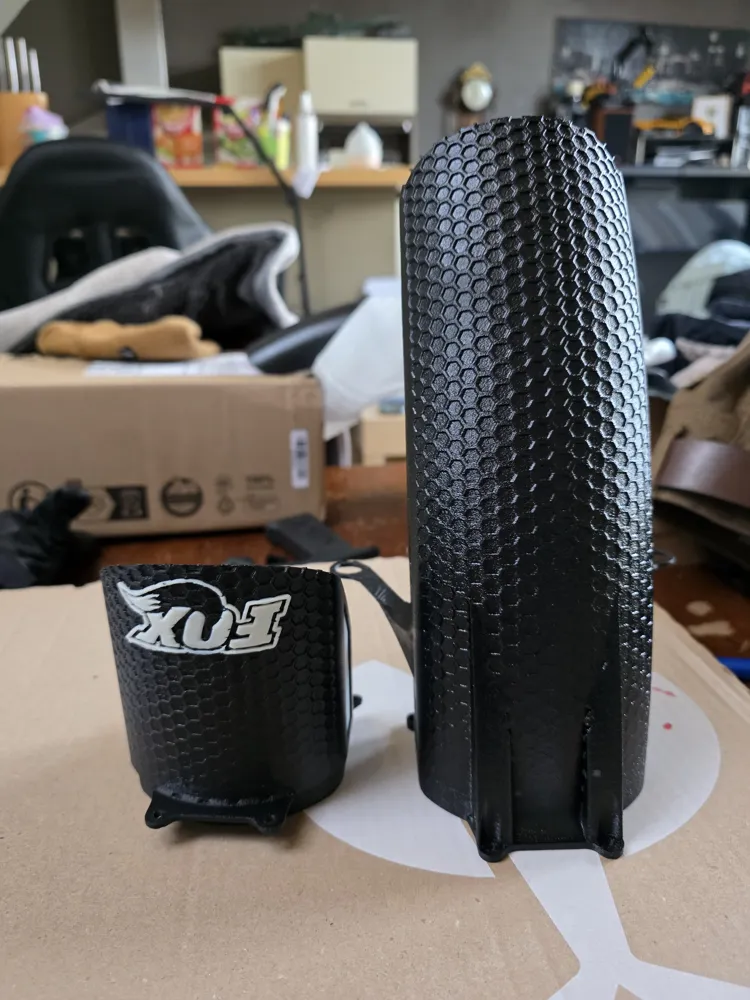

mudguard for fox 36/38 2024 custom hexagon texture
beautyfull mudgaurd for fox 36/38 for great ride day in muddy days
model is print in asa cf / white asa
print 0.6 nozzele whit layer heigt off 0.18
for fast print time added strong tree support en brim of 20mm
hardware
what your need is 4 bolts m3 x10 2nuts
installion
installion time +/- 5min

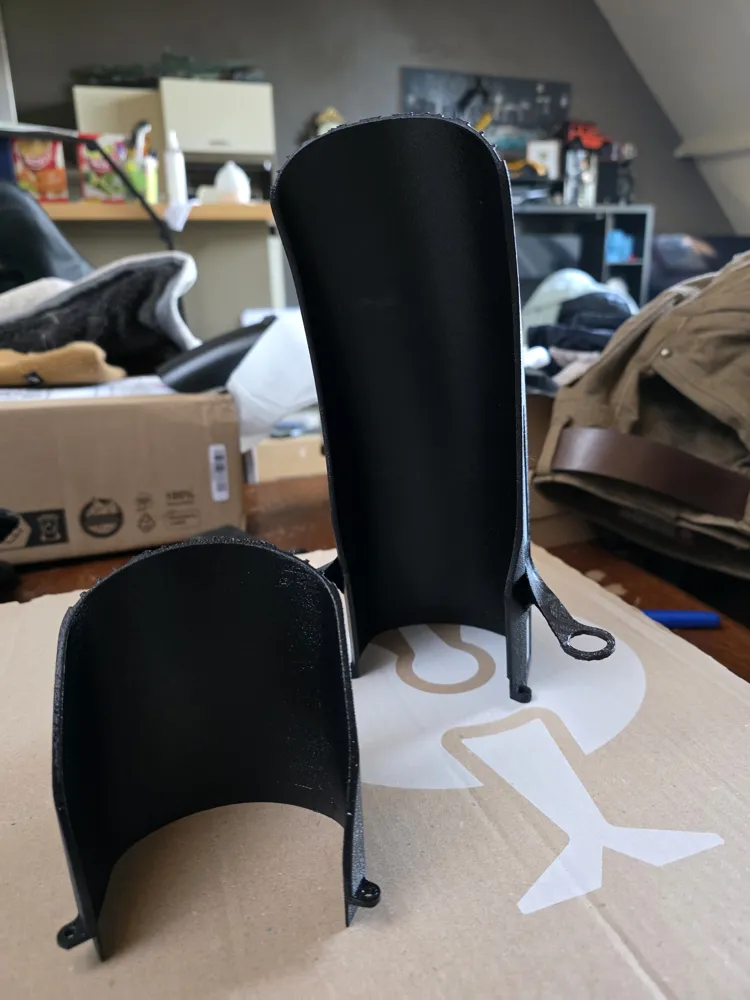

slide the 2 parts thogether put 2 m3 nuts to the side bolt it thogether
remove bleed srew en remove rubber on the bleed srew on your fox

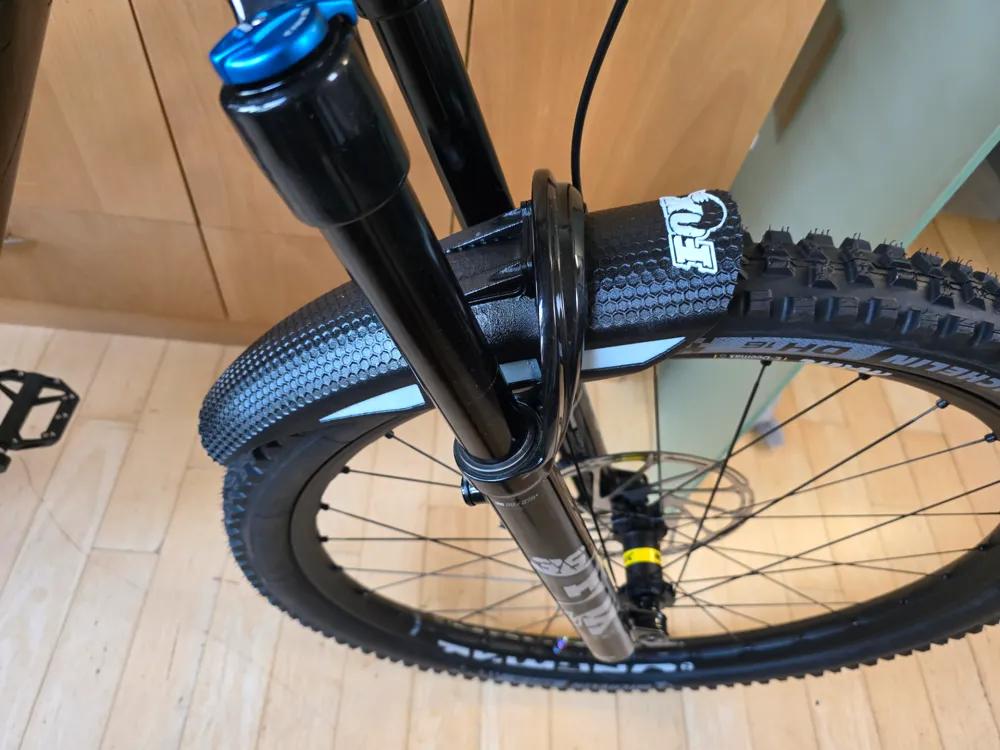

slide the mudguard in place no need to remove the wheel
allgin it whit bleed screw bolt it on
2 m3 screw for brige
Boost Me (for free)
10 sec form your time if you like the degsin boost me up thxns
