Involute Spur Gear (Involute gear) Module 1 - Free 3D Print Model

Description

Content has been automatically translated.

Show original

Welcome to my MakerWorld page!

Here you will find high-quality, cleanly designed, and everyday 3D models – developed with a focus on function, reliability, and straightforward printing.

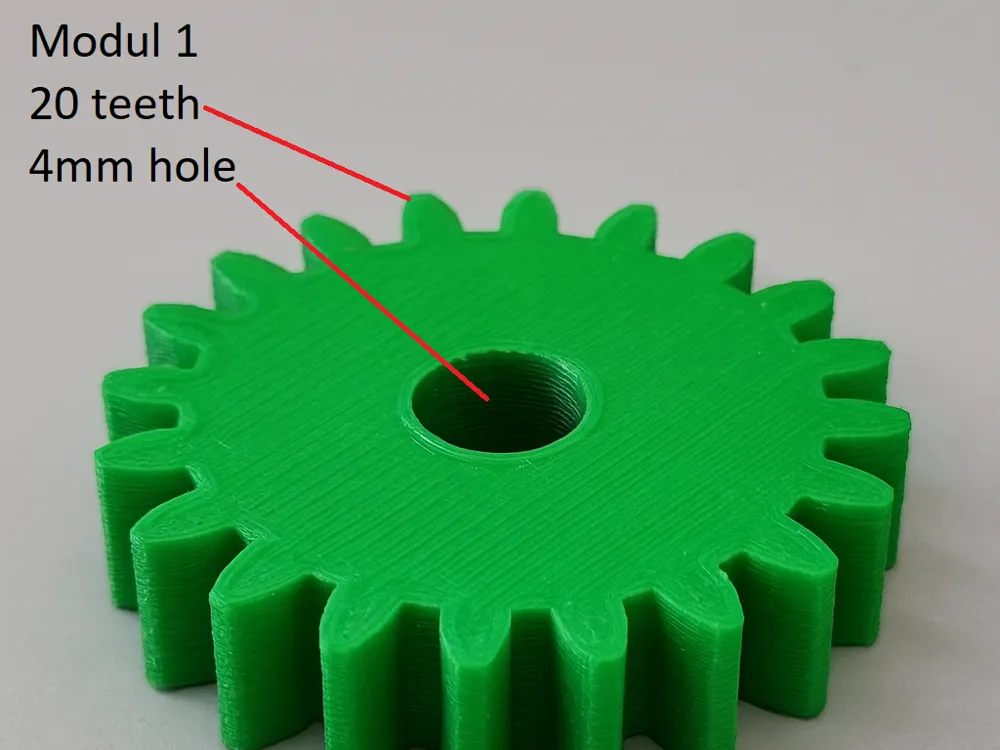

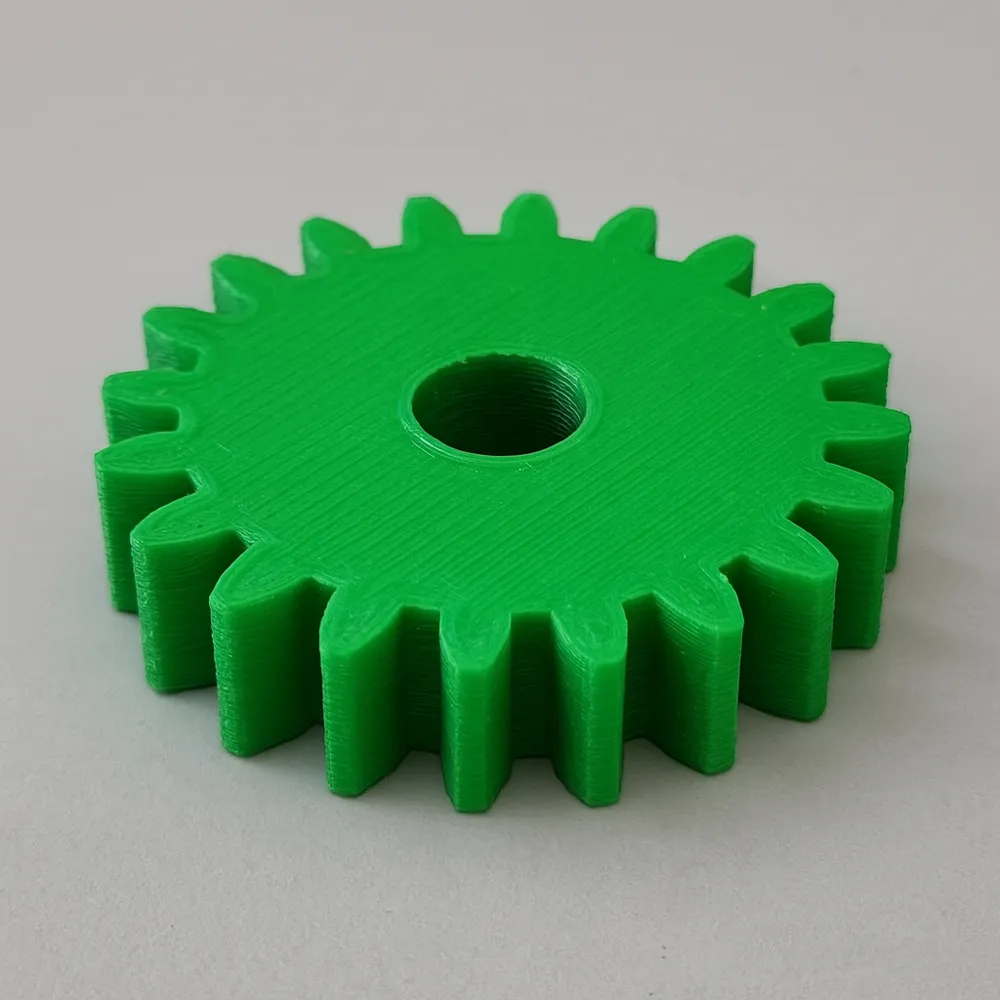

This component is a precisely engineered involute spur gear with 20 teeth, optimized for 3D printing and mechanical applications with parallel shafts.

🔧 Technical Features

Tooth Profile: Involute gearing according to DIN 867, ideal for uniform power transmission and low noise.
Number of Teeth: 20 – suitable for moderate gear ratios and compact design.
Module: e.g. 1 mm (adaptable depending on application) – determines tooth dimensions.
Pressure Angle: Standard 20° – ensures good self-centering and smooth running.
Bore: centric, e.g. Ø4 mm – for mounting on shafts or axles.
Hub: optionally reinforced for higher torques.
Material Recommendation: PETG or PA-CF for high strength and low friction.
Print Orientation: lying flat with tooth flanks facing up – minimizes support structures and improves surface quality.

🧩 Application

Ideal for gears, drives, robotics, or model building. The involute form allows reliable power transmission even with slight manufacturing tolerances.
