Lawnmower cleaning scraper with replaceable blades

Scraper replaceable blades multipurpose DIY garden

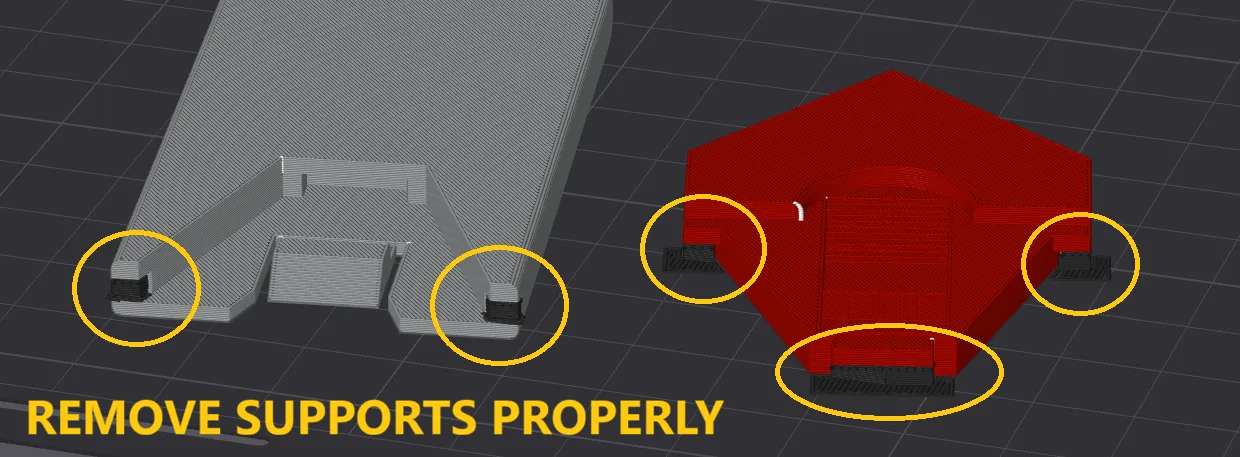

***WARNING: Remove supports correctly from the models before assembling the blades***

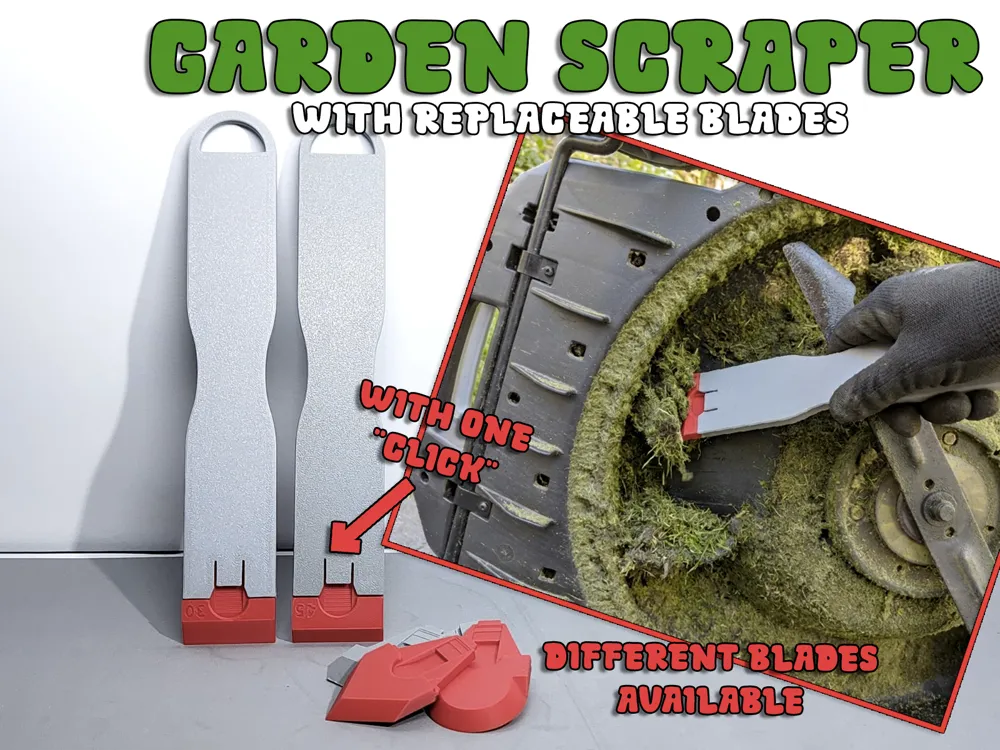

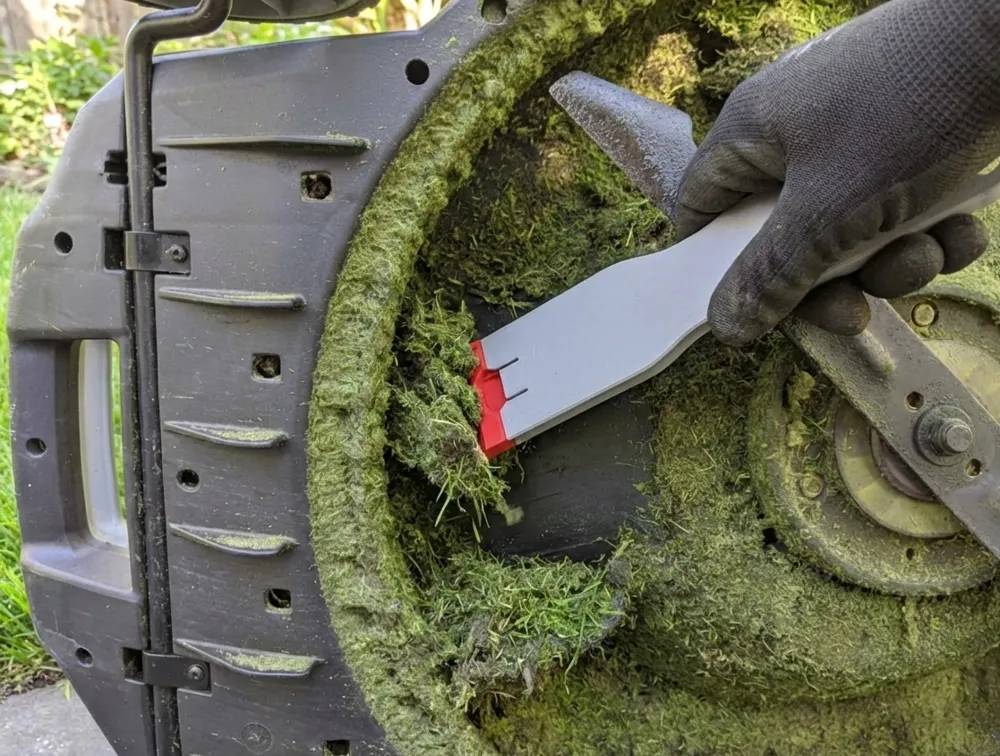

Multipurpose scraper for cleaning lawnmowers, strimmers, gardening machines, or for other DIY uses

The scraper is designed to use multiple blades (according to your needs) with the aid of a single handle. If a blade wears out, simply replace it without having to reprint the entire handle. Optionally, you can also decide to print the blades in a different material (harder or more technical) than the handle

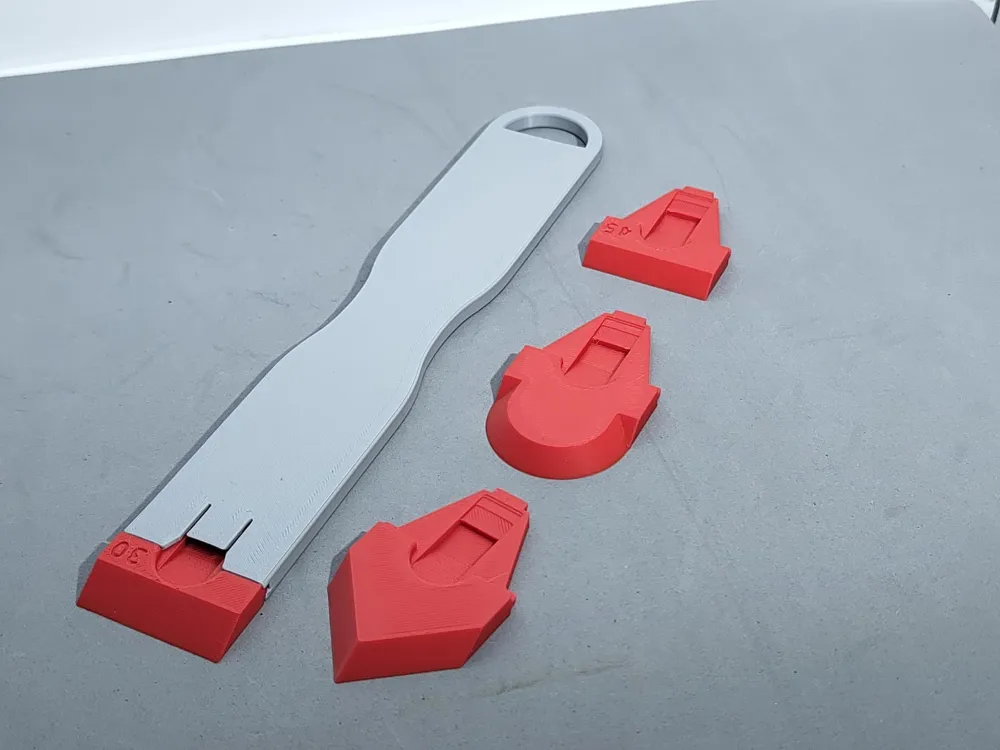

The handle is approximately 22cm long plus the length of the chosen blade. It is 4 cm wide and 6 mm thick. Its dimensions make it ideal and safe for cleaning, allowing a firm grip. There is also a half-moon hole to hang the scraper on a hook or to insert a cord

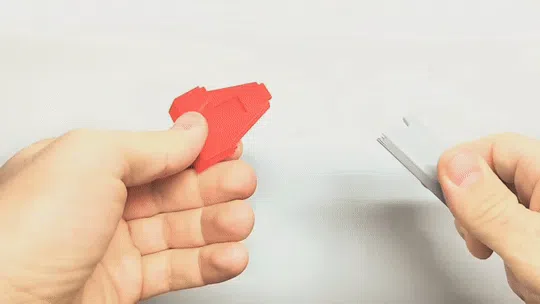

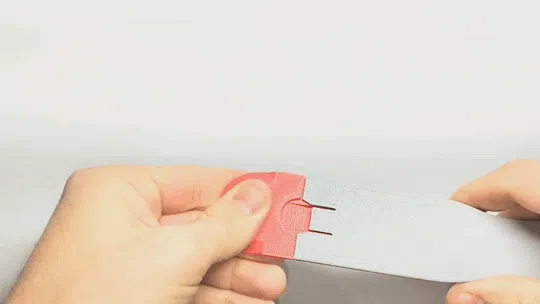

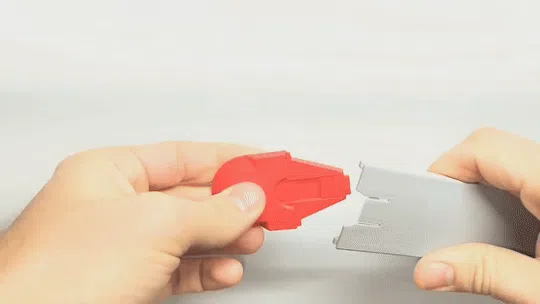

The blade easily inserts into the scraper handle using the guide "teeth" until the interlocking tab "CLICKS". To remove the blade, simply lift the locking tab slightly with your index finger and slide the blade out with the other hand

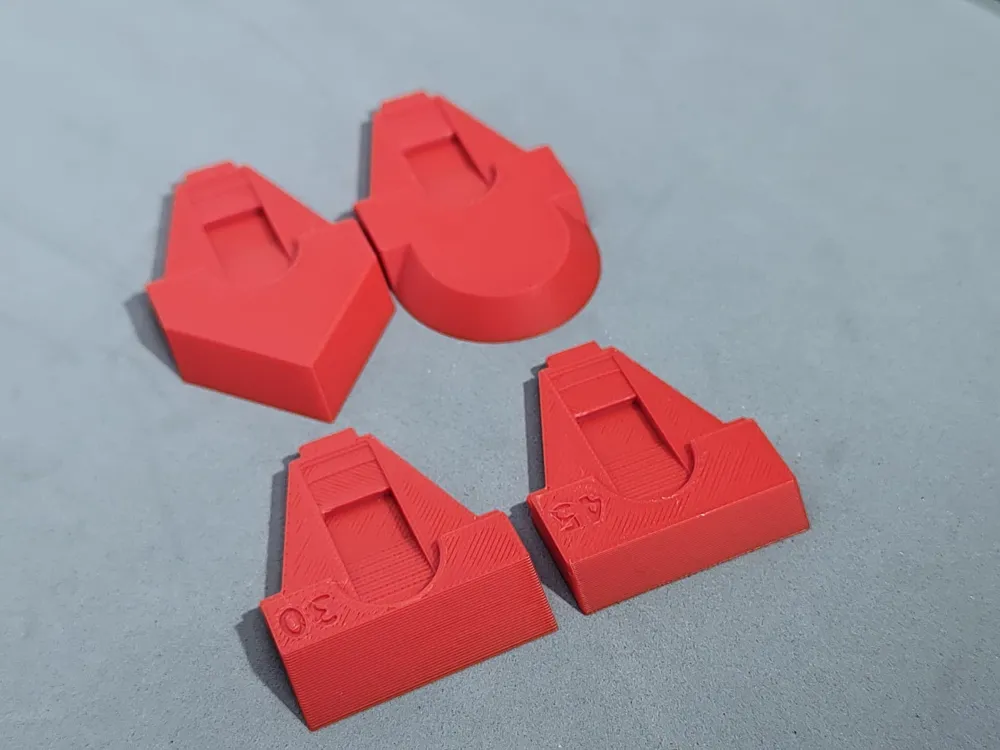

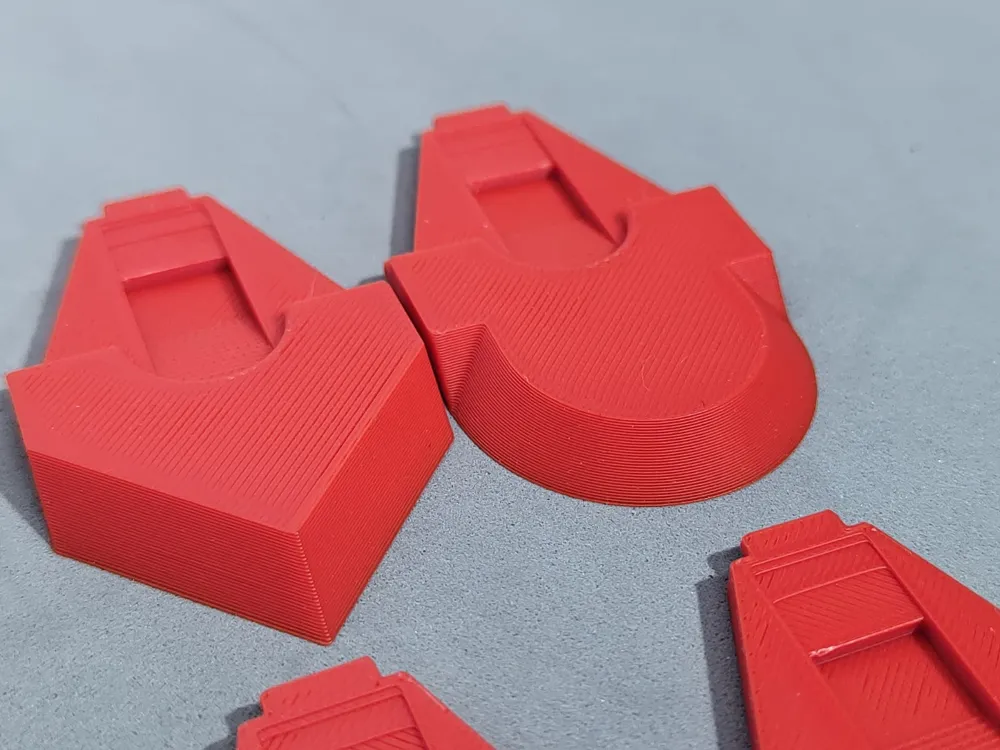

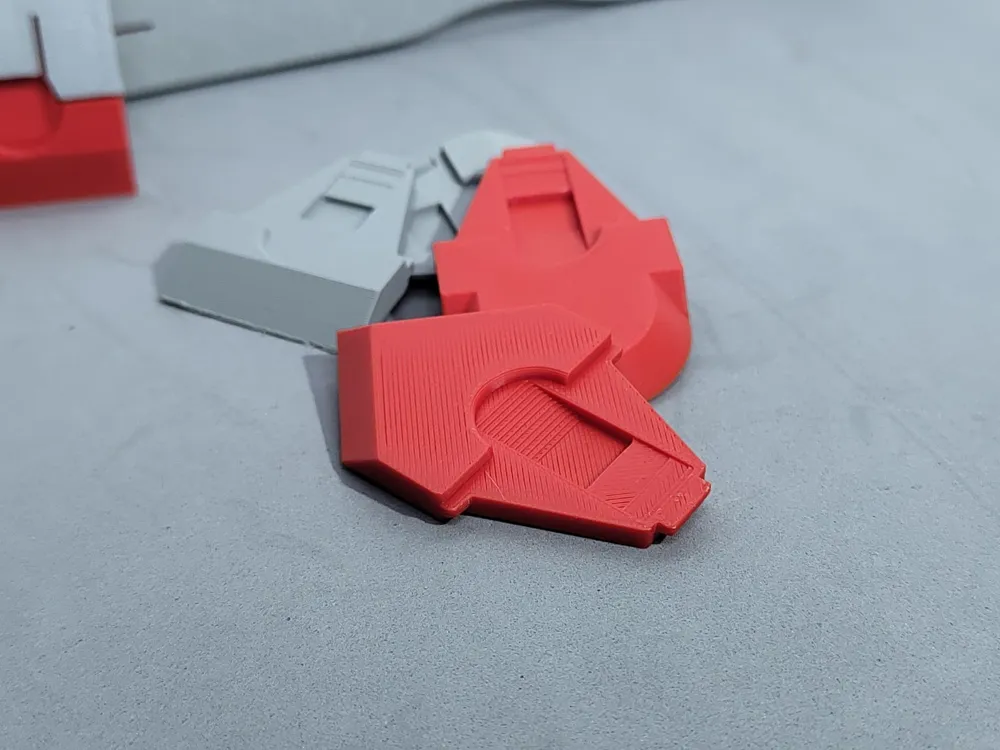

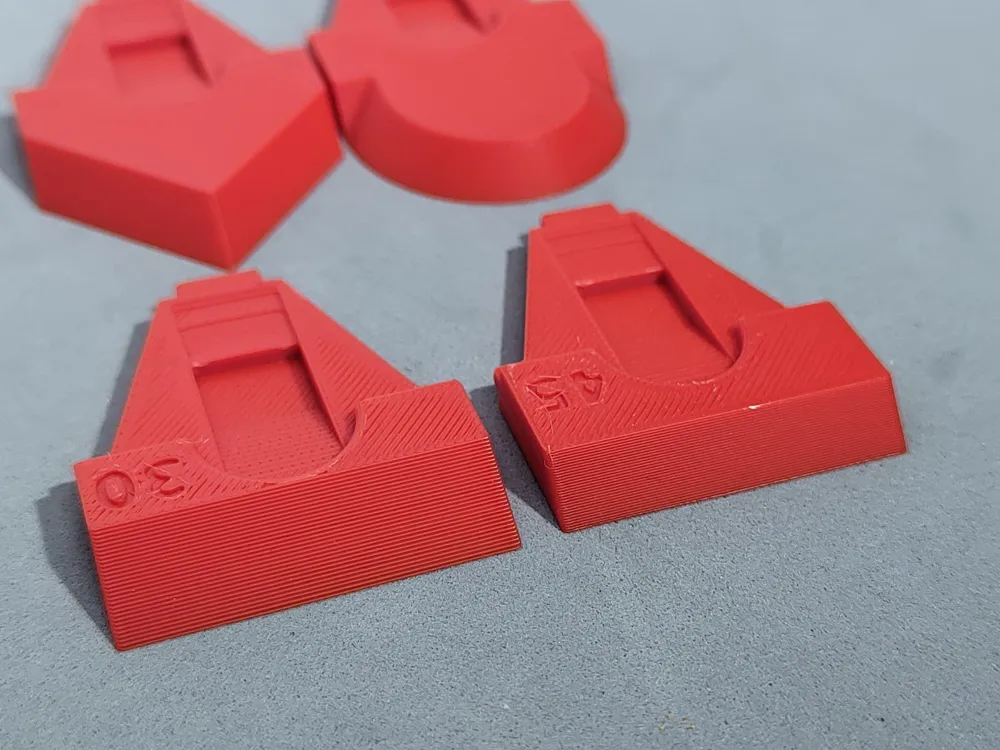

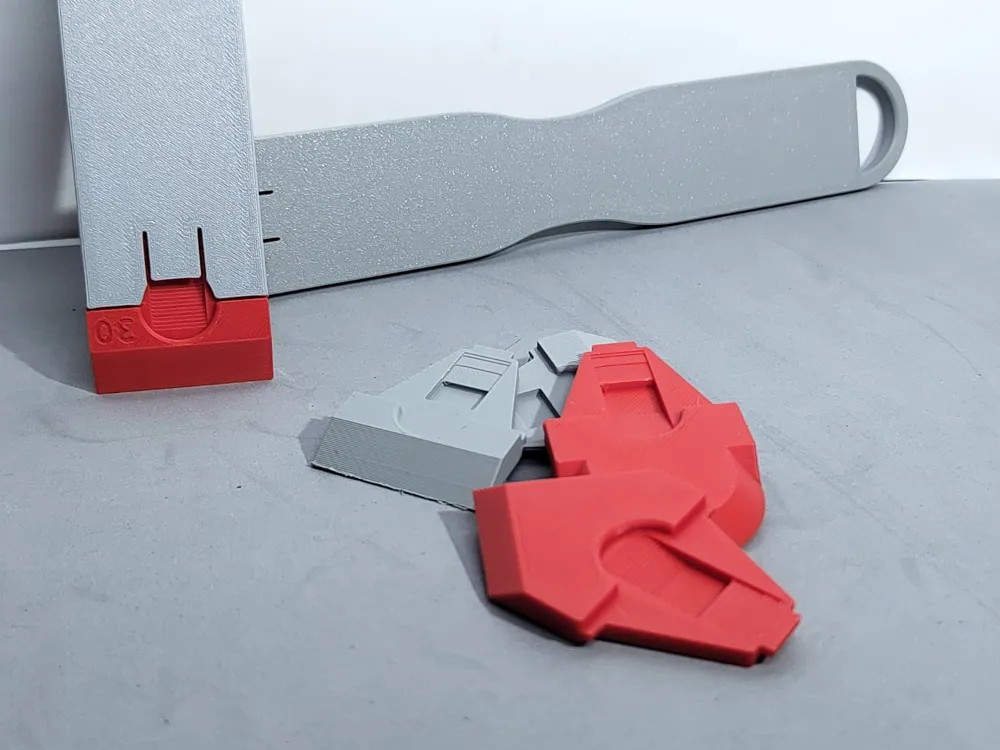

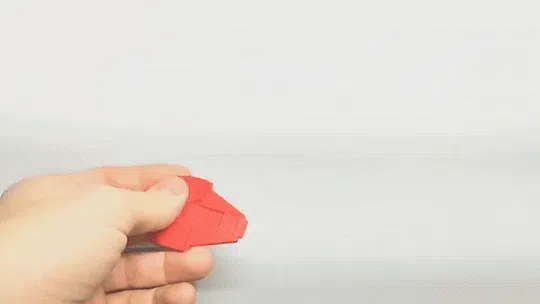

There are 2 print profiles; the first consists of 5 plates: one contains the scraper handle, and the other four contain the 4 different blade types (30-degree blade, 45-degree blade, 180-degree round blade, and pointed blade with 45-degree angles). The second profile contains only one plate with the set of 4 replacement blades

The model is made of PETG, but it can be printed in any material except TPU, which is too soft for its use. You can also choose to print the handle in PLA and the blades in PETG. You are free to proceed as you see fit and with the material you have available
