⏰ LED Matrix Clock (8×32) – smart, compact & a real eye-catcher! 💡🤖

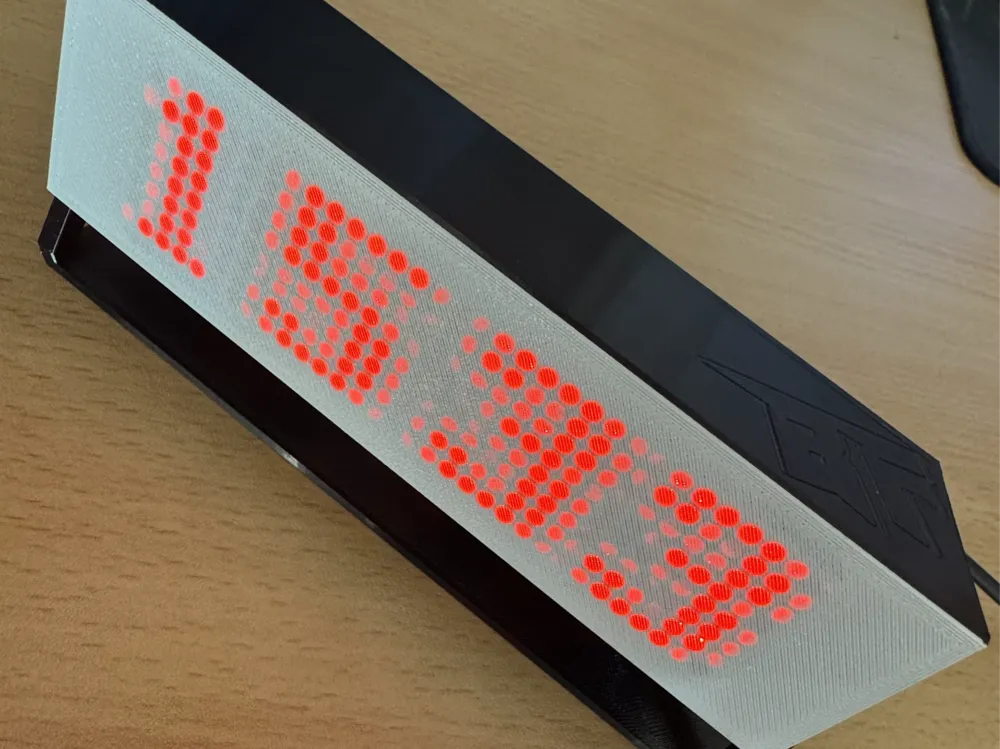

I designed an LED matrix clock which consists of four 8×8 matrix modules and is controlled by an ESP8266
The clock runs with a proven GitHub project and is perfect for the desk, shelf, or workbench.

👉 The clock is powered by this project:
🔗 ESP8266 8×32 Matrix Clock (GitHub)

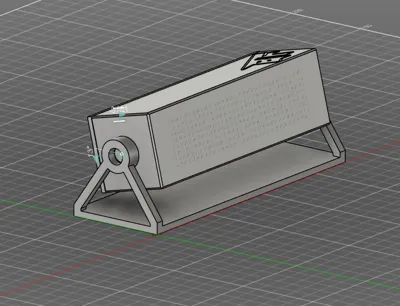

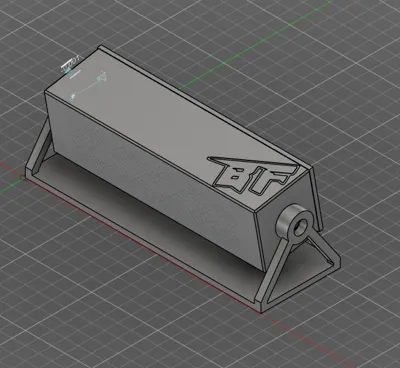

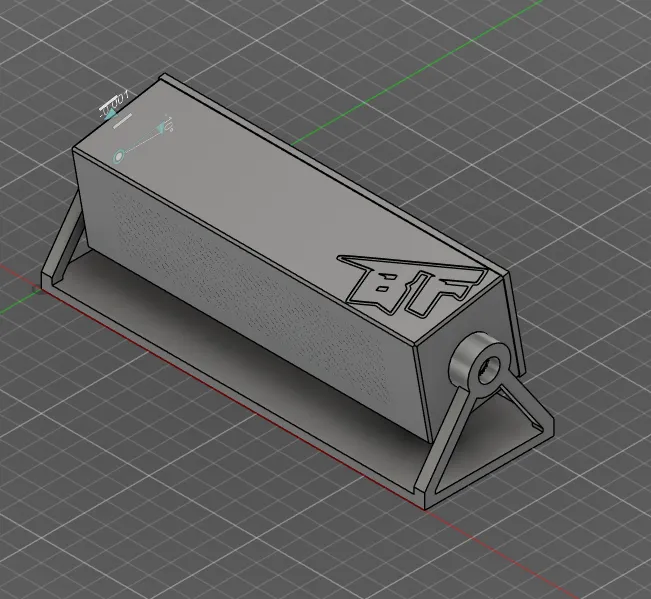

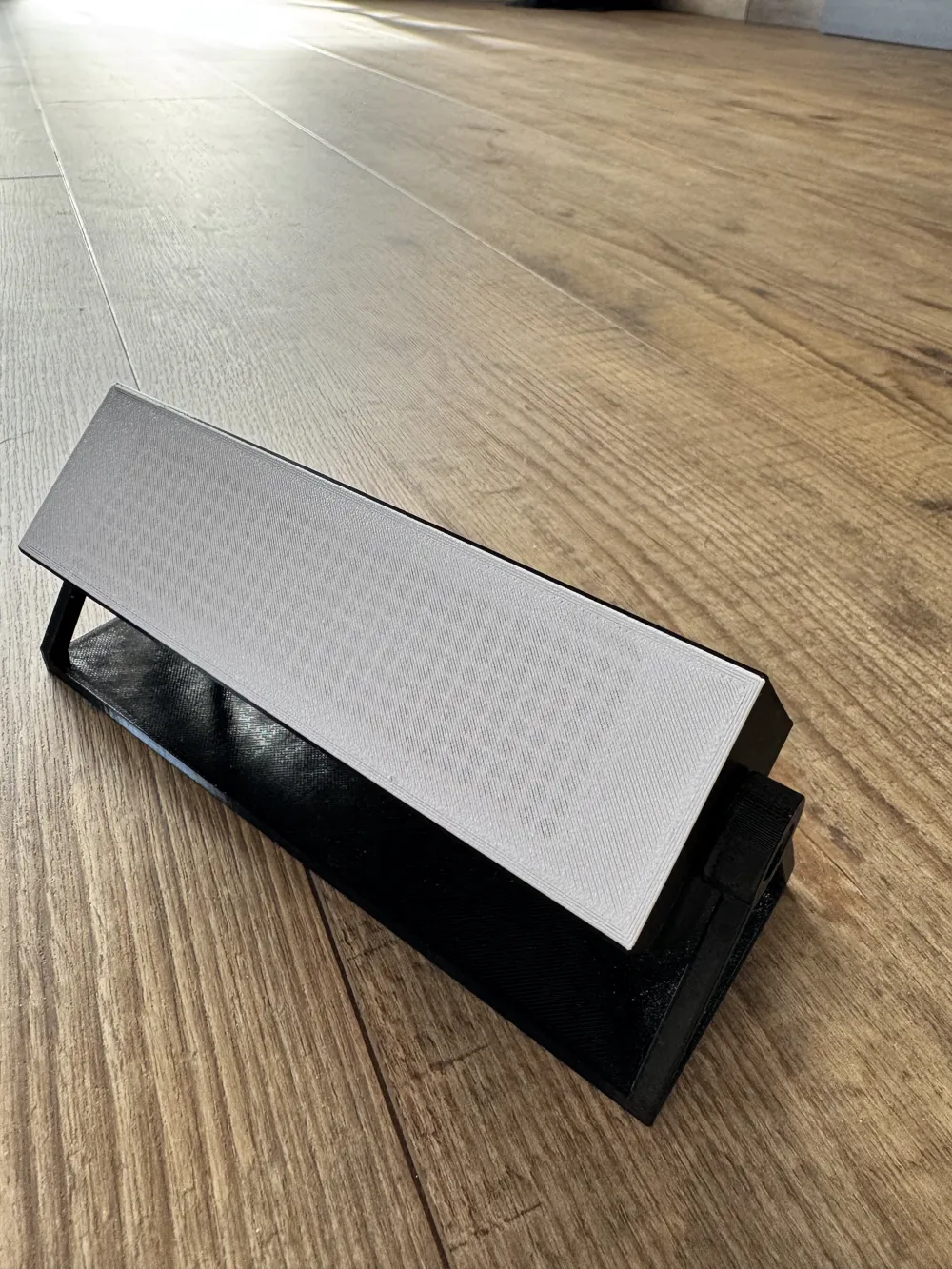

🖨️ Print & Design:

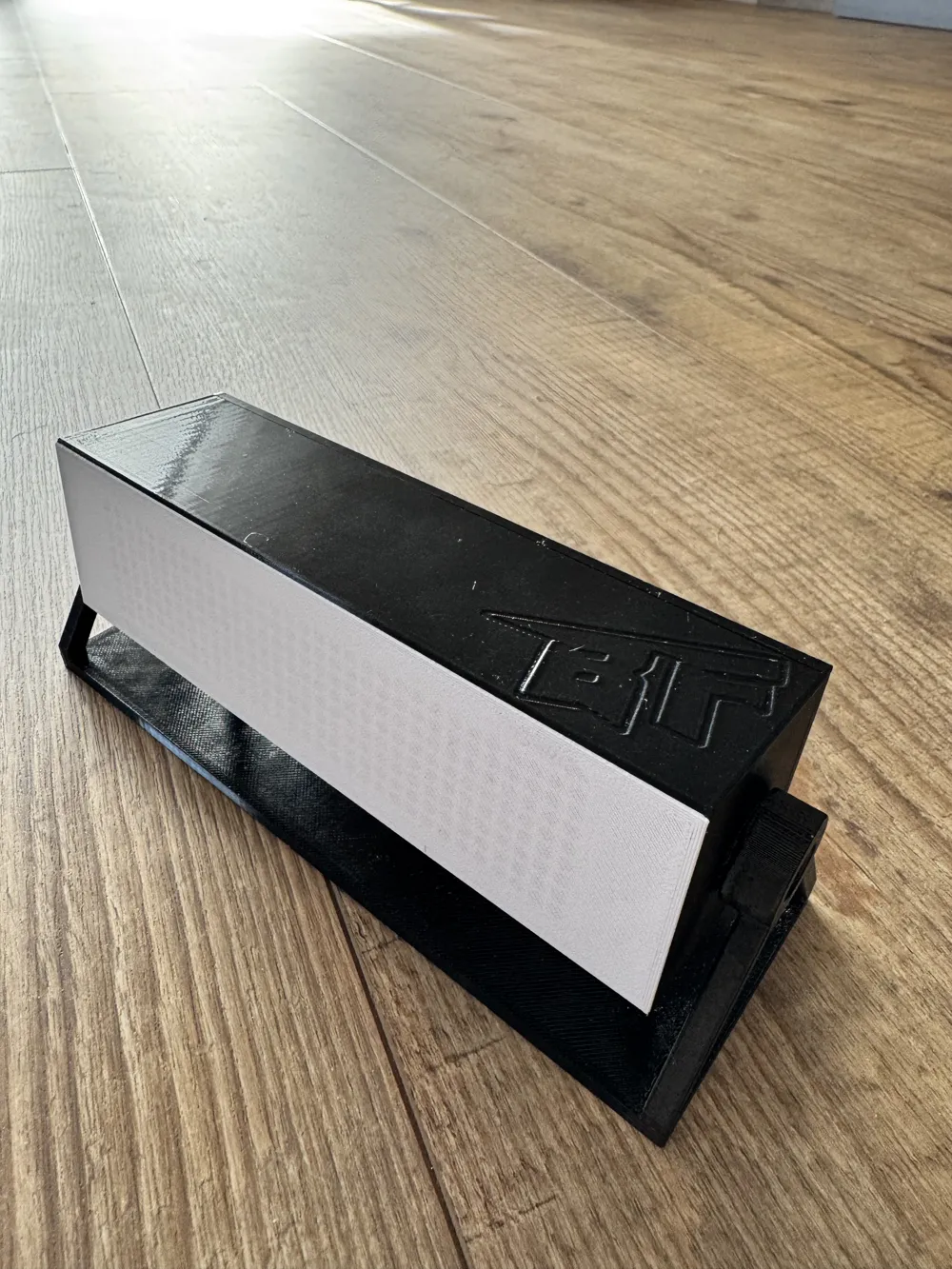

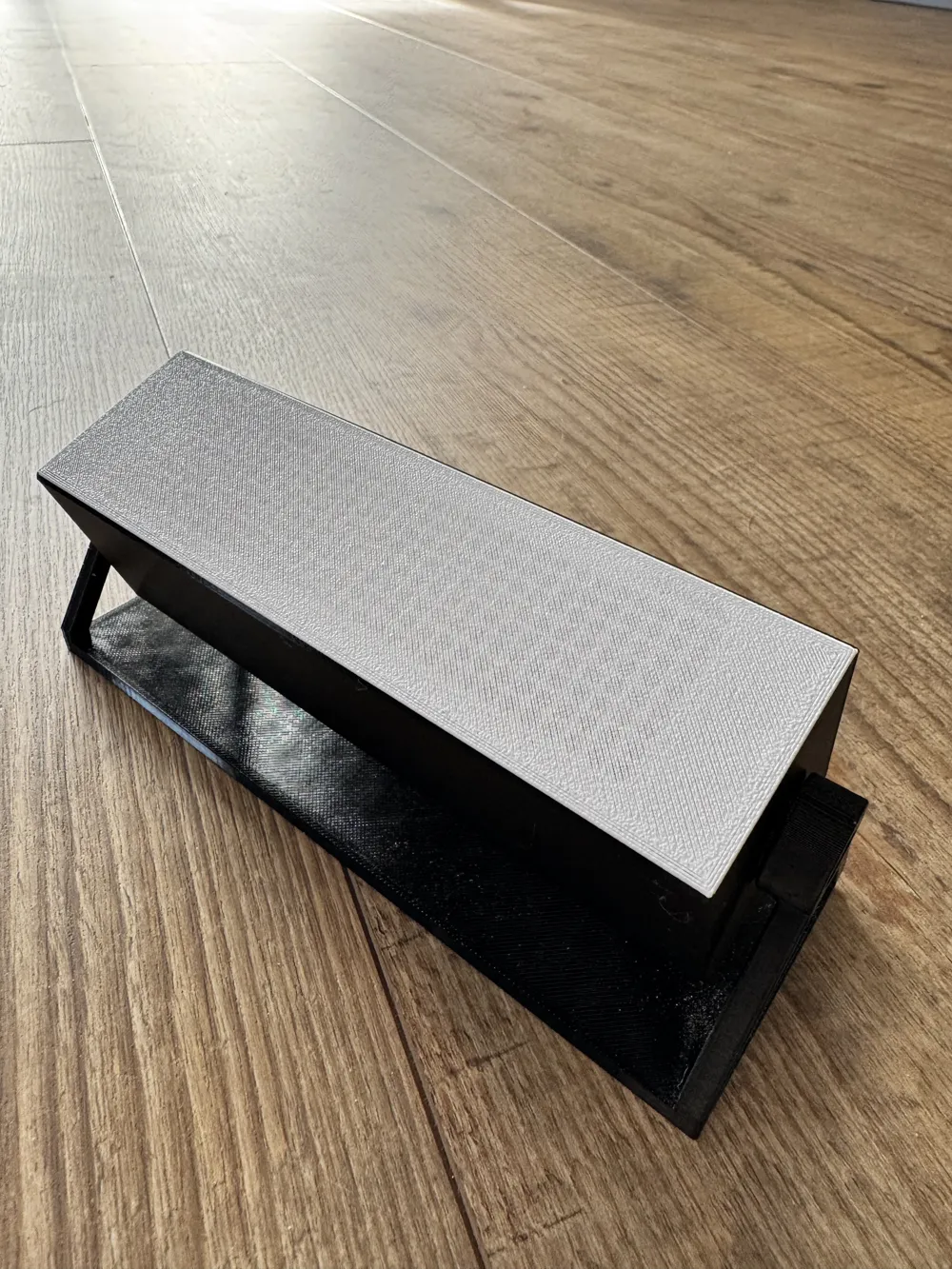

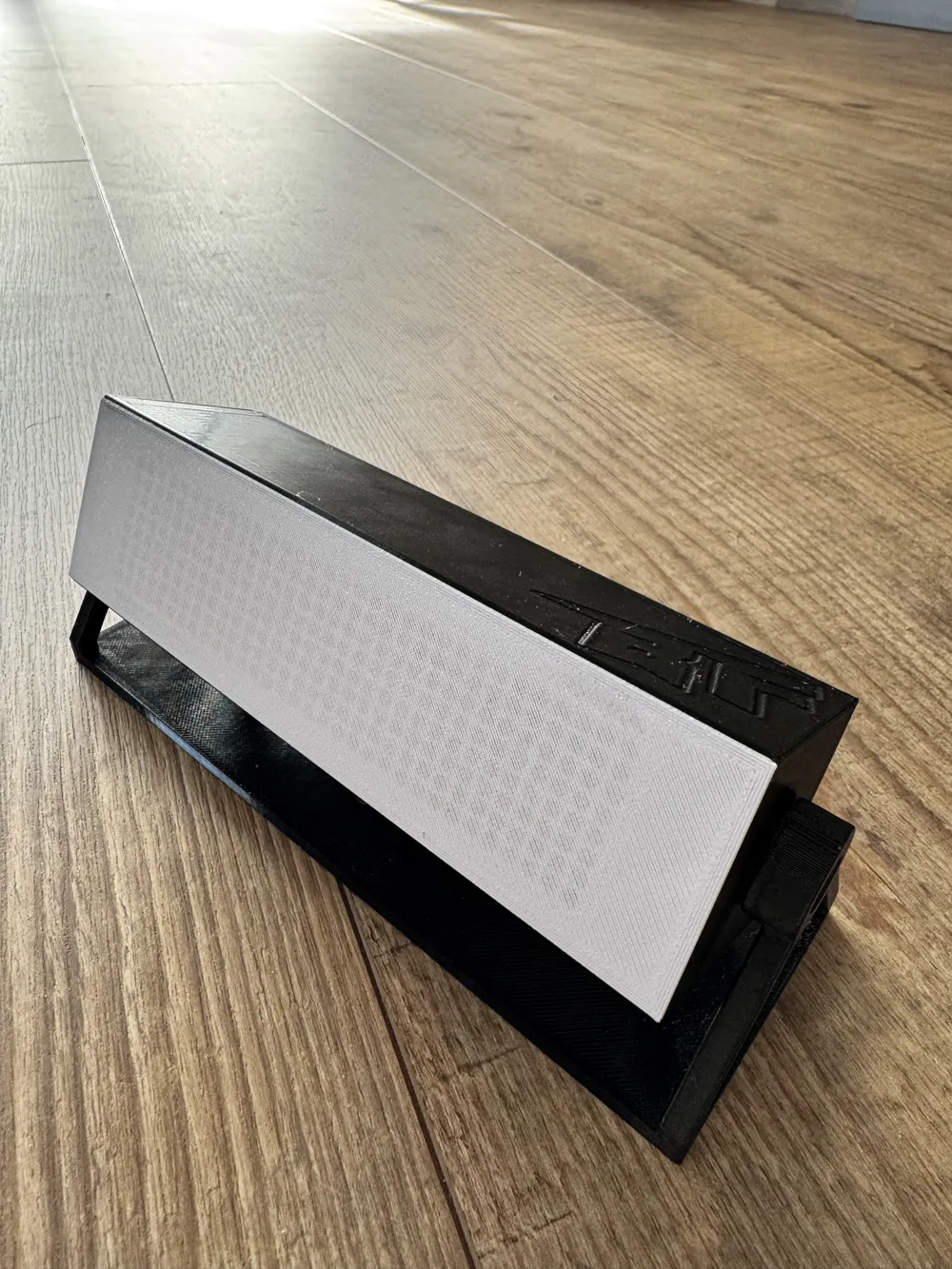

🔹 Front in white filament, body in black
🔹 AMS recommended for two-color printing

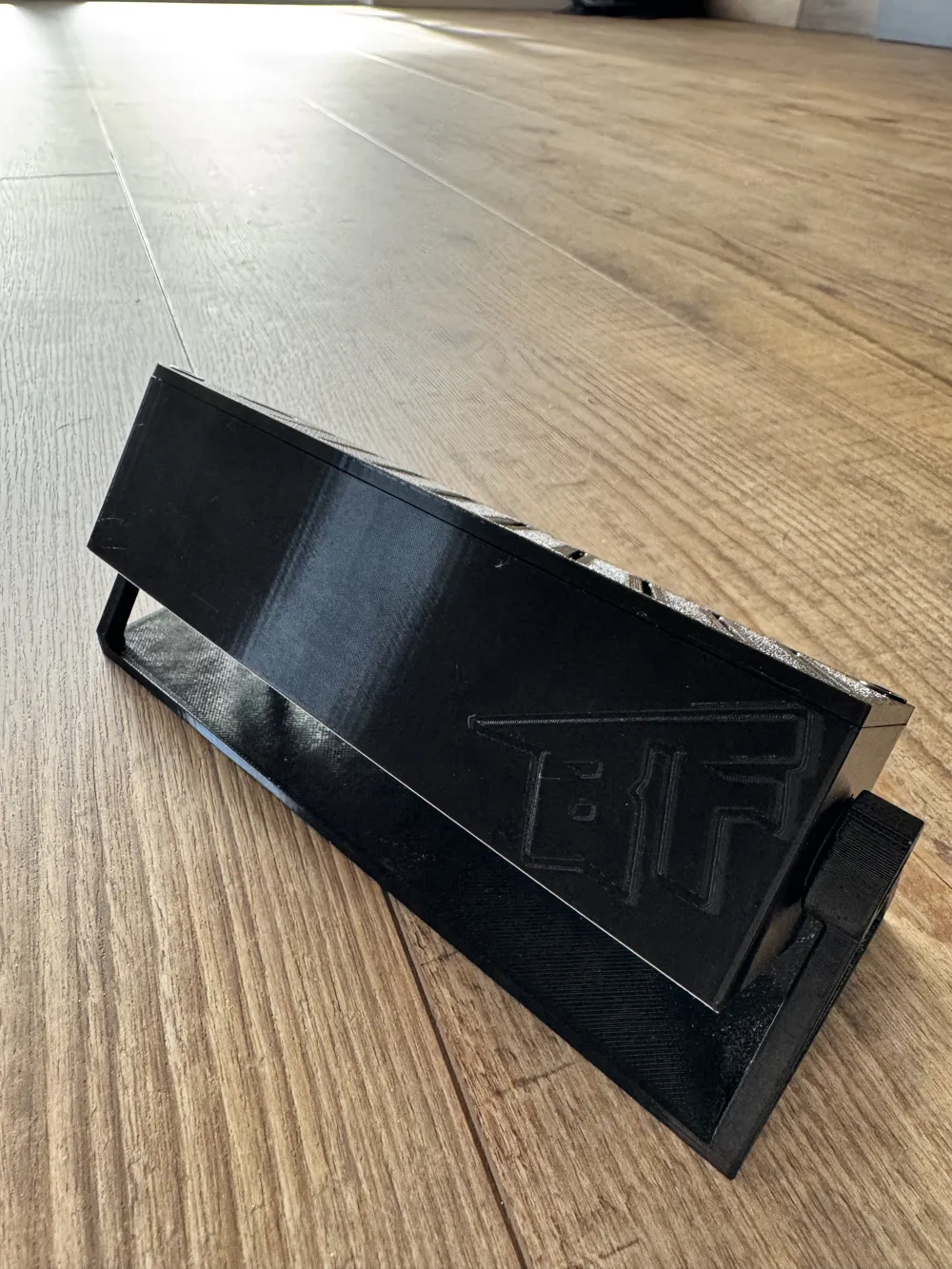

🔹 Alternatively: print the entire clock in single-color white

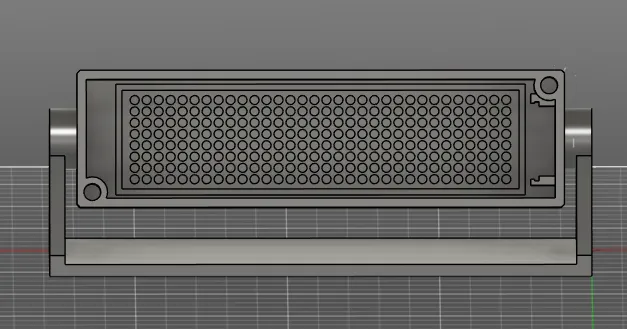

🔹 Modern, clear design – focus on the display

🔌 Wiring Diagram:

ESP8266 → Matrix module (MAX7219)

🔹 5V → VCC
🔹 GND → GND
🔹 D5 → DIN
🔹 D6 → CS
🔹 D7 → CLK

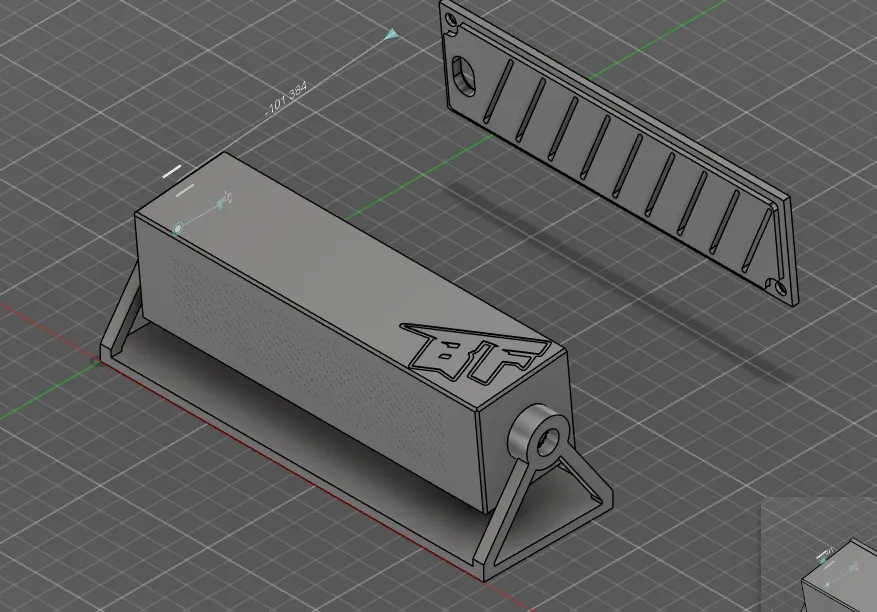

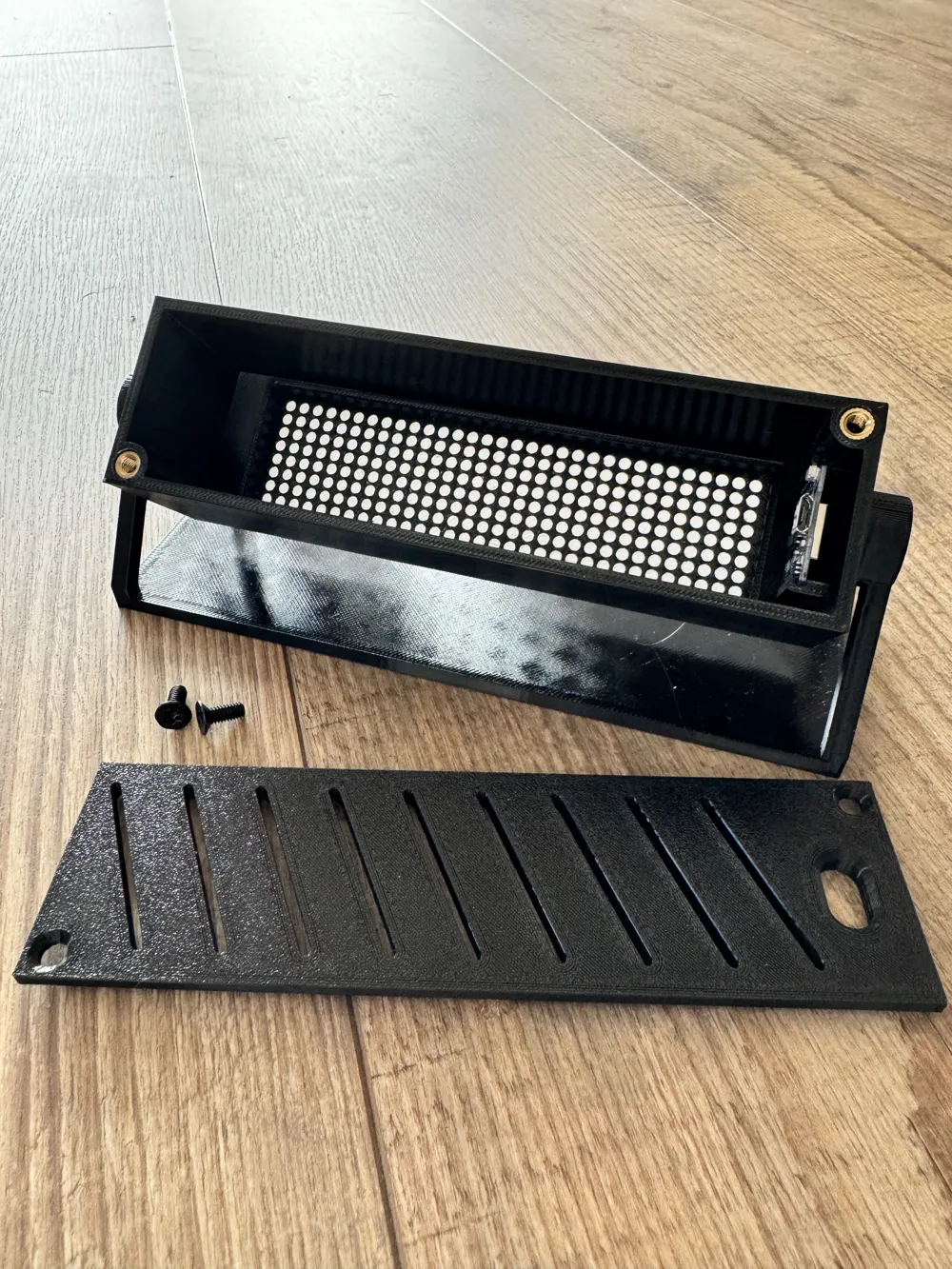

🧩 Assembly & Construction:

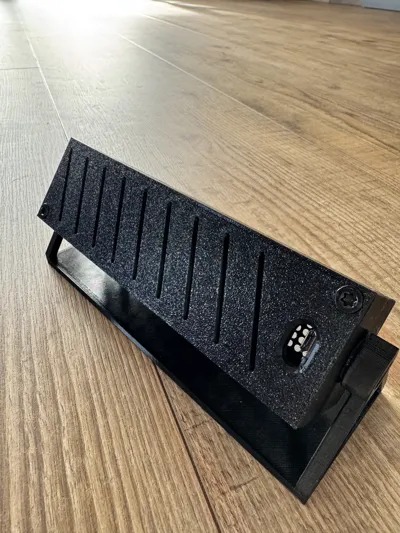

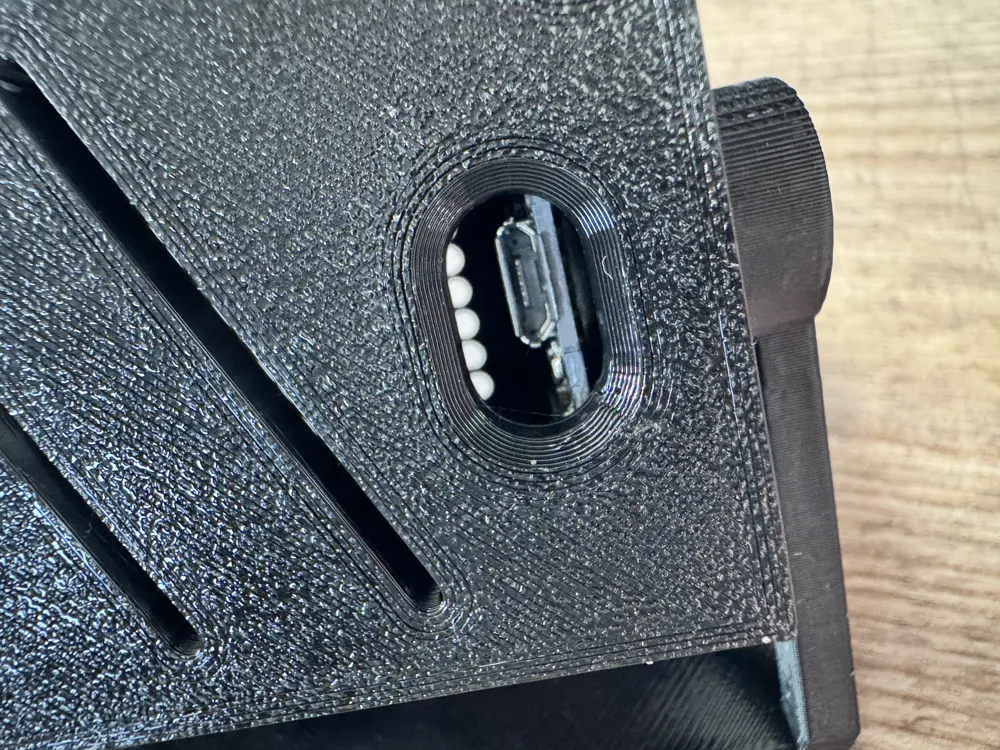

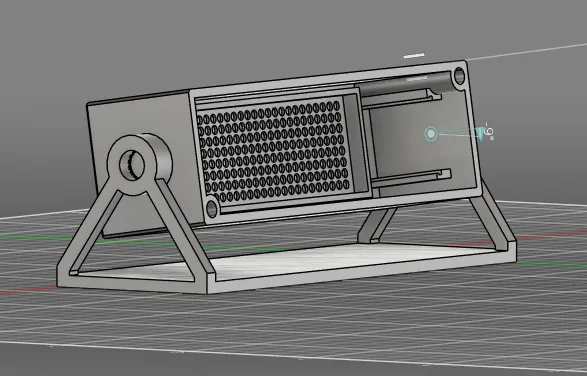

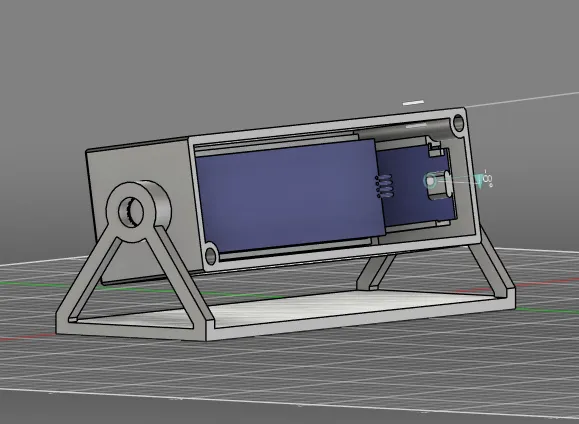

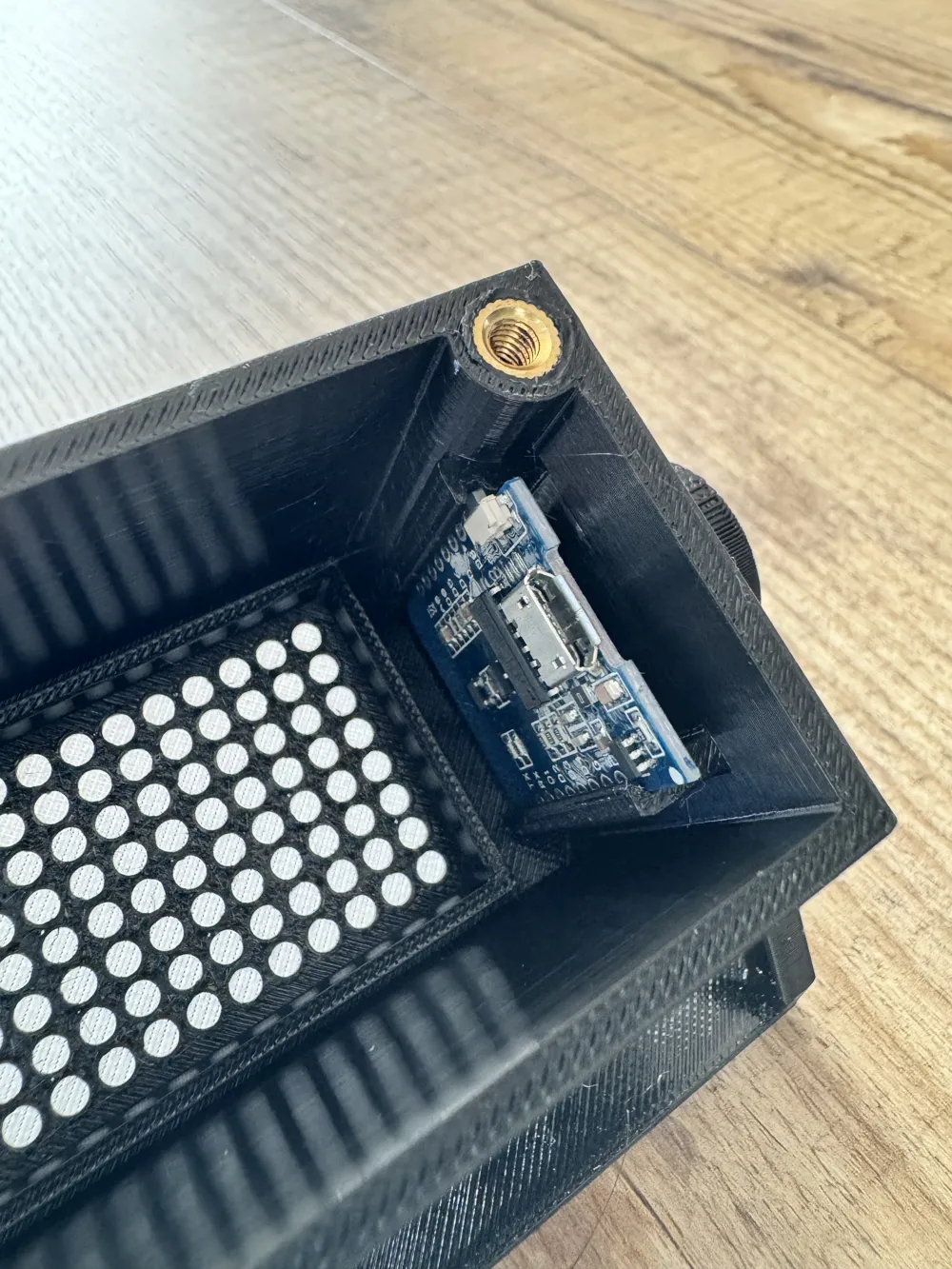

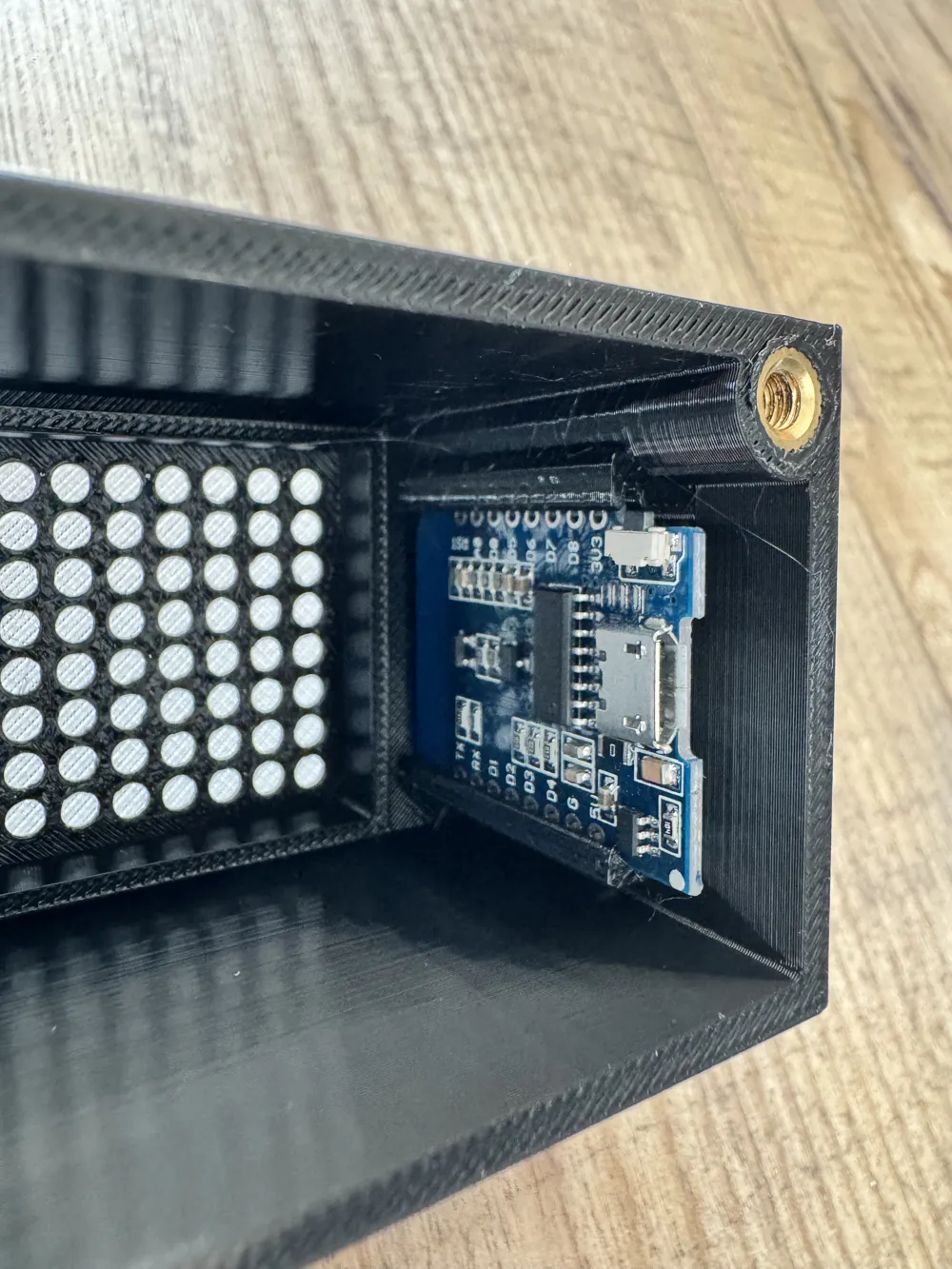

🔹 ESP8266 is inserted sideways into the designated holder
→ sits snugly, no gluing necessary

🔹 Matrix module should be glued (recommended: only 2 corners)
→ as manufacturing tolerances are relatively high

🔹 The modules usually come with connection cables
→ after rotating the pins 180° simply plug them together

💡 Why this clock impresses:

✅ Clear, easy-to-read LED display
✅ Compact 8×32 matrix https://shorturl.at/qh7Vx
✅ ESP8266 + Open-source project https://shorturl.at/6Lr0H
✅ Clean assembly without screw chaos
✅ Perfect for makers, hobbyists & tech enthusiasts

📶 Commissioning:

➡️ Connect
➡️ Flash ESP8266
➡️ Place the clock on the desk
➡️ Enjoy 😄

🎯 A minimalist, smart LED clock with guaranteed crafting fun.

📩 Customizations desired (different case, wall version, larger matrix)? Just let me know!
