Arrma Fireteam Wheelie Bar
IP Report
Print Profile(1)
0.16mm layer, 5 walls, 20% infill
Designer
2.7 h
2 plates
Open in Bambu Studio
Boost
2
5
0
0
2
1
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- m4 flat washer x 4:
- m3 flat washer x 2:
Description

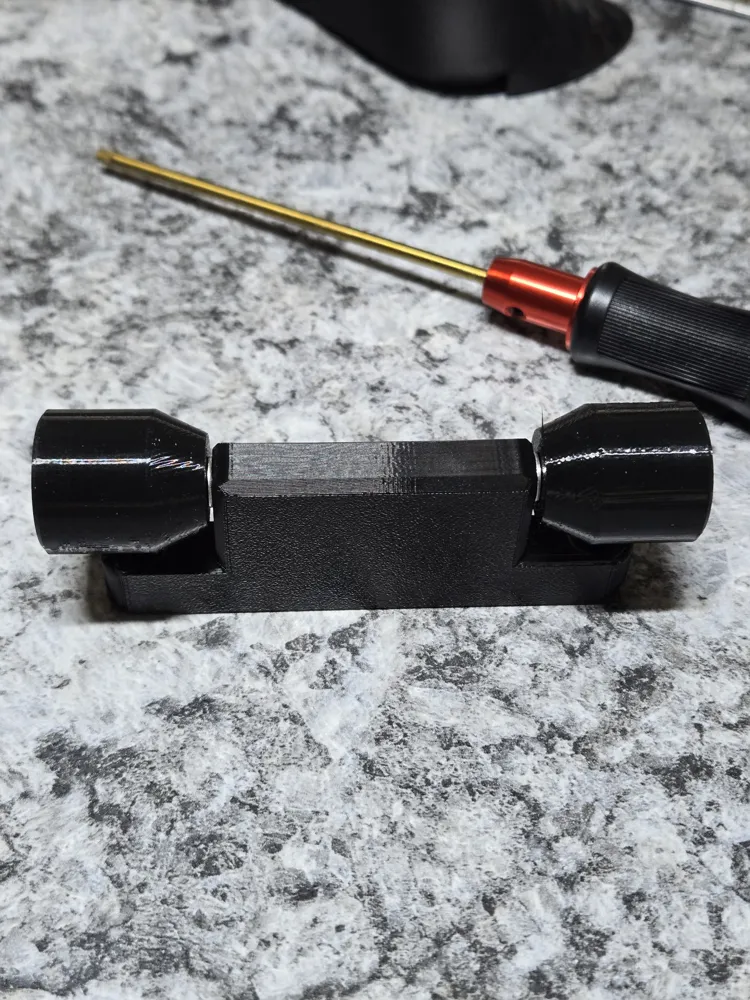

Arrma Fireteam Wheelie bar - Use TPU. I tried ABS and PETG, they broke on impact. (the fireteam is heavy).

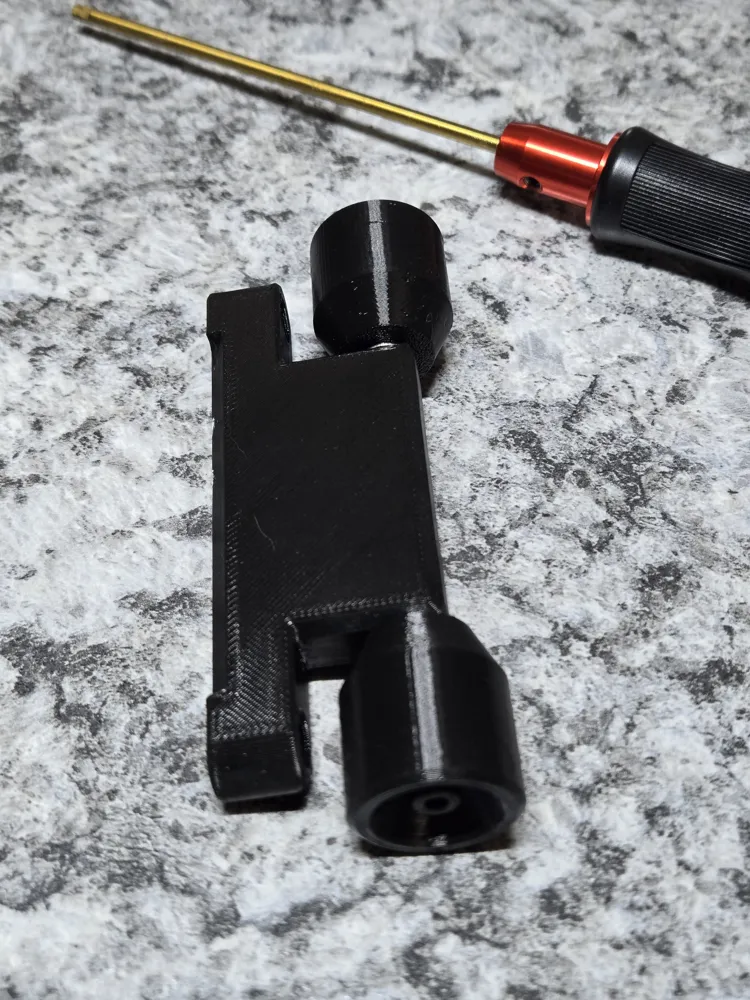

The notched edge goes on top.
I used 2 M4x35mm (Maker World BOM only went up to 30mm) bolts with 4 washers.to attach the wheels to the bar.

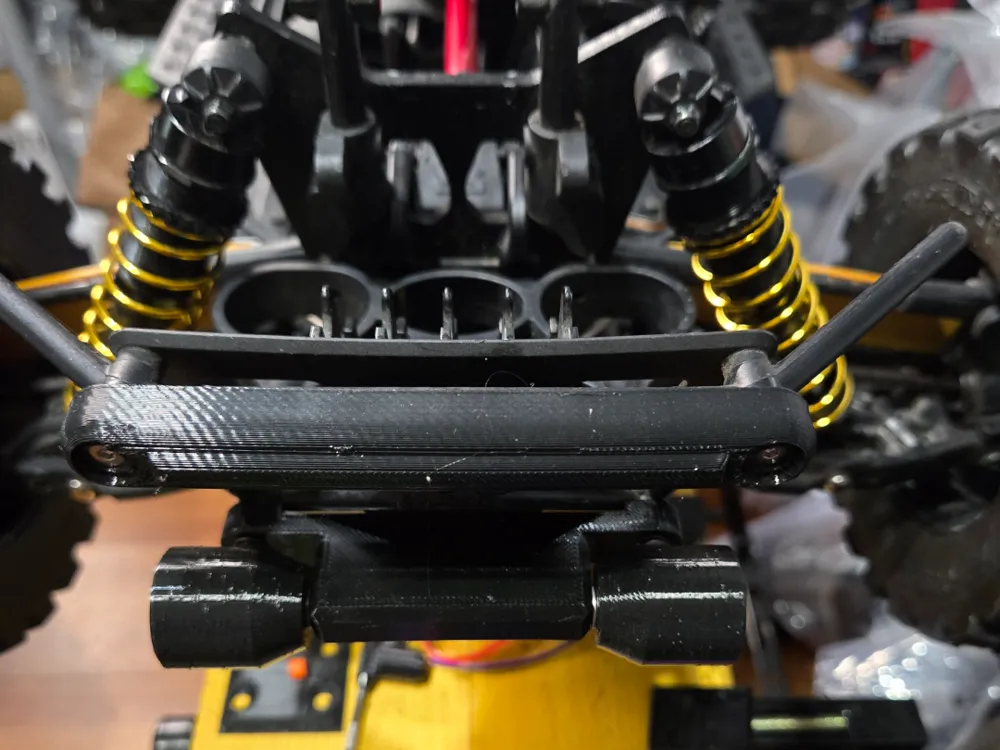

2 M3x25mm bolts to attach the bar to the rear bumper.
Wheelie Bar
Layer height - 0.16
Perimeters - 4-5
Infill - 20% Gyroid or cubic
Wheels
Layer height - 0.16
Top Surface Pattern - Concentric
Bottom Surface Pattern - Concentric
Perimeters - 4
Infill - 20% spiral
Print Sequence - By Object
