Wind Tunnel w/ Data Readout
IP Report
Print Profile(1)
0.16mm layer, 1 walls, 15% infill
Designer
43.6 h
9 plates
Open in Bambu Studio
Boost
11
42
1
1
28
3
Released
Bill of Materials
List other parts
- Noctua NF-A20 PWN Fan x 1: https://www.amazon.com/Noctua-NF-A20-PWM-Premium-200x30mm/dp/B071SLFBNY
- 30mm Arcade Button x 1: https://www.adafruit.com/product/3489
- Arduino Uno R3 x 1: https://store-usa.arduino.cc/products/arduino-uno-rev3?utm_source=google&utm_medium=cpc&utm_campaign=US-Pmax&gad_source=1&gad_campaignid=21317508903&gclid=Cj0KCQjwl5jHBhDHARIsAB0Yqjy-8nQh7sbdkEZuBGpqeBGAGK9wZ3Tsk6WzrnAk9WgMe3OS6FqEkGUaArNIEALw_wcB
- Fog Machine x 1: https://www.etsy.com/listing/1033317325/micro-smoke-machine-v3-costronica-pocket?dd_referrer=&variation0=5454076019
- LCD Screen x 1: https://newhavendisplay.com/128x64-graphic-cog-lcd-display-with-white-backlight-heater/?setCurrencyId=1&sku=NHD-C12864A1Z-FSW-FBW-HTT&gad_source=1&gad_campaignid=22589772427&gclid=CjwKCAjwup3HBhAAEiwA7euZugQnOaQULIg604N5FirmCxbKdm1HiQUjNZxt6ZQcESK9SGhcCKiRvxoCBDcQAvD_BwE
- Force Sensitive Resistors x 3: https://www.adafruit.com/product/166?gad_source=1&gad_campaignid=21079227318&gclid=CjwKCAjwup3HBhAAEiwA7euZuuOl3KX9xA7pkE7mwszvm9VLNBozjUyupgEYjg3ZC7iIjij3NZ0OTRoCcGIQAvD_BwE
- 16mm Potentiometer x 1: https://stompboxparts.com/potentiometers/16mm-potentiometer-short-pcb-leg-center-detent/
- Assorted M2.5 Screws (Kit) x 1: https://www.amazon.com/dp/B0DHGVTZNQ?ref=ppx_yo2ov_dt_b_fed_asin_title
- Assorted M2.5 Heat Set Inserts (Kit) x 1: https://www.amazon.com/dp/B0CS6YVJYD?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- 6mm x 2mm Neodynium Magnet (60ct) x 1: https://www.amazon.com/dp/B0B3WMVHPL?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Wago Connectors x 1:
Description

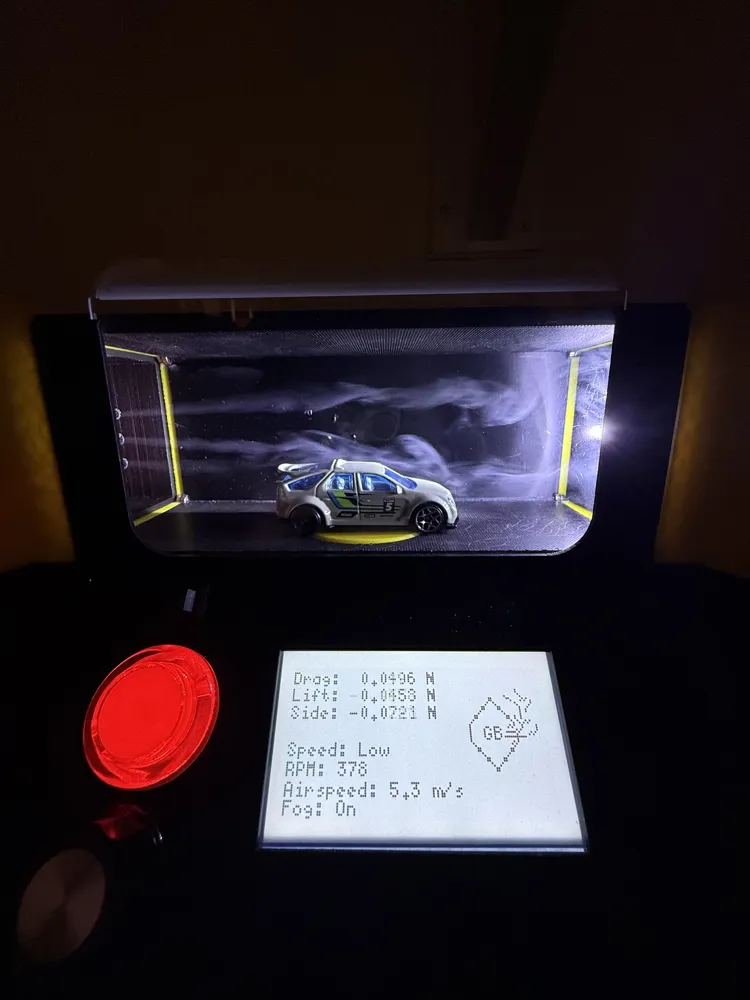

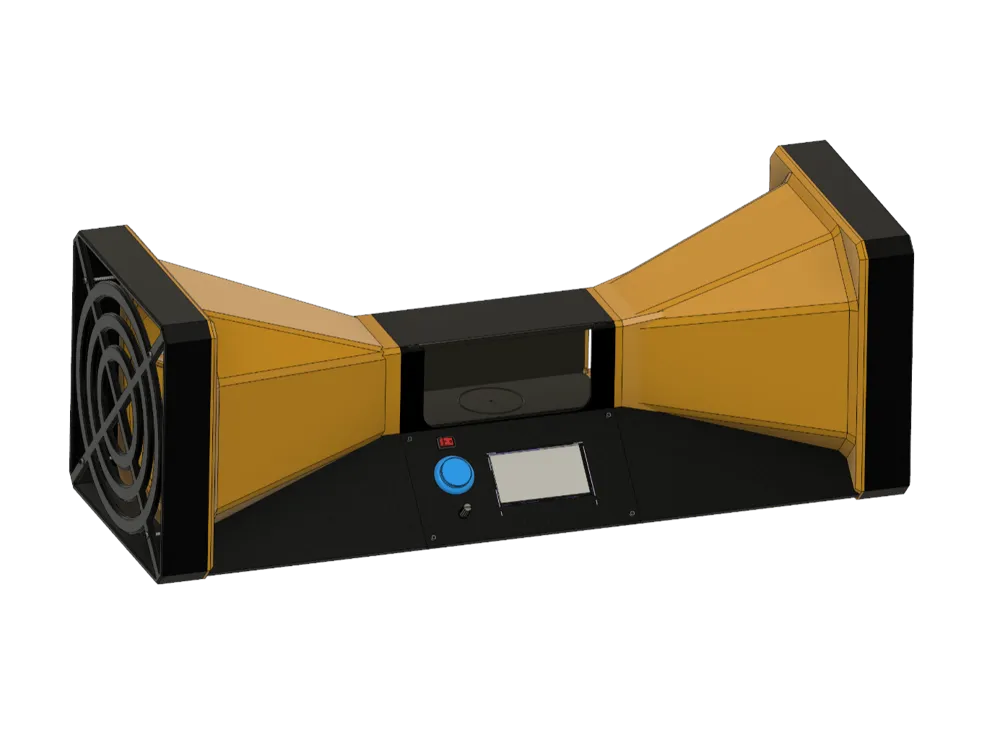

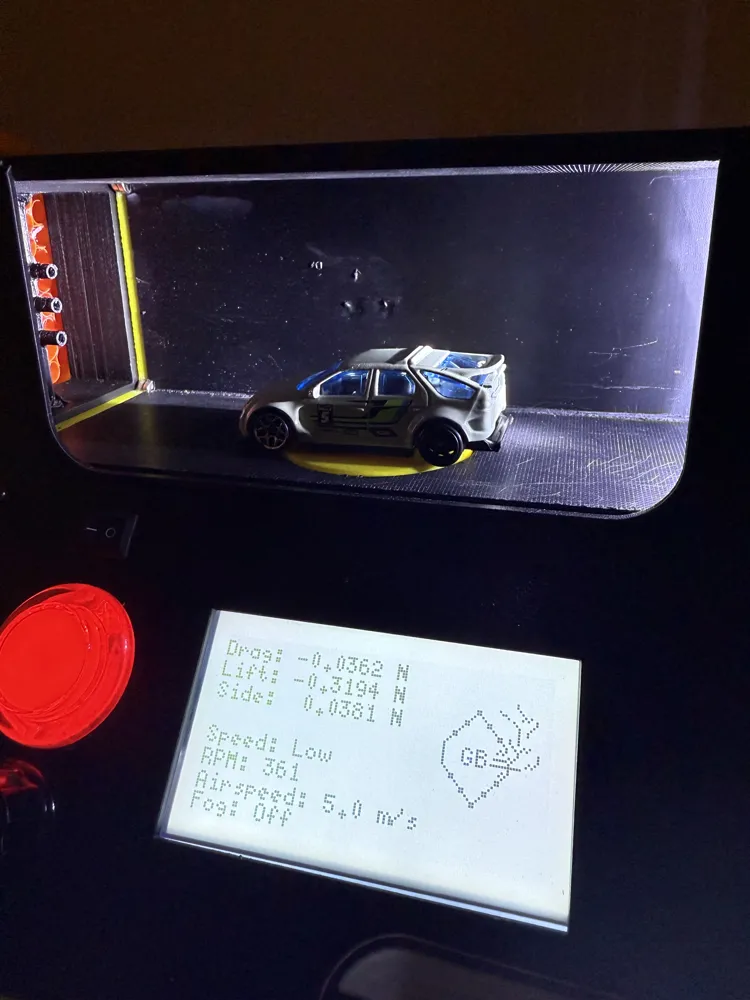

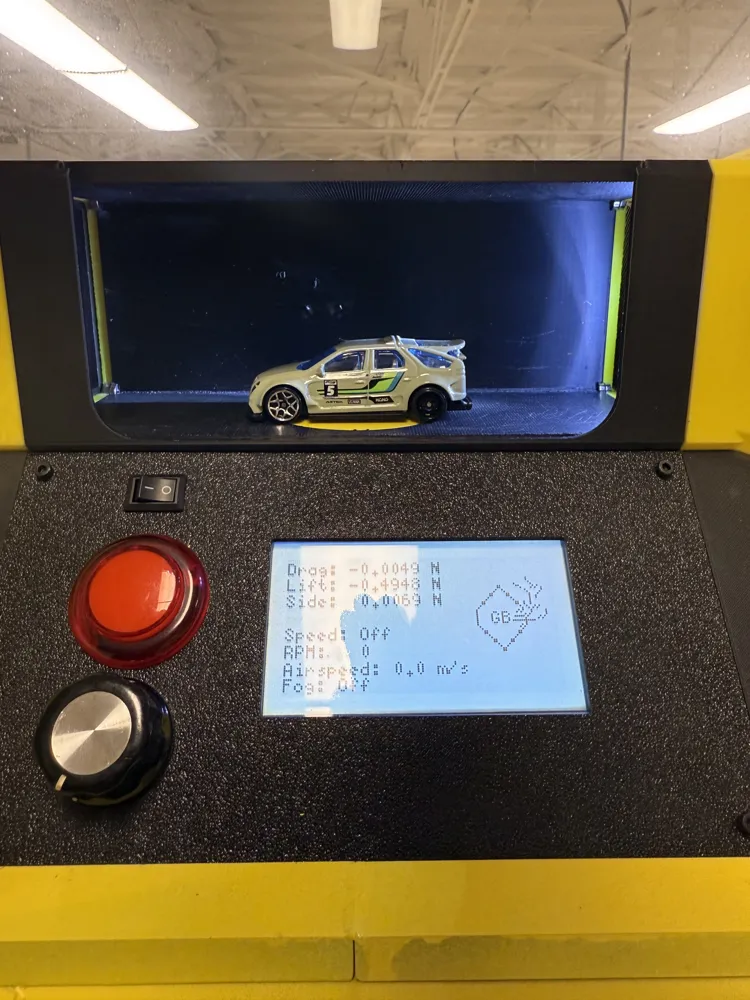

This is a wind tunnel I made as part of a school project. It uses a Noctua Fan to blow air and fog produced from a fog machine through the tunnel and into the viewing chamber. It also has a Arduino Uno R3 which is used to calculate and display information on the embedded display (All items & Code) will be linked below). It also has a Force Sensing Array that uses 3 1-axis force sensors to display the forces in 3 directions.
