HC 260 Blade Adjustment Guide (Adjustment Gauge)
Print Profile(1)
Description

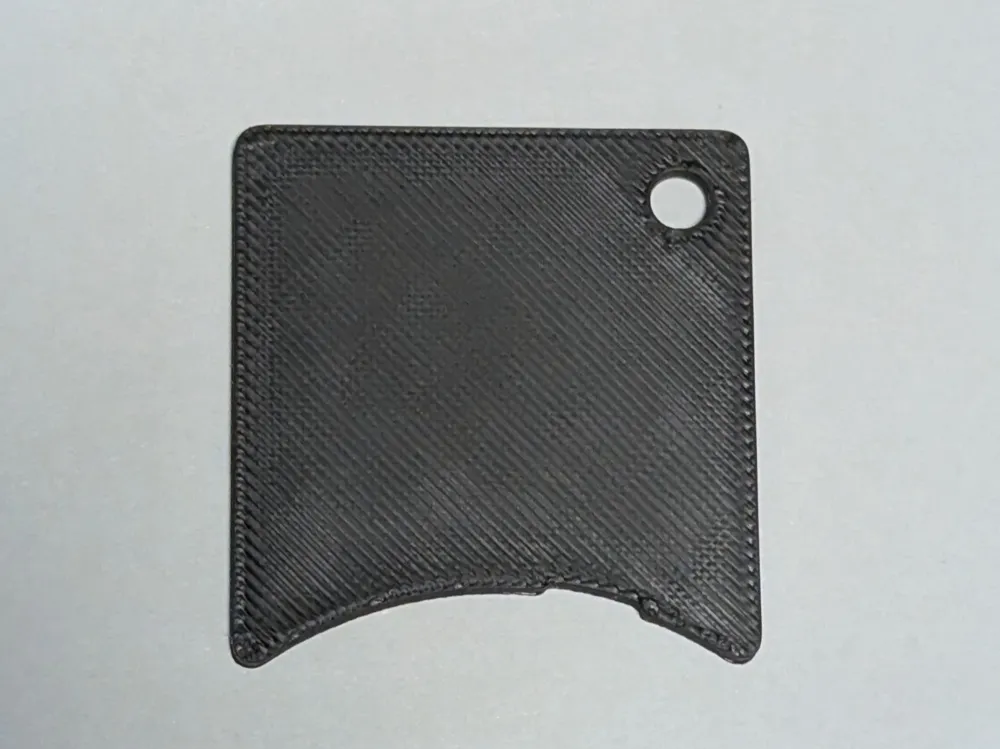

A quick setting gauge/adjustment guide for Metabo/Elektra Beckum HC260 (or similar) planer-thicknesser combination machines. These types of gauges are typically made of metal and sold or supplied with the machines. Depending on the year of manufacture, they come with different blade protrusions (1 mm, 0.7 mm, 0.5 mm). Mine didn't come with a gauge, so I quickly modeled one and printed it out to help adjusting the knifes.
These will probably not come out 100% accurate like their metal counterpart, so make sure to still measure the actual protrusion after! It might make sense to print these with a .2mm nozzle to achieve higher accuracy.
