Eufy C30 / C31 Doorbell Angled Wedge Bracket

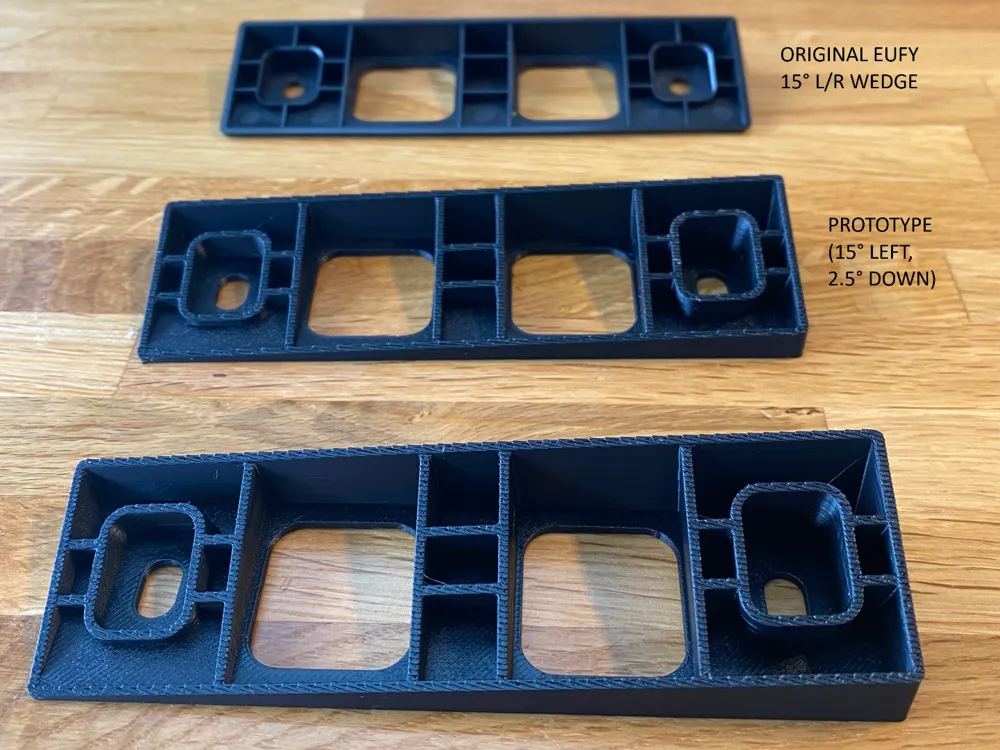

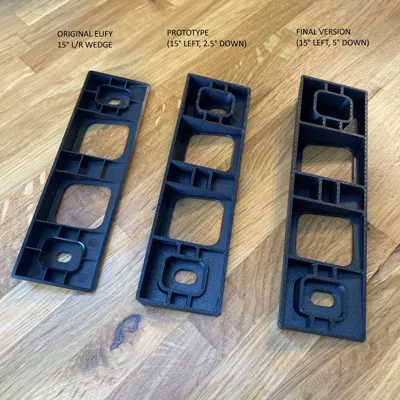

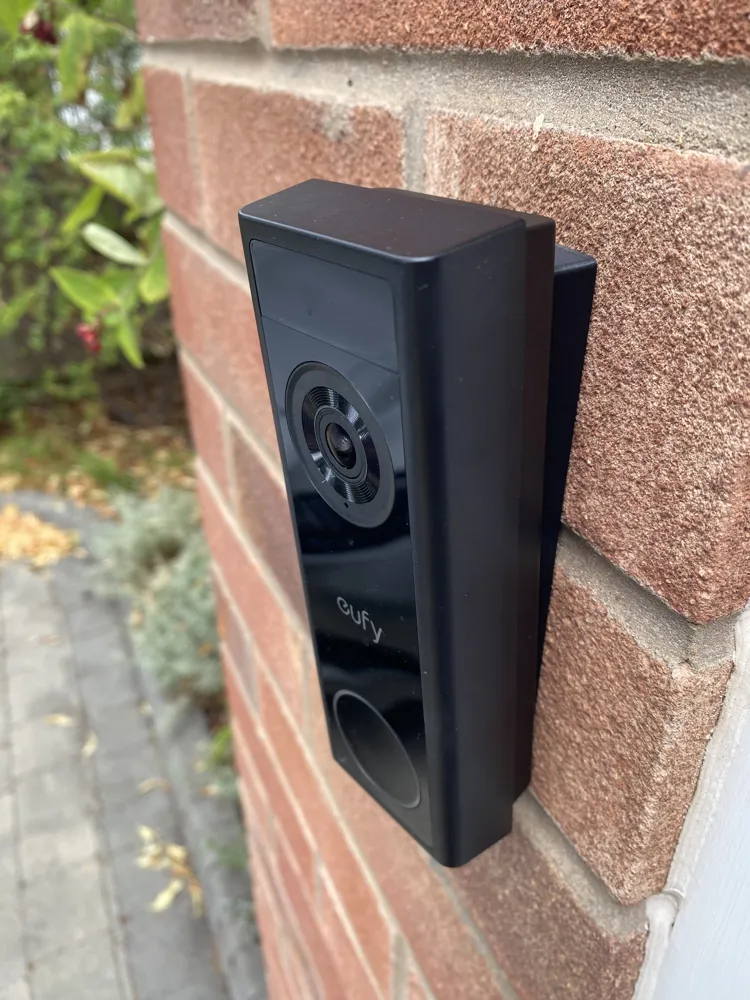

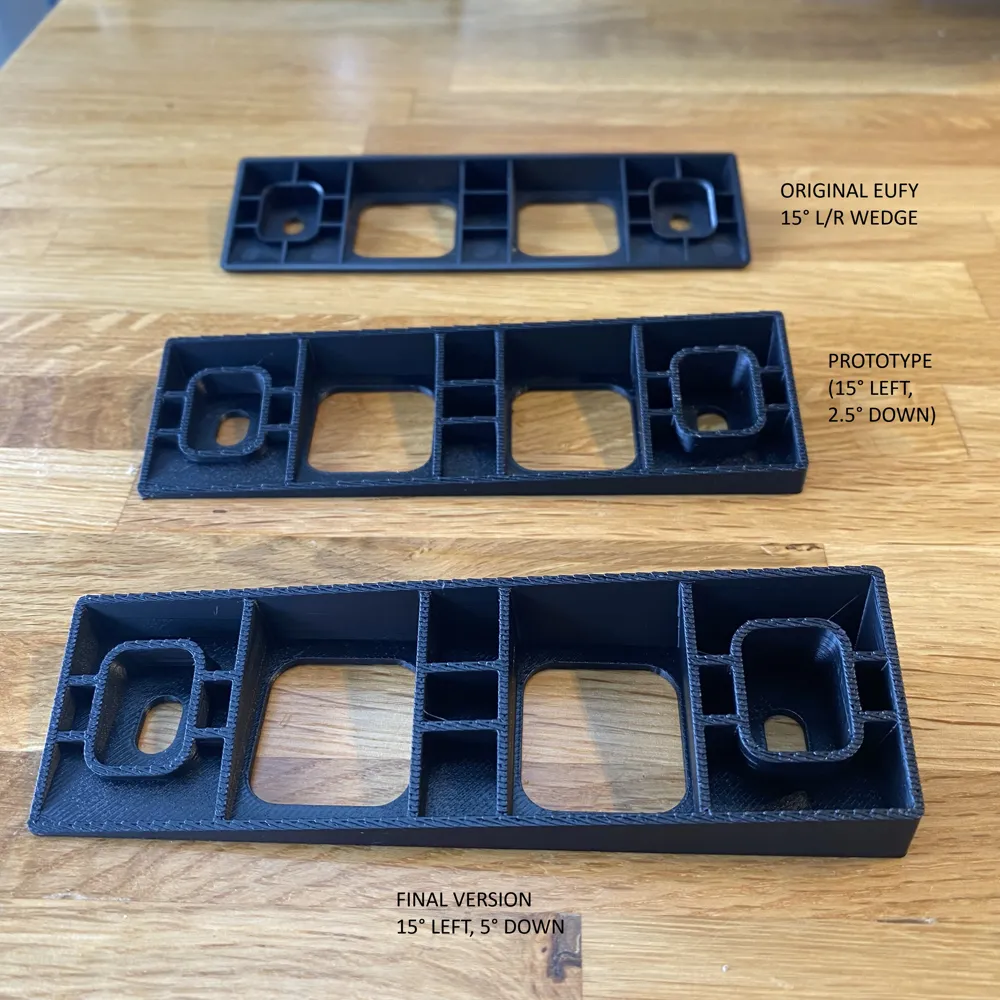

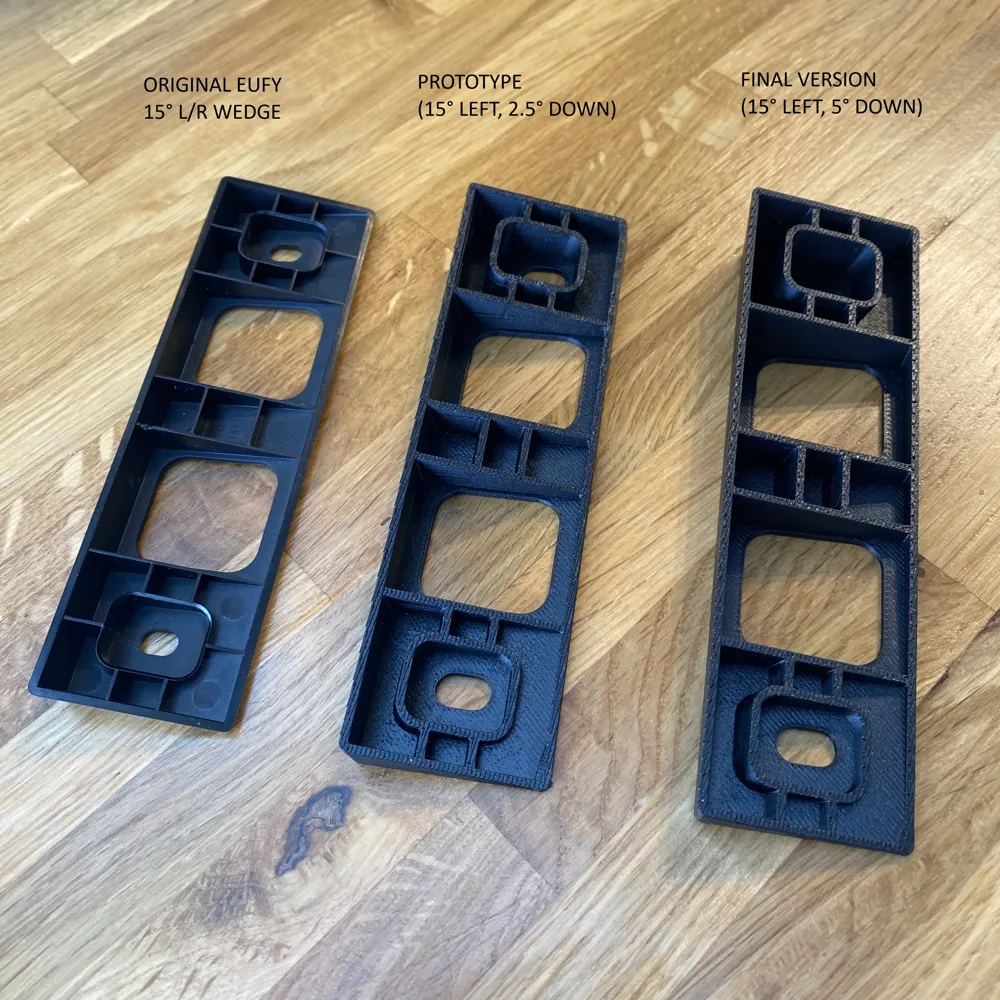

The Eufy C30 and C31 video doorbells come with an angle wedge bracket so that the doorbell can be mounted looking 15° left or 15° right. I needed to also angle my doorbell down slightly so I designed my own wedge (with the same 15° sideways angle as well as an angle downwards) based on the original. I didn't want too great a downward angle otherwise I felt the doorbell would stick out too far from the wall at the top. I prototyped a 2.5° down angle but needed more and settled on 5° for my final version. I needed a 15° left / 5° down, but I have also included a 15° right / 5° down version - just unselect the part you don't need from the print plate. I would suggest printing in PETG if the bracket is outdoors. I was able to re-use the original screws, but you might want a slightly longer screw in the top hole due to the increased thickness.

I have also now added a 15° left/right with 7.5° down version as well
