Coordinate cube with arrow and magnet chamber.
Print Profile(2)
Description

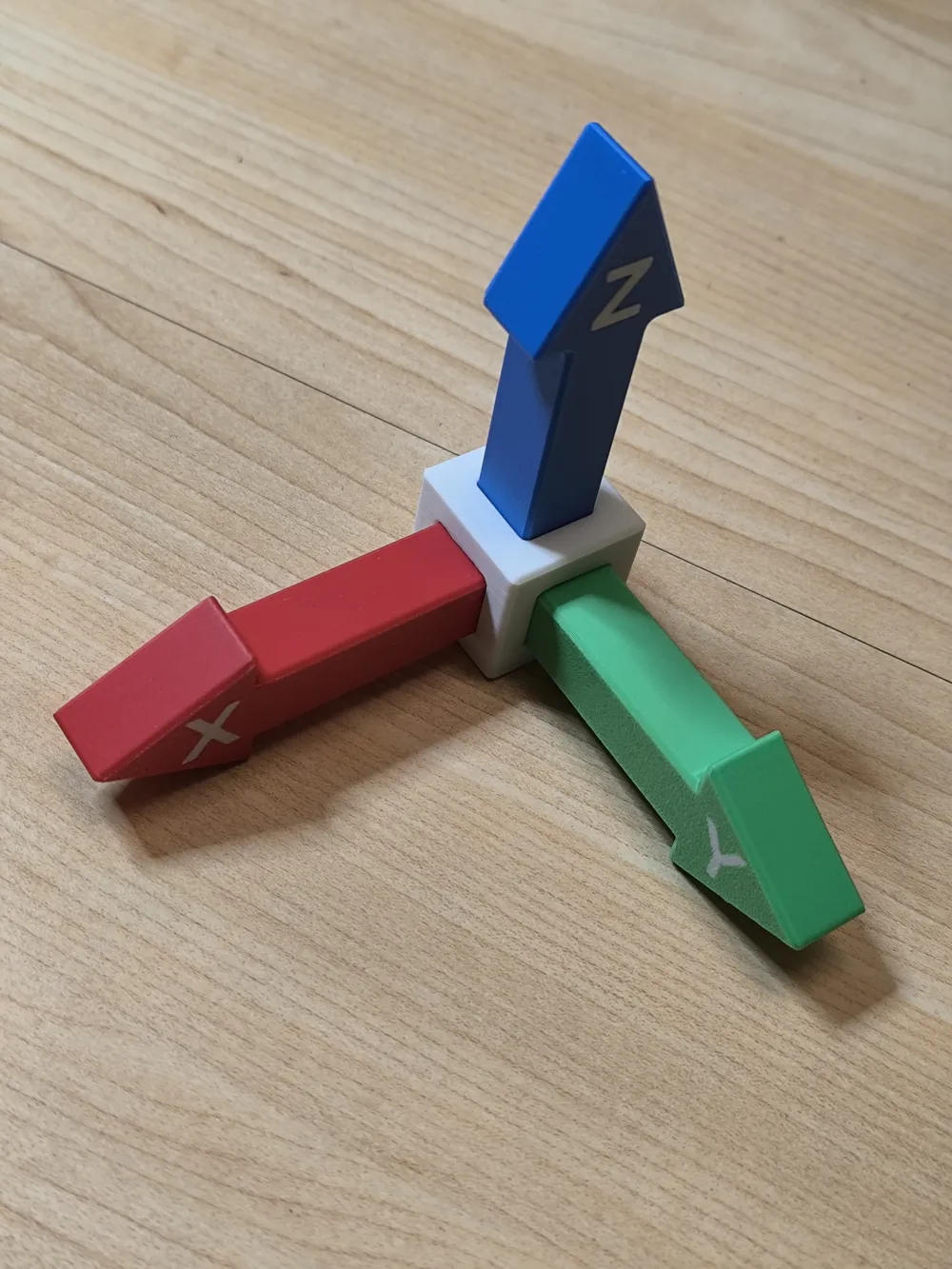

Color Version :

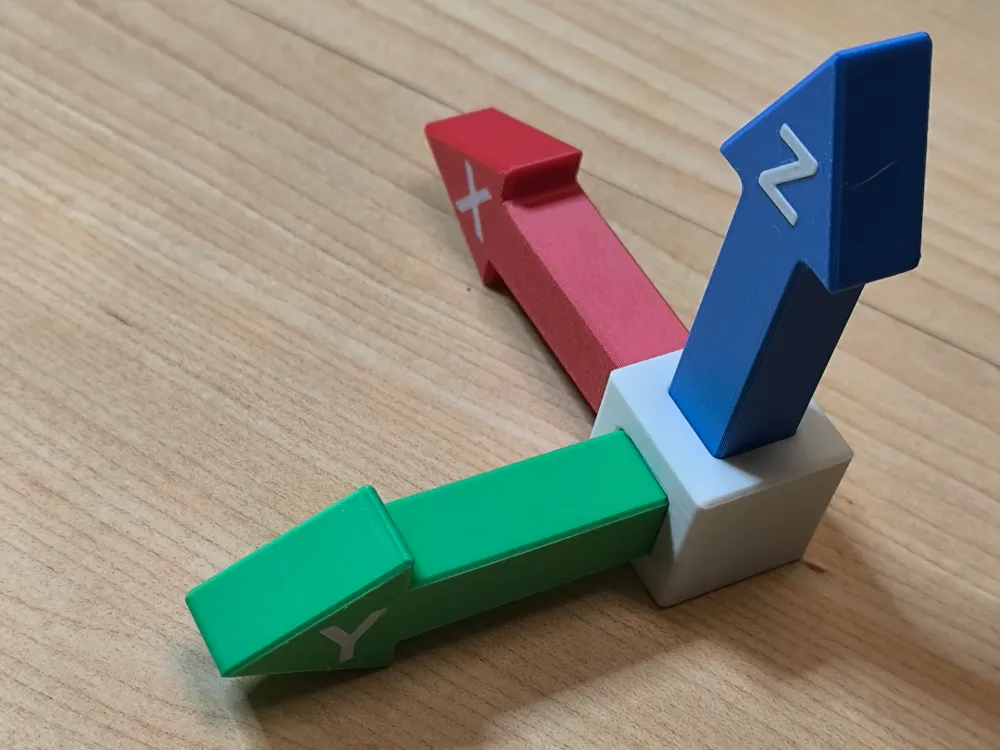

Coordinate cube with arrow and magnet chamber
A three-dimensional model used to clarify geometric relationships
and spatial orientation

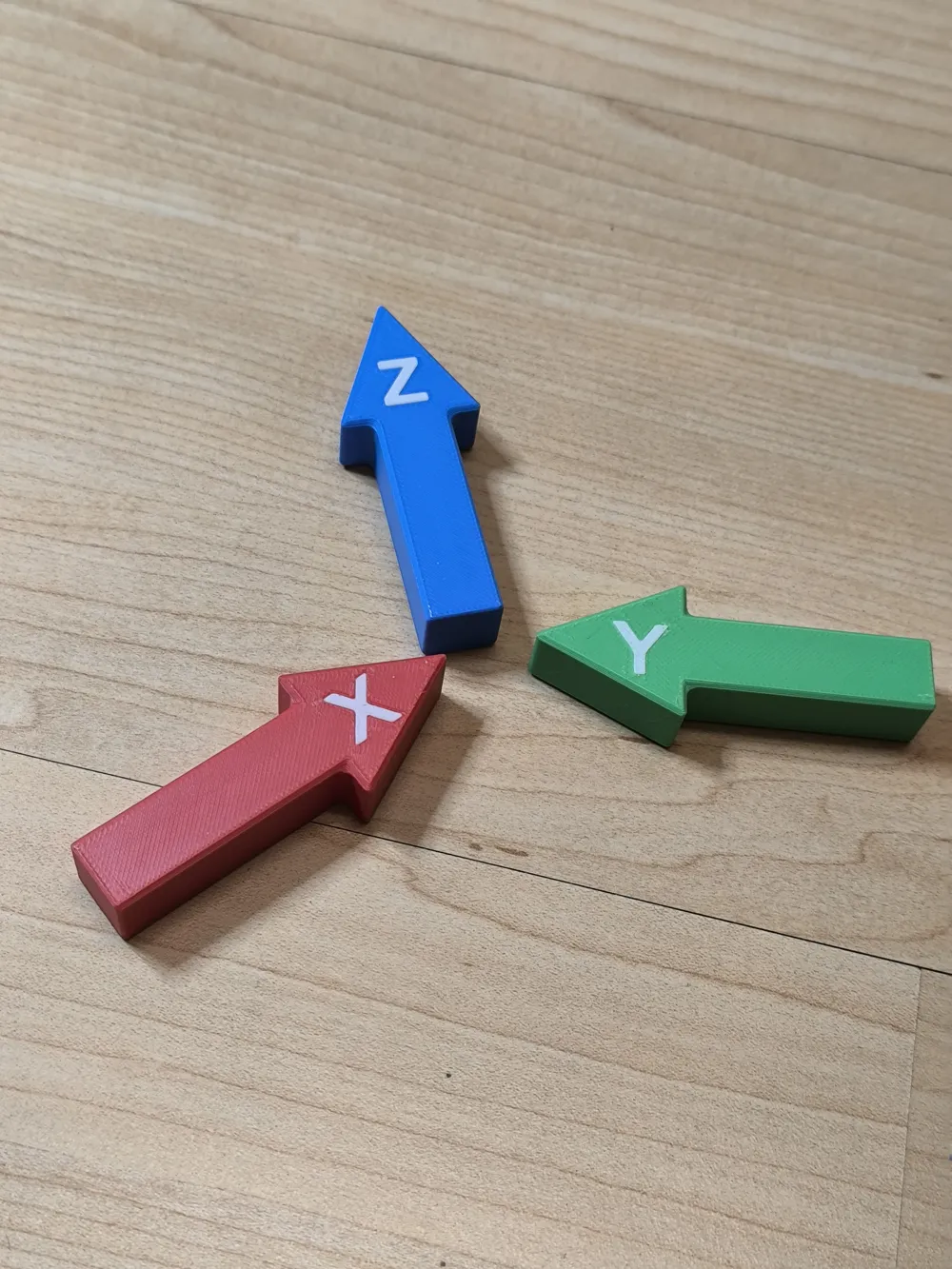

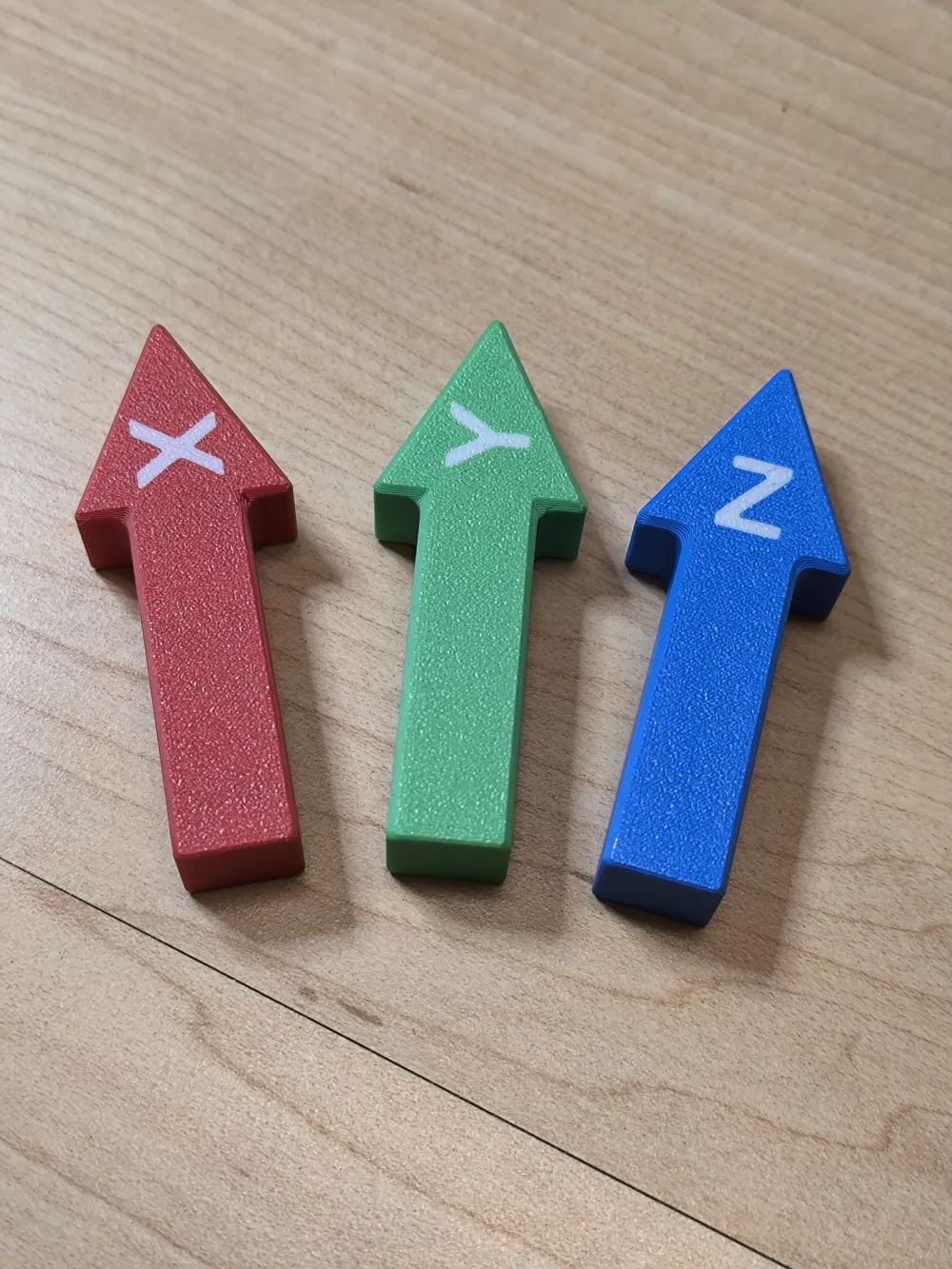

The X (red), Y (green), and Z (blue) axes are color-coded for clarity
Applicable in 3D printing, CNC machines, milling technology, and laser cutting plotters etc
Printed as individual objects

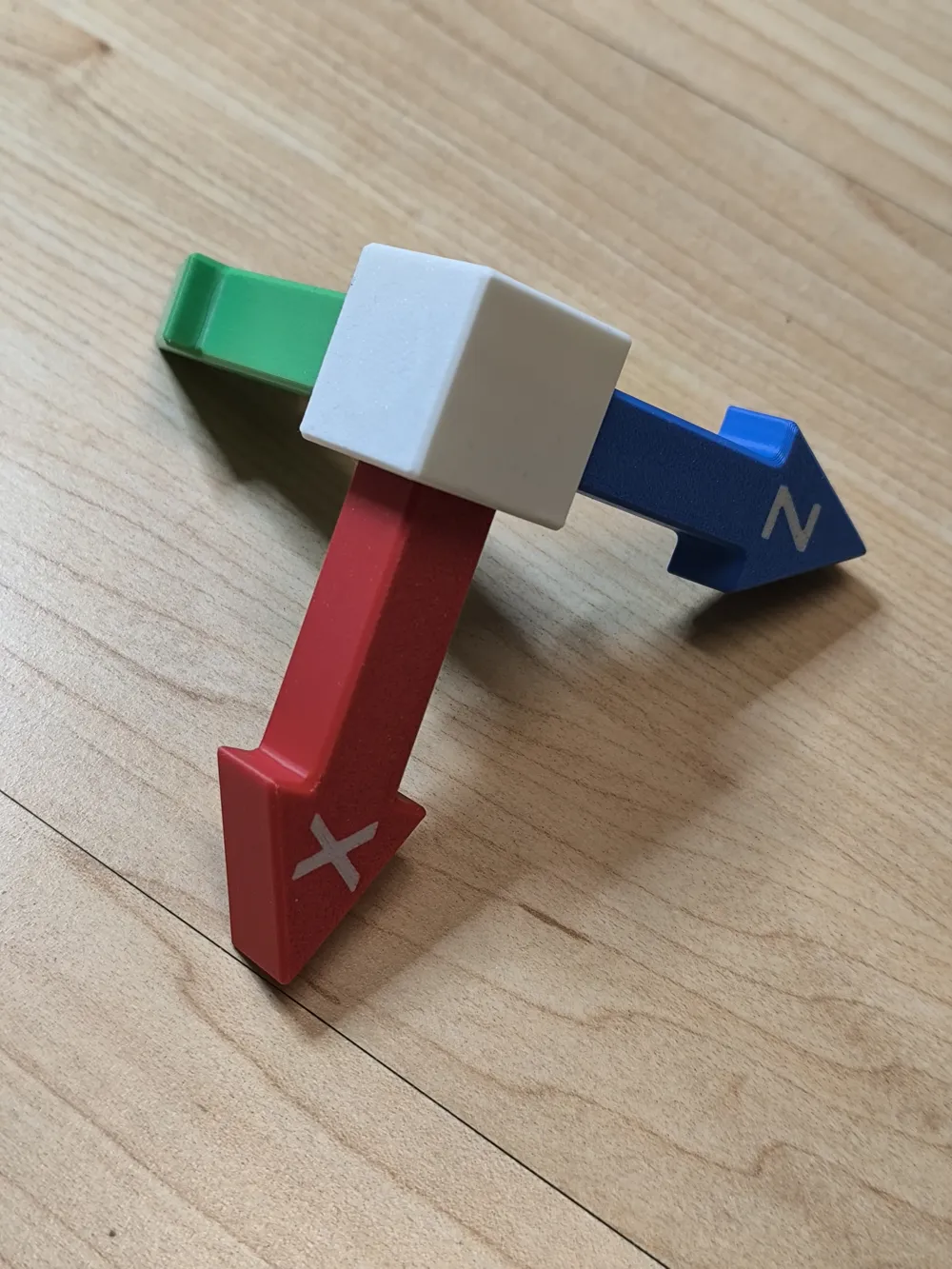

All parts can be individually assembled, especially if X and Y are interchanged
Simply determine the orientation and then glue the arrows in place

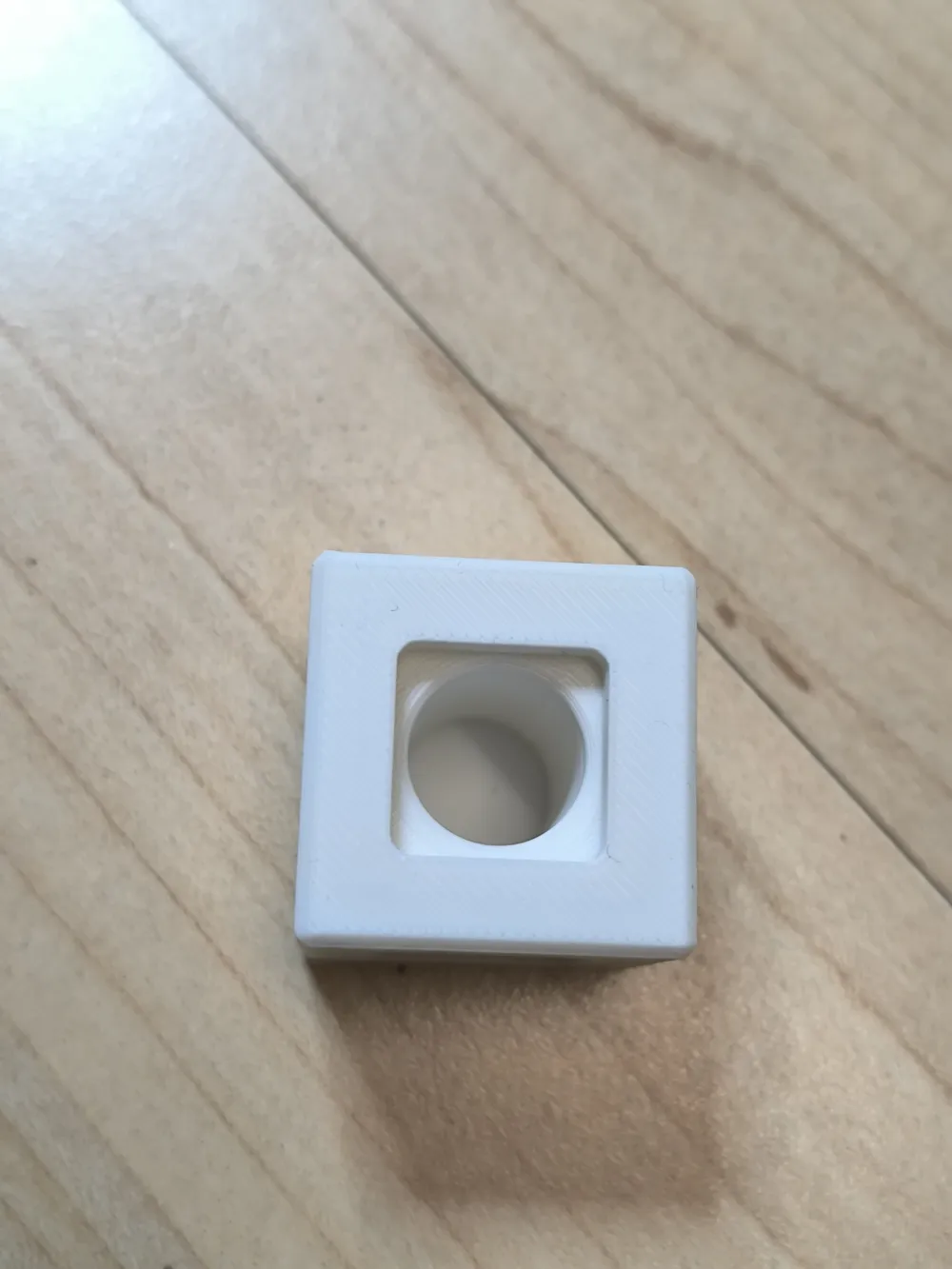

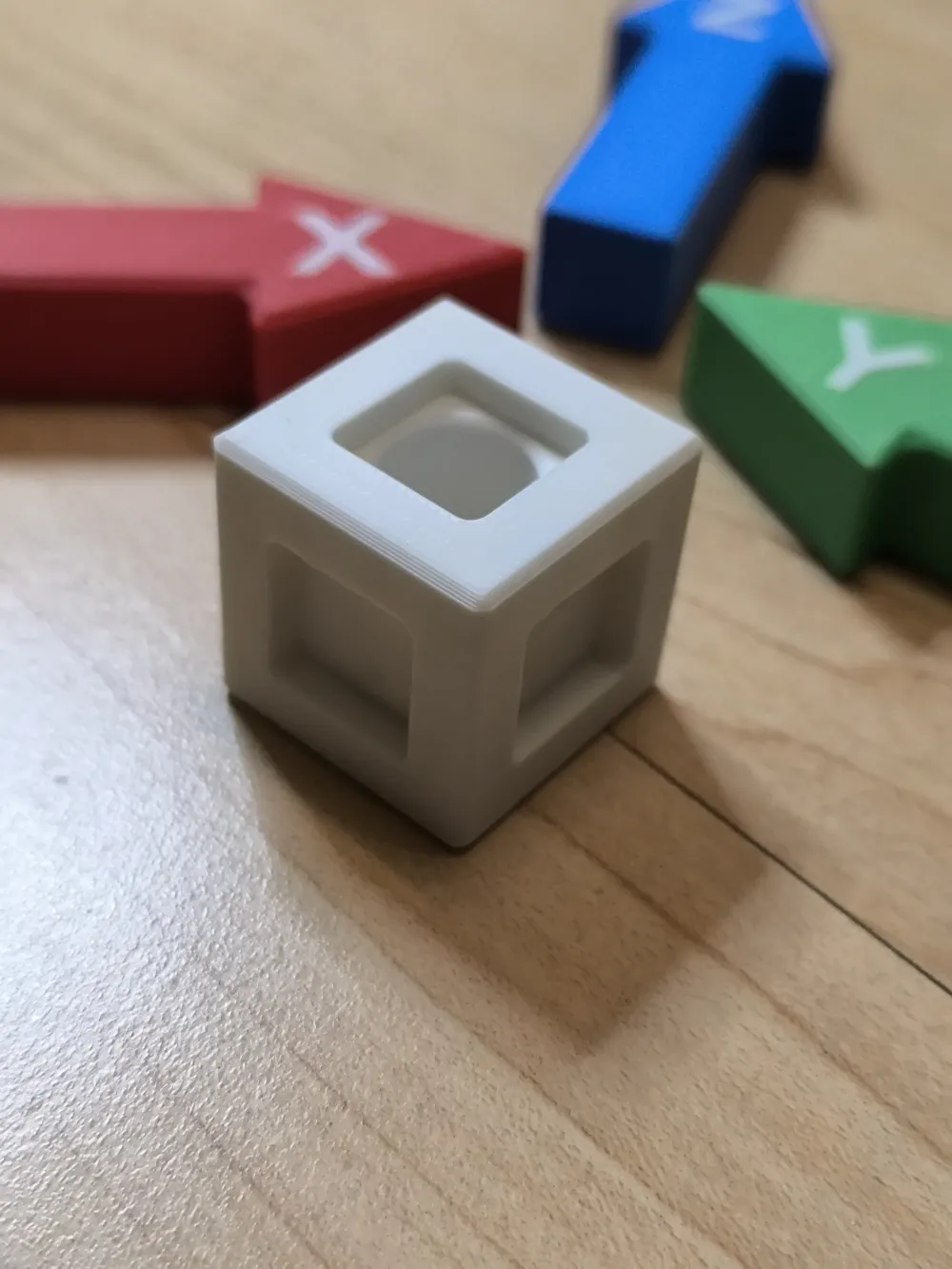

Additionally, the central block offers the option to embed magnets. A chamber with 22mm height and 13mm diameter is available for magnets. The chamber is sealed with the Z-arrow
With the magnet, the coordinate cube will then also adhere to steel and iron

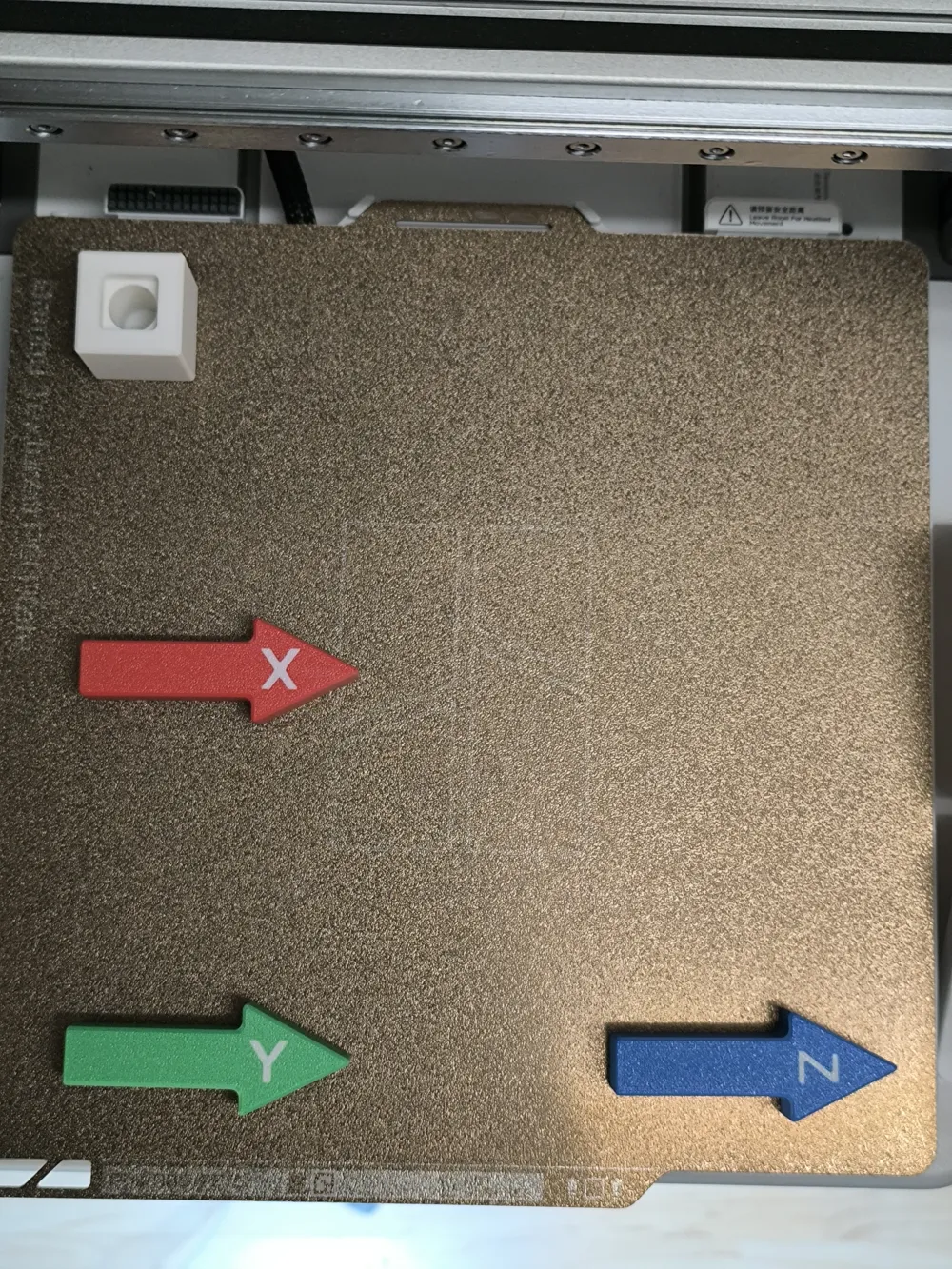

Bambulab printers can print this on 2 to 4 plates, depending on the type and object. (Color and monochrome)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

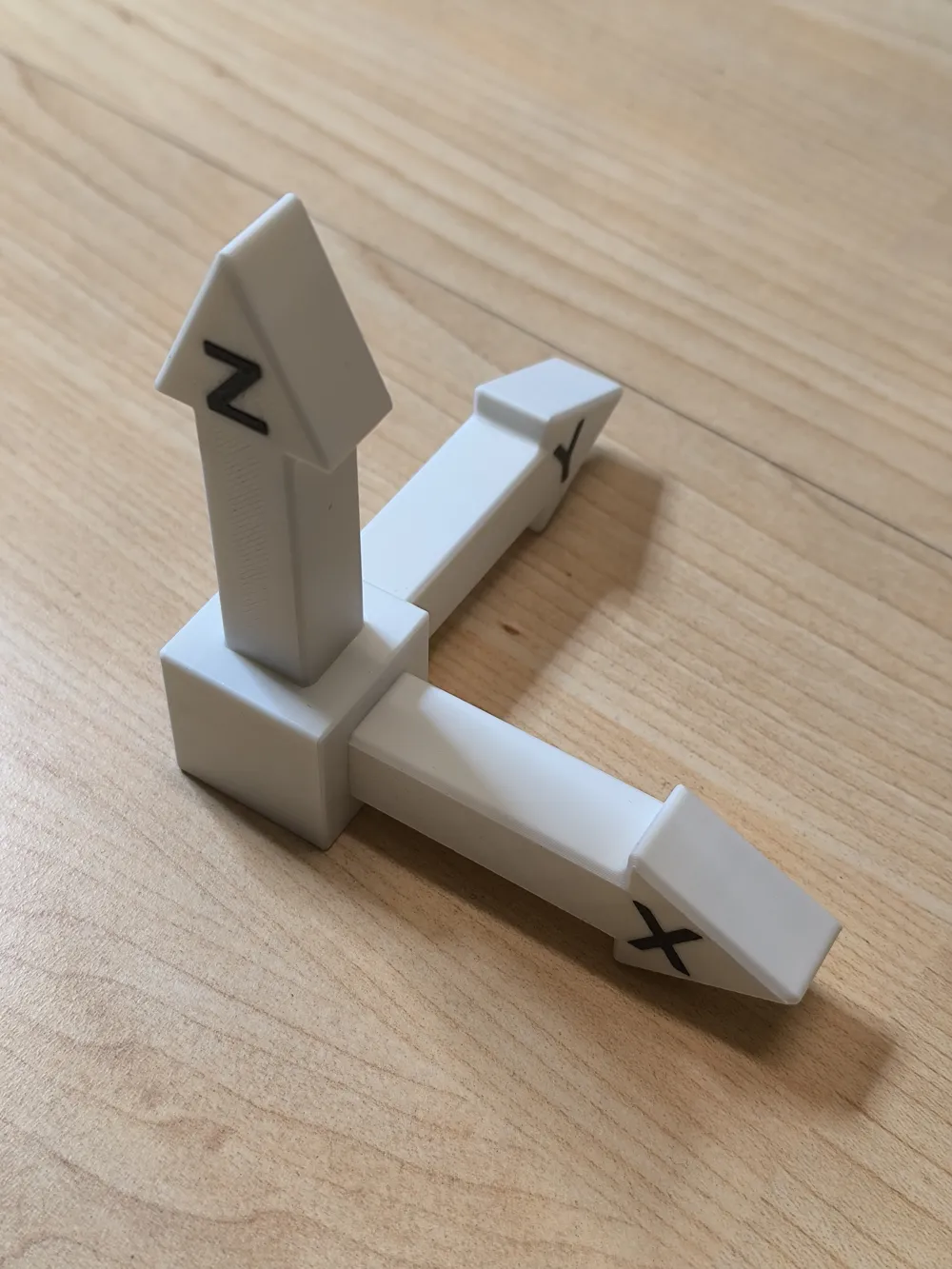

Monochrome Version :
Coordinate cube with arrow and magnet chamber
A three-dimensional model used to clarify geometric relationships
and spatial orientation

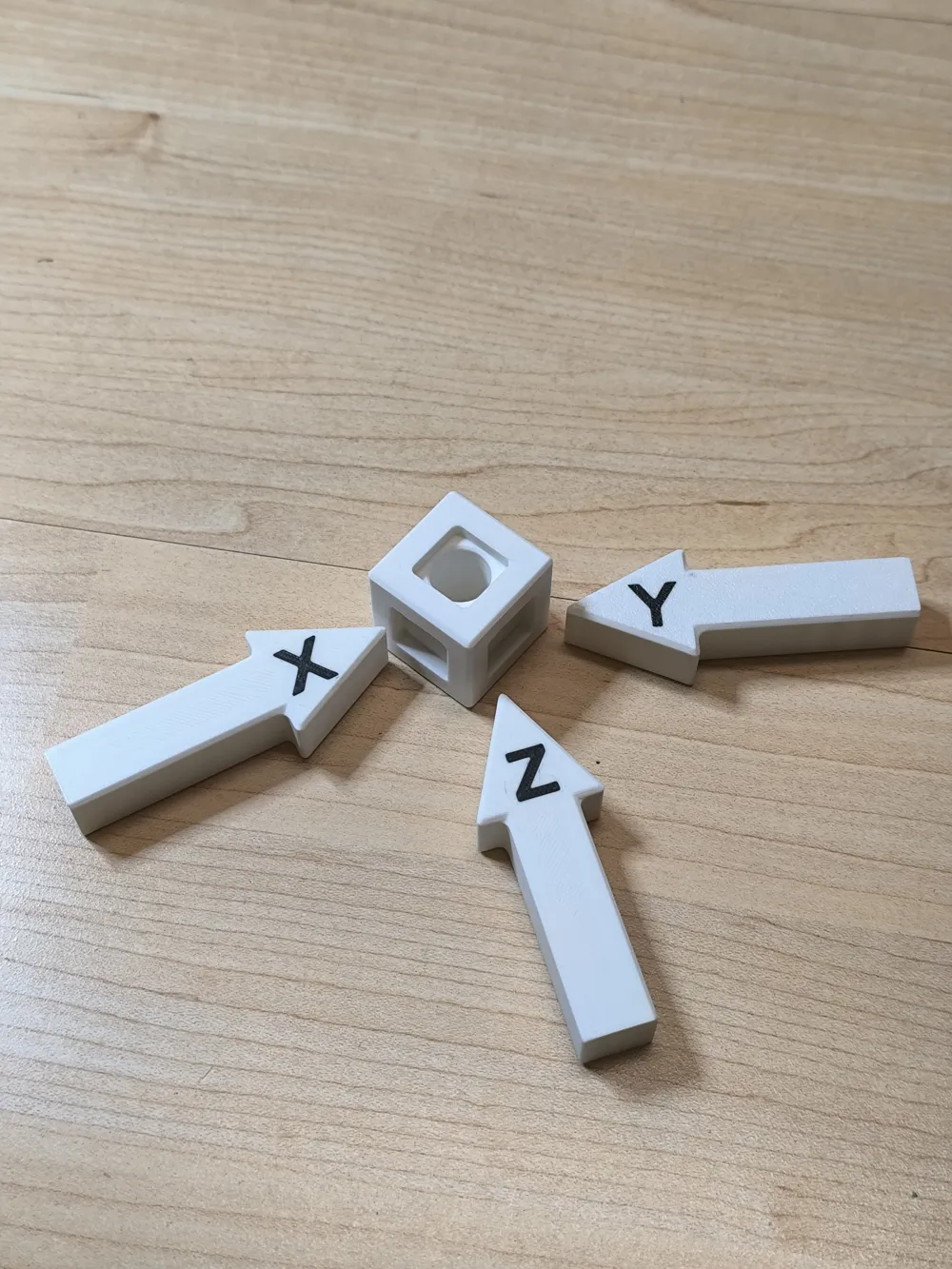

The X, Y, and Z axes are all displayed in monochrome white with black lettering
Applicable in 3D printing, CNC machines, milling technology, and laser cutting plotters etc
Printed as individual objects
All parts can be individually assembled, especially if X and Y are interchanged
Simply determine the orientation and then glue the arrows in place
Additionally, the central block offers the option to embed magnets. A chamber with 22mm height and 13mm diameter is available for magnets. The chamber is sealed with the Z-arrow
With the magnet, the coordinate cube will then also adhere to steel and iron
Bambulab printers can print this on 2 to 4 plates, depending on the type and object. (Color and monochrome)
