Toolgrid 6×6 Base Plate with Square Design (152mm)

🔧Overview
This 6×6 Toolgrid base plate is precision-designed to match the official Mantis Toolgrid system. With exact 4 mm hole diameters and 9.5 mm center-to-center spacing, it ensures full compatibility with all standard Toolgrid holders and accessories. Whether you're organizing sockets, drivers, or custom mounts, this plate is ready to integrate seamlessly into your setup.

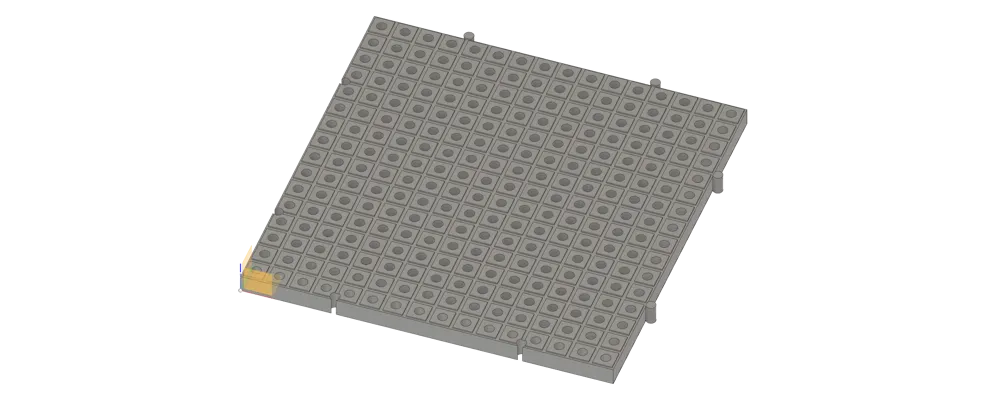

📐 Specifications
•     Dimensions: 152 mm × 152 mm
•     Grid Layout: 16 × 16 holes
•     Hole Diameter: 4 mm
•     Hole Spacing: 9.5 mm center-to-center
•     Edge Margin: 2.75 mm from hole center to plate edge
•     Material: Optimized for PLA, PETG, ABS or ASA

🧩 Compatibility
•     Fully compatible with Mantis Toolgrid holders and accessories

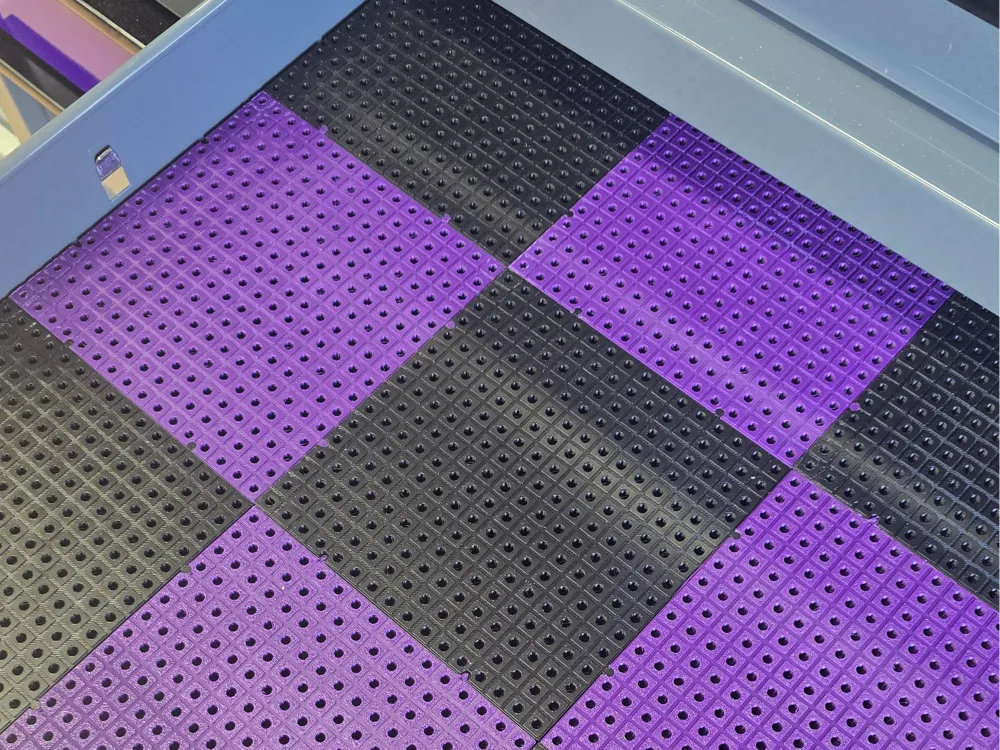

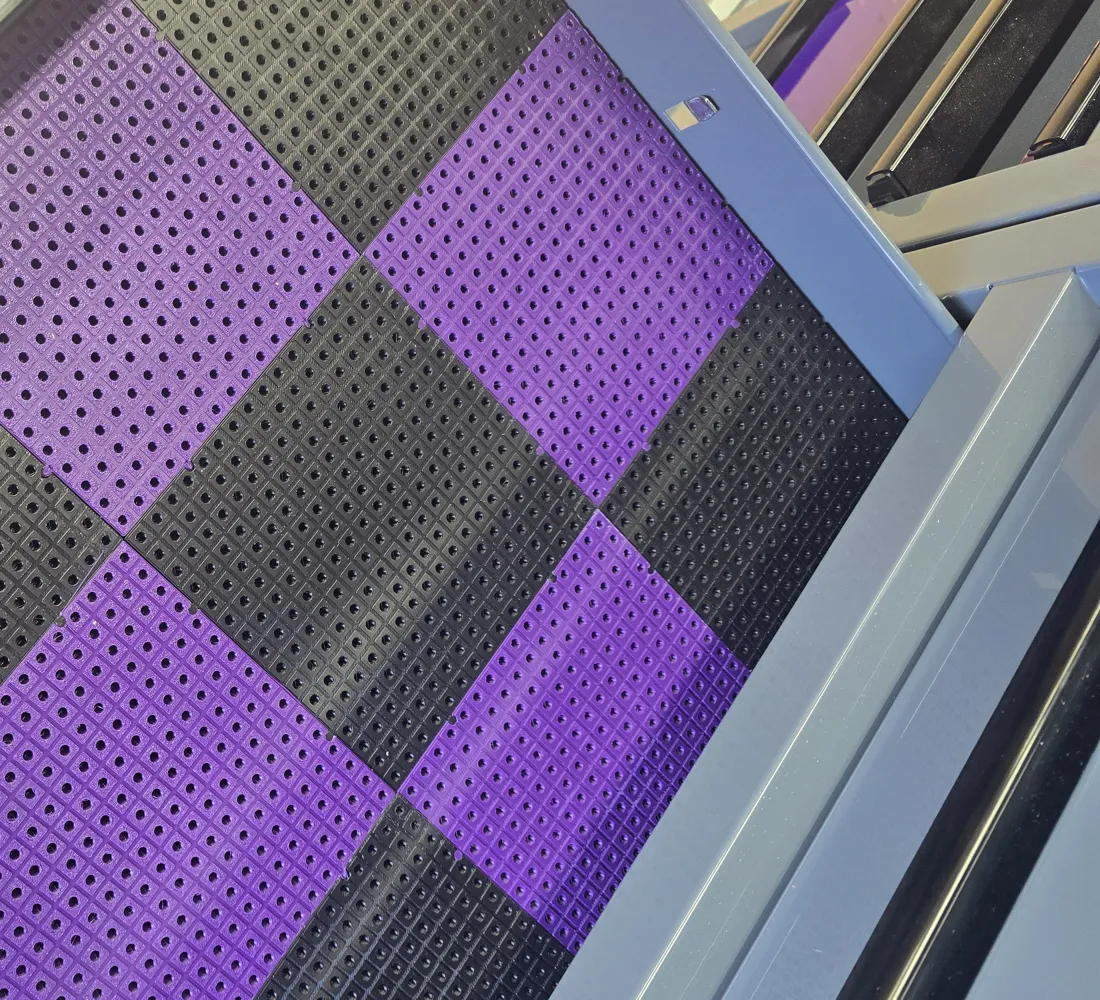

•     Designed to tile flush across X and Z axes with other 152 mm plates
•     Plates can simply be cut to match drawer sizing.

🖨️ Print Notes

•     Recommend 0.24 mm layer height,

•     4 walls,

•     4 Top & Bottom Layers

•     20% infill
•     No supports required

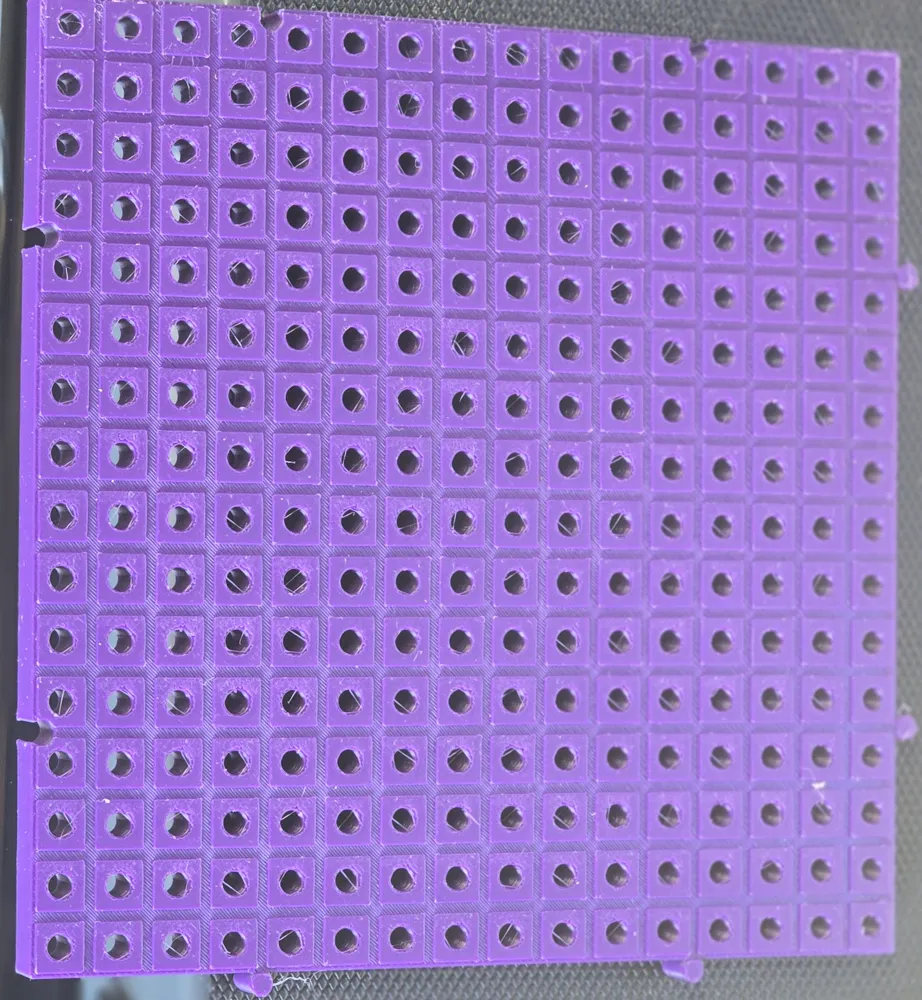

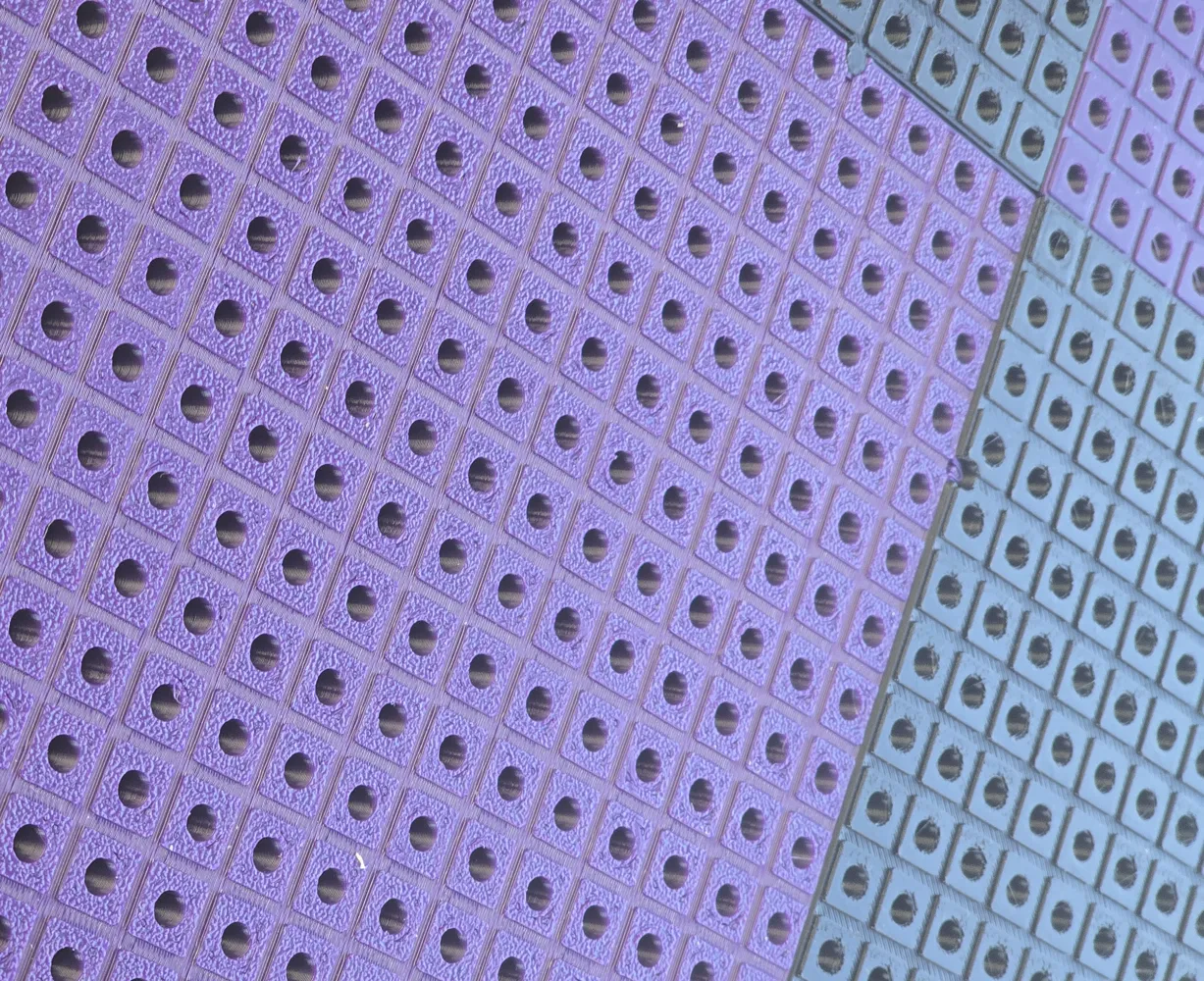

•     Print flat for best dimensional accuracy (Squares Down or Use Ironing)
