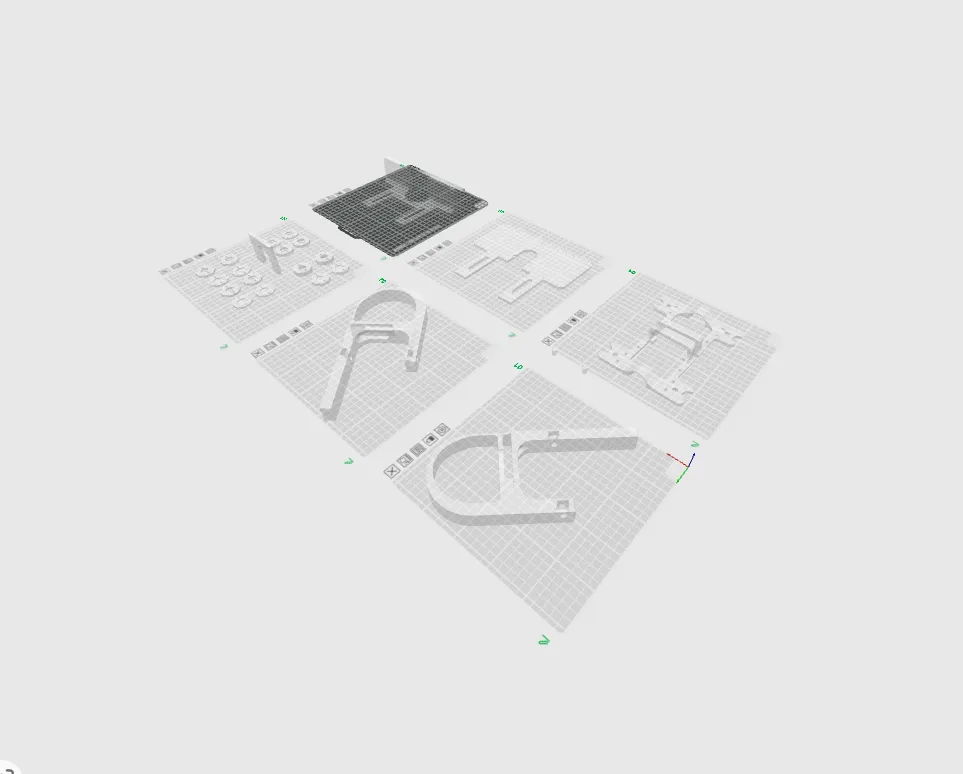

0.2mm layer, 4 walls, 30-70% infill

Designer

23.9 h

6 plates

5.0(2)

frame no internal threads 0.2mm layer, 3 walls, 50% infill

Designer

3.4 h

1 plate

5.0(1)

vacuum mod. 0.2mm layer, 2 walls, 15% infill

Designer

1.7 h

1 plate

Open in Bambu Studio

Boost

372

Released

Description

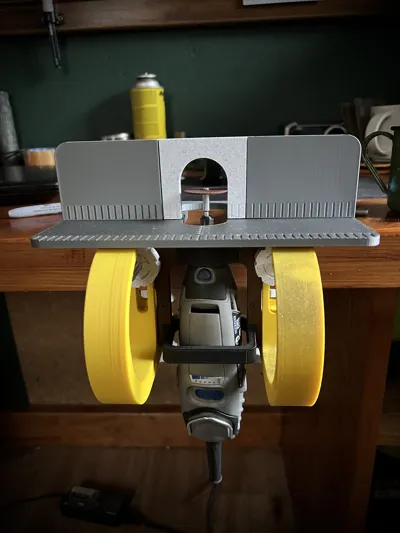

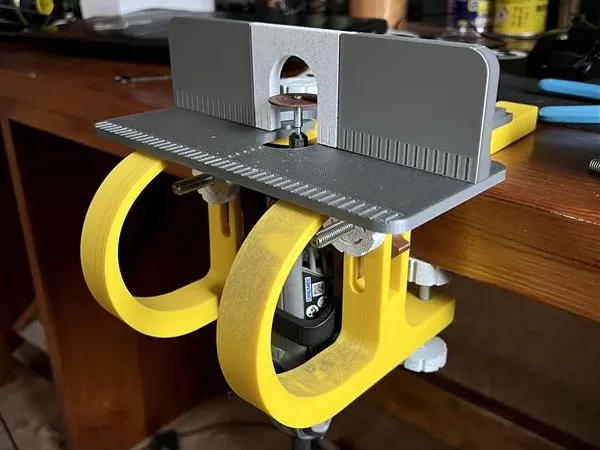

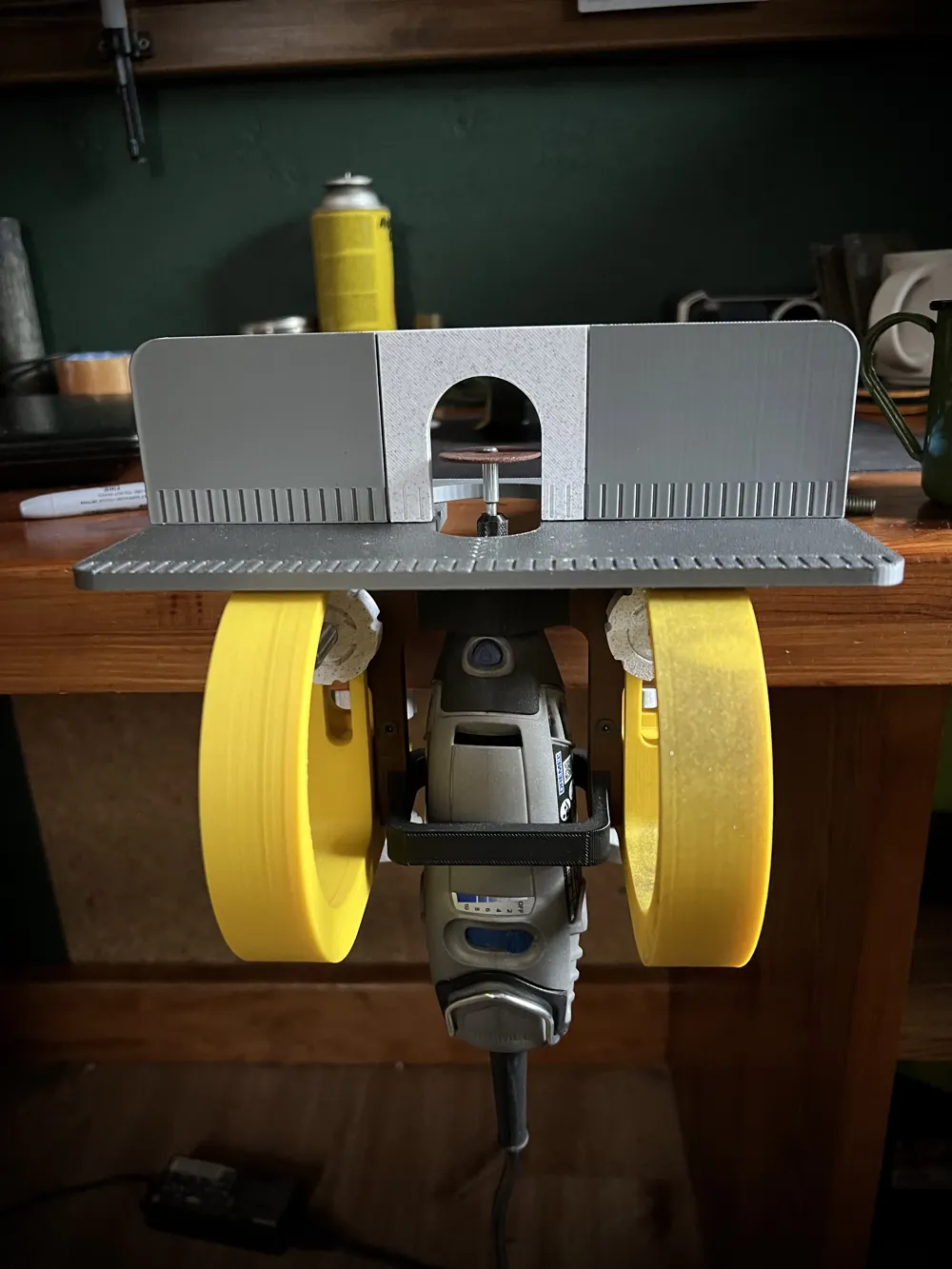

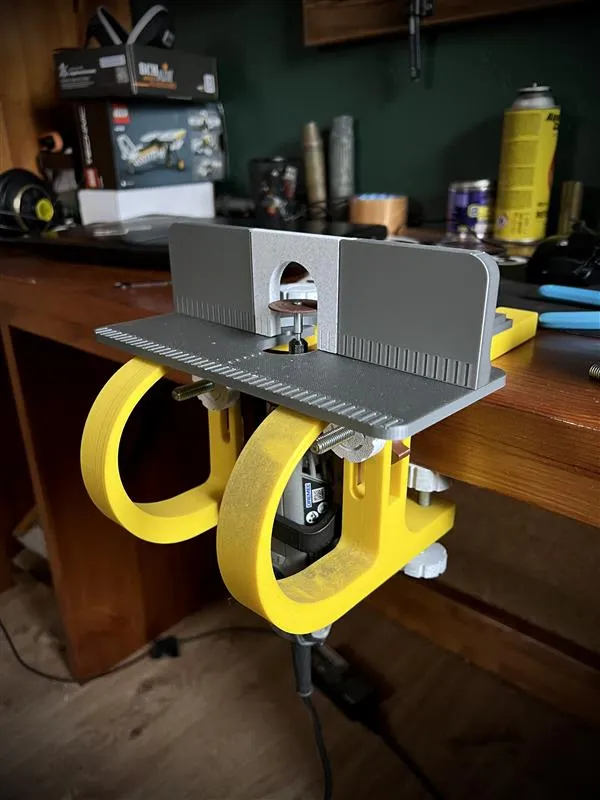

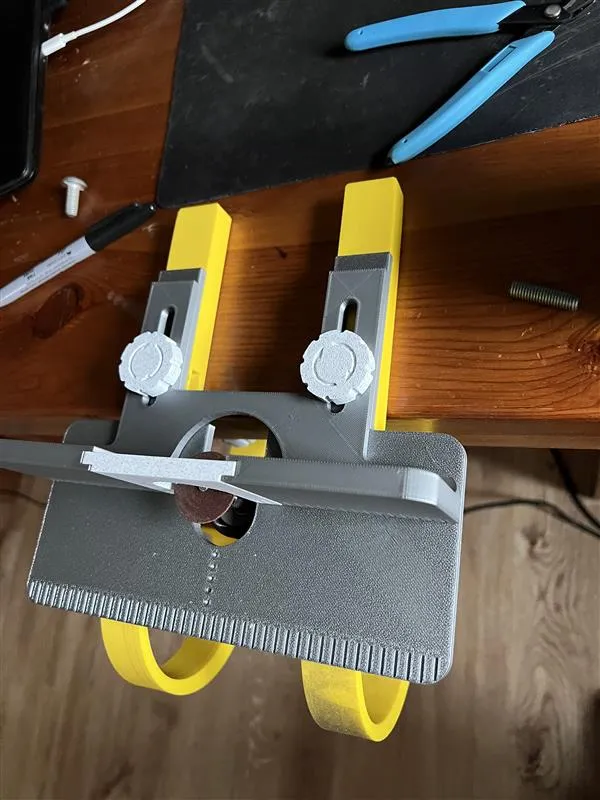

Modification for the Dremel 3000 tool mounted to a workbench with a clamping range of up to 7.5 cm. The device allows independent adjustment of the working height, the depth of the horizontal table, and the vertical table. It can be operated without the tables. The vertical table features interchangeable internal inserts that allow adjustment of the opening width (one included in the set; an additional adapter can be added to connect a vacuum cleaner). Simple installation based on sliding rails.

To assemble the structure, you will need:

4 × nuts

https://www.amazon.pl/s?k=nakr%C4%99tka+M8+DIN+934+sze%C5%9Bciok%C4%85tna
(must be installed in the holes in the structural frame)

2 × nuts

https://www.amazon.pl/Samozaciskowe-Ocynkowane-Gwintowana-Asortyment-Mocowania/dp/B08HJLCF42
(installed in the lower clamps that secure the structure to the workbench)

2 × bolts
https://www.amazon.pl/s?k=sruba+M8+20mm+szesciokatna+DIN+933
(bolts used to mount and adjust the tables)

2 × bolts

https://www.amazon.pl/sze%C5%9Bciok%C4%85tnym-szlachetnej-metrycznym-sze%C5%9Bciok%C4%85tne-zewn%C4%99trzne/dp/B07RSHCPHY
(bolts used to adjust the height of the Dremel 3000 within the frame)

2 × bolts

https://www.amazon.pl/s?k=%C5%9Bruba+M8x80+DIN+933+%C5%82eb+sze%C5%9Bciok%C4%85tny
(bolts used to clamp the device to the workbench)

6 × flat-head screws
https://www.amazon.pl/s?k=wkr%C4%99t+M3+8mm+%C5%82eb+sto%C5%BCkowy+imbus+DIN+7991

6 × metal threaded inserts for the above screws
https://www.amazon.pl/gwintowanych-dociskowe-gwintowane-wewn%C4%99trzny-radelkowane/dp/B0CXX7YCVN
(maximum length 5 mm; the device holder must be assembled in such a way that no component protrudes beyond the printed parts)
