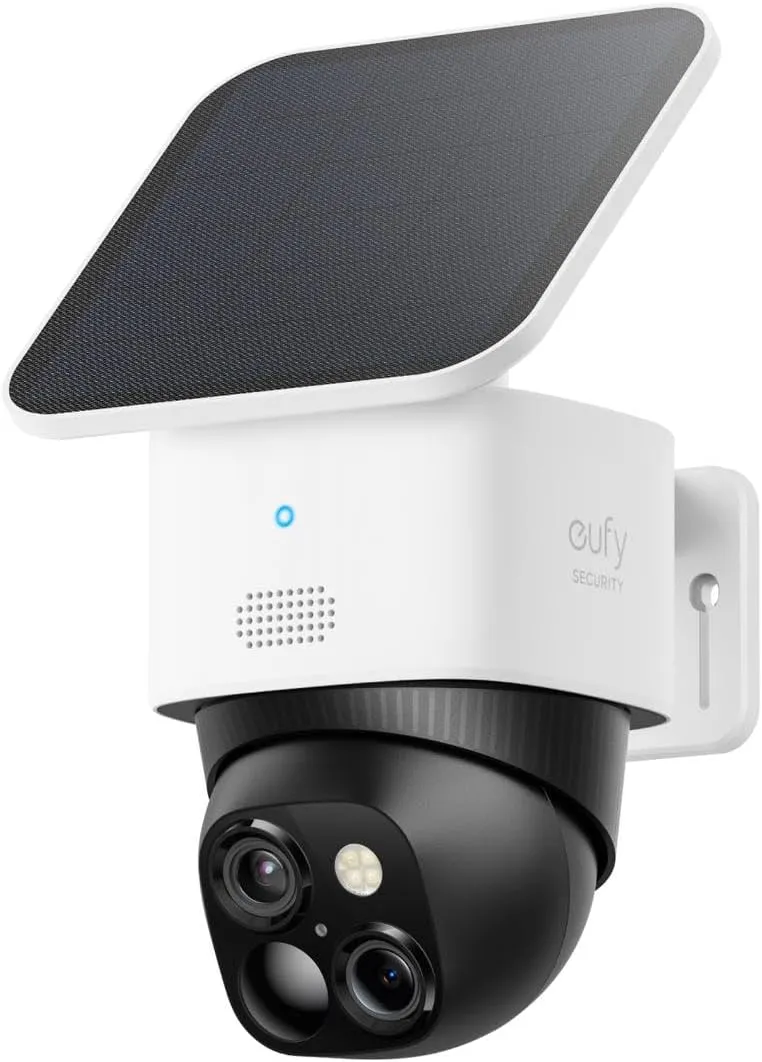

Mounting arm support for EUFY S340 solar security camera

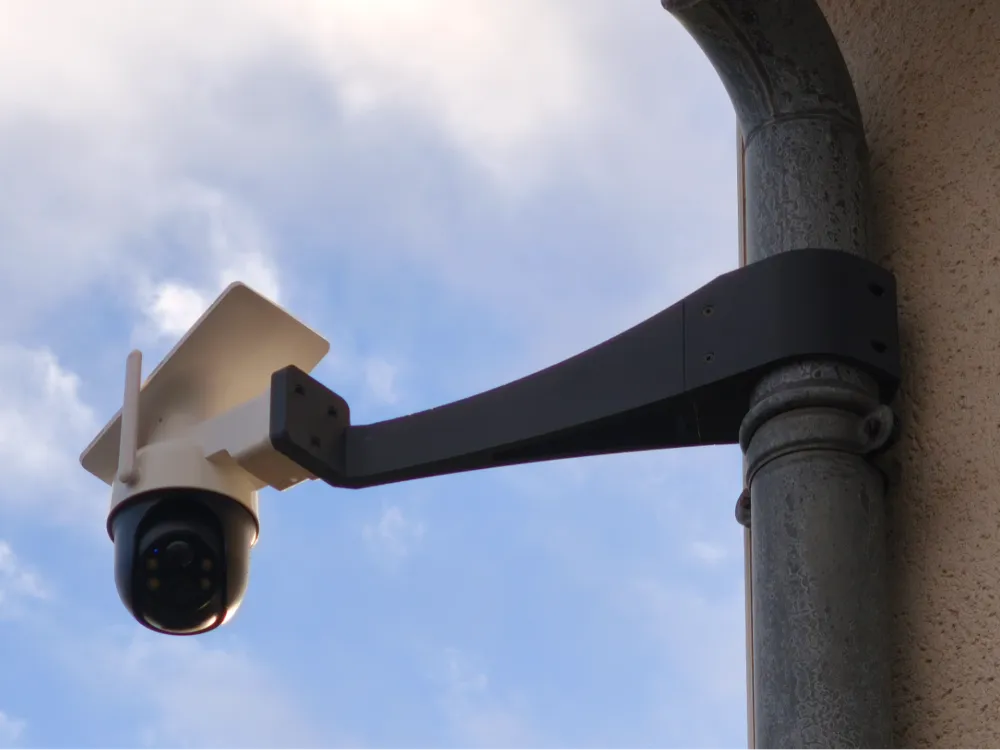

This is an adapter for the EUFY S340 camera to be fixed to the gutter mount (80 mm or 100 mm diameter) created by ShelbyCob :
Camera mounting interface: 2 holes at the top spaced 44mm apart, one centered hole at the bottom spaced 22mm from the other holes
The camera can be attached to the front or back of the mount to orient the camera's solar panel in the best possible way towards the sun
The camera mount is oriented at 110° relative to the arm's axis, then the clamp can be rotated on the gutter to orient the camera as needed
To be printed in ASA for better outdoor durability
Be sure to check the filament print settings before printing so that they are suitable for the ASA you will be using
Edit February 7, 2026: Added a 2-piece print profile for A1 mini, the 2 pieces must be assembled and glued
Materials to use :
4 x M4x25 countersunk screws (for the central arm mounting fasteners on the clamp)
2 x M4x20 countersunk screws (for the back of the clamp)
6 x M4x8x6 heat-set inserts (for mounting the arm and clamp)
You can order the materials from the BambuLab store, the items are listed in the bill of materials (note, they do not have exactly the same heat-set inserts)
