🧼 Modular Soap Dispenser with Swappable Magnetic Faces

This is a universal modular soap dispenser system designed around swappable magnetic faces — so your sink décor can change with the season, the holiday, or your sense of humor.

One base. Interchangeable faces. Minimal storage.

This collection will be updated with new faces as they are added.

🔁 How It Works

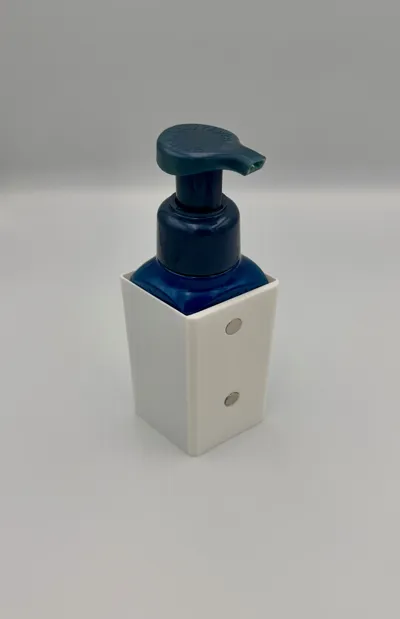

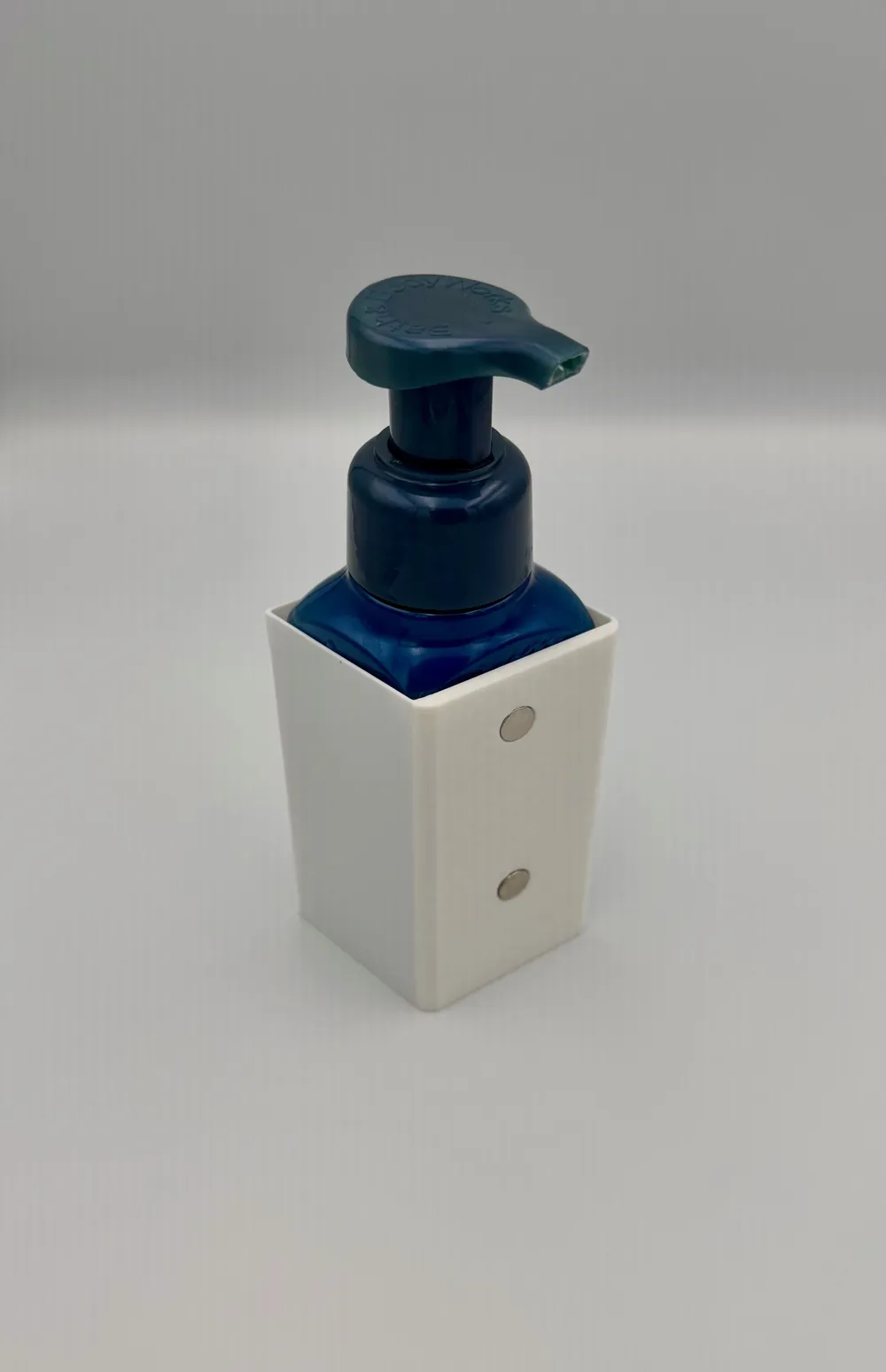

• A printed base sits on your soap dispenser
• Magnetic faces snap on and off in seconds
• Swap designs without changing the dispenser itself

No tools. No clips. No commitment.

🫧 Foaming and Gel Soap Compatible

• Designed for foaming soap dispensers by default
• Optional gel dispenser base available
• Optional adapter so the same base works with:
  • Standard gel soap dispensers

One system that adapts if you change soap types later.

Here is the link for the optional Gel dispenser insert to adapt the foaming holder for the gel version.

🧲 Magnet Assembly Notes

• Magnets may be press-fit or glued in place.
• Glue is recommended for long-term security.
• The magnet pockets diameters will vary slightly by printer setup and print orientation.
• If the holes are too tight you can safely remove material with a tool or slightly scale up the model (0.5%) so that the holes will be larger and the dispensers will still fit.
• Pockets are 2 mm deep:
  • 2 mm thick magnets sit flush
  • 3 mm thick magnets will protrude slightly for a stronger hold (this is my preferred setup but both work).

⚠️ Check magnet polarity during assembly so faces attach correctly
(ask me how I know 😅)

After that, you can use the first face to help align additional magnets during assembly.

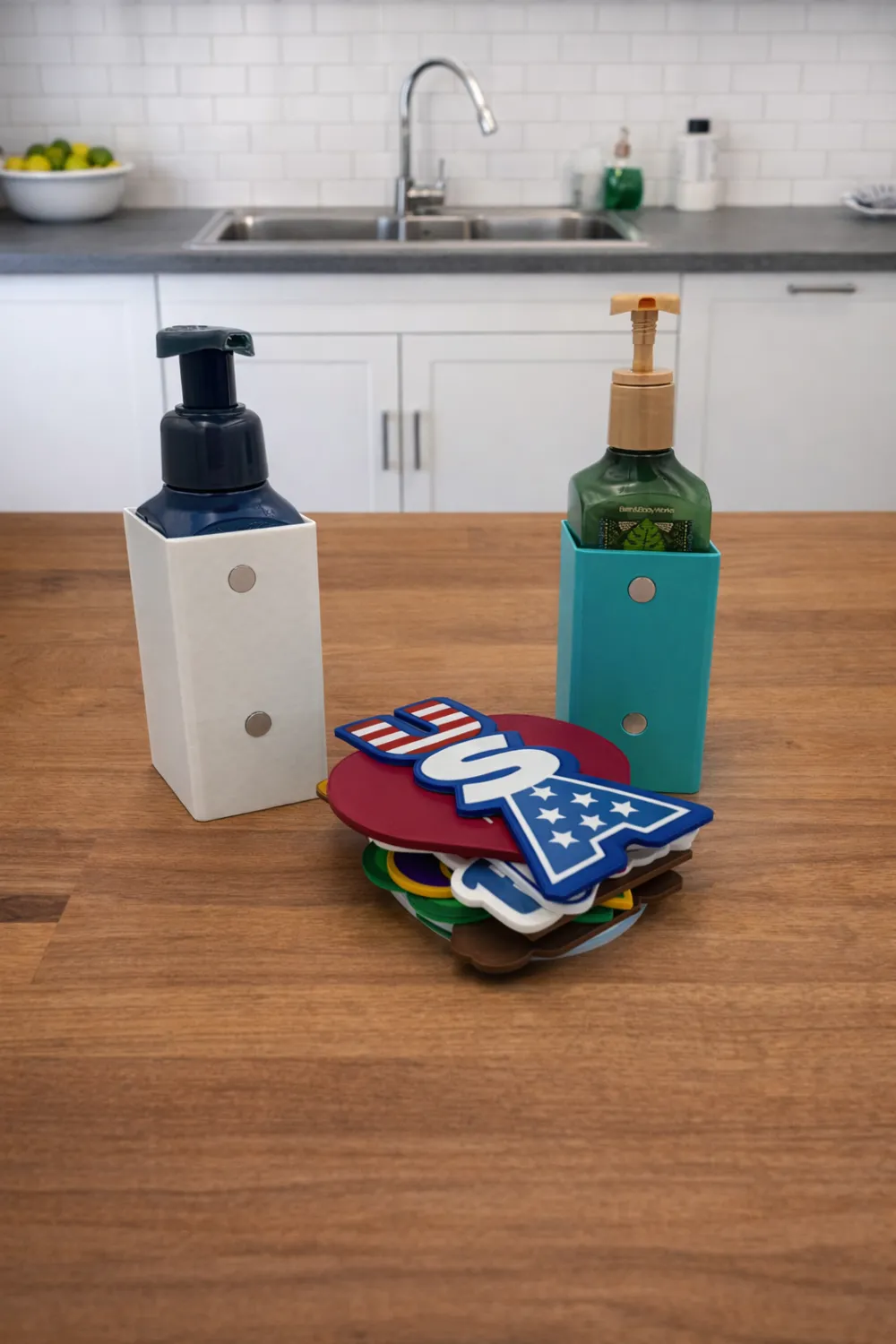

👉 Bonus:

• Faces can double as refrigerator magnets
• Or be stacked neatly in a small box
• No bulky seasonal décor totes required

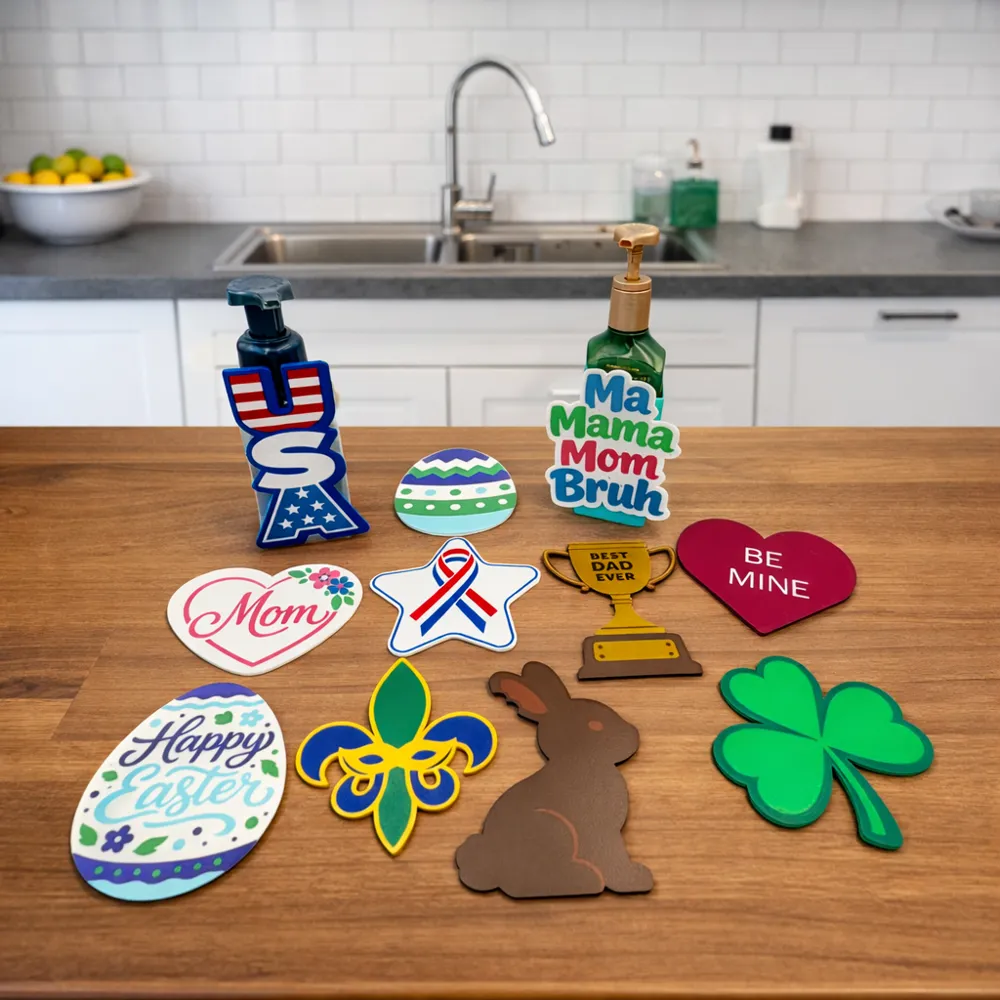

🎉 Available & Growing Face Library

Check out this collection for mating faces

https://makerworld.com/collections/17844653

This system is designed to expand over time — and multiple face sets are already available.

Currently available themes include:

• Mardi Gras
• Easter
• Mother’s Day
• Father’s Day
• Memorial Day
• Fourth of July

Additional faces will continue to be added, including:

• More holidays
• Seasonal designs
• Clean, everyday styles
• Funny and sarcastic signs for hosting, parents, and people who go to bed early

Print what you want. Swap them when you’re ready.

🖨️ Printing Notes

• Designed for clean, reliable printing
• Flat geometry with clear color separation
• AMS / multi-material friendly
• Painting-friendly for post-print customization
• Faces are thin and stackable to save filament and storage space

📦 What You’re Downloading

• The base model for the modular soap dispenser system
• A foaming-to-gel adapter
• Swappable faces are provided in separate listings, so you can choose only the ones you want

💡 Why This Exists

Because:

• Seasonal décor shouldn’t take up a closet
• One dispenser should do more than one job
• And sometimes your soap dispenser should politely tell guests when it’s time to leave

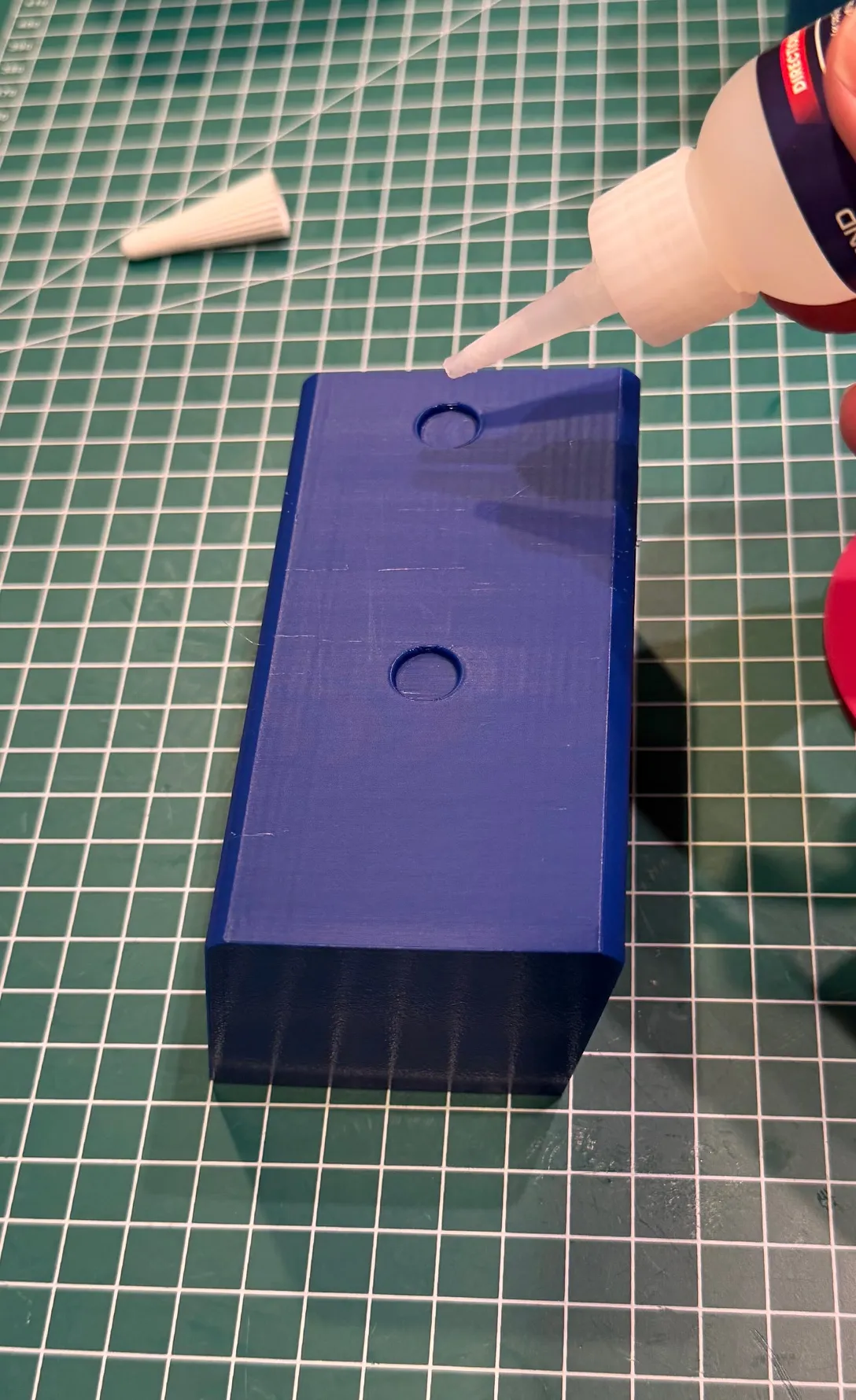

Magnetic face assembly:

A small drop of glue is recommended.

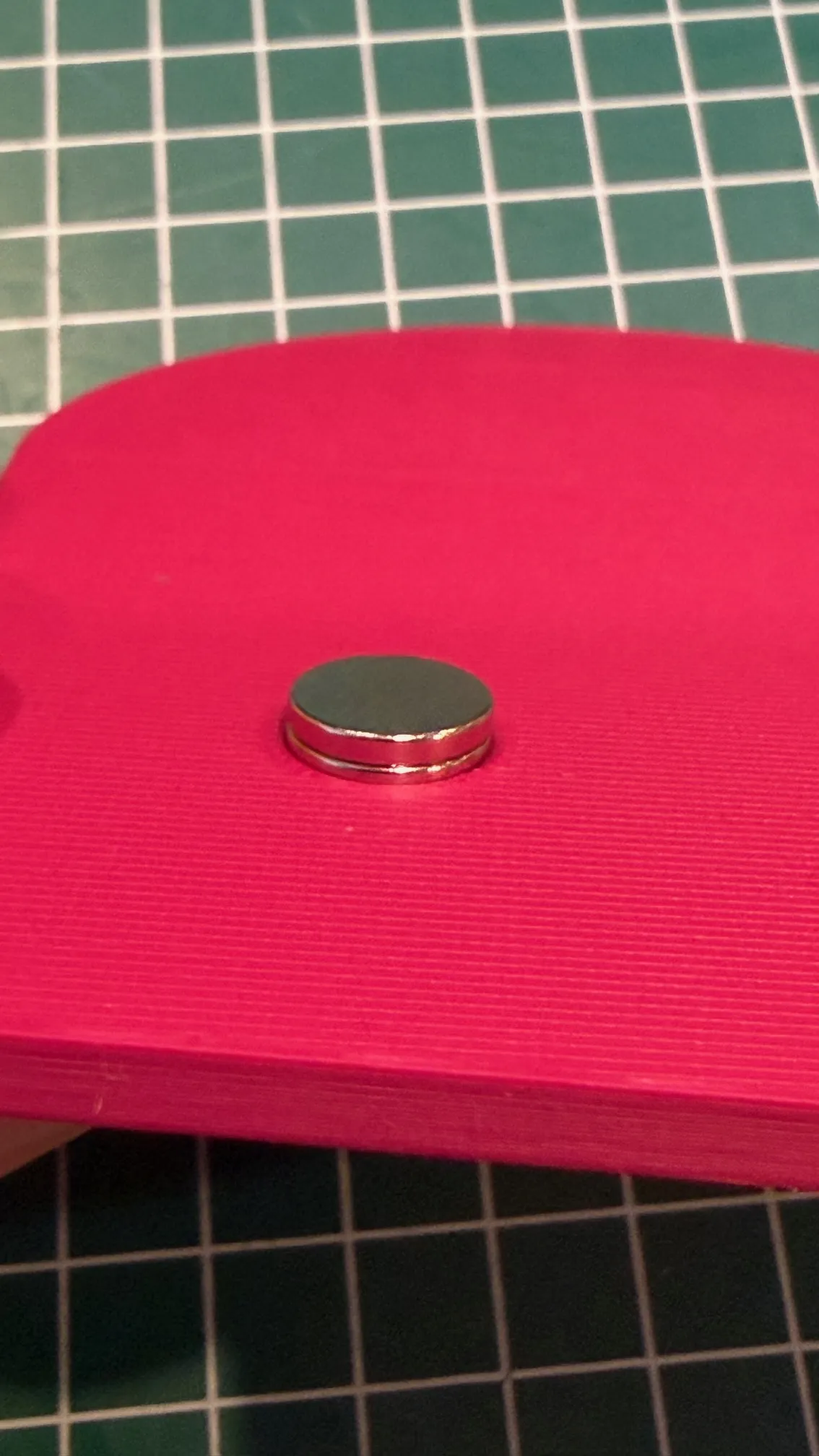

Preferably you want the magnets to be slightly proud of the surface to make strong connection.  It is designed for 10mm x 3mm (10mm x 2mm can be used) as needed.

Update:

1-20-26 V3 uploaded - Updated the magnet depths and position for better alignment
