3D Printed Aquarium Filter — Designed for Shrimp Tanks

Product Introduction

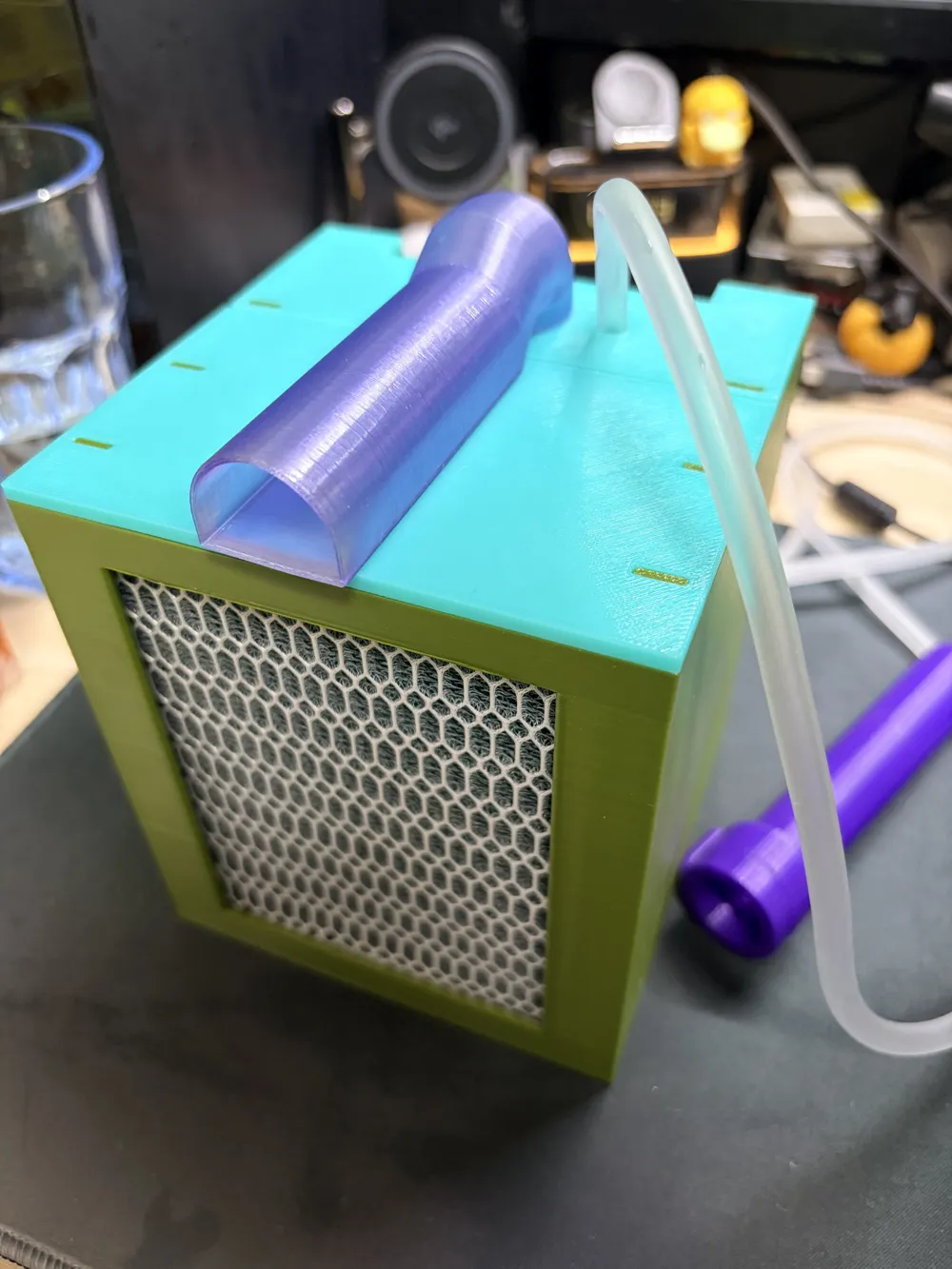

This 3D printed aquarium filter is designed specifically for crystal shrimp and small ornamental fish tanks It uses an air pump to drive water flow and combines a multi-layer filtration structure to provide stable, clean water quality The design balances filtration efficiency, ease of maintenance, and biological safety, allowing crystal shrimp and fish to live in a healthy and comfortable environment

Dimensions

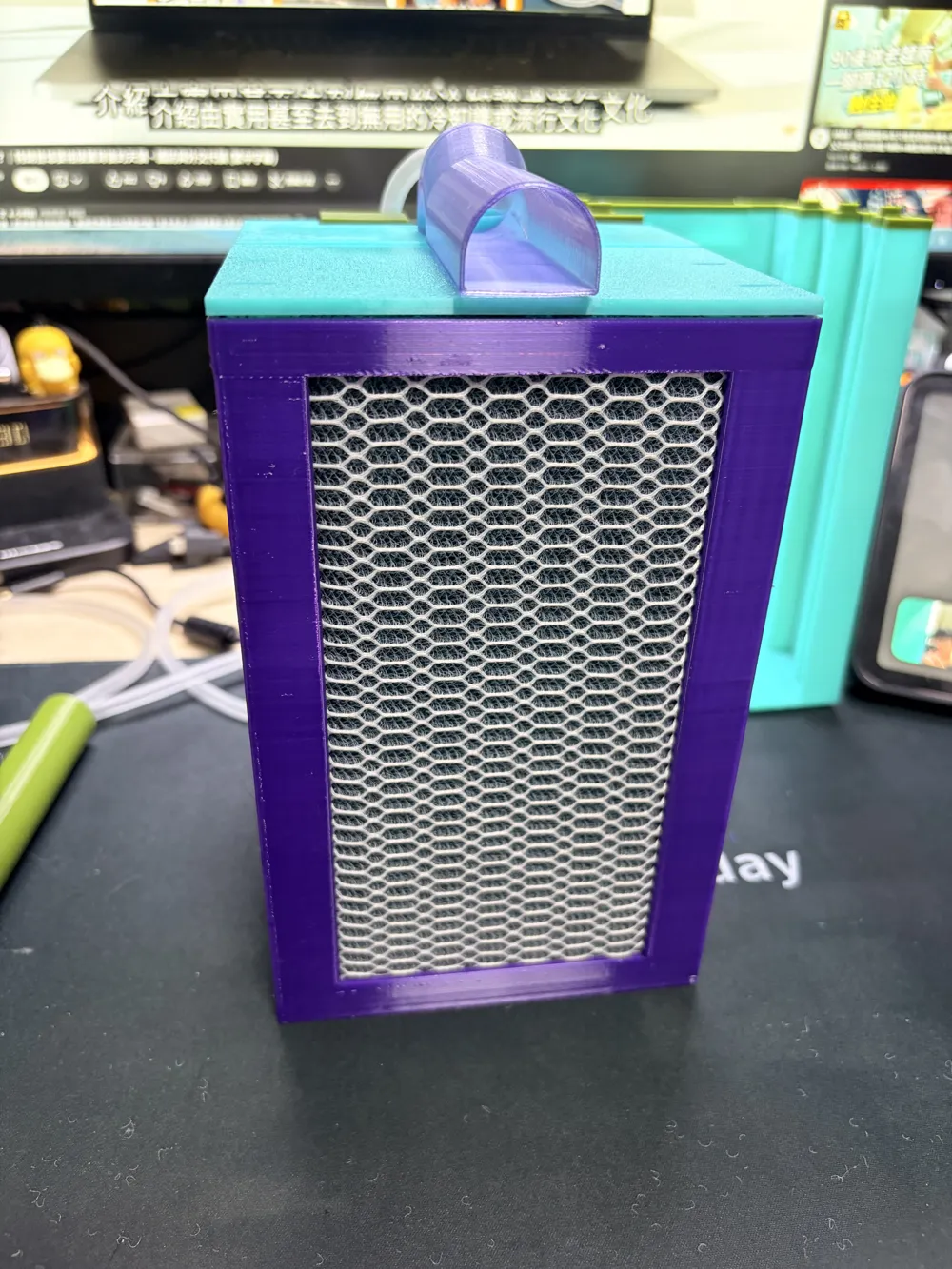

* Standard Version: The filter box measures 11.5 cm wide × 11.5 cm deep × 18.5 cm high It has ample capacity and is suitable for general small to medium-sized aquariums

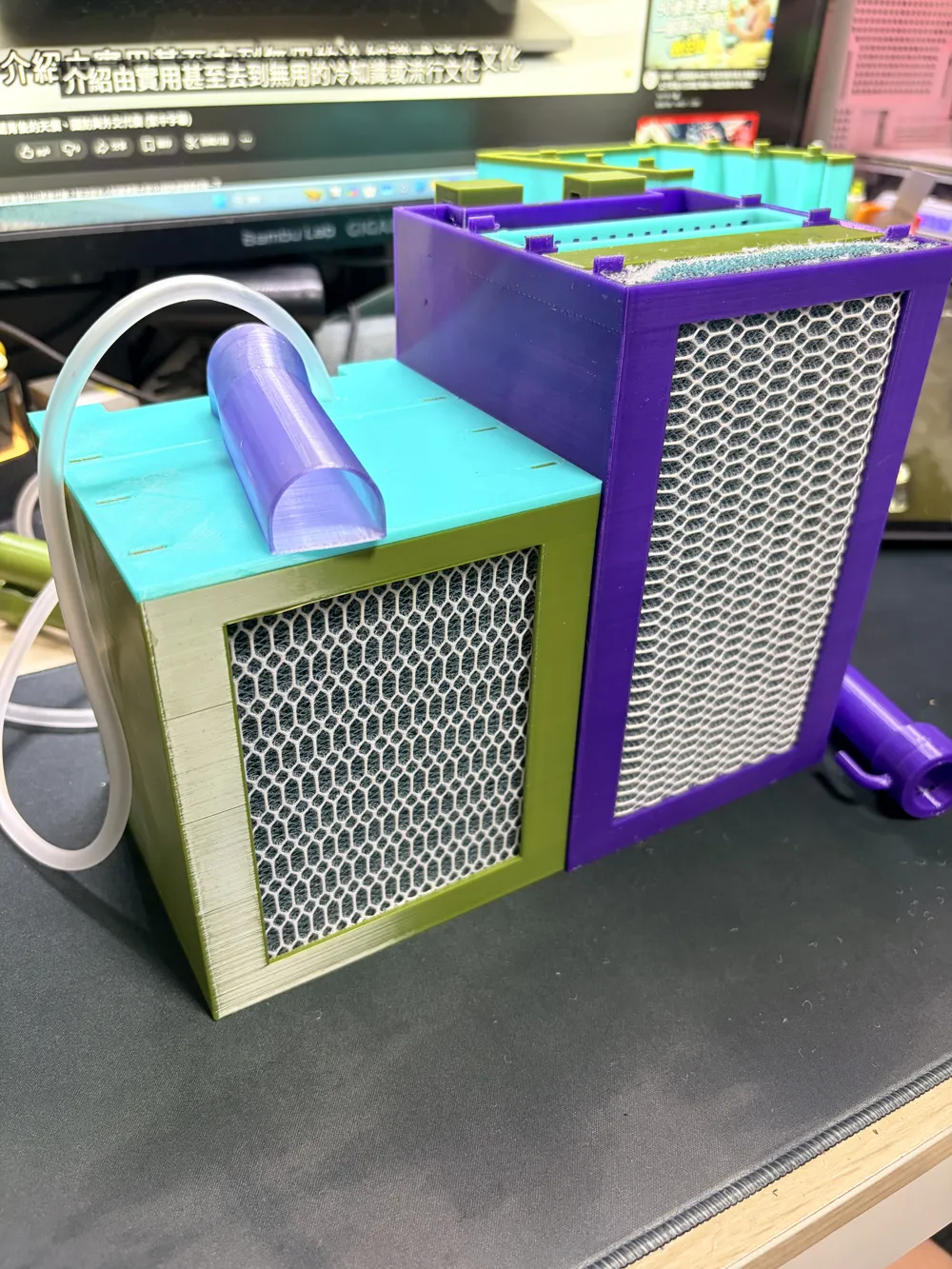

* Shortened Version: The filter box measures 11.5 cm wide × 11.5 cm deep × 13.5 cm high It is 5 cm shorter than the standard version, making it more suitable for smaller aquariums or users who need to save space

Printing Notes

* This design offers two file versions: one with a normal name, and another labeled 'for AMS'
* We recommend selecting the 'for AMS' version for printing, as this version is easier to print by removing supports, results in a smoother surface, and has better overall completion
* The 'for AMS' version requires printing with two types of materials: PETG and PLA:

PETG: Recommended as the main material for its durability and toughness, suitable for long-term use
PLA: Recommended as the support material to facilitate support removal and maintain structural stability

* Due to printing space limitations, the A1 mini 3D Printer can only print the shortened version

Other Bambu Lab printer models (all models released before X2D) are compatible with all versions

Design Features

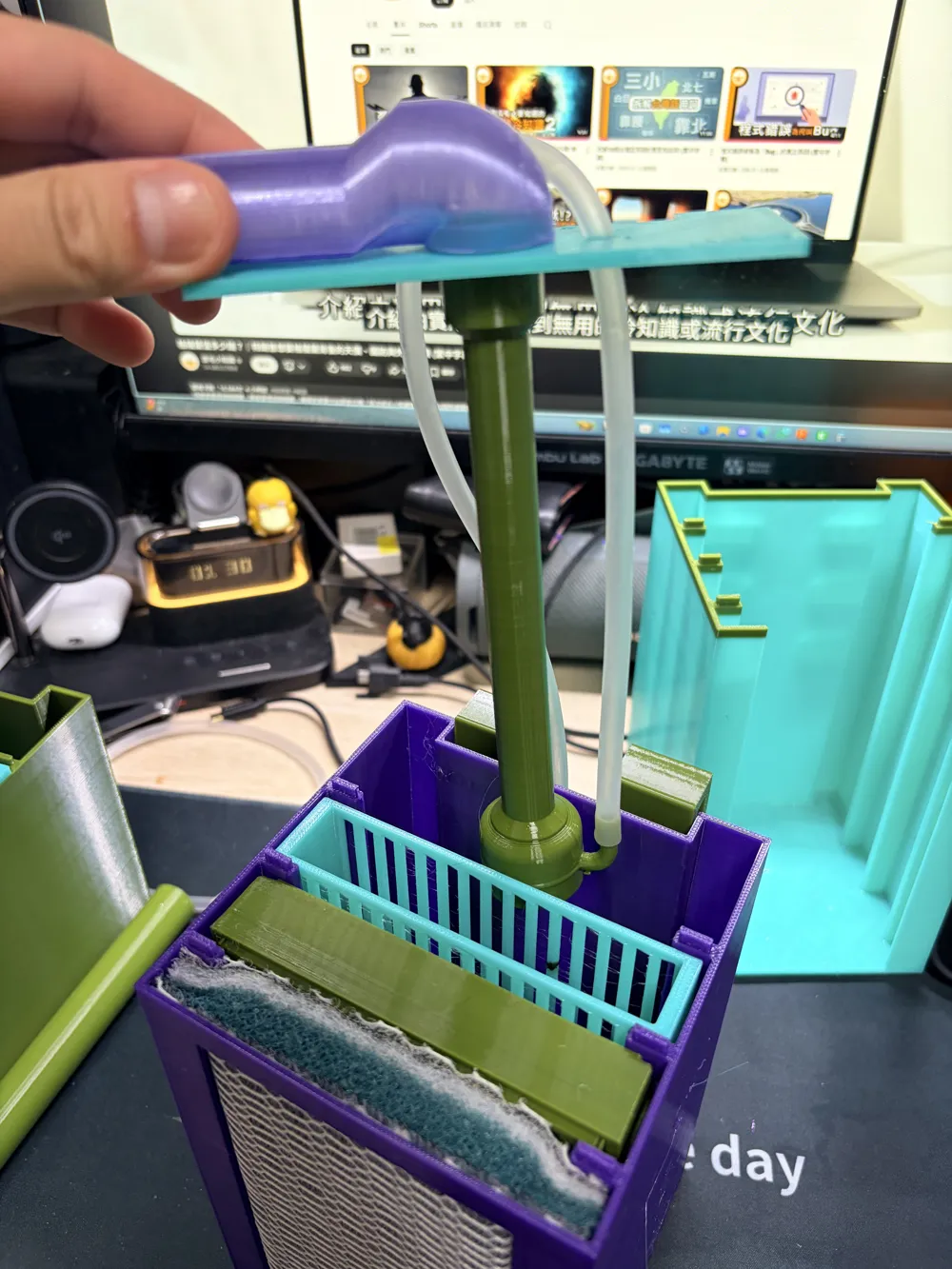

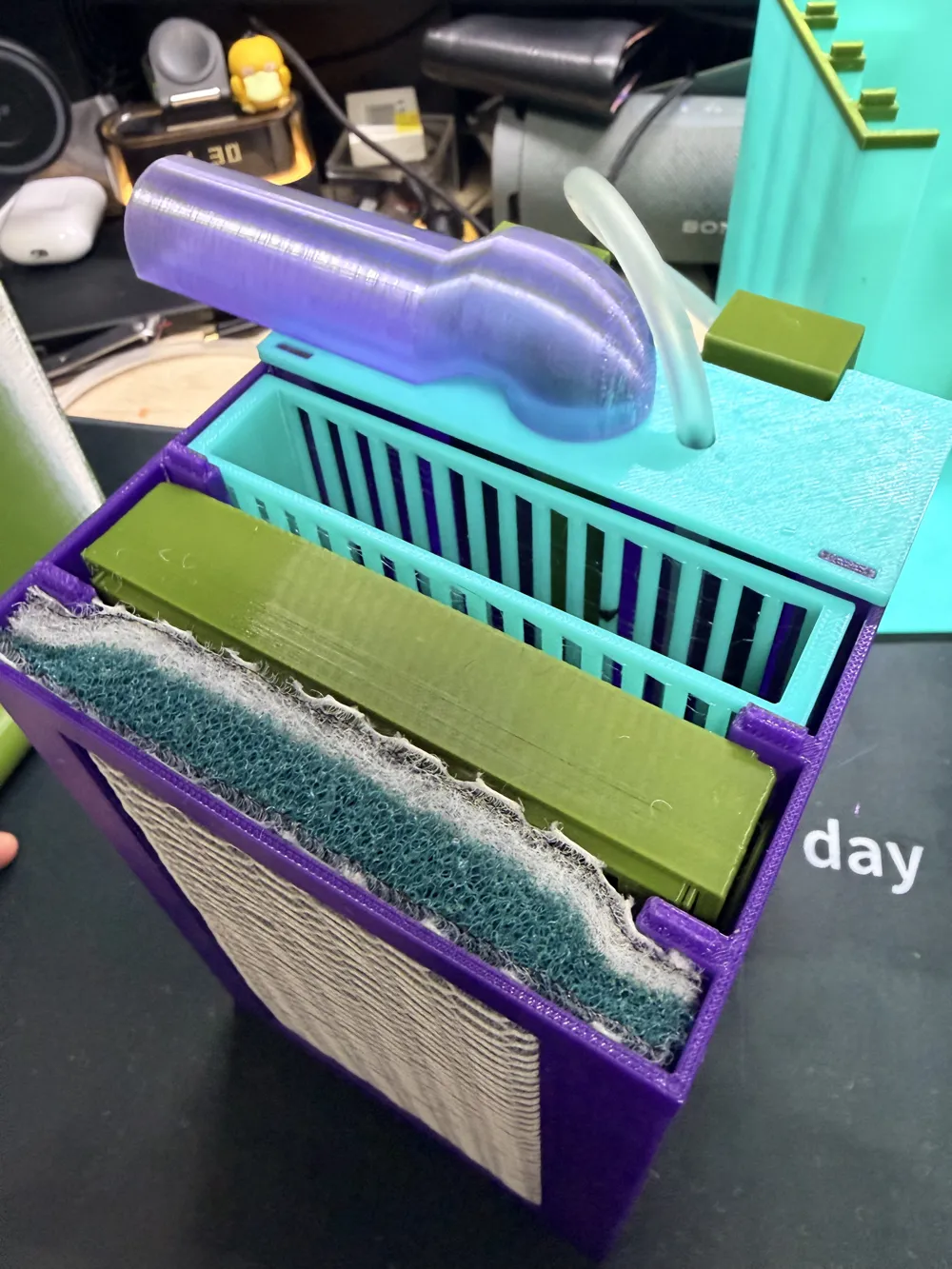

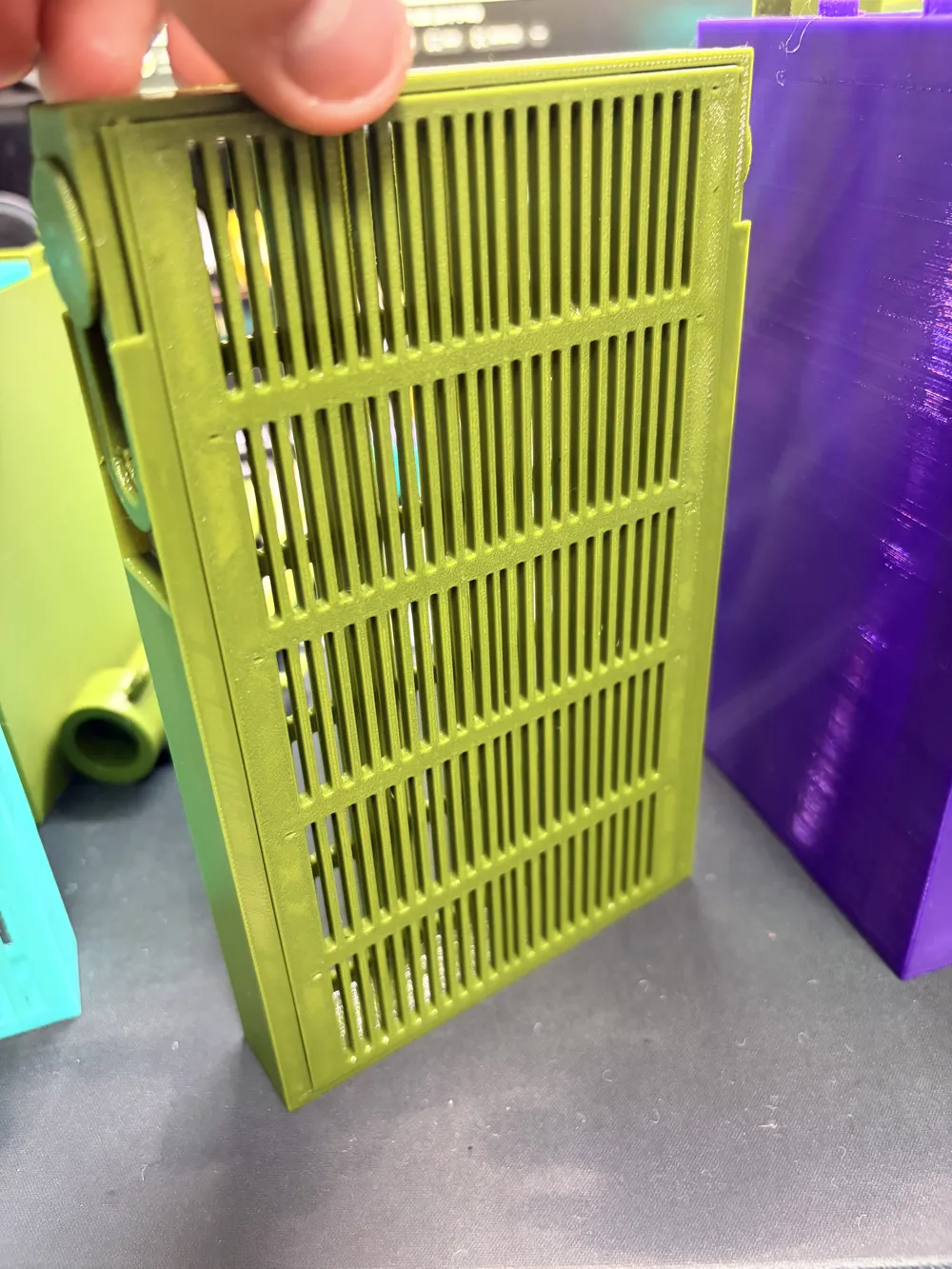

* Dual-Compartment Filter Box
It features two independent filter compartments, allowing flexible placement of various filter media such as bio-rings, aquatic plant soil, or other filter materials, meeting diverse filtration needs

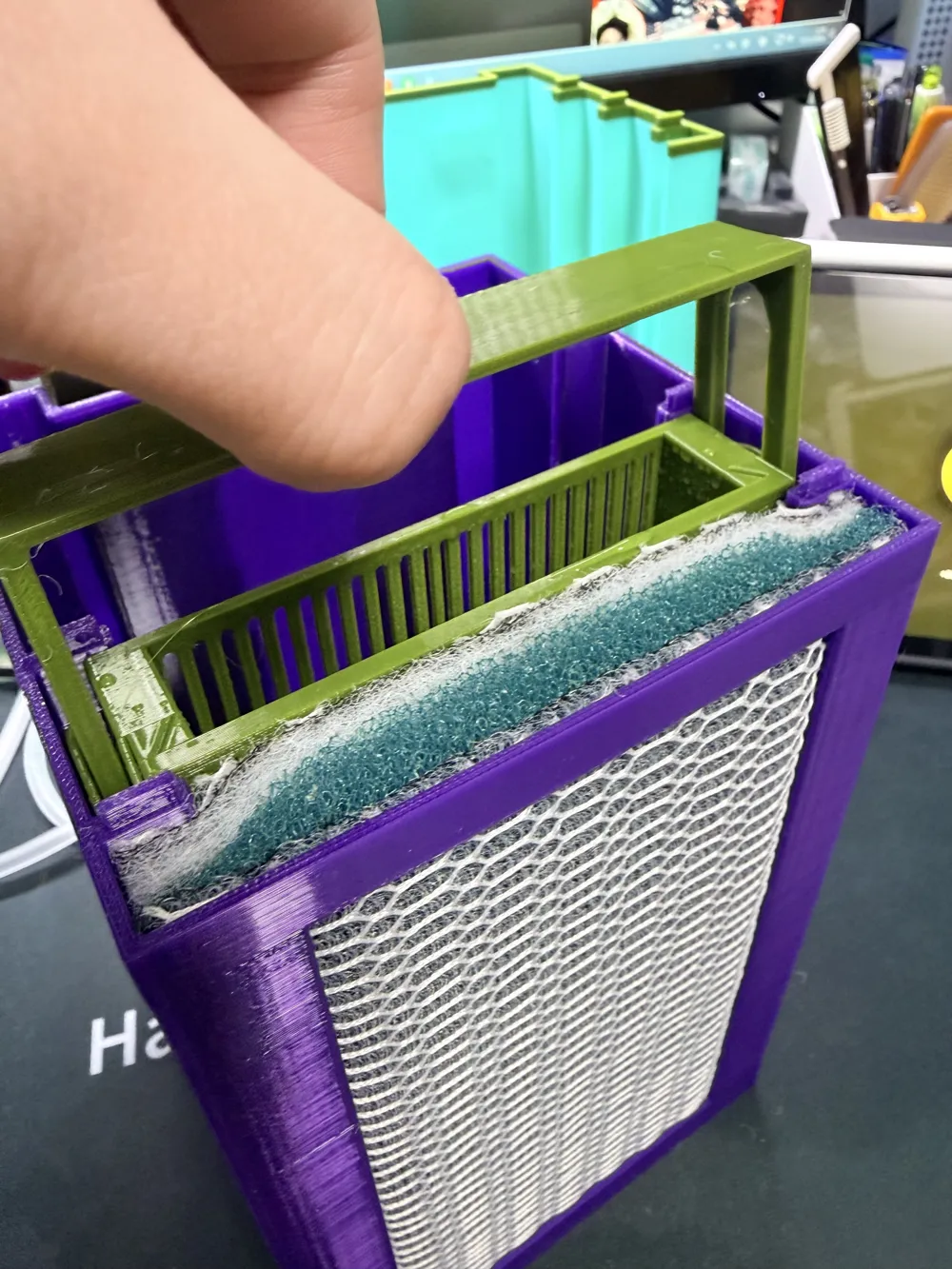

* Front Bio-Sponge Compartment
A dedicated space is provided at the very front for a bio-sponge The bio-sponge offers a large surface area for beneficial bacteria to colonize, enhancing biological filtration Simultaneously, it effectively prevents crystal shrimp or other small organisms from being drawn into the filter by the water flow, avoiding accidental entrapment or injury, thus ensuring the safety of inhabitants in the tank

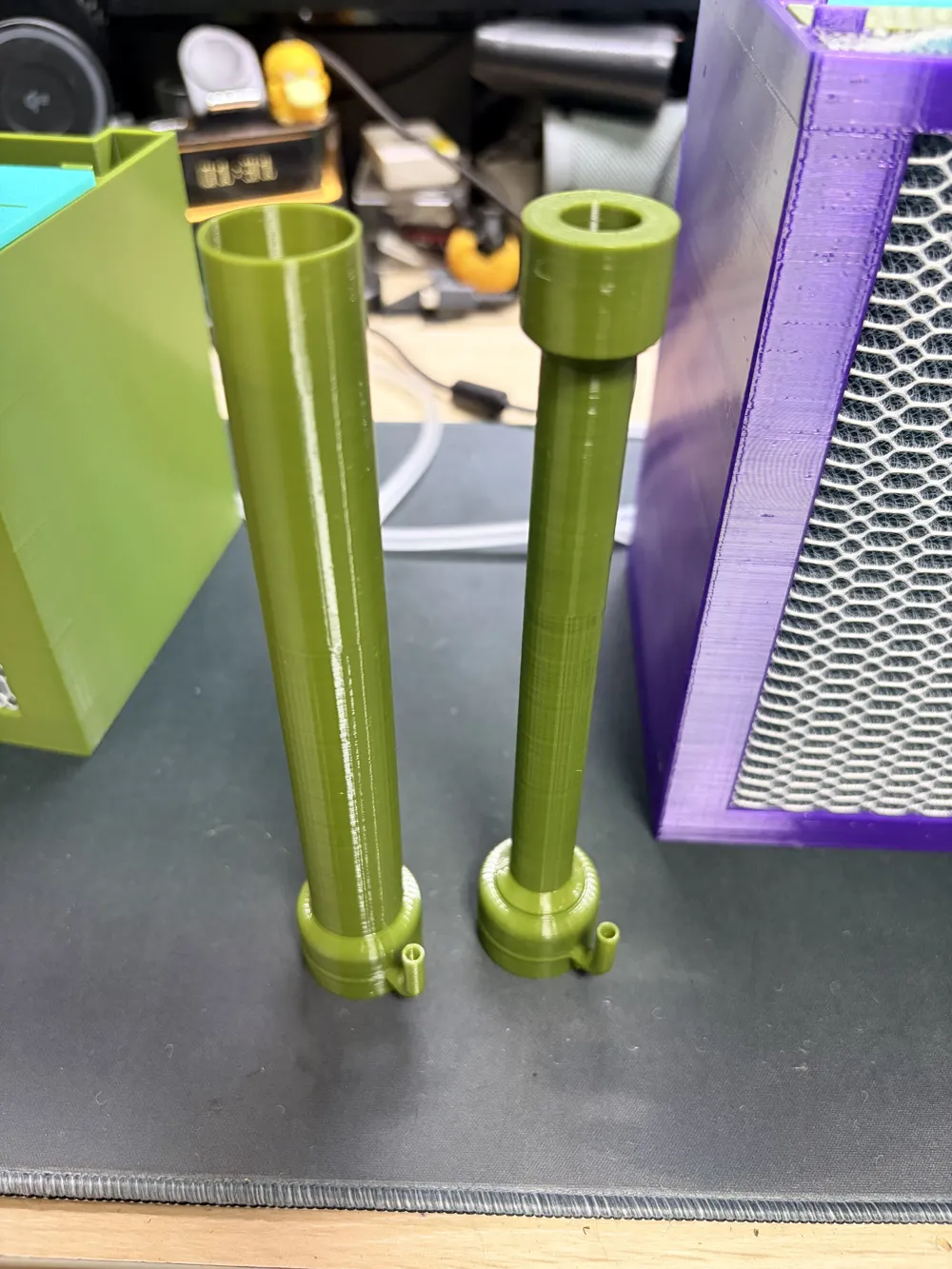

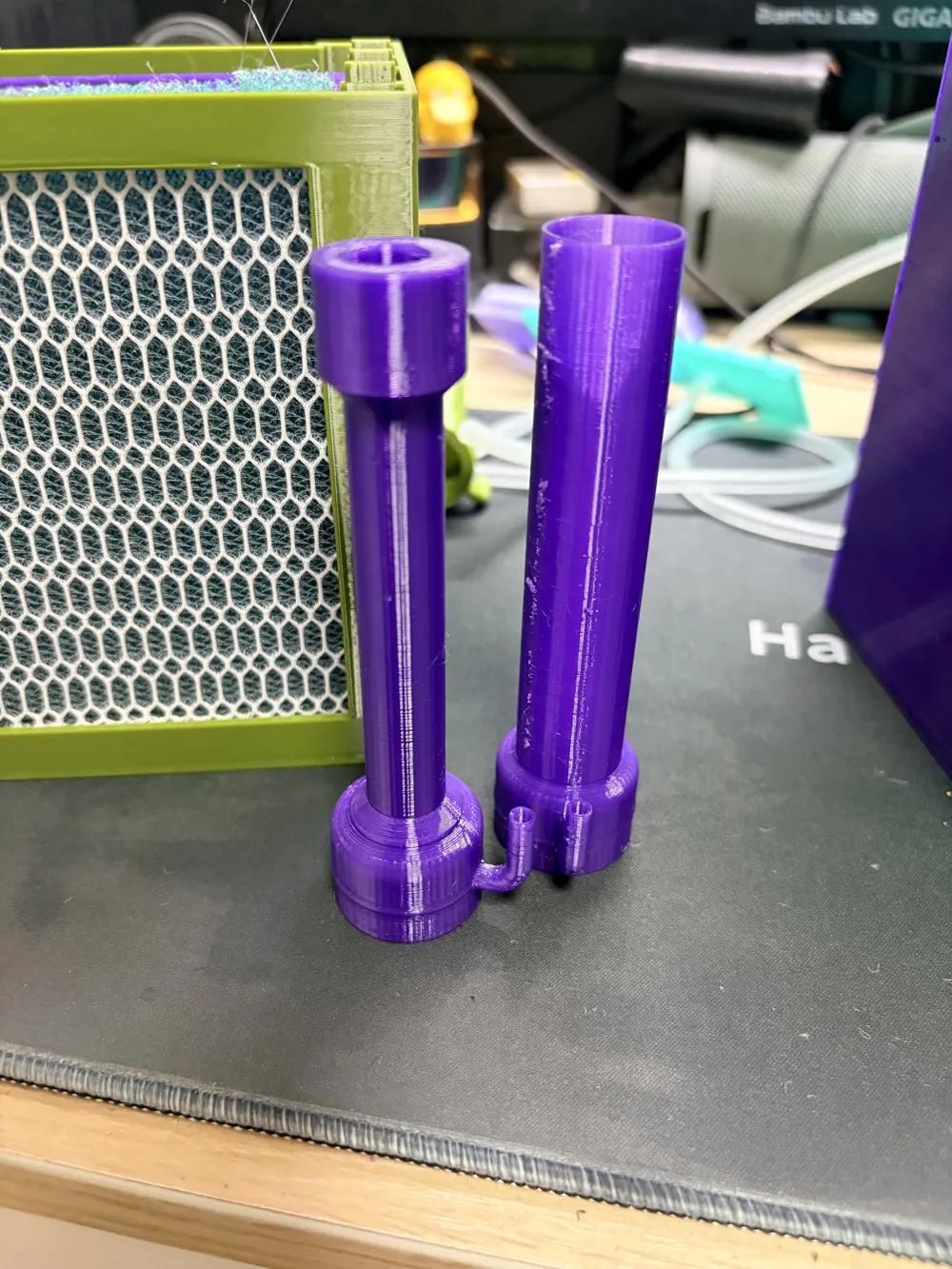

* Air Pump-Driven Water Flow
An air pump drives the water flow, creating a stable circulation that ensures uniform water filtration No additional electric motor is needed, making it energy-efficient, environmentally friendly, and easy to maintain

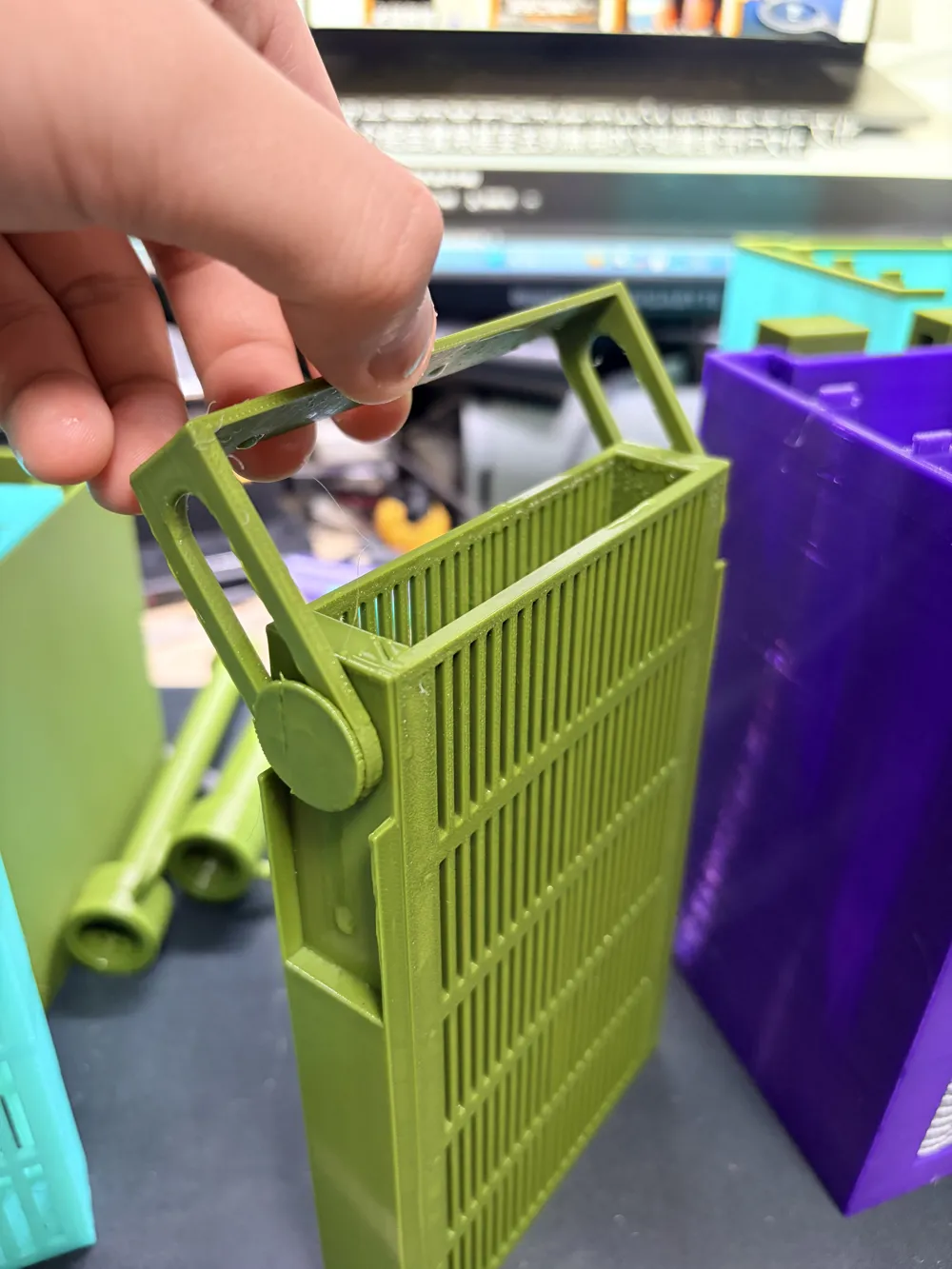

* Retractable Handle Design
Each filter compartment is equipped with a retractable handle, making it easy to remove for replacement or cleaning, simple to operate, and maintenance much easier

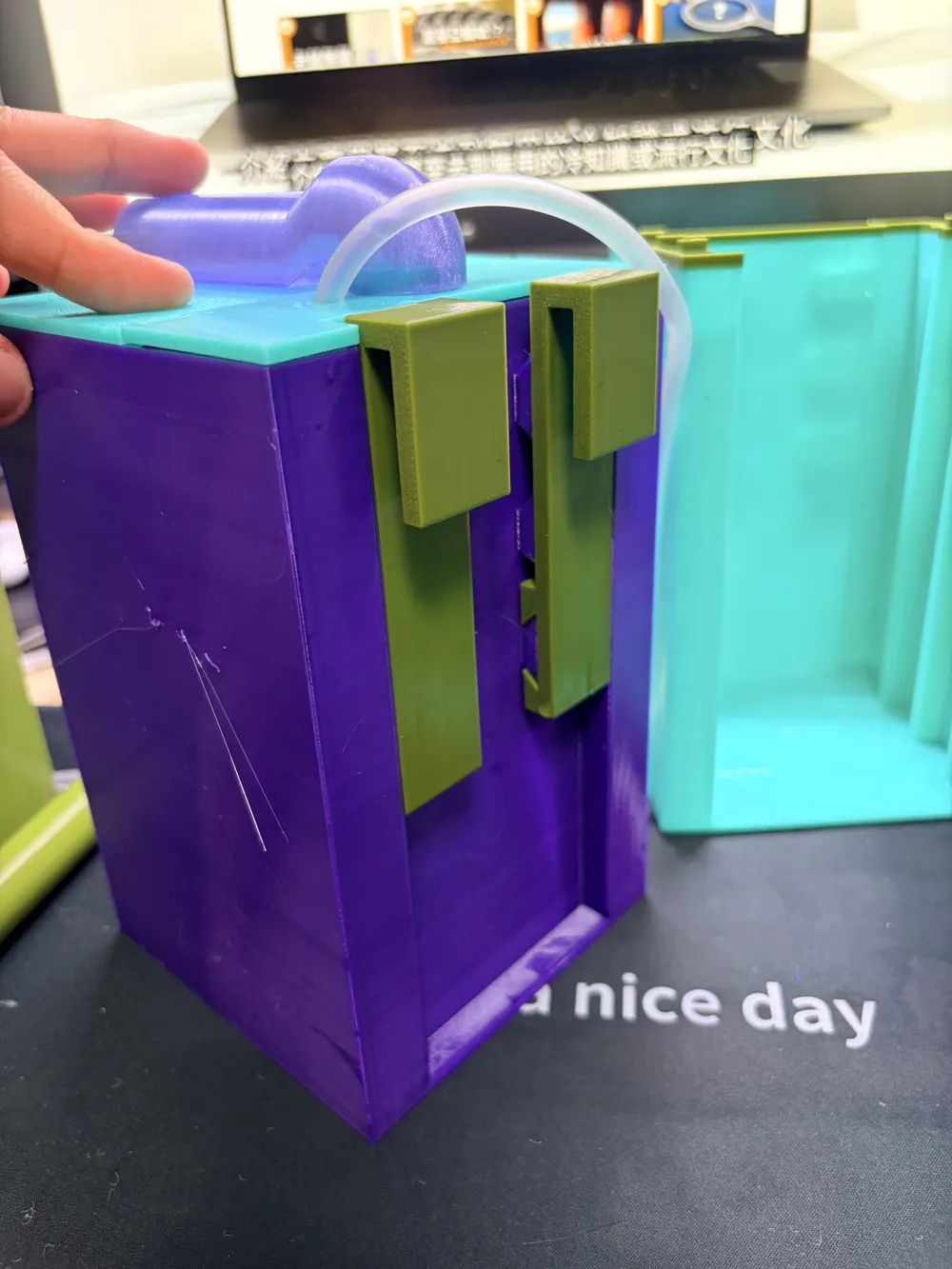

* Rear Hook Slots
The back features three hook slots at different heights, allowing adjustment of the installation position according to the aquarium's height

The hooks are compatible with glass tanks of 4 mm, 5 mm, 6 mm, and 8 mm thickness, offering wide applicability They can be securely hung on the side of the aquarium, are easy to install, and avoid occupying space inside the tank

Usage Scenarios

* Suitable for crystal shrimp tanks, providing stable water quality and reducing the accumulation of ammonia-nitrogen and harmful substances
* Also suitable for small fish tanks or planted tanks, maintaining clear water quality and promoting healthy plant growth

Summary of Advantages

* Available in two sizes to flexibly suit different aquariums
* Multi-layer filtration structure, covering physical, chemical, and biological filtration
* Bio-sponge provides both bacterial colonization and safety protection
* Rear hook slot design with three adjustable heights, compatible with various glass thicknesses
* Easy to clean and replace, enhancing user experience
* 3D printed, lightweight and durable, suitable for DIY enthusiasts and aquarium hobbyists

✨ This filter is the exclusive guardian for crystal shrimp tanks, combining flexible sizes, thoughtful hook design, and efficient filtration to keep your aquarium in optimal condition

Continuous Improvement and Updates

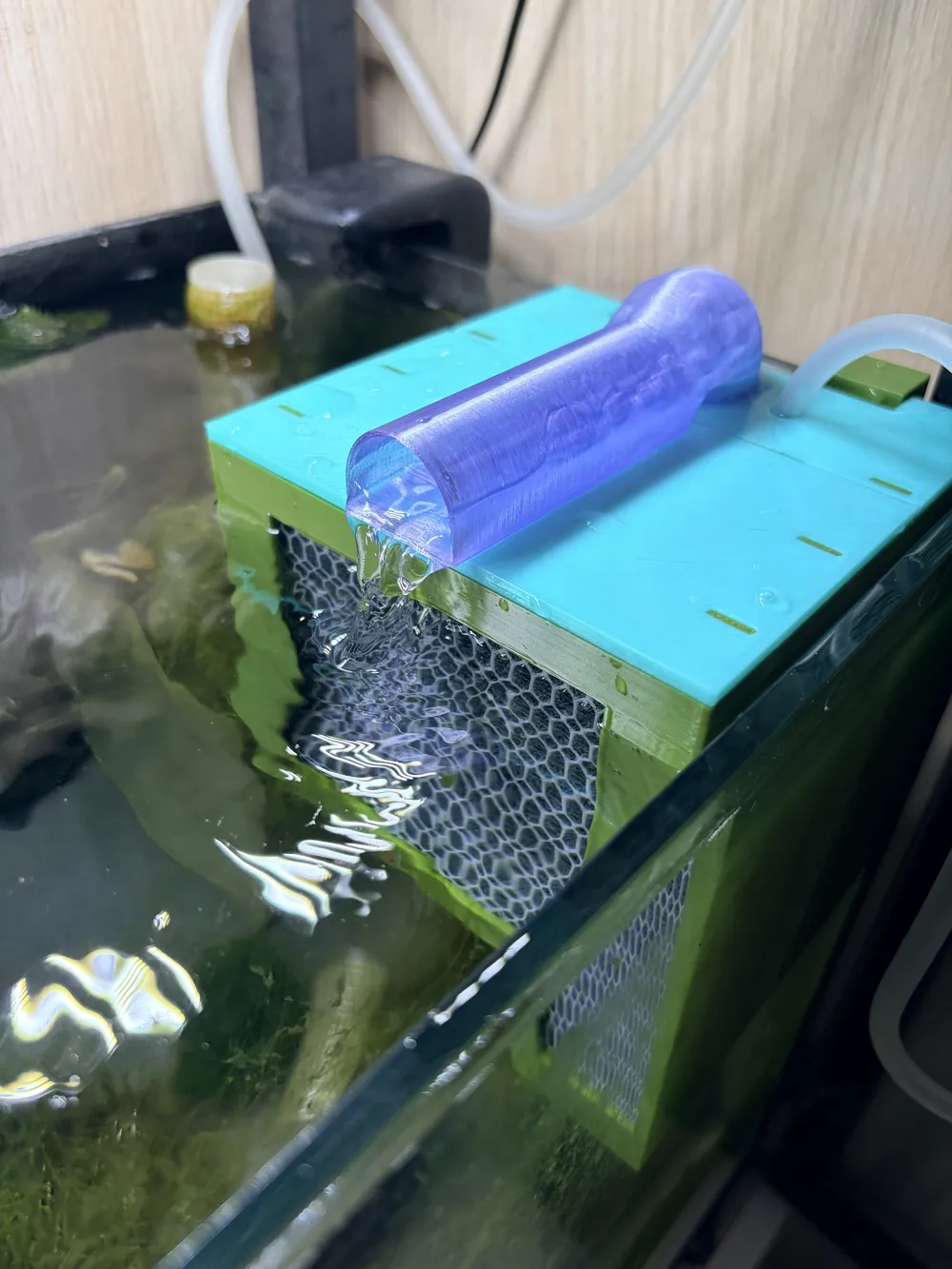

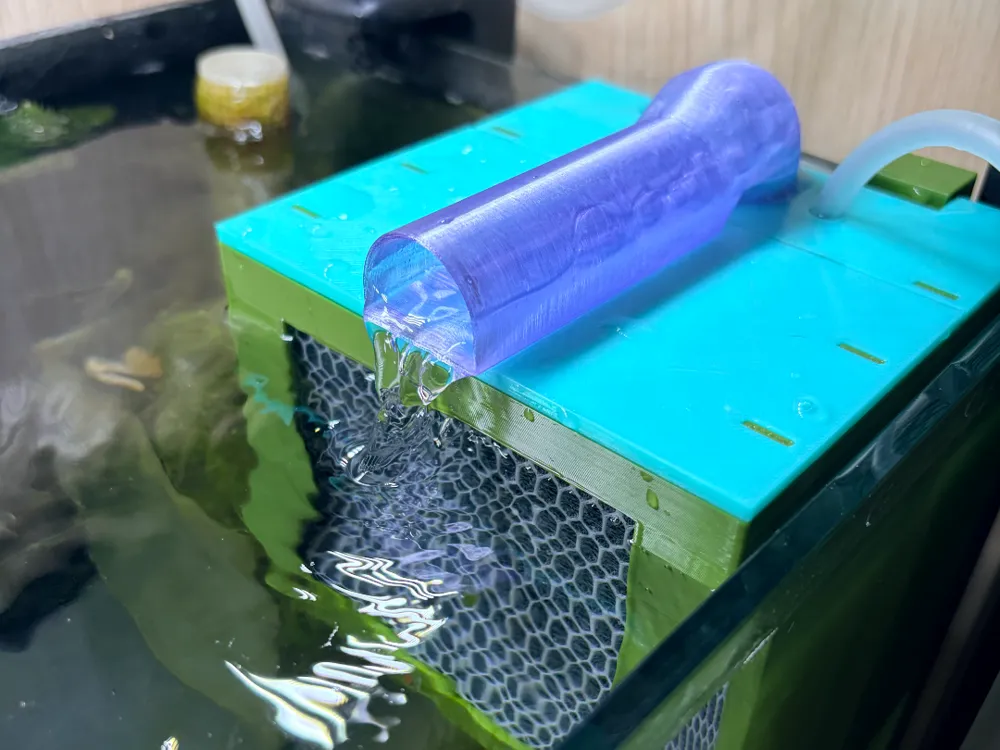

We are currently improving the filter's outlet design and considering adding small tools to optimize water flow, reduce bubbles directly exiting the aquarium, and further enhance user experience and visual appeal
