Fire truck cab, chassis, & pumper body (1/25)

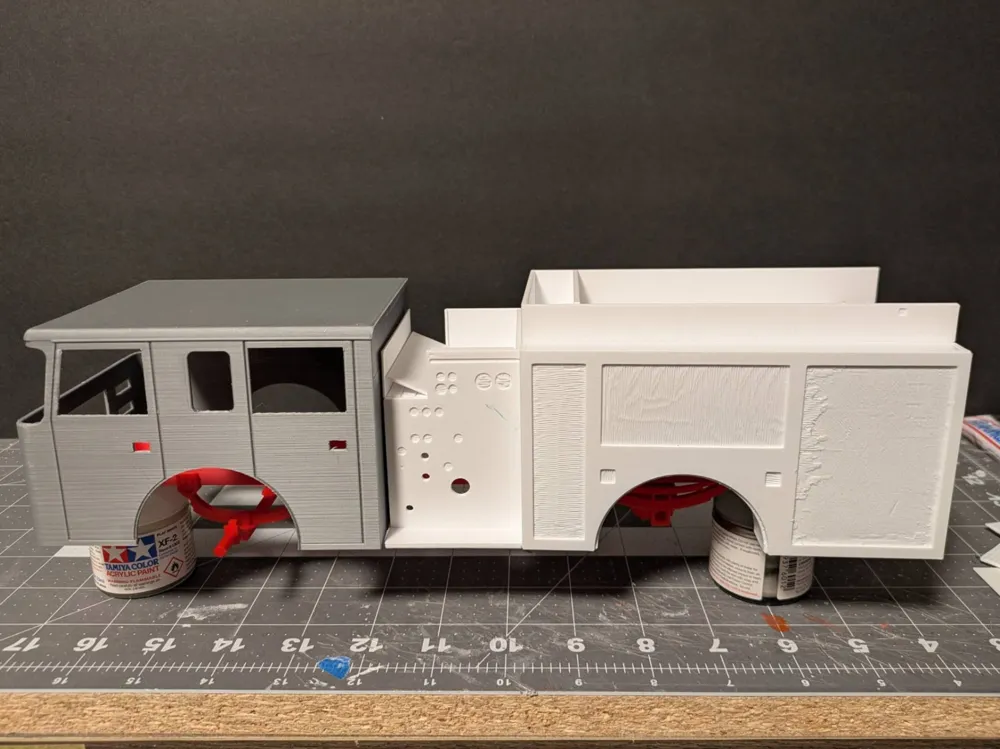

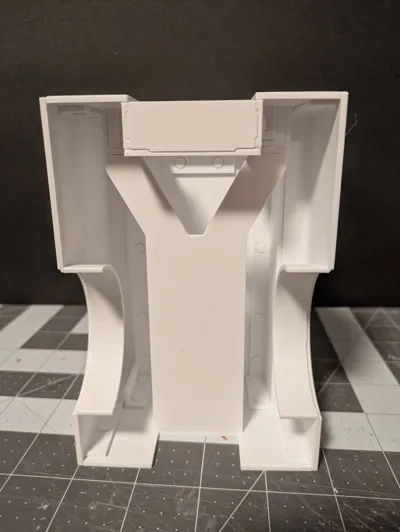

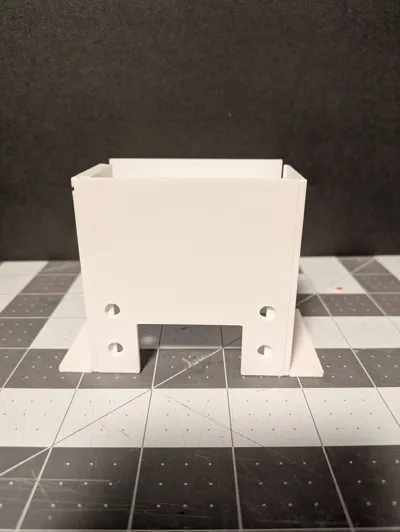

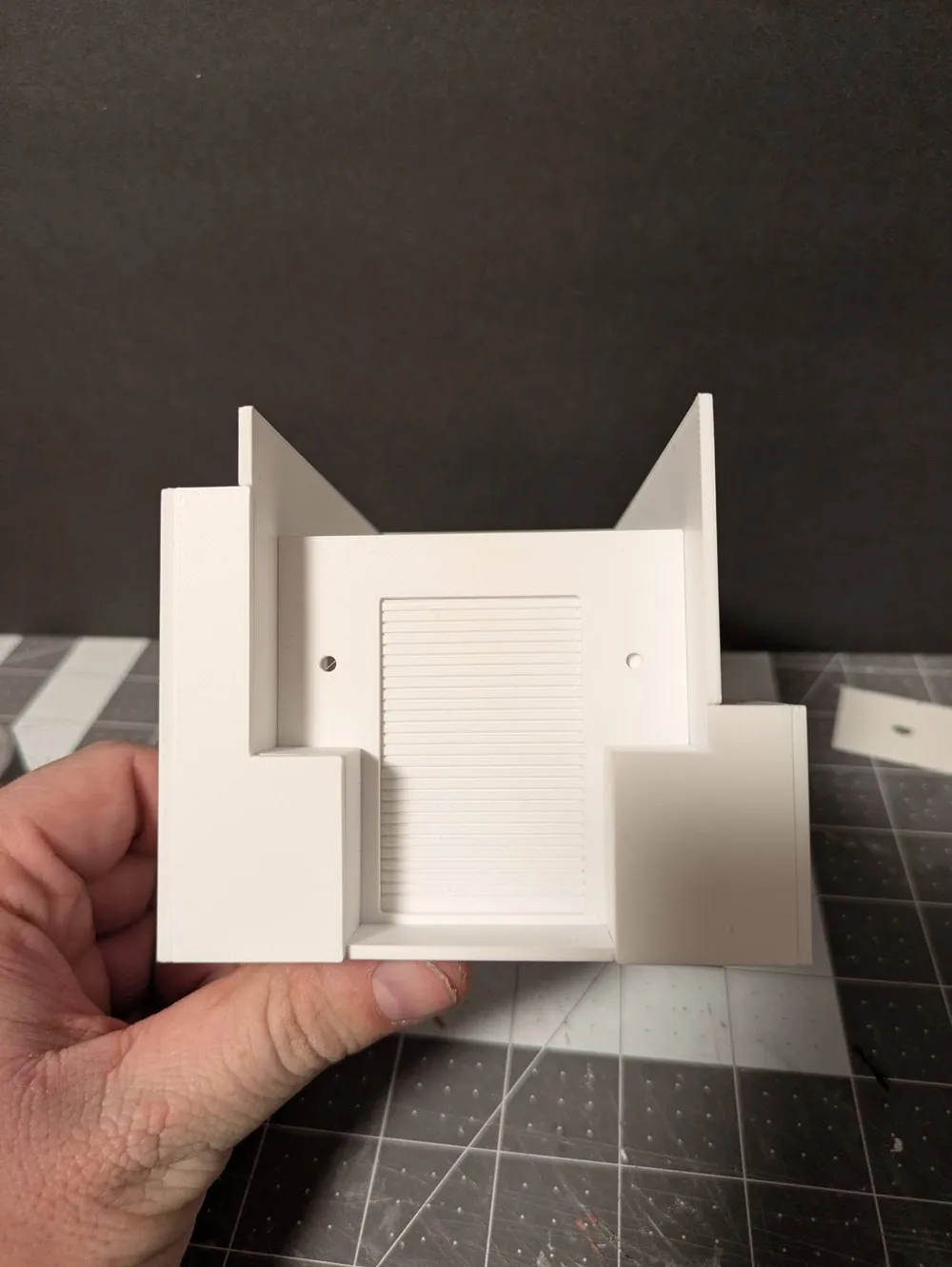

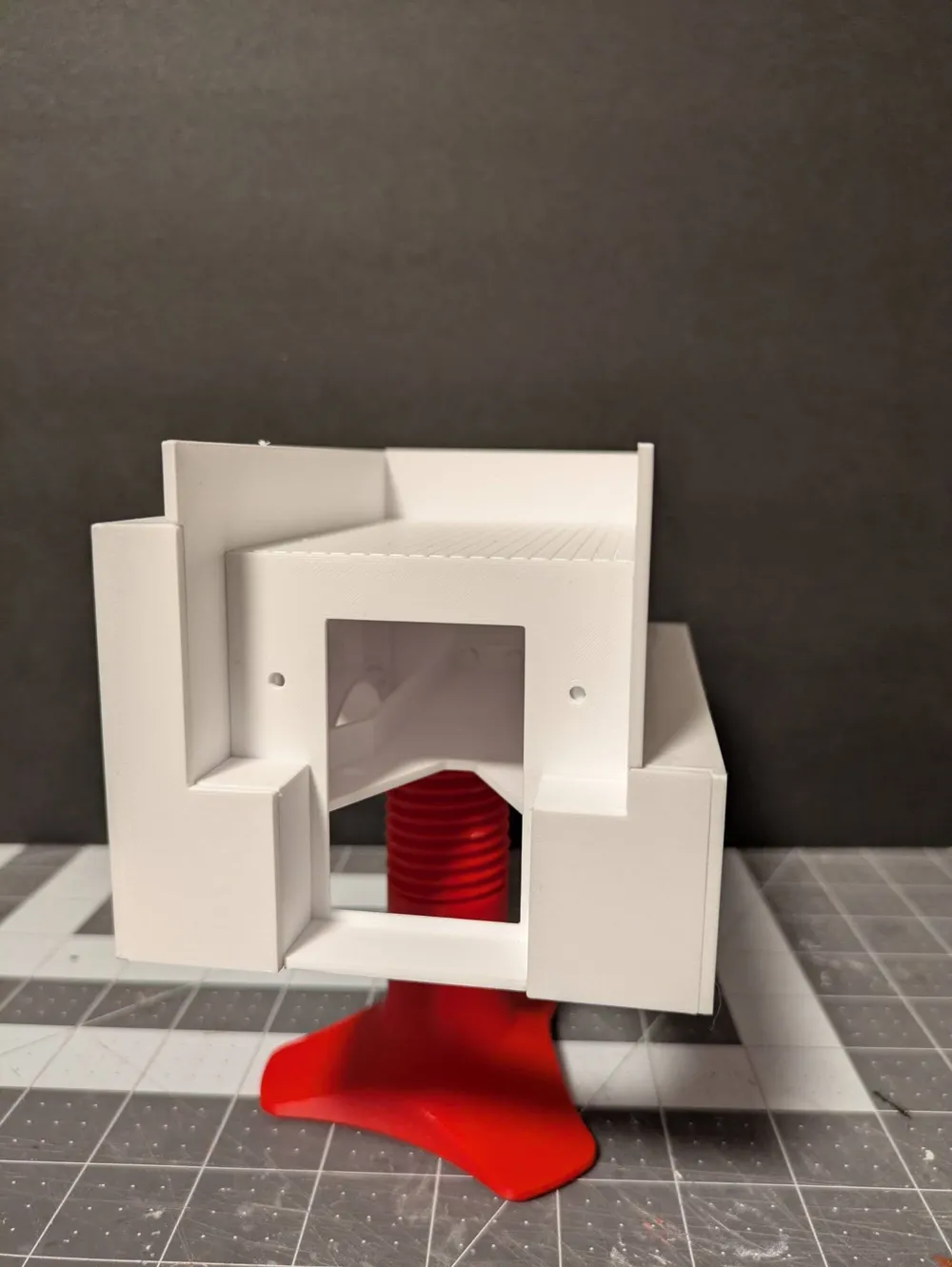

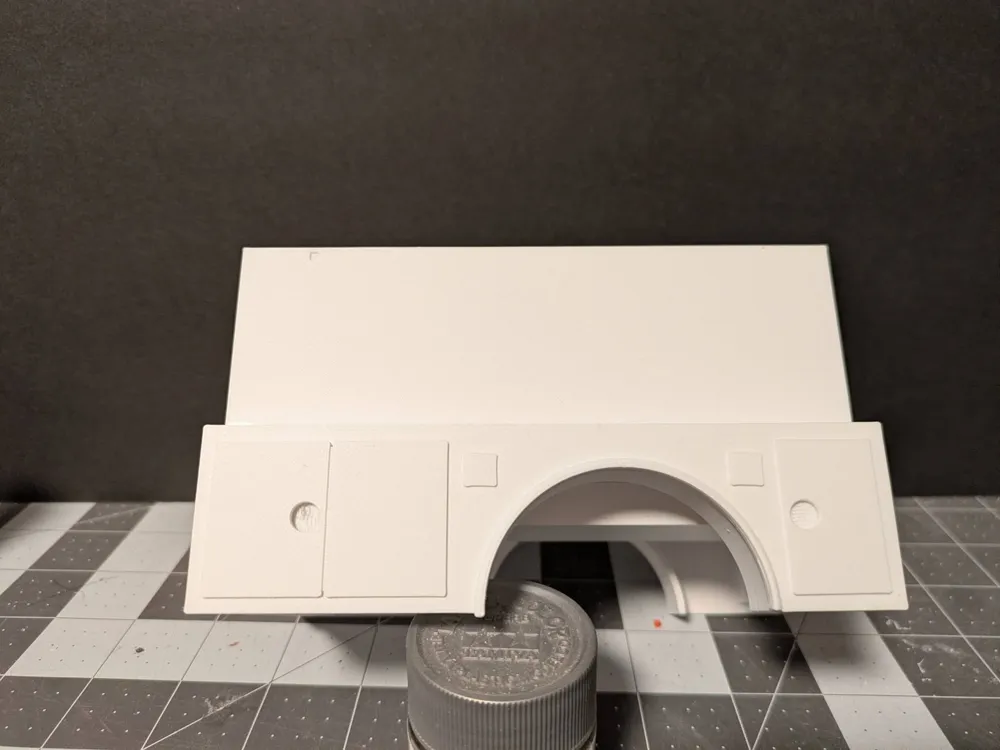

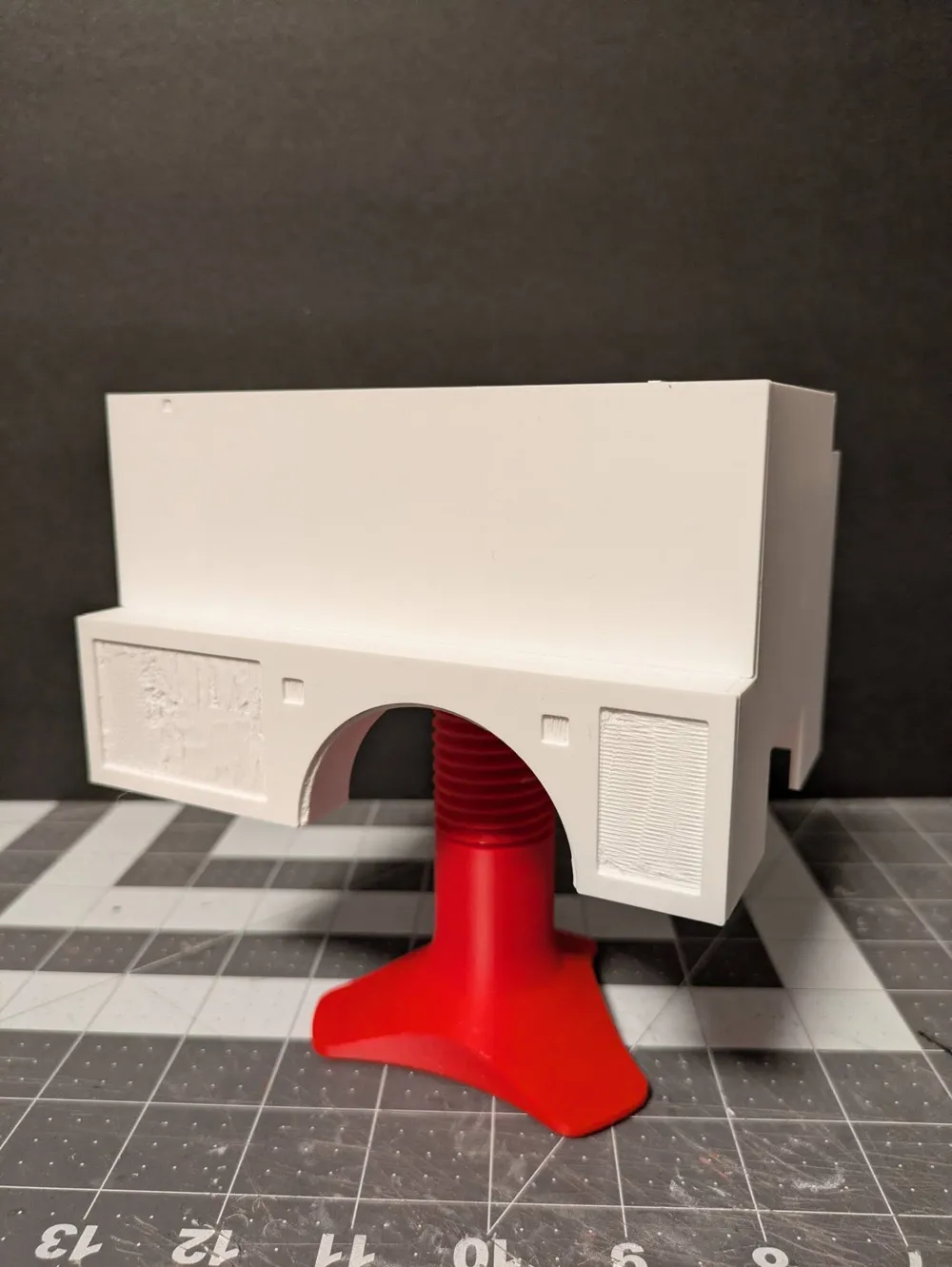

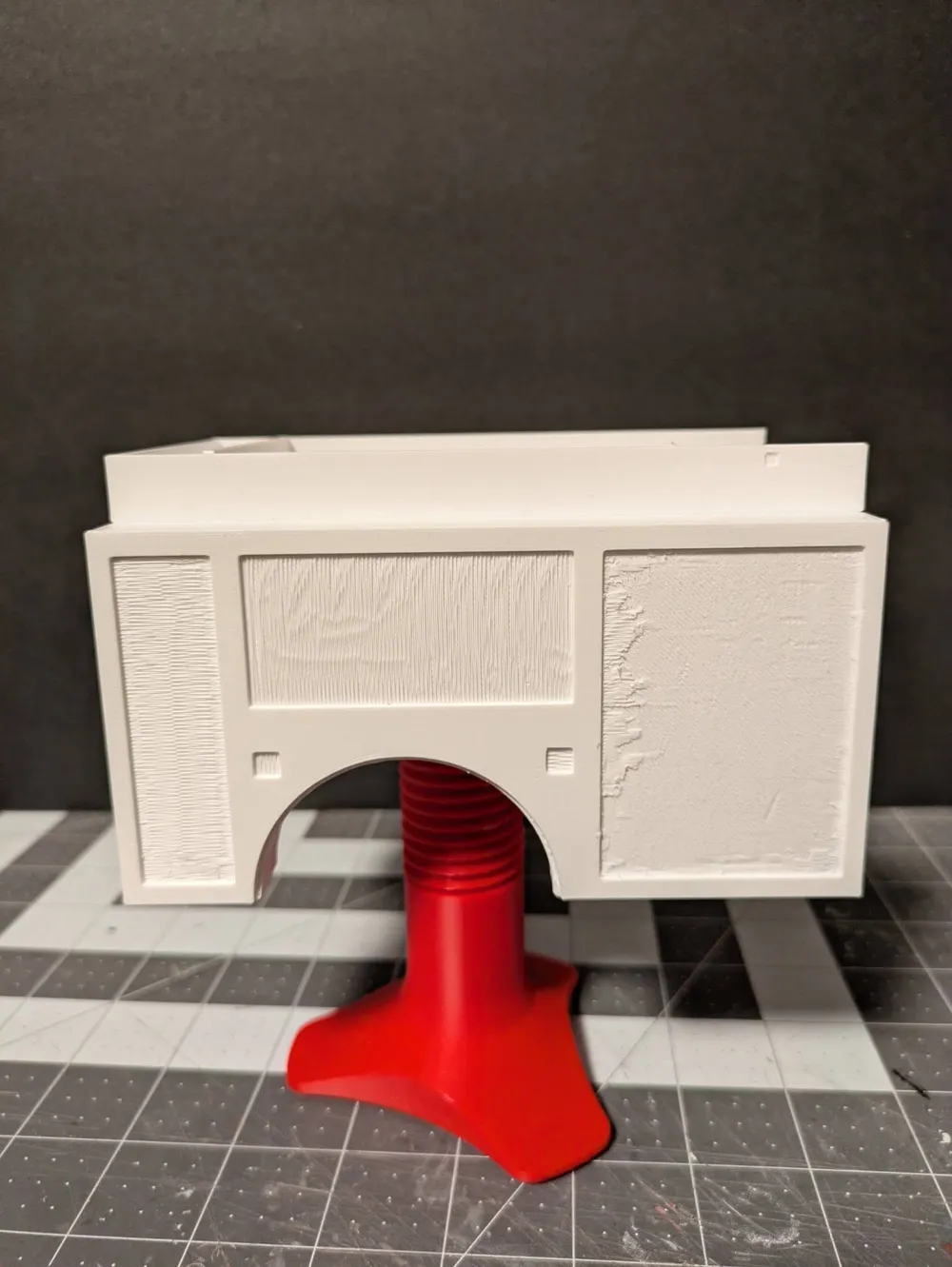

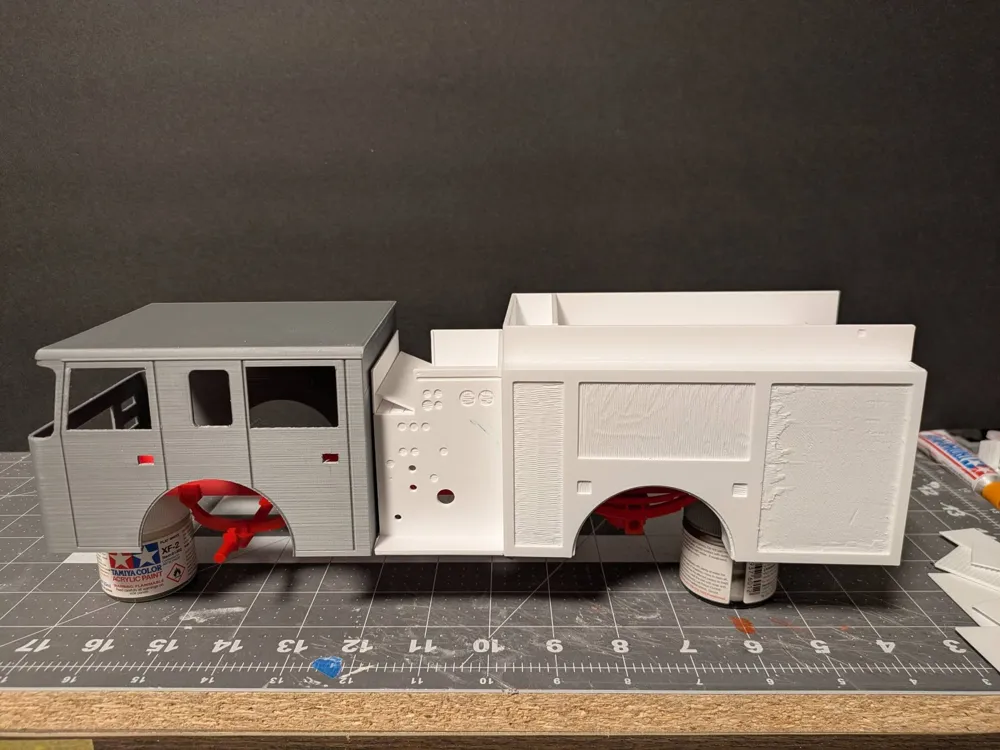

Updated 1/18/2026: Now includes pump panel and pumper body.  Use 6mm, 4mm, and 3mm  split rings to finish off the gauges on the pump panel.

This is an update to the 1/25 scale “P” style fire truck cab that I posted to Thingiverse awhile ago.  I originally designed this kit to be finished with any AMT semi truck kit, but as costs have risen on those kits, I decided to make more parts.

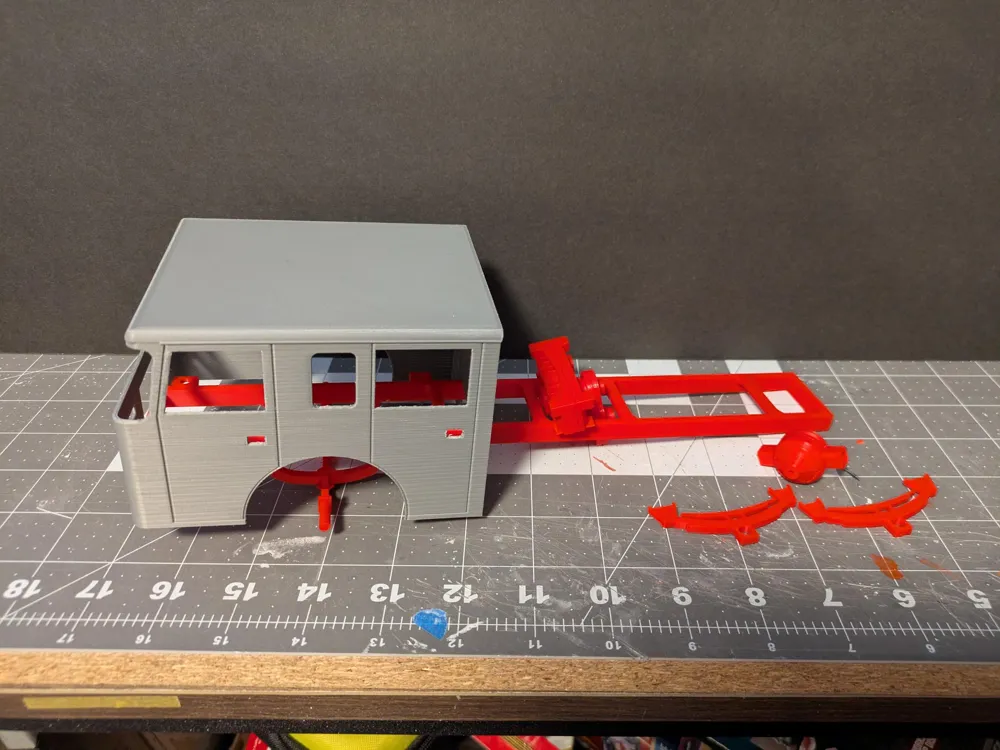

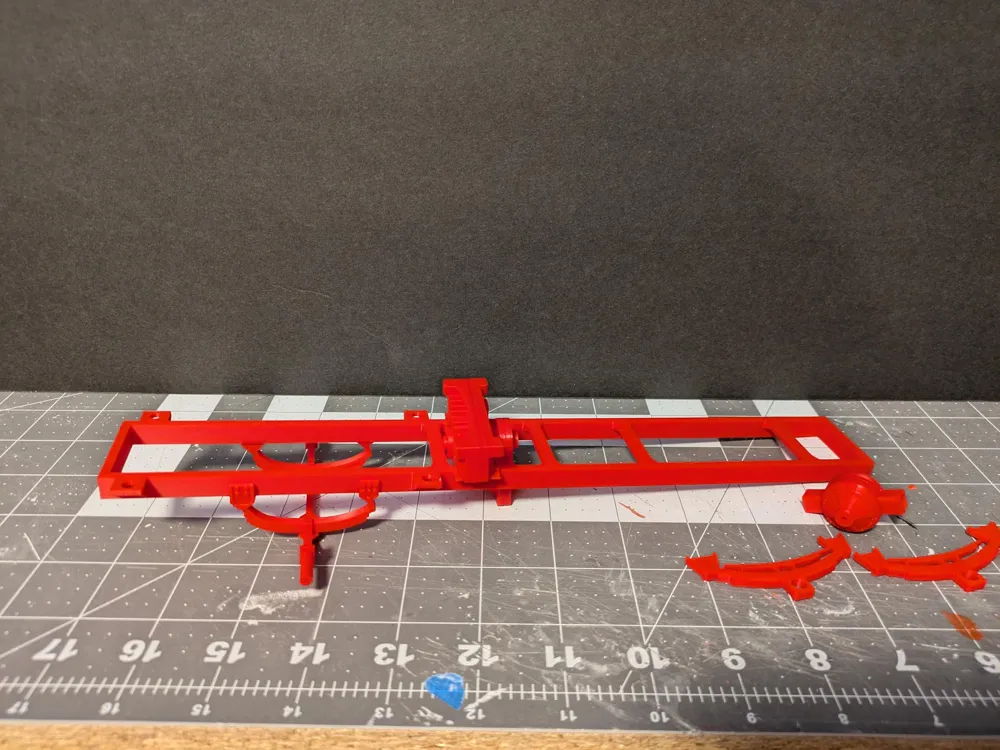

I have added a chassis with locating brackets for the cab, adjusted the inner tub for chassis locator pins, and added a solid grill.  Please note, the rear leaf springs do not have location pins since I wanted this to be as adaptable as possible for any wheelbase build that you may need.  The seats were adjusted for filament printers and the SCBA seats are included as their own plate.   I still need to work on some parts and will be adding a pump panel and pumper body in the future.

Side mirrors, grab bars, and some additional items that are better printed via a resin printer are included in their own plate.

Three cab options exist, the original flat roof, a 10 inch raised roof, and a 22 inch raised roof.

To complete the chassis without a 1/25 scale semi truck kit, I recommend printing @BuildItBetter's 1/14 Scale Tires and 1/14 Scale Wheels | style 6, just scale them to 56%.  You will need a 0.2mm nozzle for best results on the scaled wheels.
