DIN 3 Rail Guide Profile
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 25% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
8
20
2
0
34
26
Released
Description

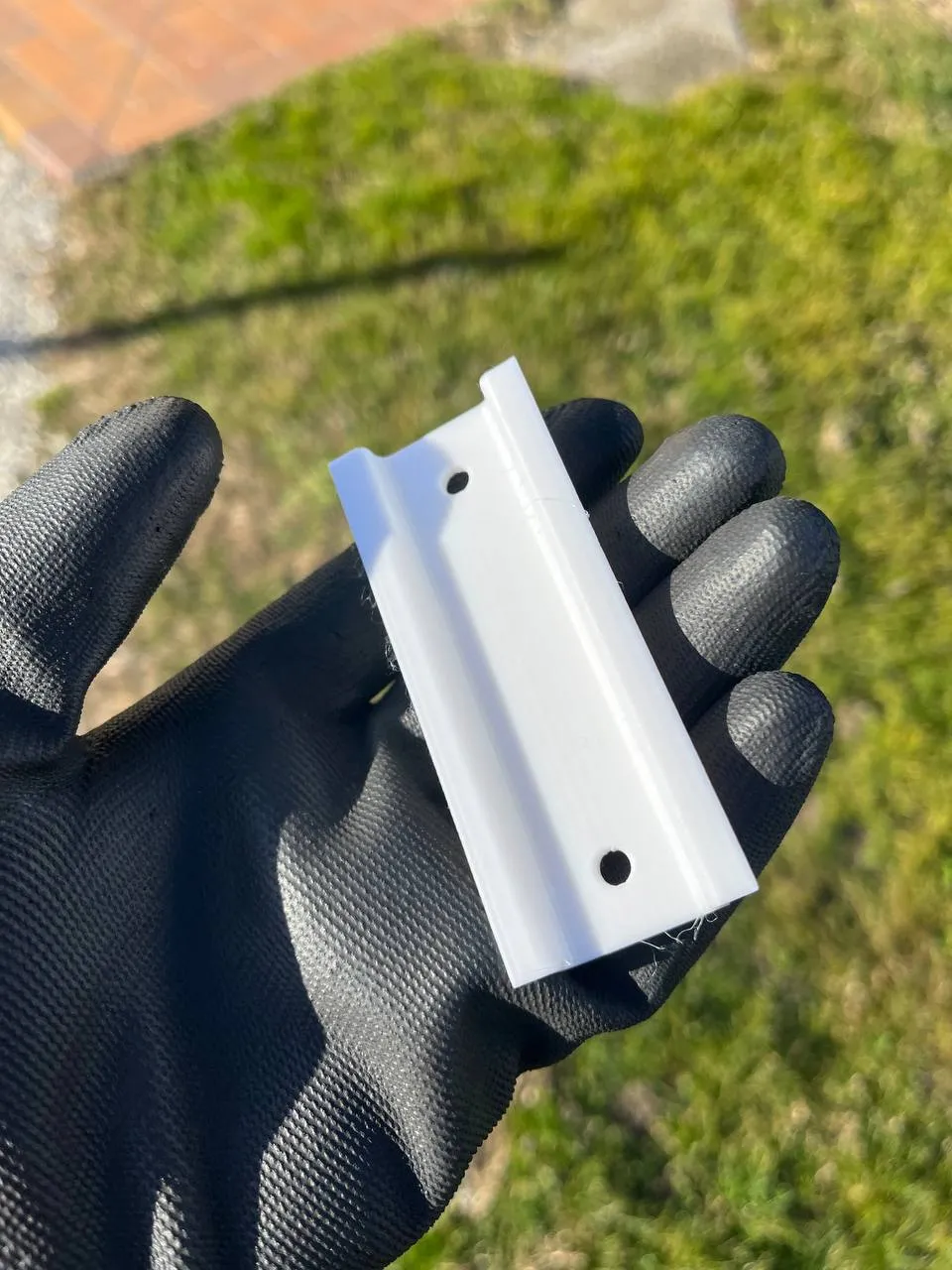

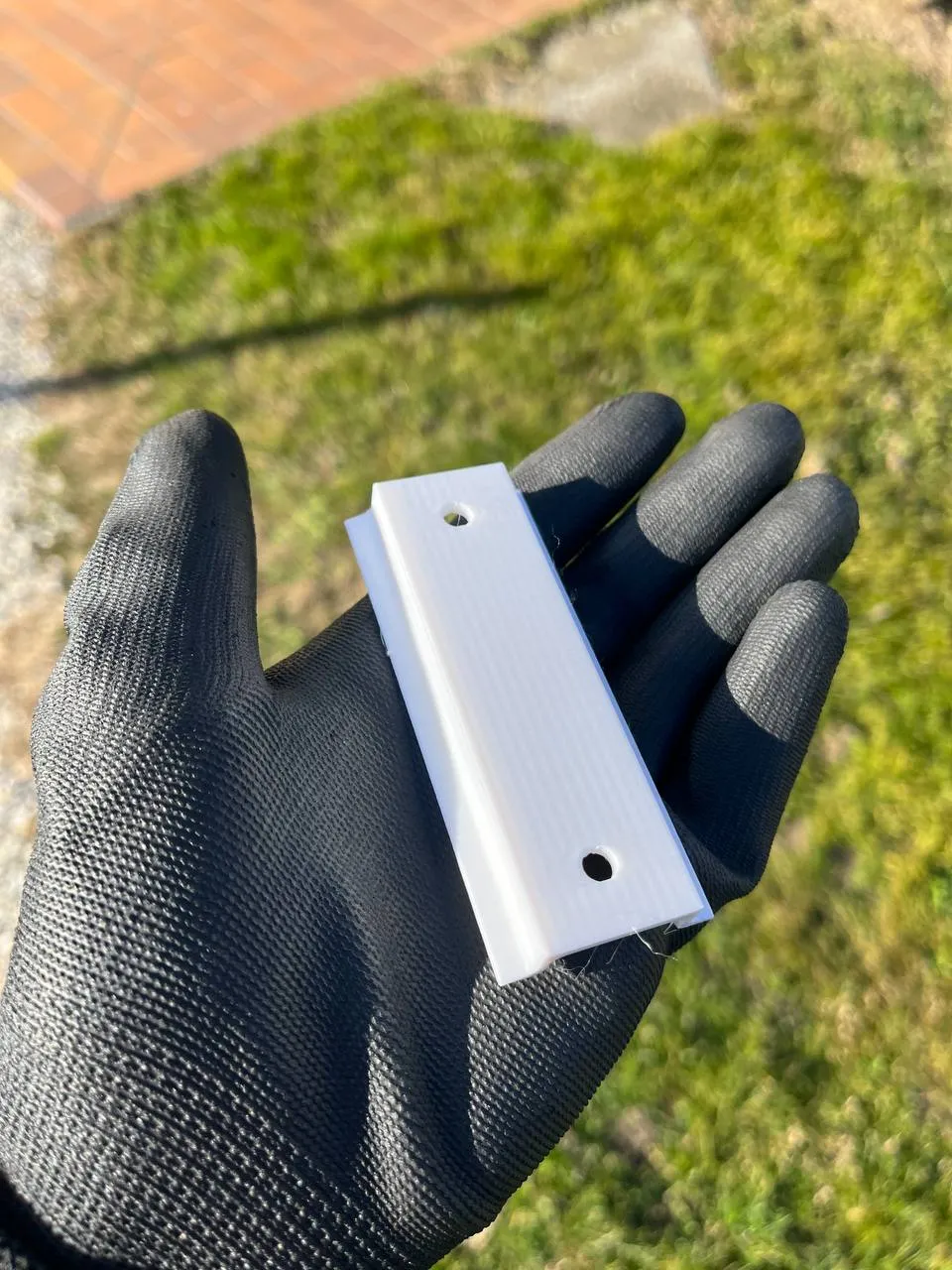

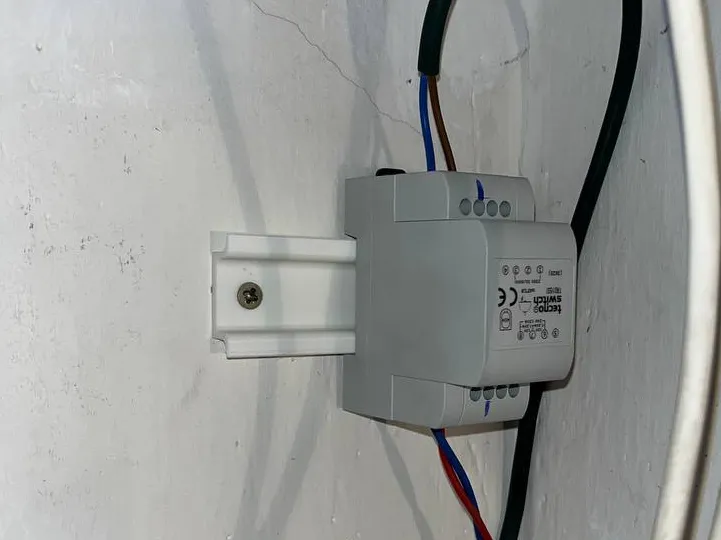

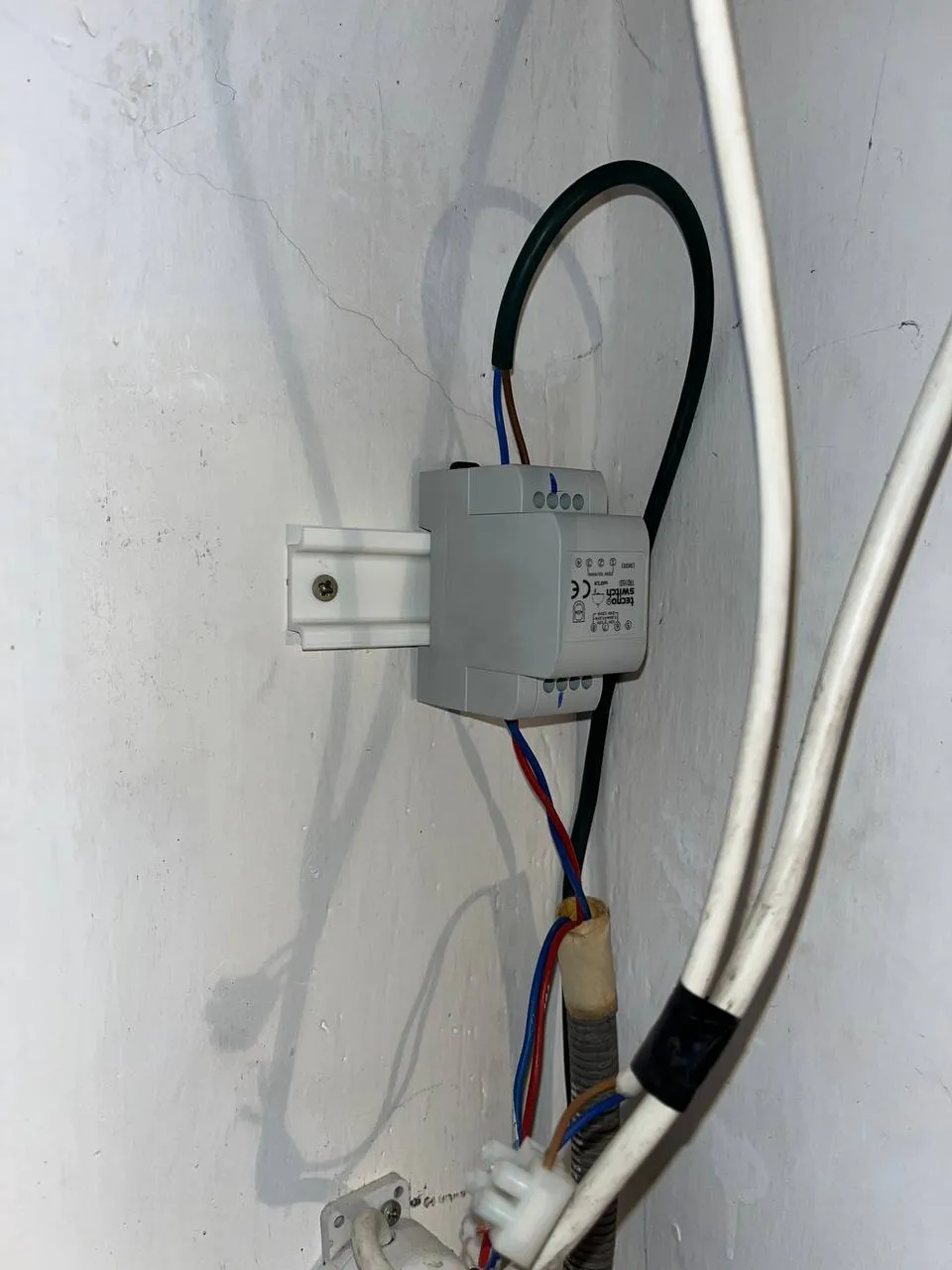

This is a TS35 DIN rail profile designed for vertical wall mounting. It allows you to snap standard industrial components (circuit breakers, relays, or PLCs) directly onto a wall or flat surface.
- Hole Diameter: 5mm (M5 screw compatible)
- Hole Pitch: 66mm (Center-to-center)
- Total Height: 86mm
- Profile: Standard 35mm "Top Hat"
