Lenovo Idea Tab 2025 tablet wall mount - Remix

Sleek and simple wall mount for the Lenovo Idea Tab (2025)

It is a remix from Printables (@RonanWarrior_126637)

The original designer created this for a Fire Tablet HD and a Lenovo Tab M11

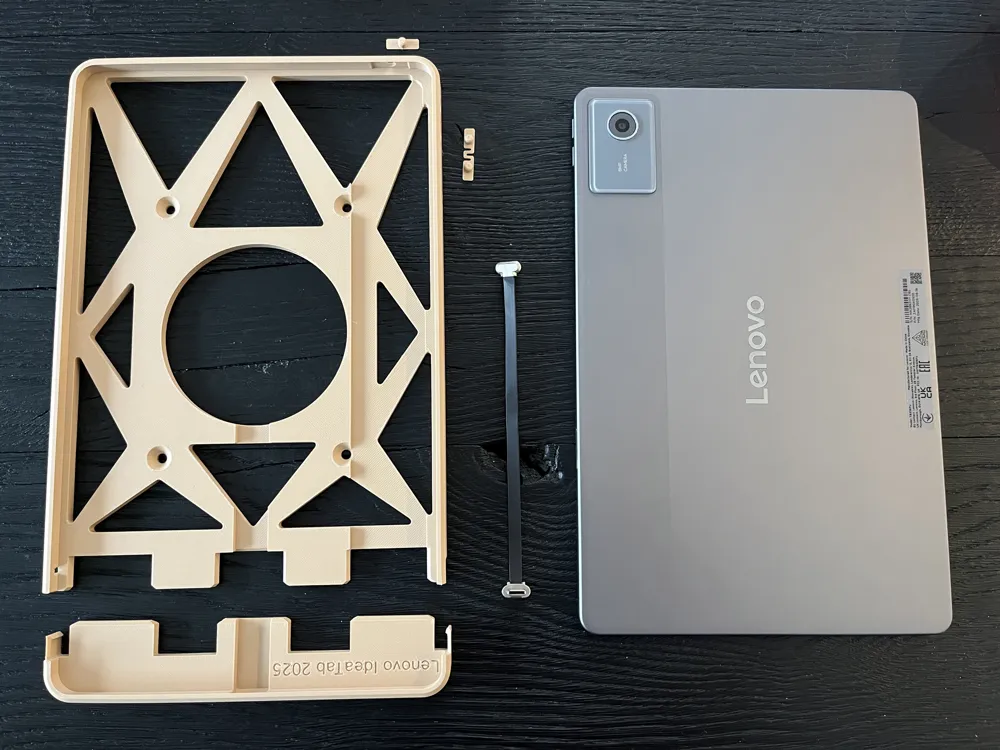

An angled ultra-slim USB-C cable is needed. This is visible in the pictures. You can get this online on Amazon, etc

Example:

1 piece 20cm 17cm USB-C Type C Male Up Angled 90 Degree to USB 2.0 Male Data Cable USB Type C Flat Cable 200mm 170mm - AliExpress 13

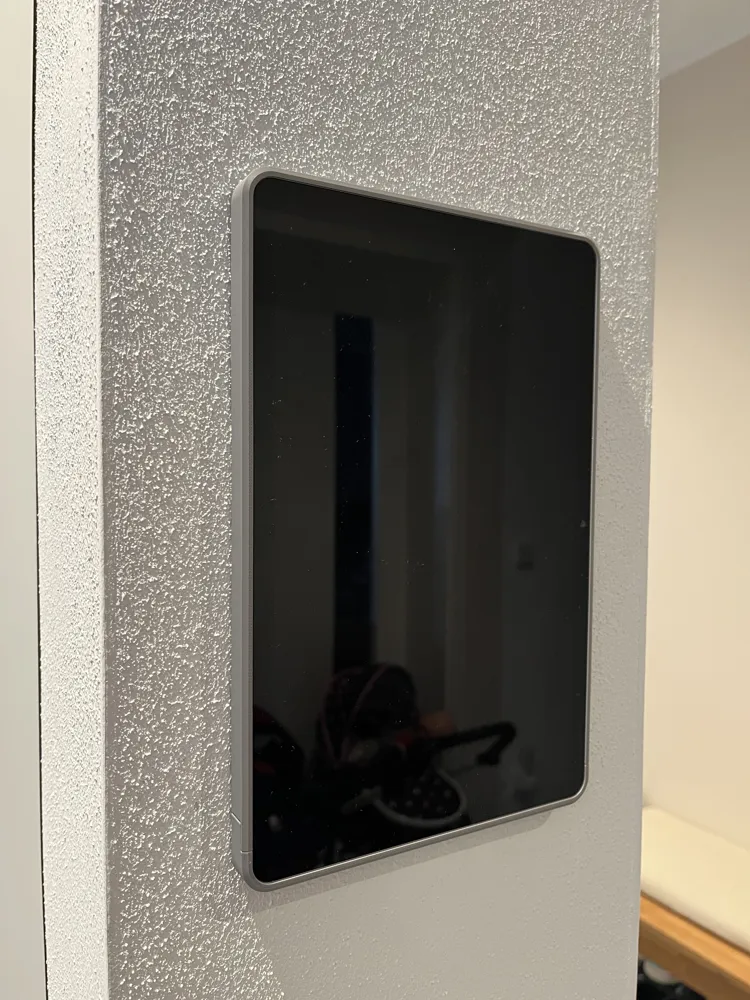

I previously had the exact Lenovo Tab M11 hanging in this mount on the wall and found the design so successful that I reconstructed 99% of it in Freecad 1.0 for my tablet upgrade to the Lenovo Idea Tab

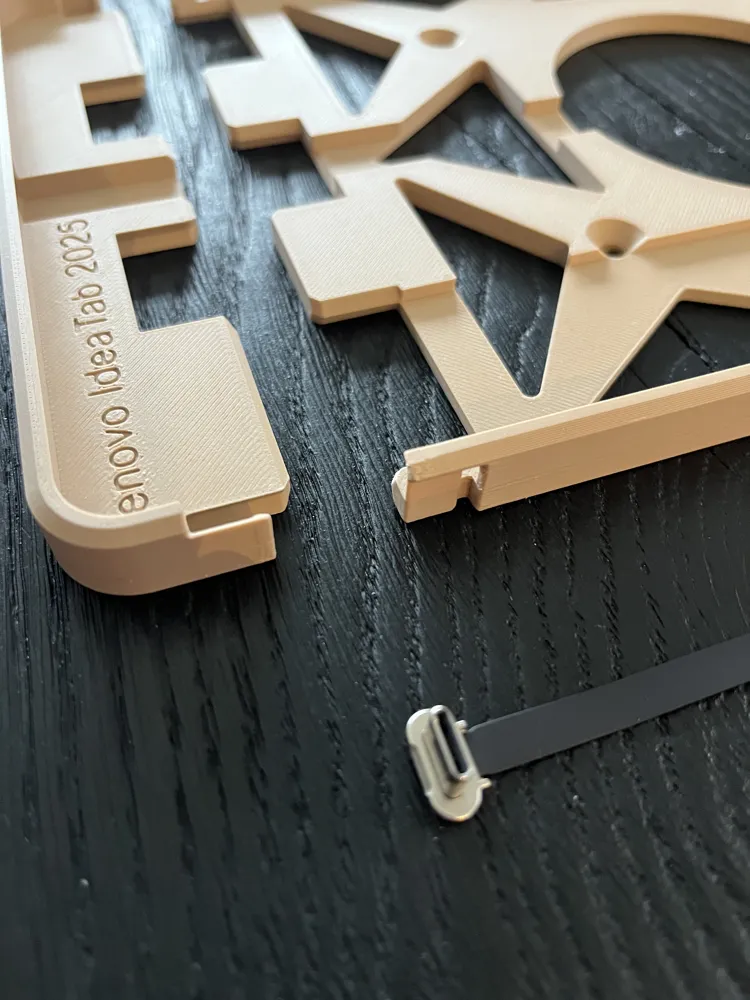

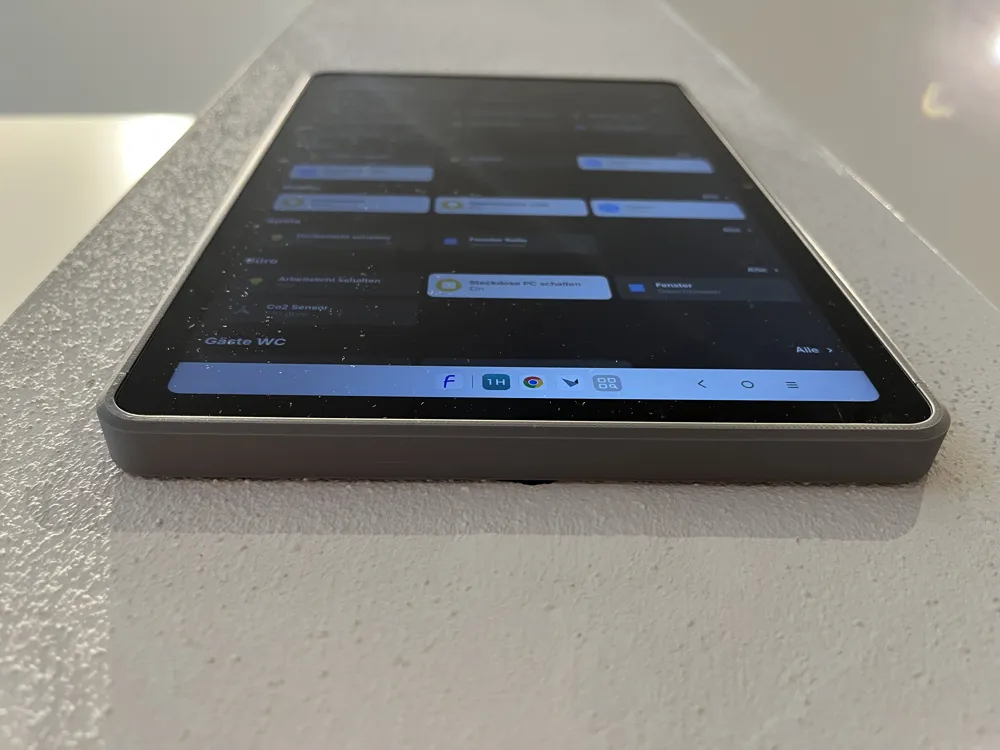

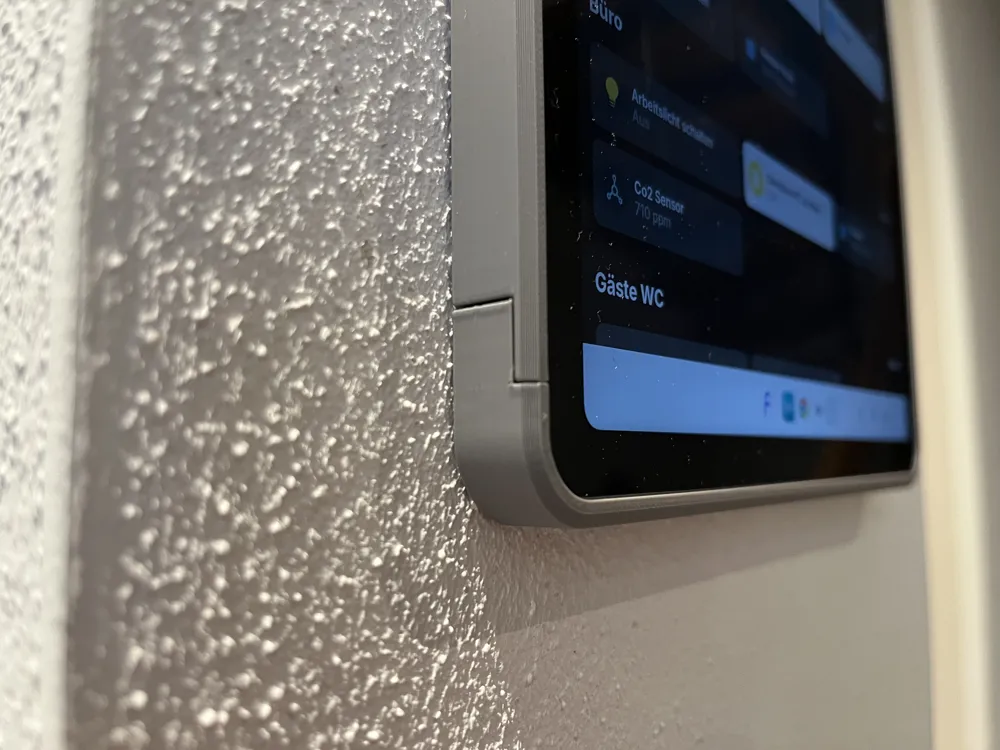

I wanted the frame to be as thin as possible. The most delicate areas are in the snap connection and are only 2 wall lines thick in some parts. However, the hold is still very secure even when vertical

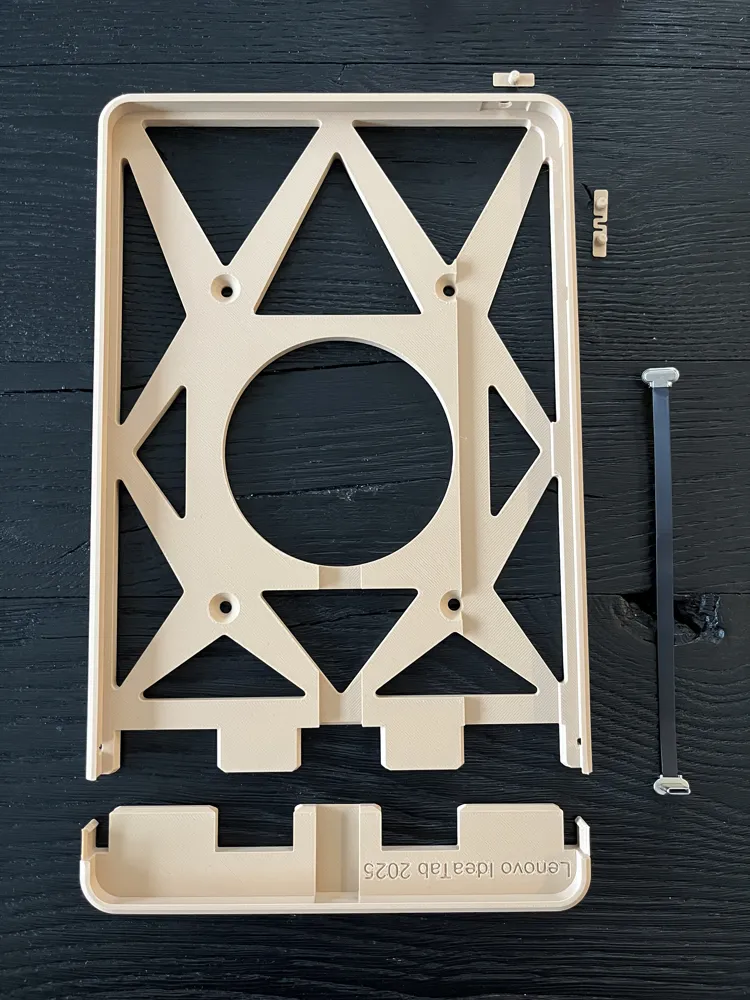

The print result with Bambu PLA Matte is very beautiful in my opinion

I have attached the model as a Freecad file, as I am always happy when clever online models can be perfected for one's own use through small, simple adjustments

This is my first upload. Have fun with it
