Synology 4Bay NAS Module for 10 inch KWS Rack [4U]

🔗 Remix credit

This model is based on the excellent work by @UnluckyForSome:

https://www.printables.com/model/1383568-synology-ds920-nas-front-plate-for-deskpi-rackmate



This version was redesigned and adapted specifically for the KWS Rack v.2 system.

What is this?

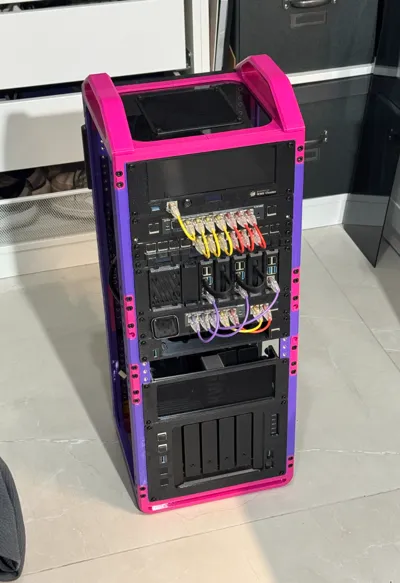

This is a 4U Synology 4‑bay NAS module designed exclusively for the KWS Rack v.2 - Heavy‑Duty 10‑Inch Homelab Rack.

It allows you to mount your Synology NAS securely, cleanly, and rock‑solid inside the rack, while preserving:

• Proper airflow
• Rear fan alignment
• Clean front connectivity
• On a heavy-duty KWS Rack base

⚠️ Important - This module was designed and fit for KWS Rack v.2 ONLY

Compatible Synology models

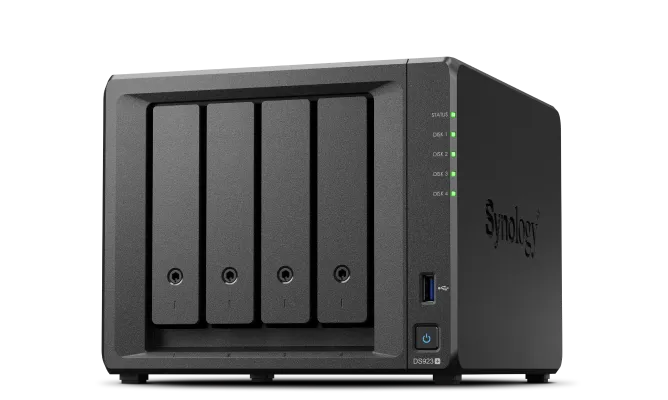

This module fits Synology 4‑bay models that share the same chassis structure and dimensions, including:

• DS923+
• DS920+
• DS918+
• DS916+

(If your model uses the same 4‑bay enclosure and rear fan layout, it should fit.)

What’s included in the model

Front panel (4U)

• 5× standard keystone slots
• Supports common keystone modules
• Unused slots can be closed using a printed blank keystone

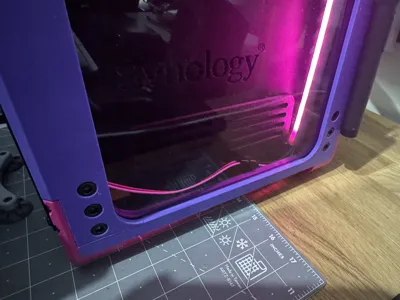

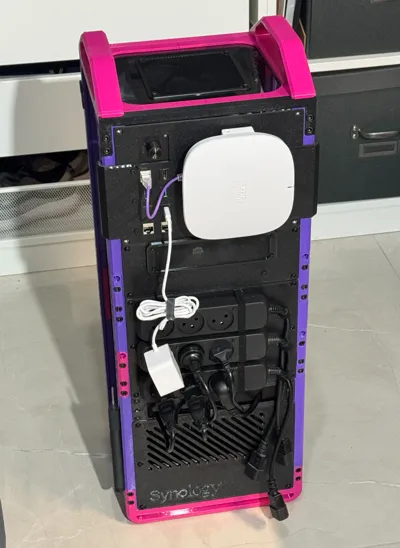

Rear panel

• Precisely aligned with Synology rear fan openings
• Maintains correct airflow and cooling behavior

Heavy‑duty base (KWS Rack v.2)

• The same base used in the official KWS Rack v.2 kit - don't print it if you already did
• Optional heat‑set inserts on the sides if you want to install side stoppers

Stoppers

• Side stopper
• Top stopper

Together they lock the NAS in place and prevent any side‑to‑side movement inside the rack.

Designed for the KWS Rack ecosystem

This module is part of the KWS Rack v.2 modular ecosystem

Check out the full rack system here
