Modular DM screen (monitor optional)
Print Profile(1)
Description

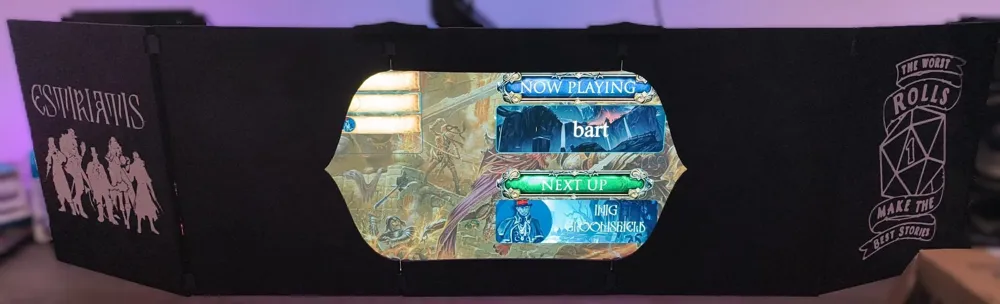

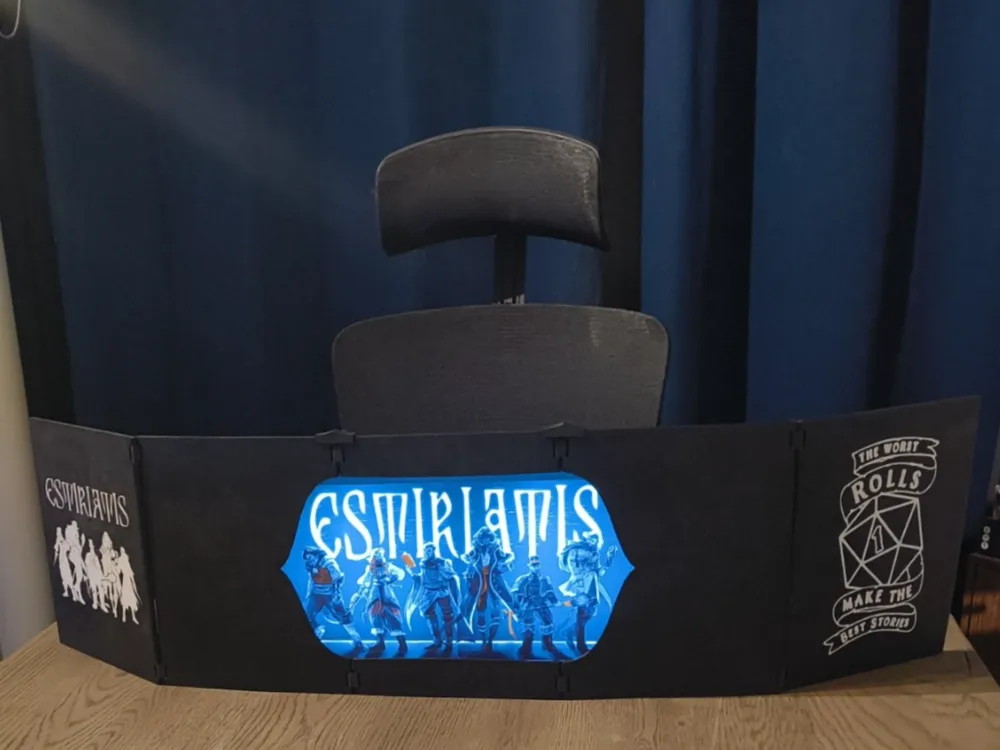

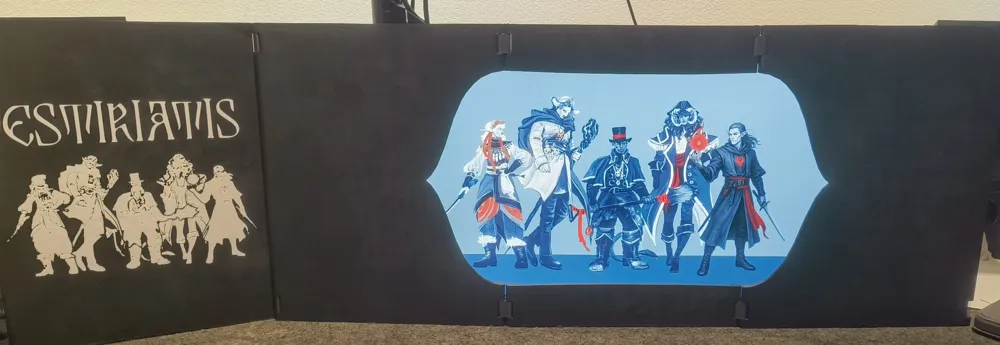

A mighty Game Master / Dungeon Master Screen, crafted with an optional cut‑out for a portable monitor (I’m using an Azorpa 15.6 or 16.1 inch—link below for the curious adventurer). It folds up cleanly for travel or storage, and the interior serves as a hidden vault for notes, cheat‑sheets, and whatever arcane scribbles fuel your campaigns.

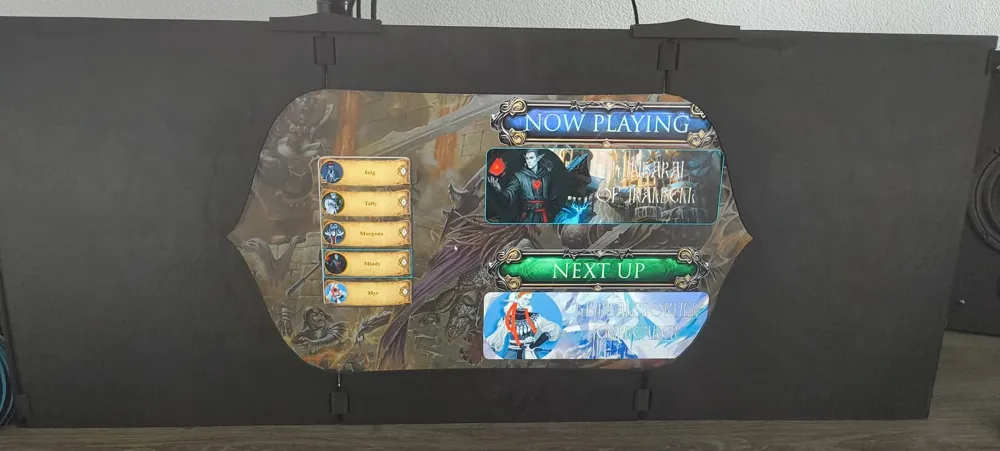

The monitor becomes your magical window to your mind: perfect for showing NPC and enemy art, setting the mood with atmospheric visuals, and when steel is drawn running an initiative tracker to keep the battle flowing.
The hinges are delightfully simple: just slide in a bit of filament or a tiny nail and you’re good to go. I run a 2 mm drill bit through all the holes to clean them up—usually they hold perfectly, but a dab of glue can tame any rebellious ones.
You’ll find multiple versions of the screen included. The monitor cut‑out is completely optional, and there are panels both with artwork and without. Mix, match, and build your own DM fortress.
Want a longer screen? Just chain together as many “Middle” panels as your heart desires. Just remember to print enough hinges to keep the whole contraption standing proud.
If you want to use different art you can replace the SVG's I used by following the steps below:

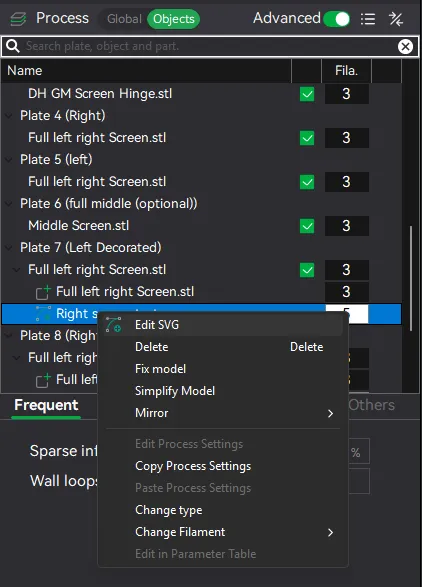

select the SVG you want to replace in the objects panel and right click > edit SVG

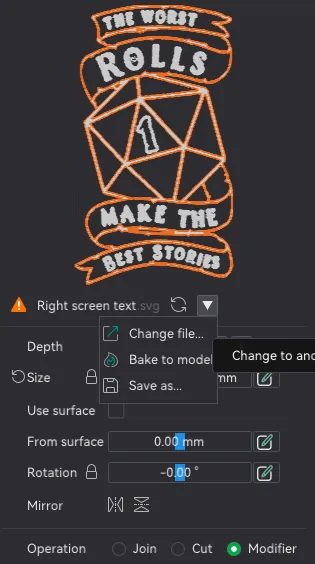

Use the drop down arrow in the pop-up and select Change file and select your own SVG
My model is based on CAD Geek | Home - MakerWorld's model. So if you don't use any of my adaptations, go with their model.
This remix is based on
