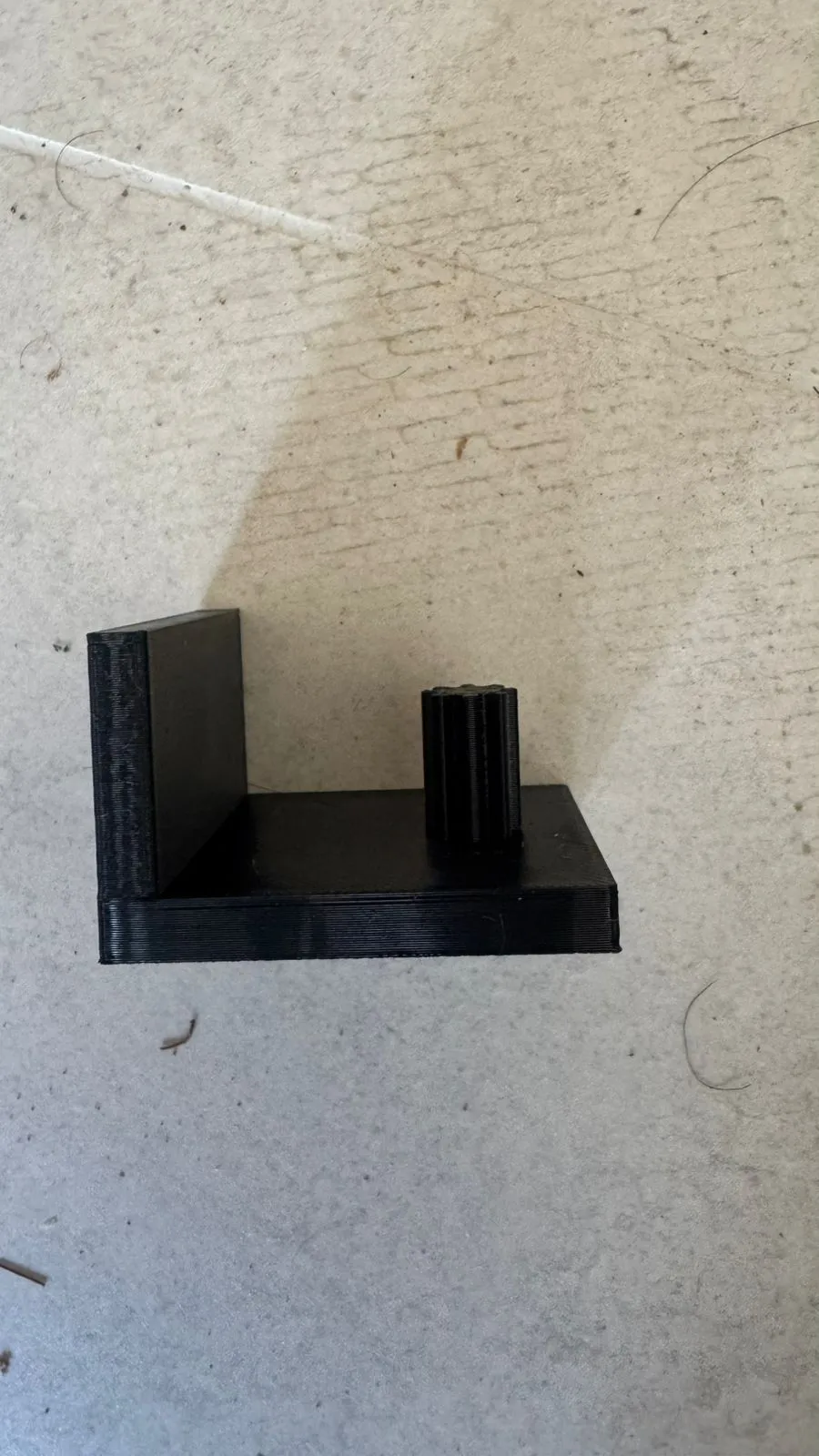

Replacement bracket for Zemismart ZM25TQ motorized blind/shade motor. Designed to replace the original broken bracket, featuring a reinforced design and square gear teeth for better grip and durability.

Technical Specifications

Base:
- Length: 45mm
- Width: 40mm
- Thickness: 5.5mm

Mounting Tab:
- Height: 23mm
- Thickness: 5.5mm

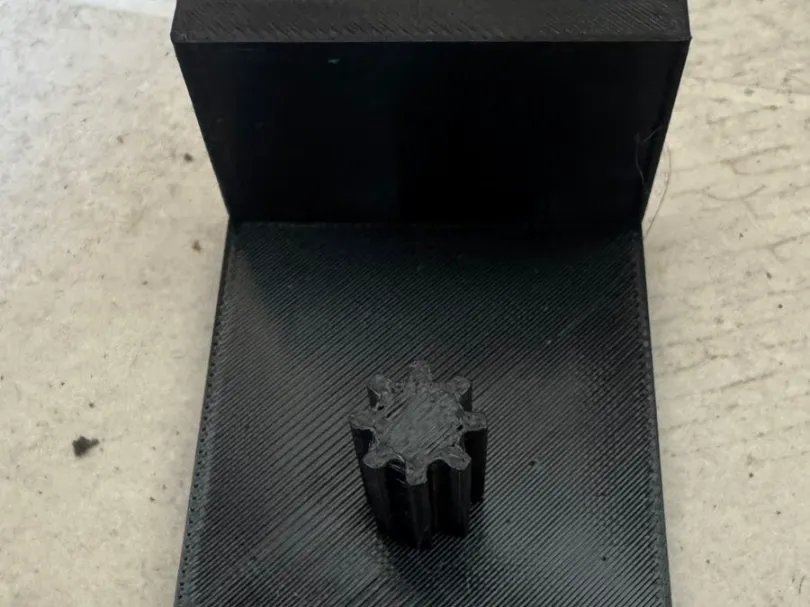

Gear:
- Total diameter: 10mm
- Height: 14.4mm
- 8 square teeth (1.6mm each)
- Solid center cylinder for increased strength

Recommended Print Settings

- Material: PETG or ABS (recommended for durability)
- Infill: 80-100%
- Walls: 3-4
- Orientation: Base down (gear facing up)

Compatibility

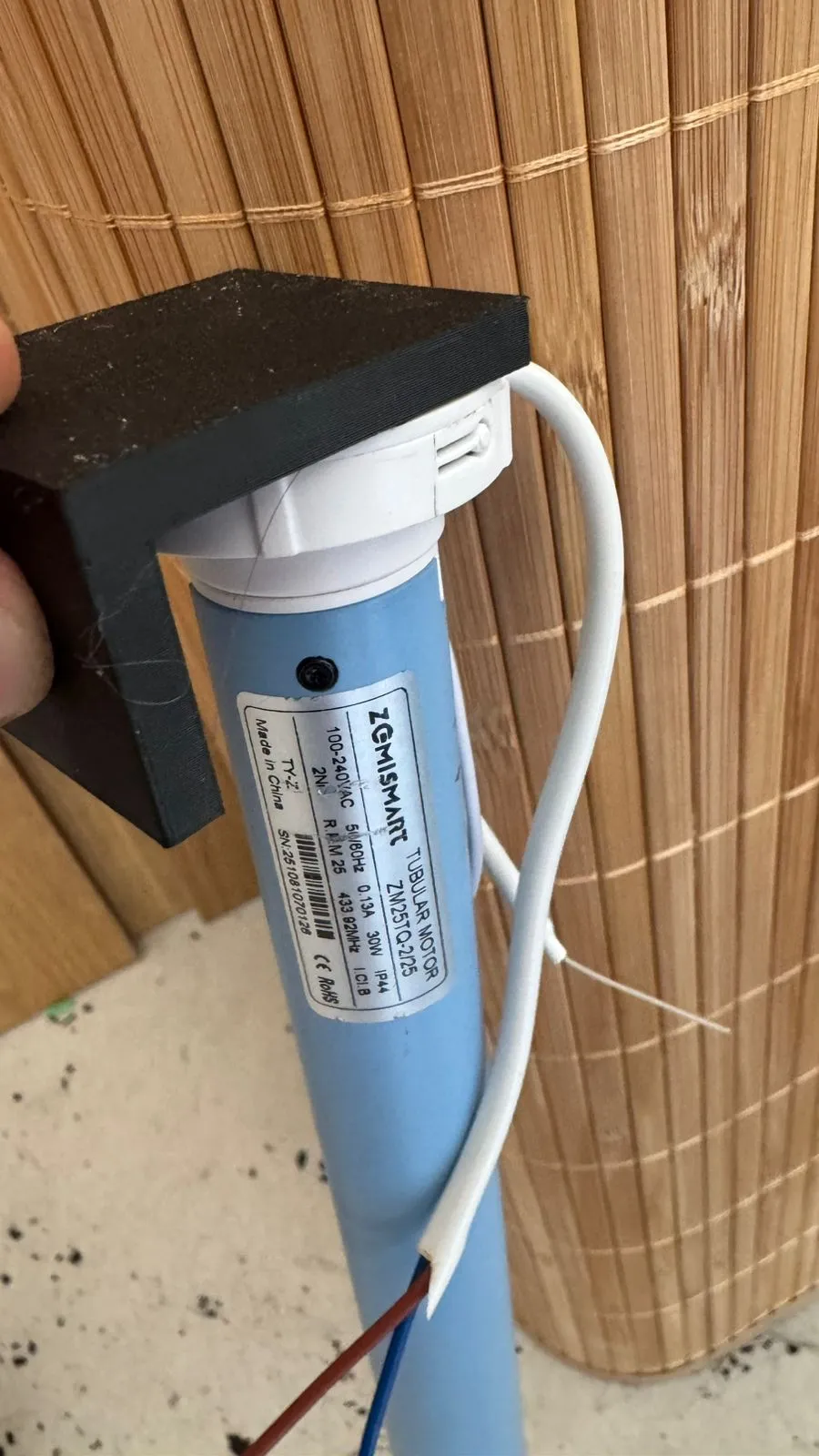

- Zemismart ZM25TQ motor
- Standard 25mm blind/shade rails

Designed in Blender 5.0.1
