Waveshare ESP32-S3-Zero + LED button enclosure
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
4
19
0
0
10
0
Released
Bill of Materials
List other parts
- Waveshare ESP32-S3-ZERO x 1:

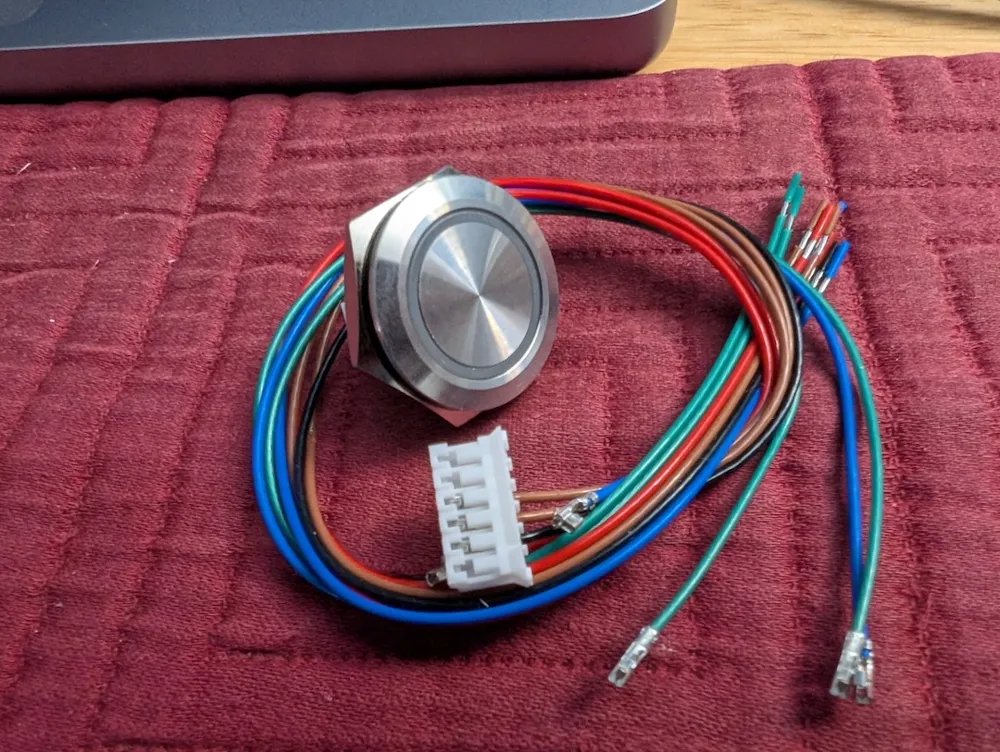

- FILN Momentary Push Button Switch x 1:
Description

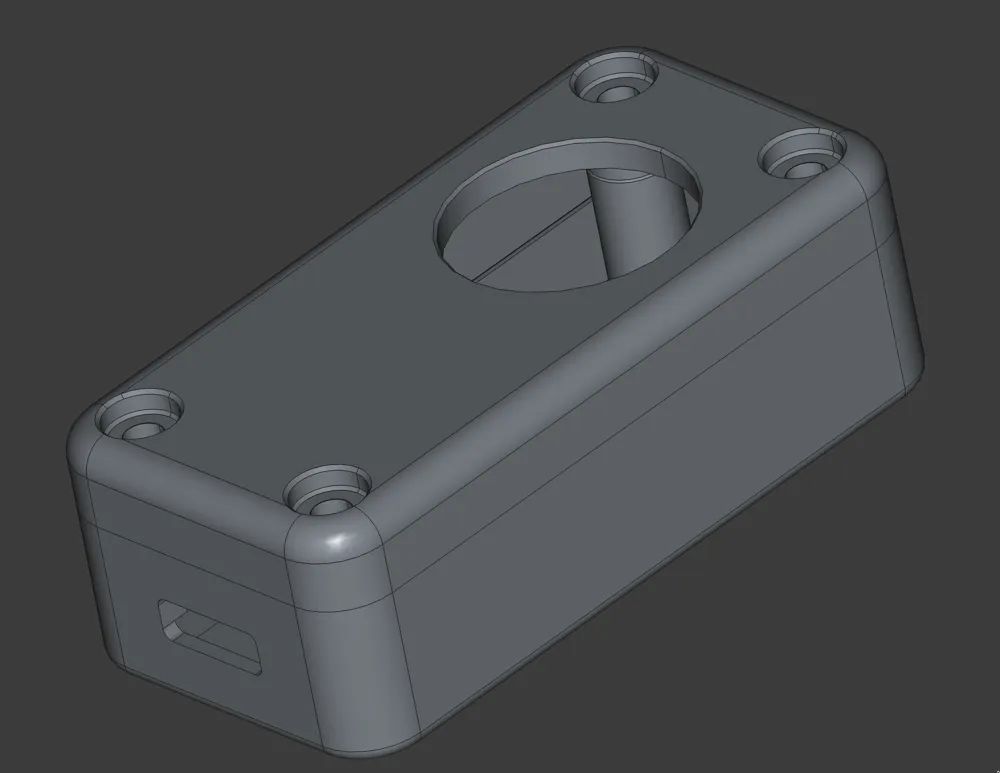

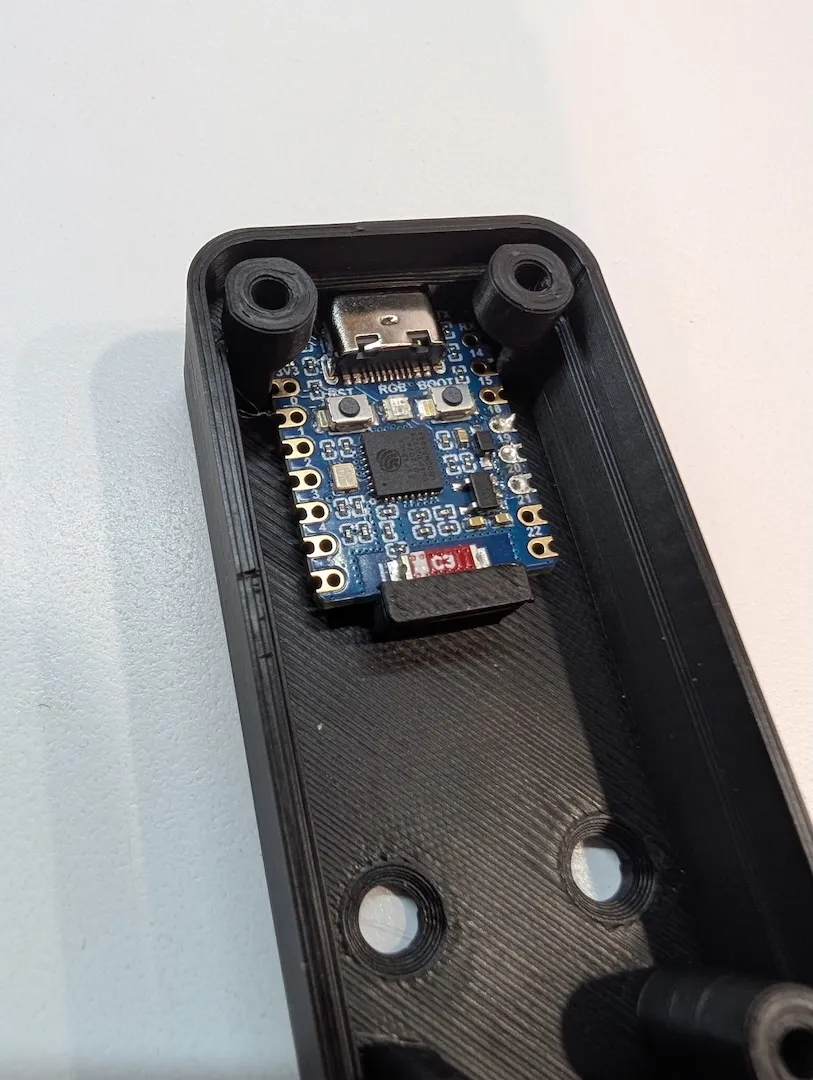

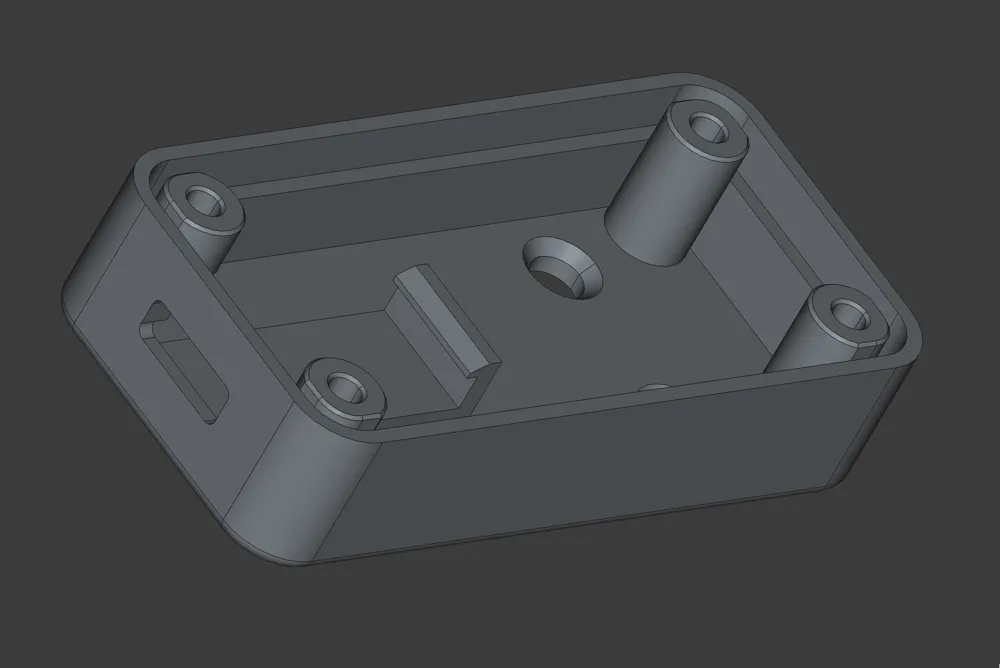

Enclosure for a button (momentary switch) connected to a Waveshare ESP32-S3-ZERO dev board.

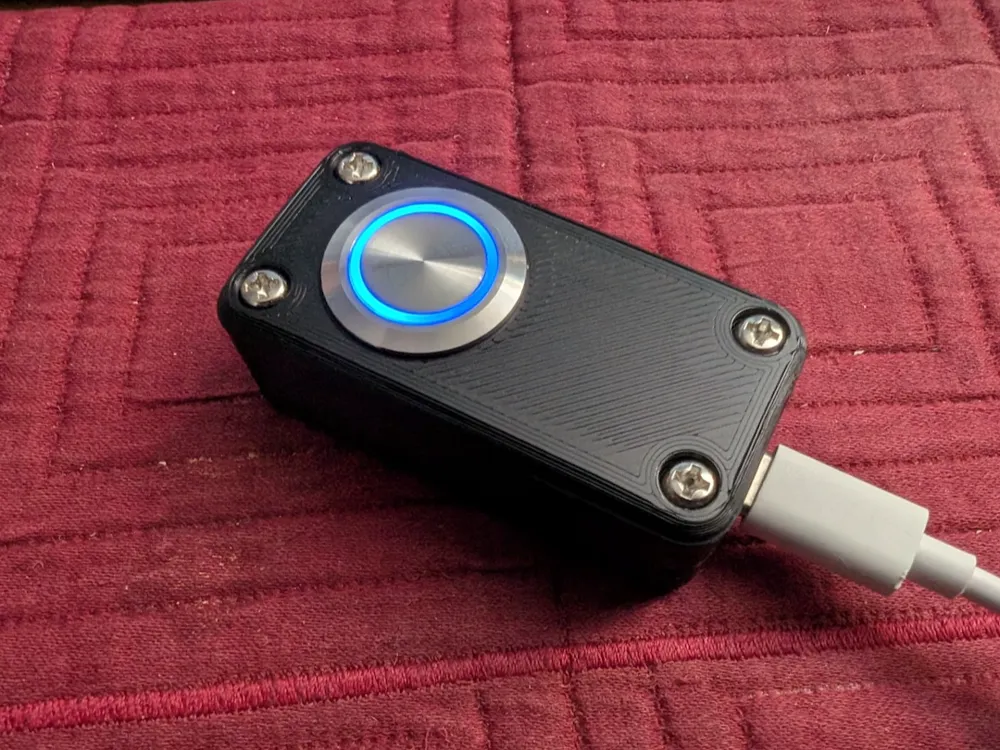

For my project I'm running ESPHome on the esp32. The button has an RGB LED ring and it's all talking to Home Assistant over wifi.
Full documentation is available here: https://github.com/kdmukai/esphome_led_button
