Reverse Scale T0 Launcher Adjustable Switch
Print Profile(1)
Description

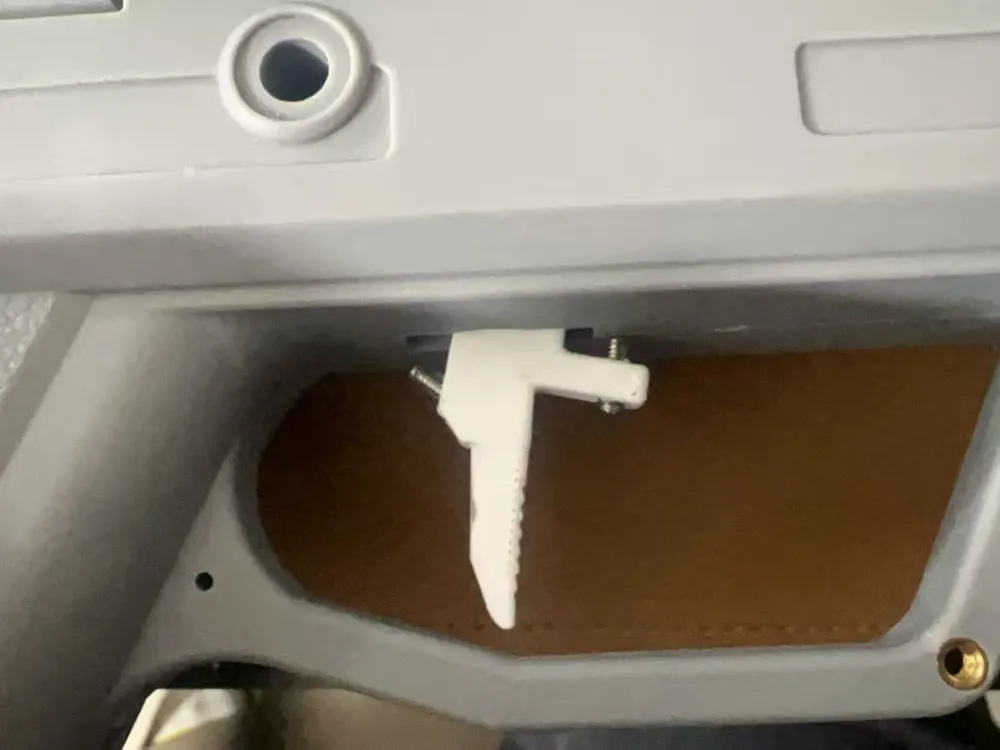

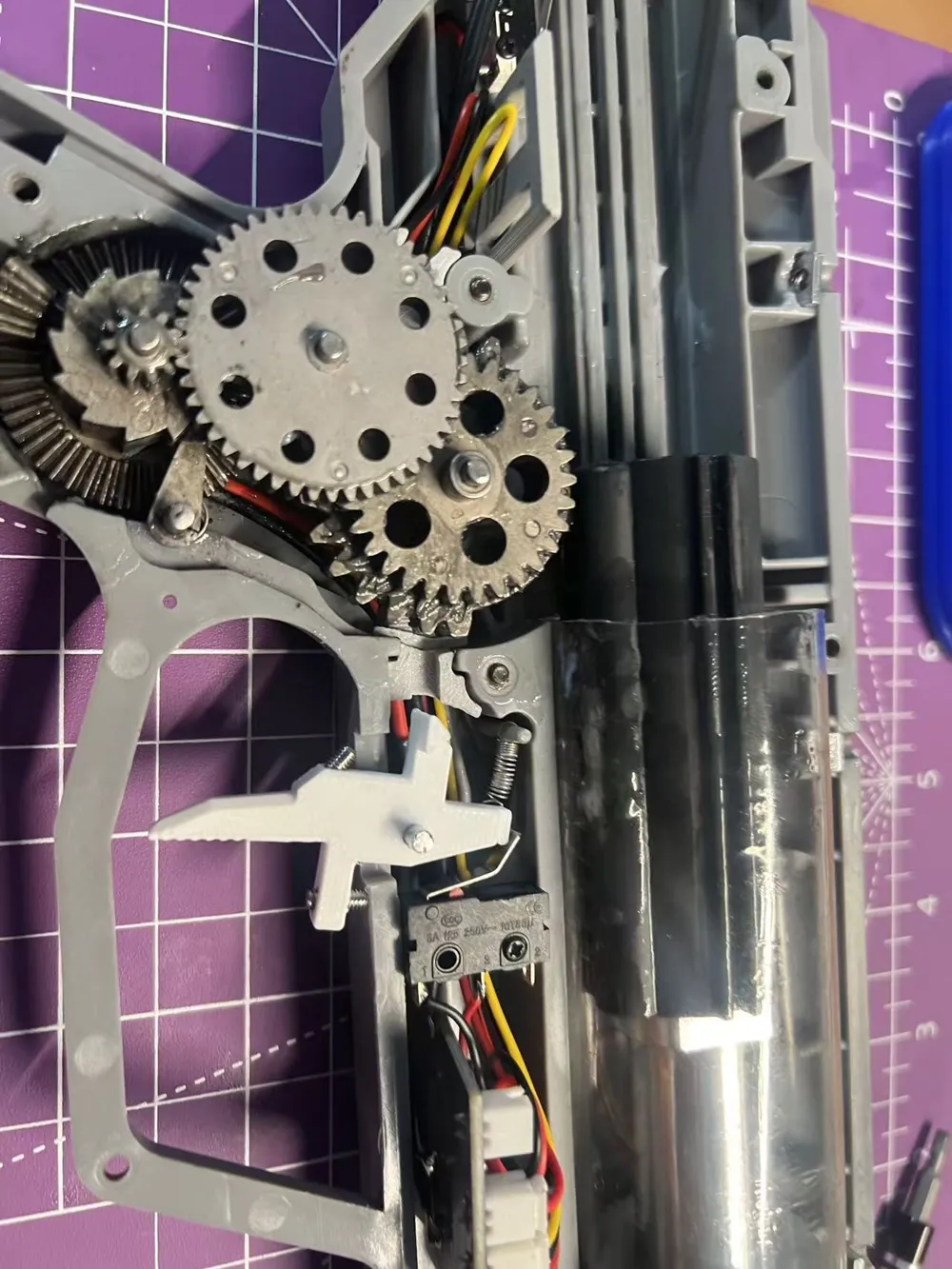

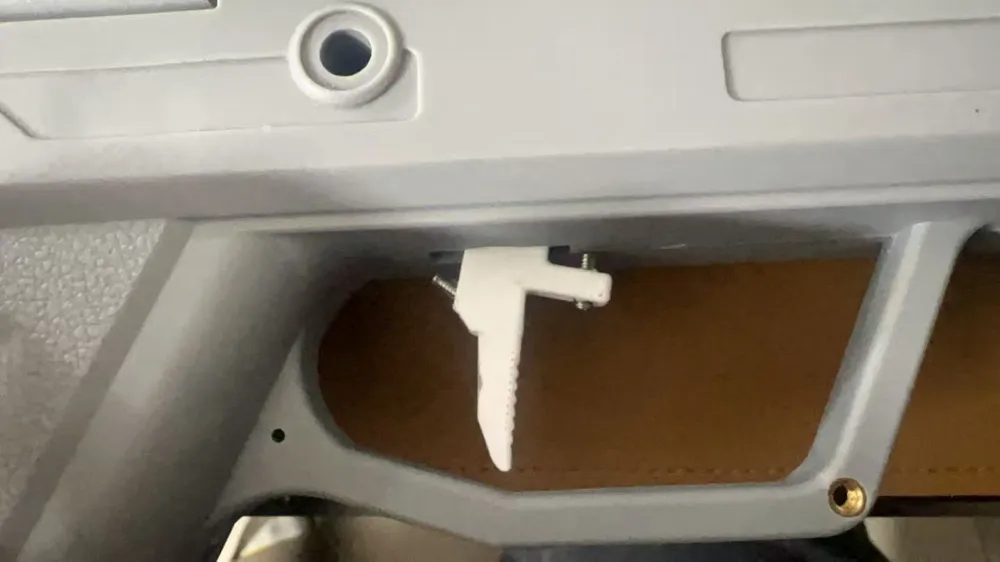

Adjustable switch for the T0 launcher,
Hardware:
M3 pins, forgot to measure the length, used pins directly disassembled from the No. 2 wave switch.
M3*10 machine screws for the front, M3*8 machine screws for the back (two M3*10 also work, the back cannot be shorter than 10mm)
There are two plates in the print file, one is a test and the other is a thickened 6.2mm version, because disassembly and the wave mechanism are a bit troublesome, the thickened version hasn't been tested, but the measured frame clearance is around 2mm, so theoretically there should be no problem.
